Best Aluminum Awning Window 012,Aluminum Awning Window 012 Exporters

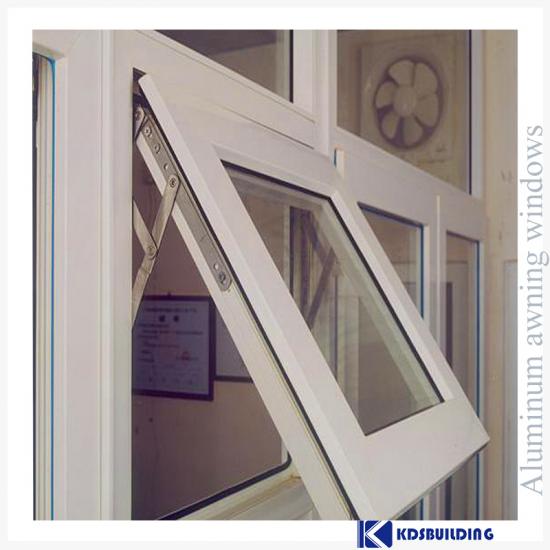

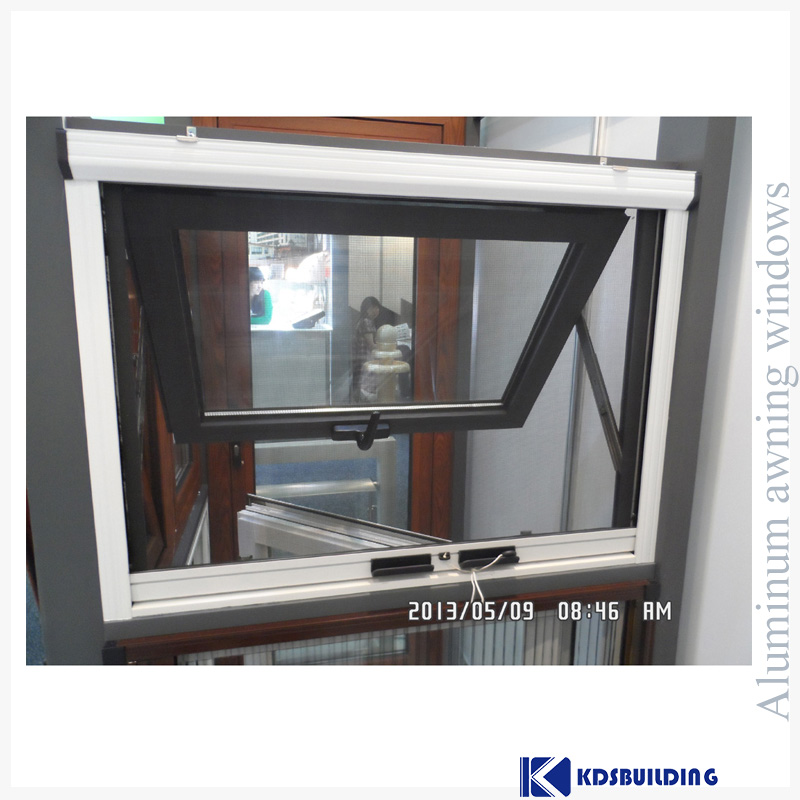

Aluminum awning window 012

KDSBUILDING supply factory direct sale aluminum awning window 012.

Aluminum awning windows are widely used due to their strong structure and excellent sealing performance. The top-hinged design ensures smooth airflow and improved indoor air quality. Aluminum profiles provide durability, resistance to corrosion, and compatibility with various glass configurations for enhanced thermal performance.

series: 55 series thermal break

opening style: Awning

Glass: 5mm+9A+5mm clear tempered glass

Color: white

Certification: NFRC, AAMA, CE, TITLE 24, AS2047

U-Factor ≤ 0.3

SHGC ≤ 0.23

Item NO.:
KDS-W-A-A-012
Payment:
L/C, T/T
Product Origin:
China
Color:
Customized
Shipping Port:
XIAMEN
Lead Time:
15-25 DAYS

Inquiry now

Product Detail

Technical Specification – Aluminum Windows & Doors
Profile System
Classify	Technical Parameter	Other Options
Material	6063-T5 Aluminum Alloy	6063-T6
Structure	Thermal break aluminum profile	Non-thermal break
Profile thickness	1.6 mm	1.4 mm, 1.8 mm, 2.0 mm
Finish	Powder coating	PVDF coating, Anodizing, Wood grain transfer
Color	White / Black / Grey	Custom RAL colors
Glazing System
Glass type	5mm + 12A + 5mm Double Glazing	Single glass, Triple glazing
Glass color	Clear	Tinted, Blue, Green, Grey
Gas filling	Argon	Air, Krypton
Special function	Tempered glass	Low-E, Laminated, Soundproof, Security glass
Hardware & Operation
Hardware brand	Chinese top brand	Roto, Siegenia, Kinlong
Main hardware	Lock, handle, hinge, roller	Heavy-duty hardware set
Locking system	Multi-point locking system	Single point, Crescent lock
Operation	Sliding / Casement / Tilt & Turn/awning/single&double hung	Folding, Lift & Slide,fixed
Sealing	EPDM gasket	Silicone, PVC gasket
Performance Ratings
U-Factor	≤ 0.35	≤ 0.28 with triple glass
SHGC	≤ 0.25	Low-E glass for better SHGC
Wind load	≥ 3000 Pa	≥ 4500 Pa
Water tightness	≥ 450 Pa	≥ 500 Pa
Air tightness	≤ 0.5 m³/(m²·h)	≤ 0.3 m³/(m²·h)
Manufacturing Service
Size range	Width: 500–3000 mm Height: 500–3000 mm	Customized size
Application	Residential & Commercial	High-rise, Villa, Apartment
Warranty	5 Years	Excluding human damage
Certification	CE, NFRC, AS2047, TITLE 24, AAMA	ISO9001

design aluminium windows specifications aluminum window part

aluminum window part technology process

Exhibitions and customer visits
