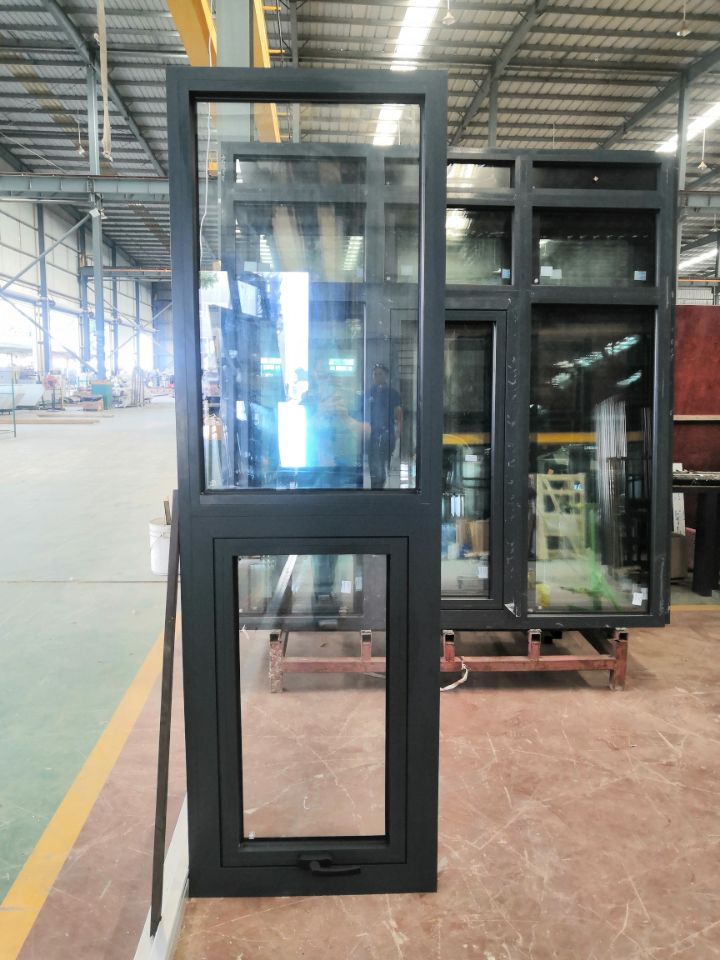

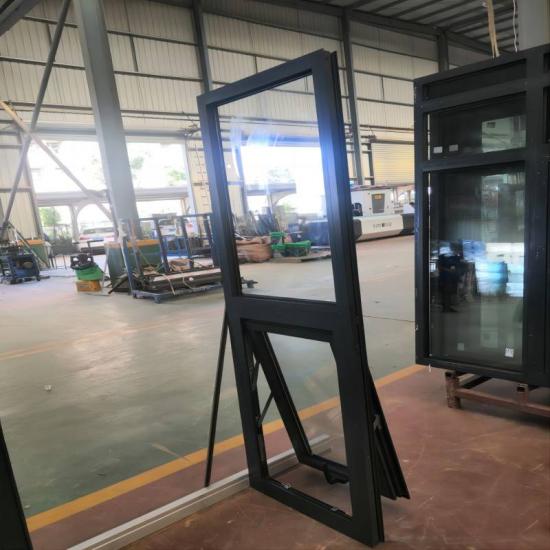

Aluminum awning windows are top-hinged and open outward, allowing effective ventilation even during rainy weather. The aluminum frame provides excellent strength, corrosion resistance, and long service life. With tight sealing and modern hardware, this window type delivers reliable weather protection, energy efficiency, and smooth operation for residential and commercial buildings.
series: 55 series thermal break
opening style: Awning
Glass: 5mm+9A+5mm clear tempered glass
Color: white
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.23
Item NO.:
KDS-W-A-A-012-2Payment:
TTprice:
$80/square metersProduct Origin:
ChinaColor:
RAL colorShipping Port:
ChinaLead Time:
15-30daysOrder(MOQ):
1m2
| Technical Specification – Aluminum Windows & Doors | ||
| Profile System | ||
| Classify | Technical Parameter | Other Options |
| Material | 6063-T5 Aluminum Alloy | 6063-T6 |
| Structure | Thermal break aluminum profile | Non-thermal break |
| Profile thickness | 1.6 mm | 1.4 mm, 1.8 mm, 2.0 mm |
| Finish | Powder coating | PVDF coating, Anodizing, Wood grain transfer |
| Color | White / Black / Grey | Custom RAL colors |
| Glazing System | ||
| Glass type | 5mm + 12A + 5mm Double Glazing | Single glass, Triple glazing |
| Glass color | Clear | Tinted, Blue, Green, Grey |
| Gas filling | Argon | Air, Krypton |
| Special function | Tempered glass | Low-E, Laminated, Soundproof, Security glass |
| Hardware & Operation | ||
| Hardware brand | Chinese top brand | Roto, Siegenia, Kinlong |

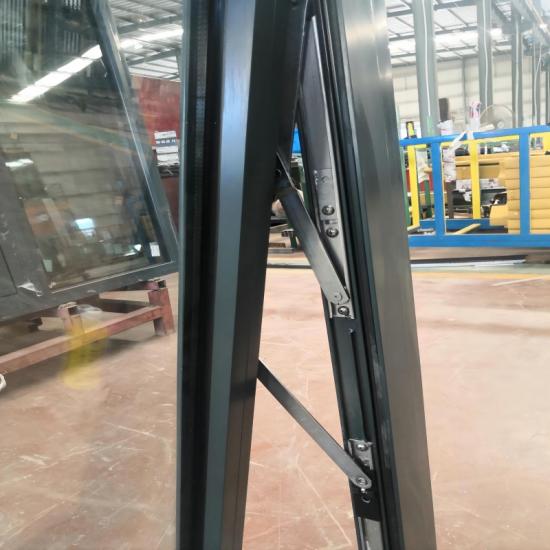

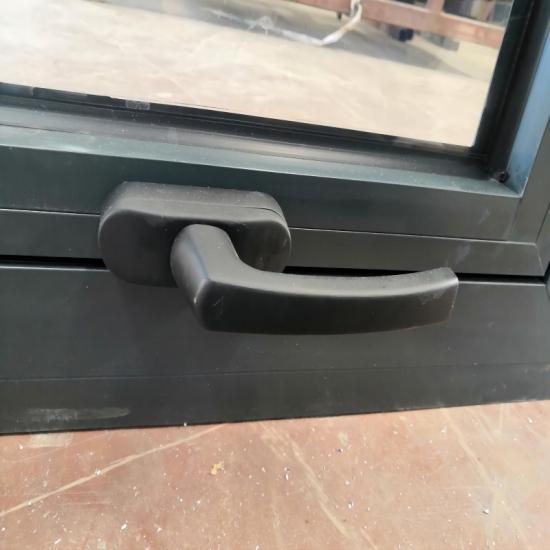

| Main hardware | Lock, handle, hinge, roller | Heavy-duty hardware set |
| Locking system | Multi-point locking system | Single point, Crescent lock |
| Operation | Sliding / Casement / Tilt & Turn/awning/single&double hung | Folding, Lift & Slide,fixed |
| Sealing | EPDM gasket | Silicone, PVC gasket |
| Performance Ratings | ||
| U-Factor | ≤ 0.35 | ≤ 0.28 with triple glass |
| SHGC | ≤ 0.25 | Low-E glass for better SHGC |
| Wind load | ≥ 3000 Pa | ≥ 4500 Pa |
| Water tightness | ≥ 450 Pa | ≥ 500 Pa |
| Air tightness | ≤ 0.5 m³/(m²·h) | ≤ 0.3 m³/(m²·h) |
| Manufacturing Service | ||
| Size range | Width: 500–3000 mm Height: 500–3000 mm | Customized size |
| Application | Residential & Commercial | High-rise, Villa, Apartment |
| Warranty | 5 Years | Excluding human damage |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA | ISO9001 |

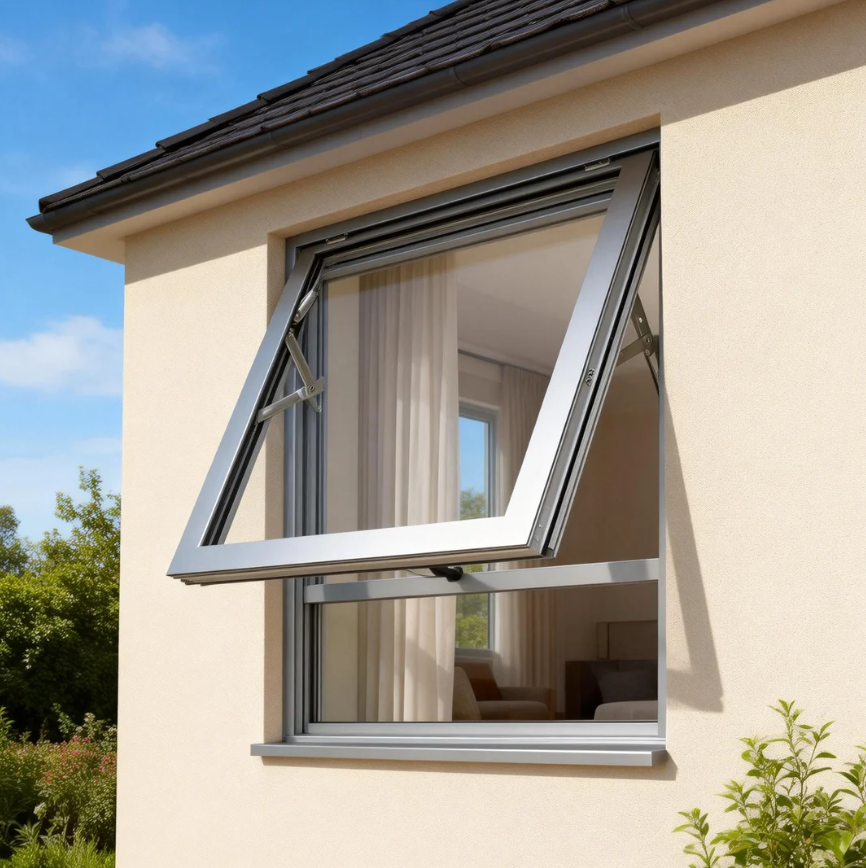

Awning window is a special type of aluminum alloy doors and Windows. The sash of the suspended window can be tilted outward or inward to open at a certain Angle, preserving the ventilation function while avoiding occupying indoor and outdoor space when fully opened. The design of the suspended window makes it have a good anti-theft performance, because even if the window sash is broken, it can not easily enter the room from the outside. However, the awning window has a limited opening Angle and may not be able to meet some special ventilation needs
