| Brand Name |
KDSBUILDING (China) |

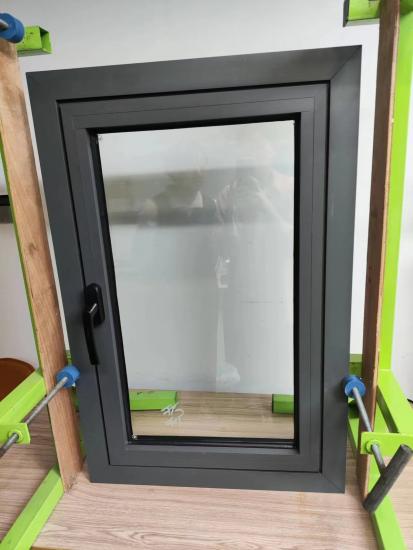

| Product Series | Aluminum Casement (Swing) Windows |
| Profile Type | 6063-T5 Aluminum Profile,Thermal Break & No Thermal Break Profile of international top brand |
| Profile Color | Normal Colors:White,Grey,Matt Black,Wood Grain,etc |
| Accessory | International qualified hardware of Germany,America,Australia,China Top Brands,etc |
| Grille | Grille is made of aluminum or UPVC profile,placed between the panes of the insulating glasses. |
| Screen | Fiberglass / Nylon / Stainless steel mesh & Rolling shutter outside are available. |
| Certificate | AS2047 & AS/NZS2208 & AS1288,GBT7106 & GBT8478 |
| Function | Good Insulation,Watertight,Wind Resistance,Anti-ultraviolet,Anti-thief,Durable,Anti-aging,High Strength |
| Application |
Application:Commercial buildings and residential buildings including offices, hotels, hospitals, schools, supermarkets, factories, apartments, villas, houses, etc. |
Item NO.:
KDS-26Payment:
After receive 50% dispot arrange produceMarket Price:
120price:
$65/Square meterProduct Origin:
chinaColor:
grayShipping Port:
xiamenLead Time:
20-50daysGoods Stock:
10Order(MOQ):
2Product weight:
10000Technical Specification:
| Classify | Technical parameter | Other Options |
| Profile system |
|
|
| Material | 6063-T5 Aluminum | 6063-T5, 6063-T6 |
| Structure | Thermal break | Thermal break, non thermal break |
| thickness | 1.6mm | 1.4mm, 1.8mm, 2.0mm |
| Finish | Powder coating | PVDF coating, Anodizing |
| Glazing system |
|
|
| Glass type | 5mm+9A+5mm | Single Glass, Triple Glass |
| Glass color | Clear | Tinted, blue, green, grey etc |
| Gas Filling | Argon | Air, Argon |
| Special function | Tempered | Low-e, laminated, bullet proof etc |
| Hardware&Operation |
|
|
| Hardware Brand | Chinese top brand Hardware | King long, Roto etc. |

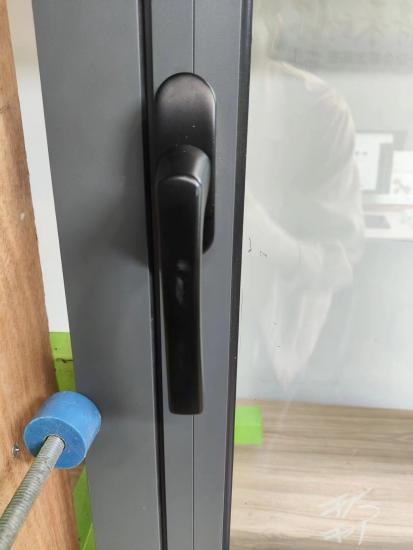

| Main Hardware | lock,D-type handle, lock, roller | King long Brand |
| Locking system |
flush pull lock |
Multi-Point Locking System,Hook Lock, Cylinder Key Lock, D-Handle / Pull Handle with Key Lock etc |
| Sealing | EPDM | EPDM, PVC |
| Performance Ratings |
|
|
| U-Factor |
≤ 0.3 |
/ |
| SHGC |
SHGC ≤ 0.23 |
/ |
| Wind load |
≥ 4500 pa |
/ |
| Water Tightness |
≥ 450 pa |
/ |
| Air Tightness |
≤ 0.4 m3(㎡.h) |
/ |
| Manufacturing Service |
|
|
| Size Range | Sash width: 750-2000 mm, Sash height: 750-3000mm | / |
| Warranty | 5 Year | except damage caused by human |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA | / |
