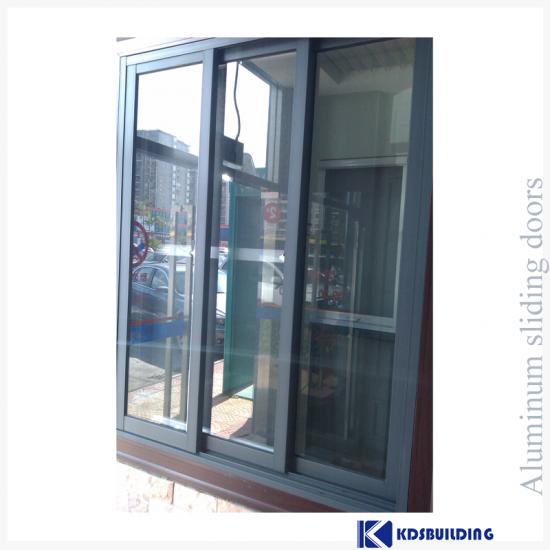

4 panel sliding door has four door panels for large entrance room.
This aluminum sliding door is designed to meet both functional and aesthetic demands. The durable aluminum structure ensures long-term performance, while smooth sliding mechanisms provide user comfort. It is suitable for residential and commercial projects requiring space efficiency and modern design.
series: 73 series thermal break
opening style: sliding
Glass: 5mm+9A+5mm clear tempered glass
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.23
Item NO.:
KDS-D-A-S-009Payment:
L/C,D/A,D/P,T/T,Western Union,MoneyGramMarket Price:
165Product Origin:
ChinaColor:
As shownShipping Port:
XIAMENLead Time:
15-25 DAYSOrder(MOQ):
1

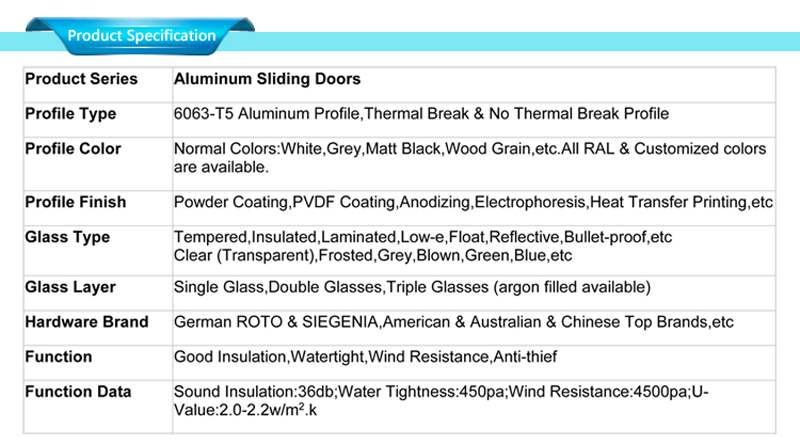

| Technical Specification – Aluminum Windows & Doors | ||
| Profile System | ||
| Classify | Technical Parameter | Other Options |
| Material | 6063-T5 Aluminum Alloy | 6063-T6 |

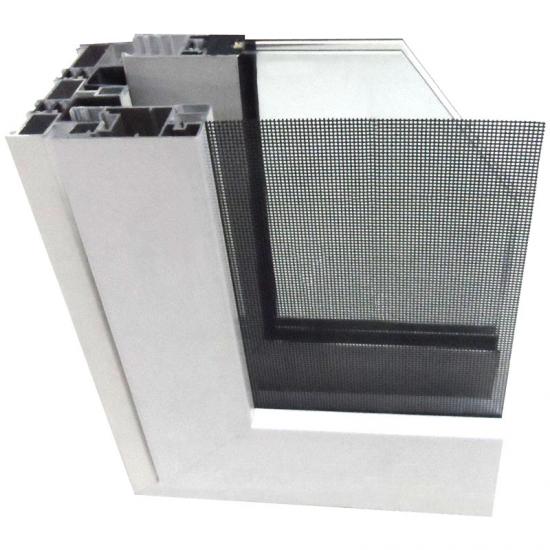

| Structure | Thermal break aluminum profile | Non-thermal break |
| Profile thickness | 1.6 mm | 1.4 mm, 1.8 mm, 2.0 mm |
| Finish | Powder coating | PVDF coating, Anodizing, Wood grain transfer |
| Color | White / Black / Grey | Custom RAL colors |
| Glazing System | ||
| Glass type | 5mm + 12A + 5mm Double Glazing | Single glass, Triple glazing |
| Glass color | Clear | Tinted, Blue, Green, Grey |
| Gas filling | Argon | Air, Krypton |
| Special function | Tempered glass | Low-E, Laminated, Soundproof, Security glass |
| Hardware & Operation | ||
| Hardware brand | Chinese top brand | Roto, Siegenia, Kinlong |

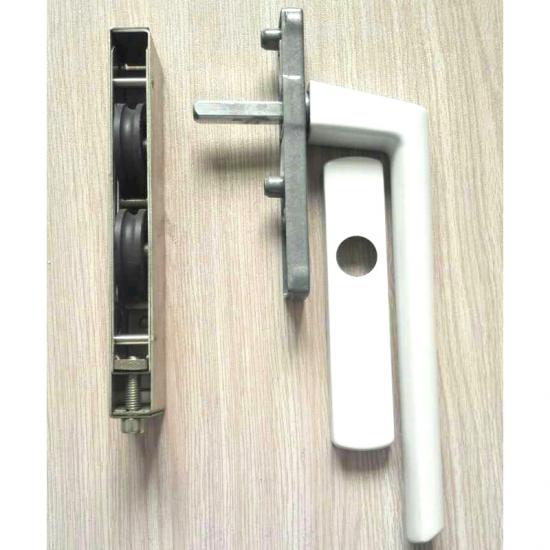

| Main hardware | Lock, handle, hinge, roller | Heavy-duty hardware set |

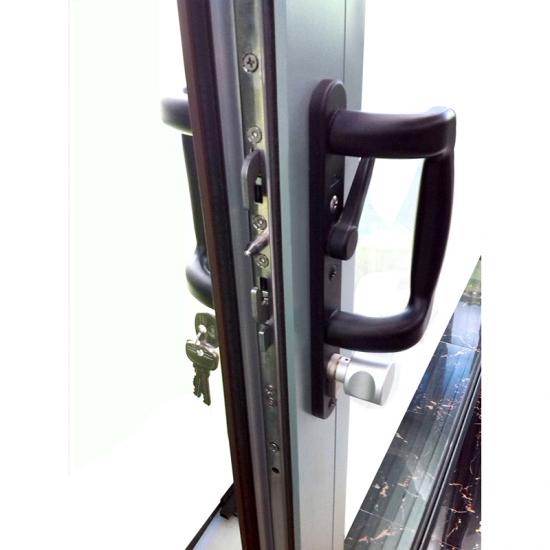

| Locking system | Multi-point locking system | Single point, Crescent lock |
| Operation | sliding | Folding, Lift & Slide |
| Sealing | EPDM gasket | Silicone, PVC gasket |
| Performance Ratings | ||
| U-Factor | ≤ 0.35 | ≤ 0.28 with triple glass |
| SHGC | ≤ 0.25 | Low-E glass for better SHGC |
| Wind load | ≥ 3000 Pa | ≥ 4500 Pa |
| Water tightness | ≥ 450 Pa | ≥ 500 Pa |
| Air tightness | ≤ 0.5 m³/(m²·h) | ≤ 0.3 m³/(m²·h) |
| Manufacturing Service | ||
| Size range | Width: 500–3000 mm Height: 500–3000 mm | Customized size |
| Application | Residential & Commercial | High-rise, Villa, Apartment |
| Warranty | 5 Years | Excluding human damage |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA | ISO9001 |

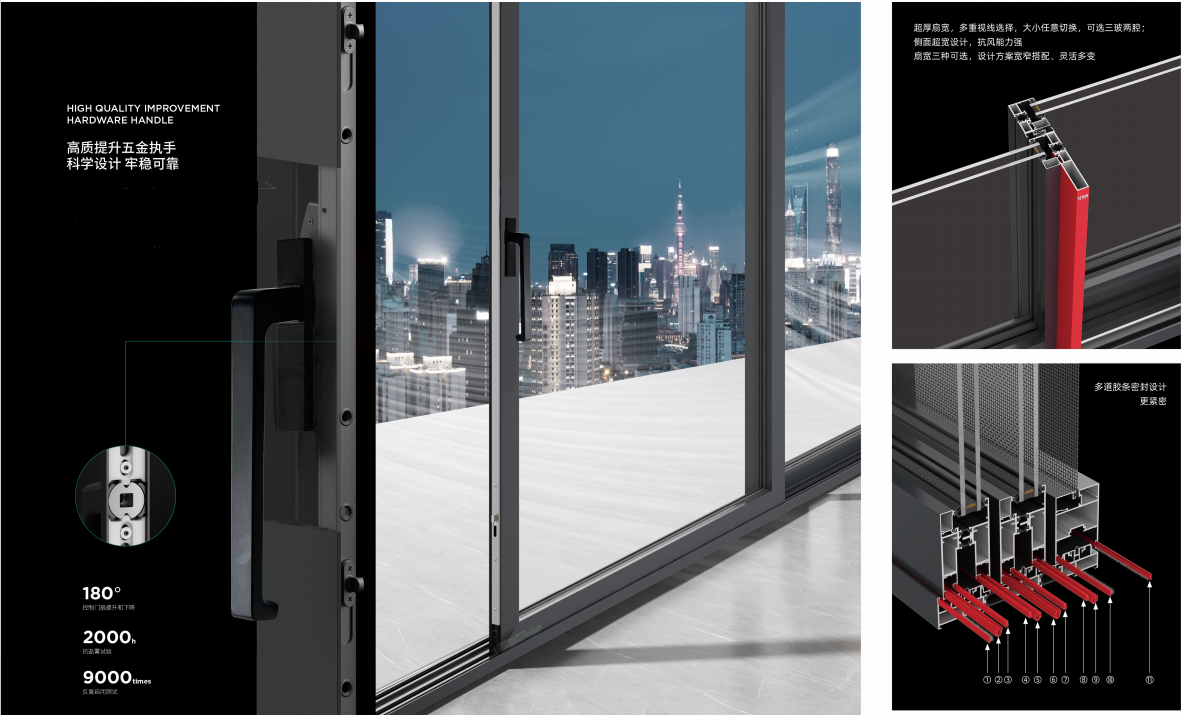

product detail
Good sealing performance:Airtight performance directly affects the use function and energy consumption of doors and windows. Airtight properties include water tightness,air tightness,heat insulation,sound insulation and other four aspects.
Long service life. Aluminum double swing aluminum door due to light weight.
High density. Precision processing and assembly. Accurate, thus open and close light and flexible, no noise, easy to use and maintenance, corrosion resistance, small deformation, strong fire performance, long service life (30 years - 100 years).
FAQ
Aluminum Glass Windows And Doors
Q1:What are the colors of your aluminum window and door profiles?
Normal Colors:White,Grey,Matt Black,Wood Grain,etc.AII RAL&Customized colors are available.Please show us your needed colors.
Q2:What are the types of your window and door glasses?
1.Type:Tempered,Insulated,Laminated,Low-e,Float,Reflective,Bullet proof,etc
2.Layer:Single /Double /Triplex Glasses for reducing summer heat load and winter heat loss.
3.Color:Clear (Transparent),Frosted,Grey,Blown,Green,Blue,etc
4.Thickness:4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
5.Insulated Glass Spacer:6A,9A,12A,15A,16A
Standard Insulated Glass:5mm+9A/12A+5mm,6mm+9A/12A+6mm with argon gas filled inside.
Standard Laminated Glass:5mm+0.38PVB+5mm,5mm+0.76PVB+5mm
6.Quality Standard:European standard CE,Australian standard AS2208,Chinese standard CCC.
Q3:What are the types of your window and door accessories?
1.Brand:German,American,Australian and Chinese Top Brands,etc
2.Accessories:handles,hinges,locks,rollers,in cage devices,etc.
Q4:What are the package types of your windows and doors?
1.Steps:
(1)Use air blow gun and thinner to clean products surface.
(2)Use Air bubble film/PE film/EPE foam to wrap products against sea water corrosion.
(3)Use craft paper /corrugated paper to protect product four corners.
(4)Load FCL Packing products into container directly.(Note:Use container lashing belt to fasten FCL packing irregular goods.)
(5)Load LCL Packing products into plywood cases /iron pallets with packing belt,then into contain-er.(FCL:full container load;LCL:less than a container load)
2.List:Pallet list for each pallet of a large amount purchase,saving time for you to sort out each window or door.
Q5:What is delivery time of your windows and doors?
Our goods are usually shipped by 20-50 workdays after payment.Different goods quantity means different delivery time.Please send your detailed windows and doors schedule to us,then we will con-firm the exact delivery time for you.
Q6:How can we install your windows and doors at our building side?
We can offer the detailed windows and doors installation drawing for you.We also have our professional installation team in Australia and Philippines who can help you if you need.
Q7:This is my first time to import windows and doors,how should I do?
We have 20 years exporting experience.In order to save both your time and money,we can serve you as follows.
1.We can direct a series of importing affairs for you.
2.We can supply you one-stop purchase service of various building materials if you need.
