5. Safe and reliable: Aluminum alloy casement window adopts thicker tempered glass, which can resist impact and has high safety.
6.Parameter : U-Factor ≤ 0.3 , SHGC ≤ 0.23 , Sound Insulation ≤ 36 db , Water Tightness ≥ 450 pa , Wind Resistance ≥ 4500 pa , Air Tightness ≤ 0.4 m3(㎡.h)
Item NO.:
KDS-W-A-A-021-2Payment:
TTprice:
$90/square metersProduct Origin:
ChinaColor:
RAL colorShipping Port:
ChinaLead Time:
15-30daysOrder(MOQ):
1m2

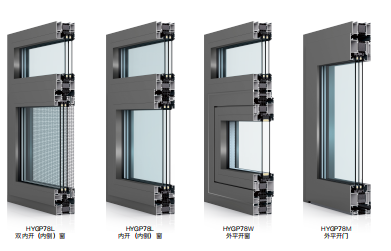

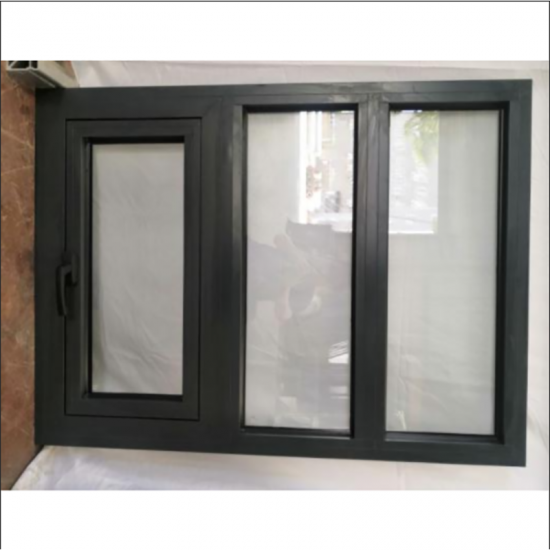

Product series : 78(3.071'') series aluminum casement (swing) window
Opening type : Casement(Swing)

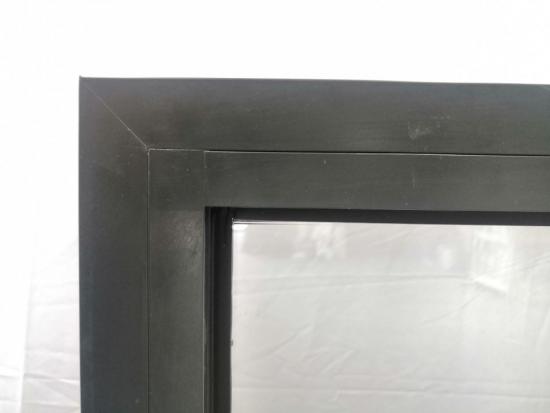

Profile type : 6063-T5 Aluminum profile, thermal break profile of International standard
Profile color : Normal colors: White , Grey, Matte Black, Wood Grain etc. All RAL & customized colors available
Profile finish : Powder coating, PVDF coating, Anodizing, Electrophoresis, Heat transfer printing etc.

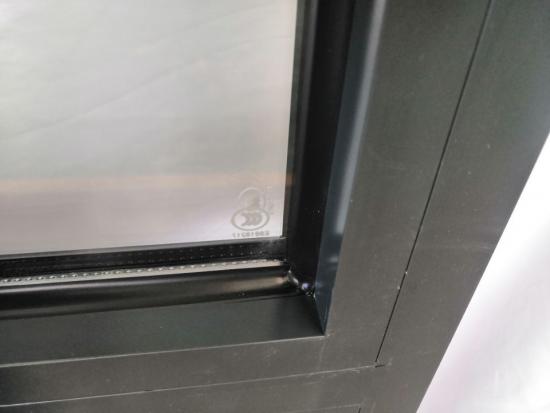

Glass type : Tempered, Insulated, Laminated, Low-e, Float, Reflective, Bullet proof etc.
Glass color : Clear(Transparent), Frosted, Grey, Brown, Green, Blue etc.

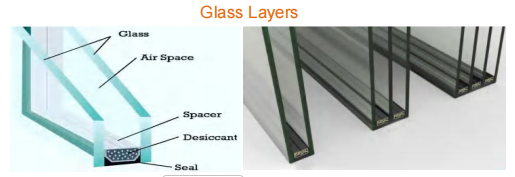

Glass Layer : Single Glass( 4mm, 5mm, 6mm, 8mm, 12mm), Double glass(5mm+9/12A+5mm, 3mm+12A+3mm, 4mm+16/20A+4mm), Triple glass(5mm+9/12A+5mm+9/12A+5mm) etc Argon filled available.

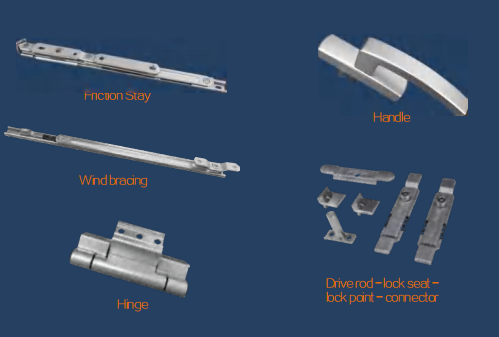

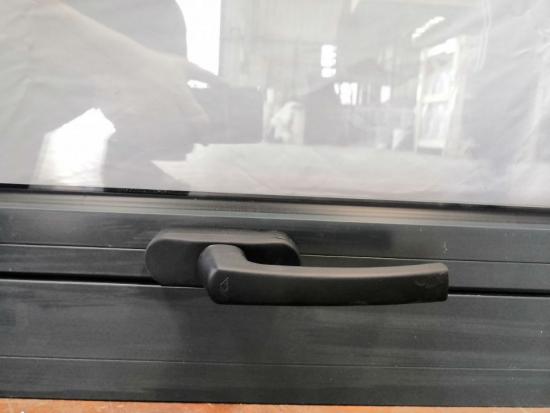

Accessory : International qualified of accessories of German, America, Australia, China etc.

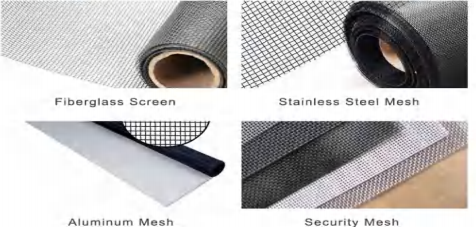

Screen : Fiberglass, Nylon, Stainless steel mesh. (Outside rolling shutter or inside casement mesh for outward casement window. Fixed or outward casement mesh for inward casement window)
Parameter : U-Factor ≤ 0.3 , SHGC ≤ 0.23 , Sound Insulation ≤ 36 db , Water Tightness ≥ 450 pa , Wind Resistance ≥ 4500 pa , Air Tightness ≤ 0.4 m3(㎡.h)
