XIAMEN KDSBUILDING MATERIAL CO.,LTD

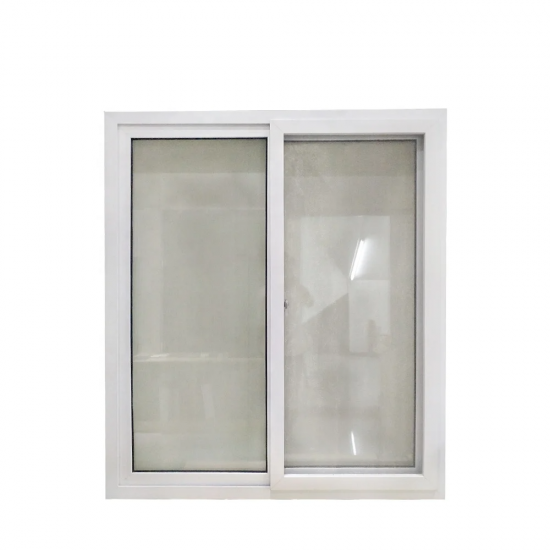

PVC Sliding window

Frame Material
Plastic
Feature
Magnetic Screen
Function
Windproof
Application
Villa
Design Style
Modern
  • Item NO.:

    kds02
  • Payment:

    After receive 50% dispot arrange produce
  • Market Price:

    80
  • price:

    $60
  • Product Origin:

    china
  • Color:

    white
  • Shipping Port:

    xiamen
  • Lead Time:

    40days
  • Order(MOQ):

    2
  • Product weight:

    12

series: 60 series PVC

opening style:  sliding

Color: white

Glass: 5mm+9A+5mm clear tempered glass

Certification: NFRC, AAMA, CE, TITLE 24, AS2047

U-Factor  ≤ 0.3

SHGC ≤ 0.23

Visible Transmittance :  0.41

Air tightness :  0.15

Nail Fin Design  :  NO

Window Screen :  With removable screen

Grille design : Yes

Technical Specification:

Classify Technical parameter Other Options
Profile system

Material PVC/UPVC/Vinyl PVC profile + steel reinforcement
Structure Multi-chamber pvc profile 3 chambers, 5 chambers, 7 chambers
thickness 1.6mm 1.2mm, 1.4mm, 2.0mm
Finish black PVC Laminated wood grain, grey, white, golden oak
Glazing system

Glass type 5mm+9A+5mm Single Glass, Triple Glass
Glass color Clear Tinted, blue, green, grey etc
Gas Filling Argon Air, Argon,Krypton
Special function Tempered Low-e, laminated, bullet proof,
soundproof glass, security glass
etc

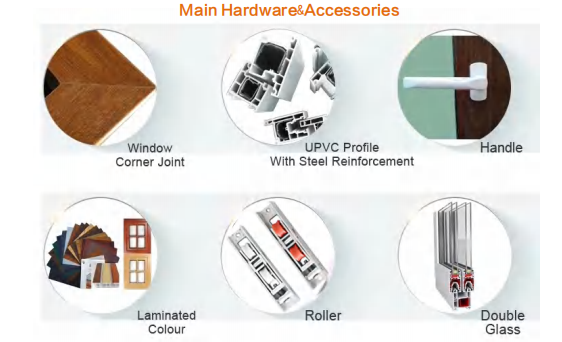

Hardware&Operation

Hardware Brand Chinese top brand Hardware Roto, Siegenia, Kinlong
Main Hardware lock,D-type handle, lock, roller Heavy-duty roller set
Locking system flush pull lock
Multi-point lock, crescent lock
Sealing EPDM Silicone, PVC gasket
Performance Ratings

U-Factor  ≤ 0.3
≤ 0.25 with triple glass
SHGC SHGC ≤ 0.23
Low-E for better SHGC
Wind load ≥ 3000 pa
≥ 4500 Pa
Water Tightness  ≥ 450 pa
≥ 500 Pa
Air Tightness ≤ 0.4 m3(.h)
≤ 0.3 m³/(m²·h)
Manufacturing Service

Size Range Sash width: 500–2000 mm  Sash height: 500–2000 mm Customized size
Warranty 5 Year except damage caused by human
Certification CE, NFRC, AS2047, TITLE 24, AAMA ISO9001


Product Detail:





PVC casement windows
1. The wall thickness of the main profile meets the requirements of the national profile standard GB/T8814-2004 and the building plastic window standard GB/T28887-2012.
2. The standard notch design improves the performance of the entire window, realizes flexible opening, convenient use and safe anti-theft functions.
3. The large cross-section design of the profile, the internal fan material adopts an integrated design, and the principle of equal pressure reduction between the outer frame and the internal fan improves the air tightness of the doors and windows, the torque resistance of the profile itself, and the impact of falling hammers.Ensure that doors and windows are not easily broken in cold areas.
4. The door frame adopts a three-cavity design with strong rigidity and independent drainage cavity to ensure smooth drainage under any circumstances;
5. The four corners of the window sash are made of reinforced stainless steel, and the 45-degree angle is more accurate.
