Air Tight Folding Aluminum Cr Door,exterior Aluminium Folding Doors

Product Detail

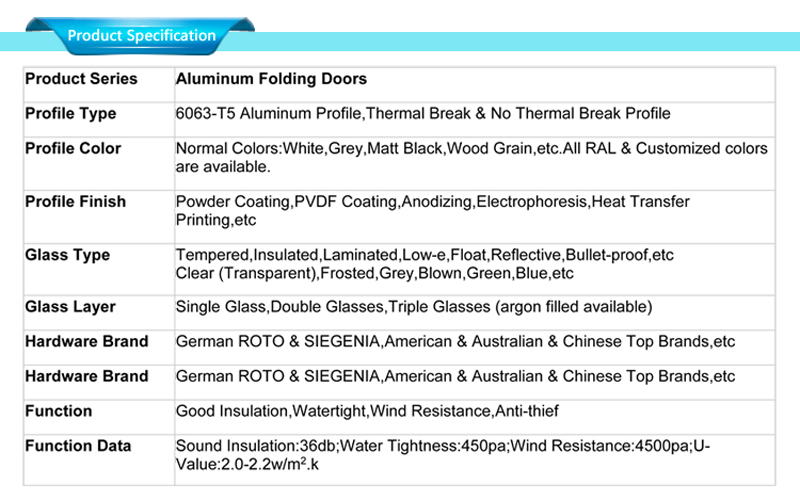

Technical Specification – Aluminum Windows & Doors

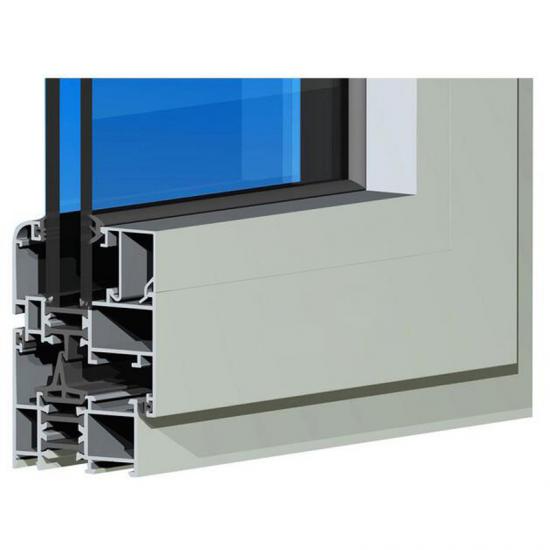

Profile System
Classify	Technical Parameter	Other Options
Material	6063-T5 Aluminum Alloy	6063-T6
Structure	Thermal break aluminum profile	Non-thermal break
Profile thickness	1.6 mm	1.4 mm, 1.8 mm, 2.0 mm
Finish	Powder coating	PVDF coating, Anodizing, Wood grain transfer
Color	White / Black / Grey	Custom RAL colors
Glazing System
Glass type	5mm + 12A + 5mm Double Glazing	Single glass, Triple glazing
Glass color	Clear	Tinted, Blue, Green, Grey
Gas filling	Argon	Air, Krypton
Special function	Tempered glass	Low-E, Laminated, Soundproof, Security glass
Hardware & Operation
Hardware brand	Chinese top brand	Roto, Siegenia, Kinlong
Main hardware	Lock, handle, hinge, roller	Heavy-duty hardware set

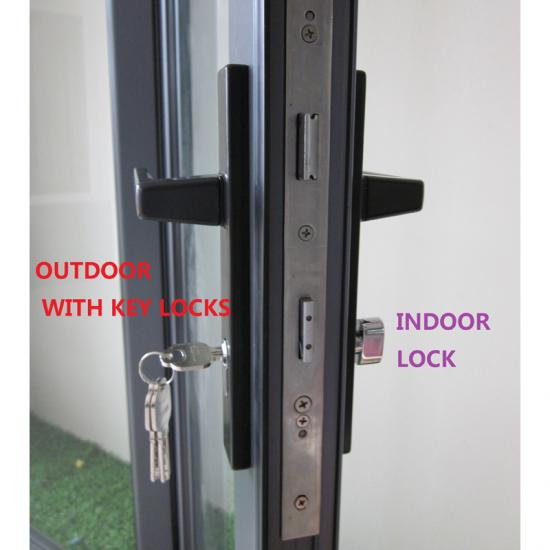

Locking system	Multi-point locking system	Single point, Crescent lock
Operation	folding	Folding, Lift & Slide
Sealing	EPDM gasket	Silicone, PVC gasket
Performance Ratings
U-Factor	≤ 0.35	≤ 0.28 with triple glass
SHGC	≤ 0.25	Low-E glass for better SHGC
Wind load	≥ 3000 Pa	≥ 4500 Pa
Water tightness	≥ 450 Pa	≥ 500 Pa
Air tightness	≤ 0.5 m³/(m²·h)	≤ 0.3 m³/(m²·h)
Manufacturing Service
Size range	Width: 500–3000 mm Height: 500–3000 mm	Customized size
Application	Residential & Commercial	High-rise, Villa, Apartment
Warranty	5 Years	Excluding human damage
Certification	CE, NFRC, AS2047, TITLE 24, AAMA	ISO9001

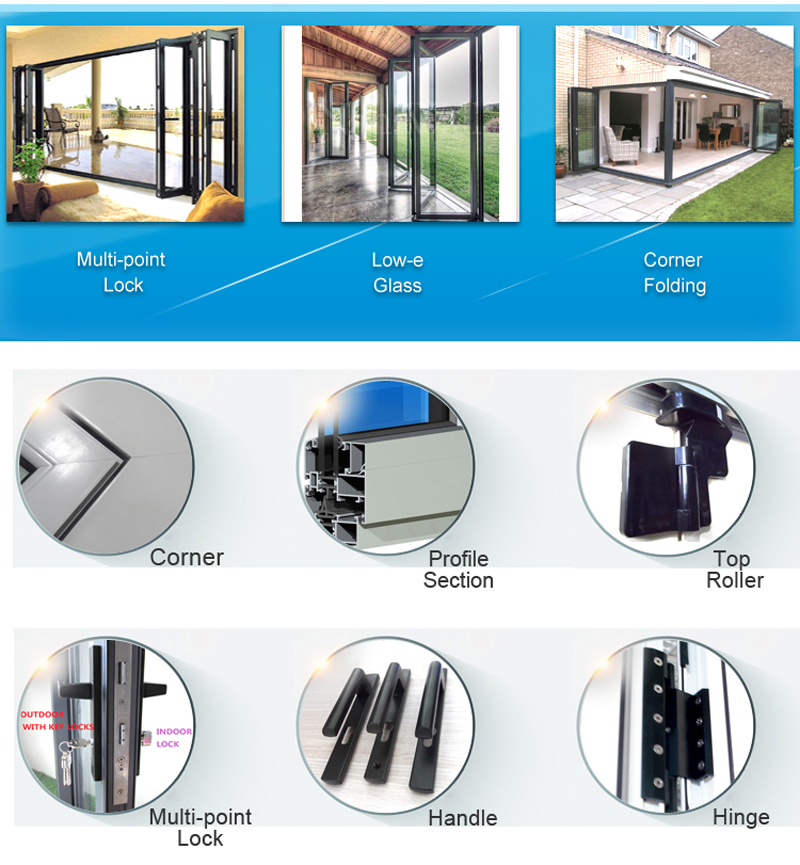

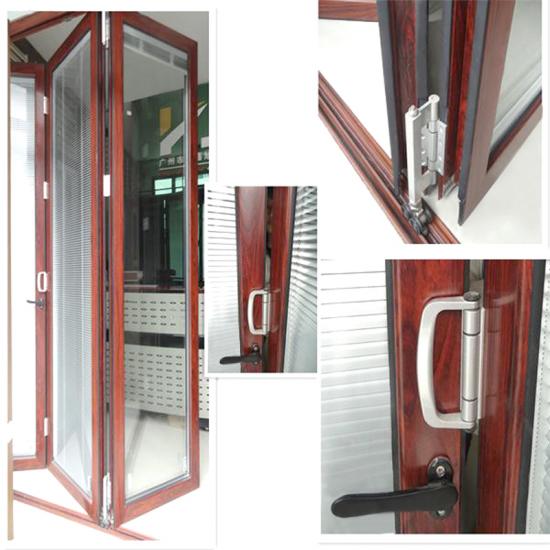

detail

aluminum doors philippines specifications aluminium door window

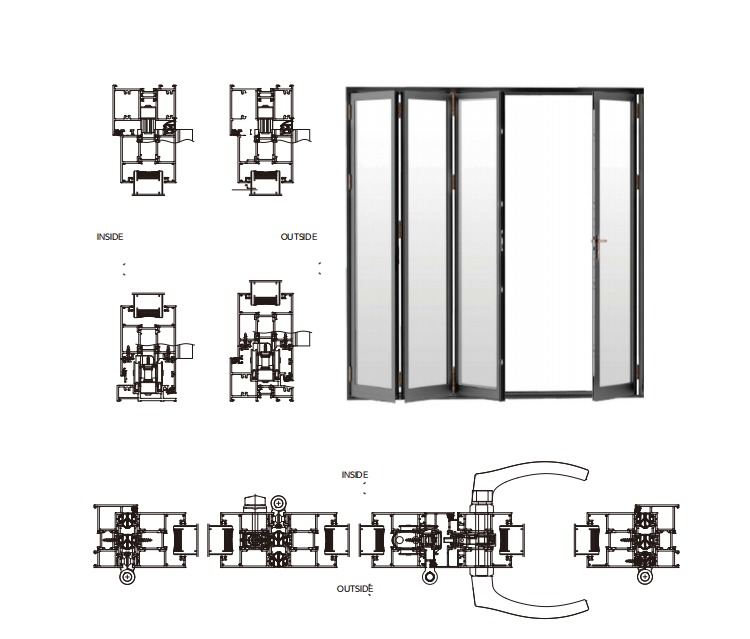

aluminium door window detailed drawing

Price -- -- be in commonly, because door window of alloy of high grade aluminium profile is produced cost is tall, price than window of inferior aluminum cr door wants tall 30% or so. Some wall thickness only 0.6-0.8 mm aluminum profile aluminum door window that makes, pull strength and yield strength are set under the country concerned standard greatly, use very unsafe, cannot because of greedy get temporarily cheap and ignored oneself safety factor absolutely.
