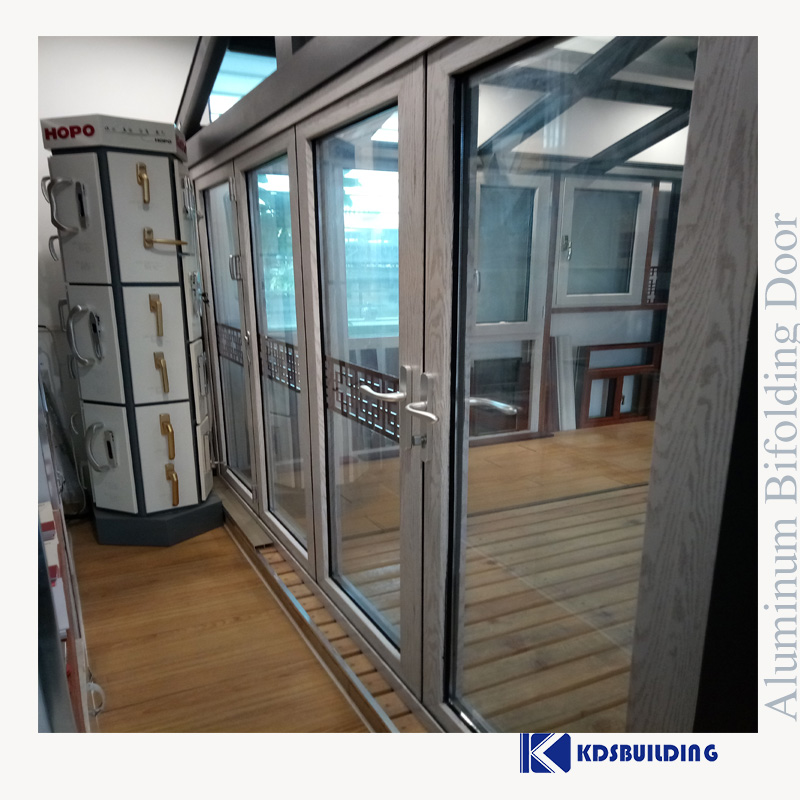

Aluminium Insulated Folding Bifold Aluminum Door Design,exterior Aluminium Folding Doors

Product Detail

Technical Specification – Aluminum Windows & Doors
Profile System
Classify	Technical Parameter	Other Options
Material	6063-T5 Aluminum Alloy	6063-T6
Structure	Thermal break aluminum profile	Non-thermal break
Profile thickness	1.6 mm	1.4 mm, 1.8 mm, 2.0 mm
Finish	Powder coating	PVDF coating, Anodizing, Wood grain transfer
Color	White / Black / Grey	Custom RAL colors
Glazing System
Glass type	5mm + 12A + 5mm Double Glazing	Single glass, Triple glazing
Glass color	Clear	Tinted, Blue, Green, Grey
Gas filling	Argon	Air, Krypton
Special function	Tempered glass	Low-E, Laminated, Soundproof, Security glass
Hardware & Operation
Hardware brand	Chinese top brand	Roto, Siegenia, Kinlong
Main hardware	Lock, handle, hinge, roller	Heavy-duty hardware set
Locking system	Multi-point locking system	Single point, Crescent lock
Operation	Casement	Folding, Lift & Slide
Sealing	EPDM gasket	Silicone, PVC gasket
Performance Ratings
U-Factor	≤ 0.35	≤ 0.28 with triple glass
SHGC	≤ 0.25	Low-E glass for better SHGC
Wind load	≥ 3000 Pa	≥ 4500 Pa
Water tightness	≥ 450 Pa	≥ 500 Pa
Air tightness	≤ 0.5 m³/(m²·h)	≤ 0.3 m³/(m²·h)
Manufacturing Service
Size range	Width: 500–3000 mm Height: 500–3000 mm	Customized size
Application	Residential & Commercial	High-rise, Villa, Apartment
Warranty	5 Years	Excluding human damage
Certification	CE, NFRC, AS2047, TITLE 24, AAMA	ISO9001

detail

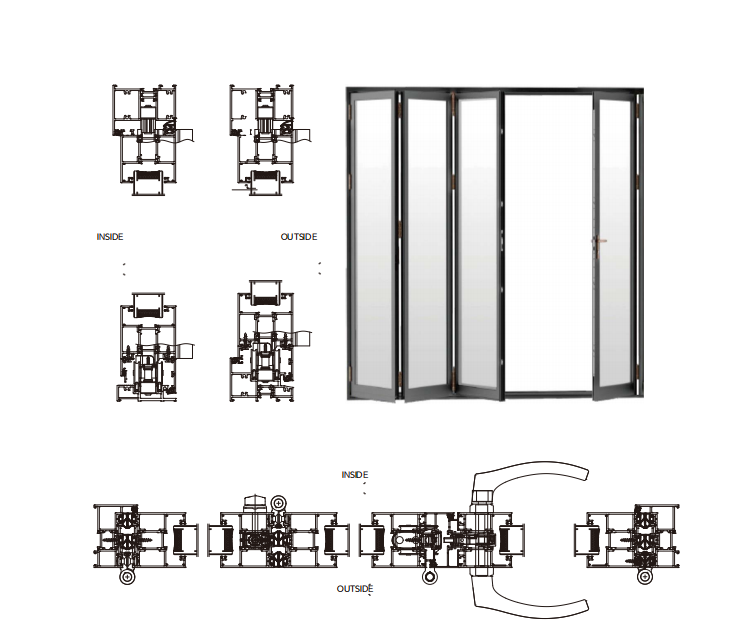

screen aluminum door specifications screen aluminum door detailed drawing

The energy-saving effect of aluminum alloy door and window frames is close to that of steel and plastic window frames, but because of the difference in material, steel and plastic windows are prone to deformation after a period of time, and their sealing performance is not as good as high performance alu aluminum door design.

Because steel model window pledges material intensity and steel are low, although through processing lining steel is enhanced, but its fight wind pressure and watertight performance want to compare aluminium window low about 2 grades, be in performance respect so, the grade of aluminium door window wants higher than steel model window.
