Production Description

• KDSBUILDING supply Cheap heat insulation aluminum curtain wall .

  Wall.the column profile from 50mm 60mm 65mm 100mm 120mm and so on. Curtain wall as fabricate  as the wall of building.

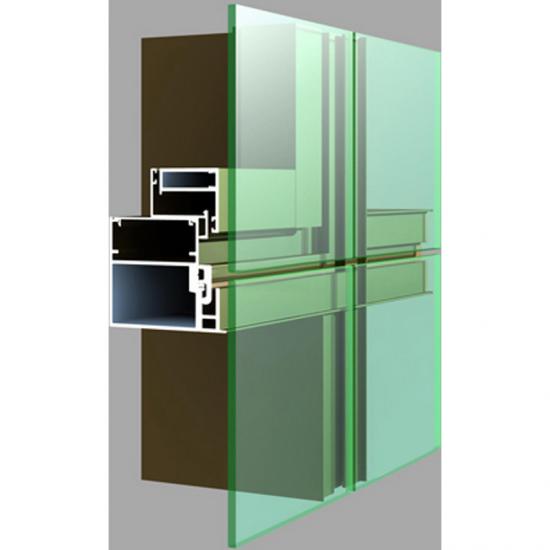

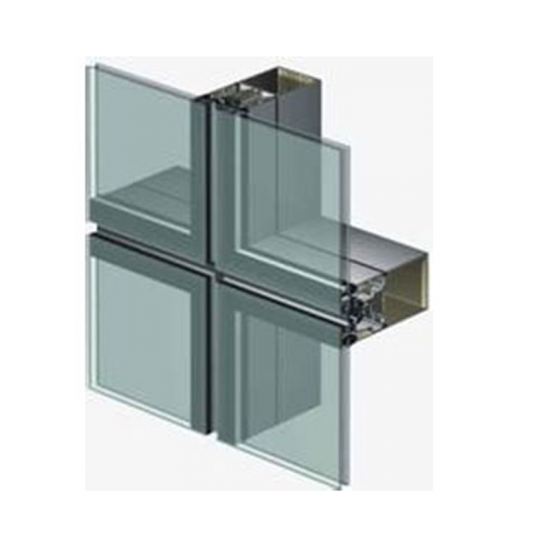

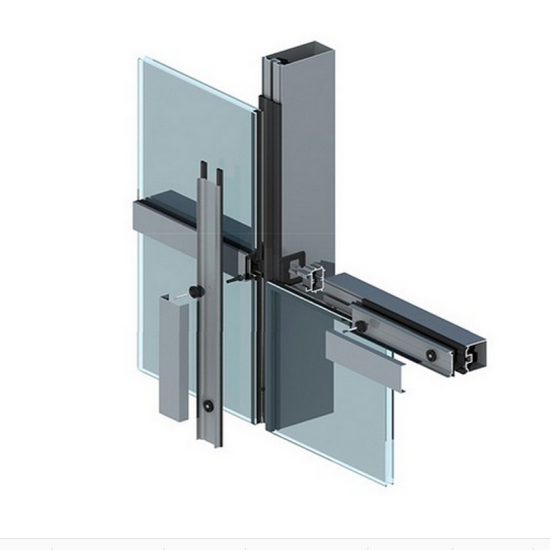

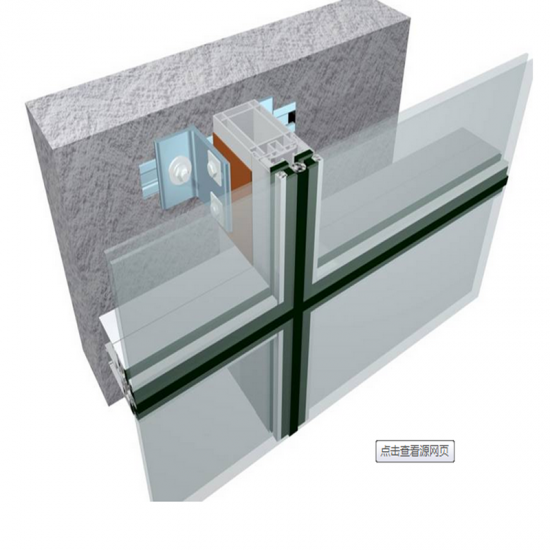

  curtain wall system can be classified by their method of fabrication and installation into the following general categories: stick systems and unitized systems. In the stick system, the curtain wall frame (mullions) and glass or opaque panels are installed and connected together piece by piece. In the unitized system, the curtain wall is composed of large units that are assembled and glazed in the factory, shipped to the site and erected on the building. Vertical and horizontal mullions of the modules mate together with the adjoining modules.

Production Information

Frame Material:Aluminum Alloy

Open Style:Fixed and awning

Opening Pattern:Horizontal

Glazing:Double Glass 5+9A+5mm .Low-E reflective

Surface treatment:Powder coated/ Electrophoresis/ Anodizing ,etc.

Main Market:Australia, Europe, America, Middle East, etc.

Frame Color:White/Silver/Black/Brown, customizable

Certification:AS2047,ISO9001, SGS, TUV

Hardware:Australia ,China top brand

Warranty After Sales Service:5years

Curtain wall systems are typically designed with extruded aluminum framing members, although the first curtain walls were made with steel frames. The aluminum frame is typically infilled with glass, which provides an architecturally pleasing building, as well as benefits such as daylighting. However, the effects of light on visual comfort as well as solar heat gain in a building are more difficult to control when using large amounts of glass infill. Other common infills include: stone veneer, metal panels, louvres, and operable windows or vents.

Products Show
