XIAMEN KDSBUILDING MATERIAL CO.,LTD
KDS Building

PVC UPVC casement windows

Home | PVC UPVC windows | PVC UPVC casement windows |Customized PVC/UPVC Frame Casement Windows in White Color Double Glass
UPVCcasement window

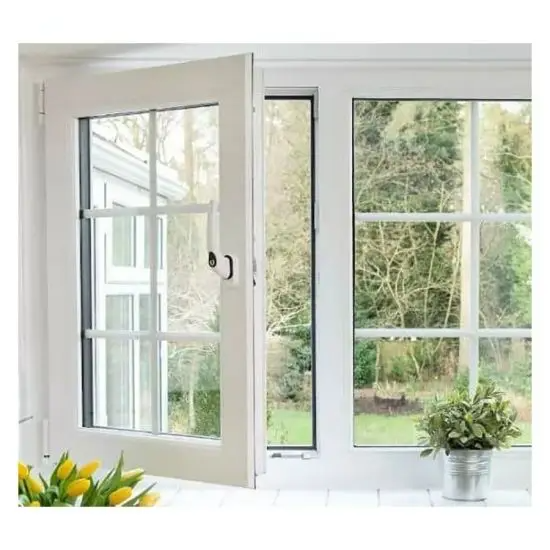

Customized PVC/UPVC Frame Casement Windows in White Color Double Glass

This is upvc casement window with double glass ,customaztion color .

PVC casement windows provide flexible ventilation and dependable performance. The strong PVC profiles maintain structural stability, while advanced sealing systems prevent air and water infiltration. Easy to clean and maintain, these windows are suitable for residential homes, apartments, and commercial applications.

series: 60 series PVC

opening style:  casement

Color: white

Glass: 5mm+9A+5mm clear tempered glass

Certification: NFRC, AAMA, CE, TITLE 24, AS2047

U-Factor  ≤ 0.3

SHGC ≤ 0.23

Visible Transmittance :  0.41

Air tightness :  0.15

Nail Fin Design  :  NO

Window Screen :  With  screen

Grille design : Yes

  • Item NO.:

    kds-C-01

  • Payment:

    After receive 50% dispot arrange produce

  • Market Price:

    80

  • price:

    $60

  • Price Range:

    2 - 100/$80

  • Product Origin:

    china

  • Color:

    white

  • Shipping Port:

    xiamen

  • Lead Time:

    40days

  • Order(MOQ):

    2

  • Product weight:

    1000
Inquiry now

Technical Specification:

Classify Technical parameter Other Options
Profile system

Material PVC/UPVC/Vinyl PVC profile + steel reinforcement
Structure Multi-chamber pvc profile 3 chambers, 5 chambers, 7 chambers
thickness 1.6mm 1.2mm, 1.4mm, 2.0mm
Finish black PVC Laminated wood grain, grey, white, golden oak
Glazing system

Glass type 5mm+9A+5mm Single Glass, Triple Glass
Glass color Clear Tinted, blue, green, grey etc
Gas Filling Argon Air, Argon,Krypton
Special function Tempered Low-e, laminated, bullet proof,
soundproof glass, security glass
etc
Hardware&Operation

Hardware Brand Chinese top brand Hardware Roto, Siegenia, Kinlong
Main Hardware lock,D-type handle, lock, roller Heavy-duty roller set
Locking system flush pull lock
 Multi-point lock, crescent lock
Sealing EPDM Silicone, PVC gasket
Performance Ratings

U-Factor  ≤ 0.3
 ≤ 0.25 with triple glass
SHGC SHGC ≤ 0.23
 Low-E for better SHGC
Wind load ≥ 3000 pa
 ≥ 4500 Pa
Water Tightness  ≥ 450 pa
 ≥ 500 Pa
Air Tightness ≤ 0.4 m3(㎡.h)
 ≤ 0.3 m³/(m²·h)
Manufacturing Service

Size Range Sash width: 500–2000 mm  Sash height: 500–2000 mm Customized size
Warranty 5 Year except damage caused by human
Certification CE, NFRC, AS2047, TITLE 24, AAMA ISO9001


Product Detail:

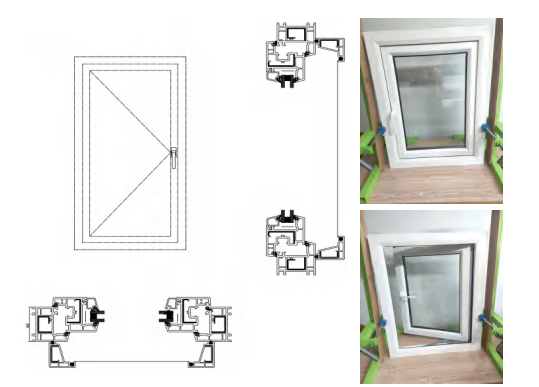

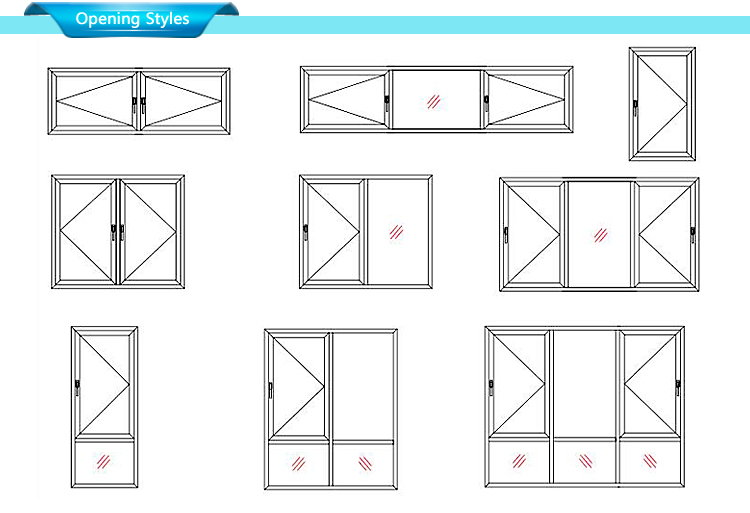

opening type




certification

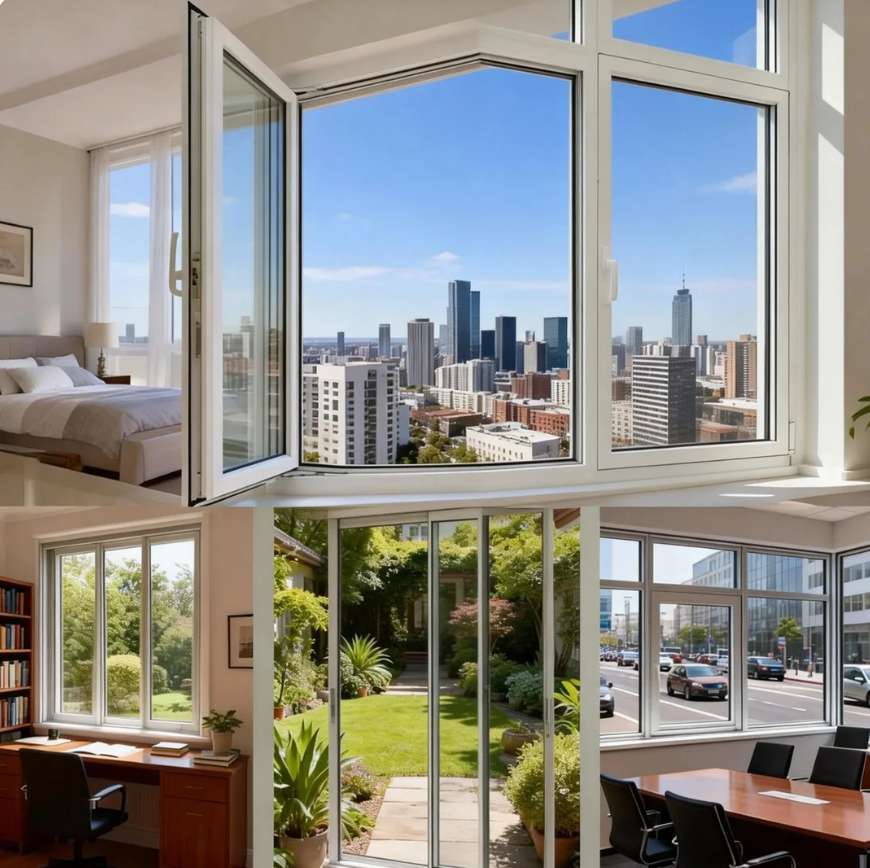

application



faq

UPVC Glass Windows And Doors

Q1:What are the types of your UPVC window and door profiles?

1.Extruded PVC / UPVC Profile. 2.Yes / No fill galvanized steel strengthening reinforcements (1.5mm-2.0mm thickness) into cavities of extruded UPVC profiles.

Q2:What are the types of your UPVC window and door glasses?

1.Type:Tempered,Insulated,Laminated,Low-e,Float,Reflective,Bullet-proof,etc. 2.Layer:Single / Double / Triplex Glasses for reducing summer heat load and winter heat  loss.3.Color:Clear(Transparent),Frosted,Grey,Blown,Green,Blue,etc.

4.Thickness:4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm.5.Insulated Glass Spacer:6A,9A,12A,15A,16A.Standard Insulated Glass:5mm+9A/12A+5mm,6mm+9A/12A+6mm with argon gas filled inside.Standard Laminated Glass:5mm+0.38PVB+5mm,5mm+0.76PVB+5mm.6.Quality Standard:European standard CE,Australian standard AS2208,Chinese standard CCC.

Q3:What are the types of your UPVC window and door accessories?

1.Brand:German, American, Australian and Chinese Top Brands,etc.2.Accessories:handles,hinges,locks,rollers,linkage devices,etc.

Q4:What are the package types of your windows and doors?

1.Steps:(1)Use air blow gun and thinner to clean products surface.(2)Use Air bubble film / PE film / EPE foam to wrap products against sea water corrosion.(3)Use craft paper / corrugated paper to protect product four corners.(4)Load FCL Packing products into container directly.(Note:Use container lashing belt to fasten FCL packing irregular goods.)(5)Load LCL Packing products into plywood cases / iron pallets with packing belt,then into container.(FCL:full container load;LCL:less than a container load)2.List:Pallet list for each pallet of a large amount purchase,saving time for you to sort out each window or door.

Q5:What is delivery time of your windows and doors?

Our goods are usually shipped by 20-50 workdays after payment.Different goods quantity means different delivery time.Please send your detailed windows and doors schedule to us,then we will confirm the exact delivery time for you.

Q6:How can we install your windows and doors at our building side?

We can offer the detailed windows and doors installation drawing for you.We also have our professional installation team in Australia and Philippines who can help you if you need.

Q7:This is my first time to import windows and doors, how should I do?

We have 20 years exporting experience.In order to save both your time and money,we can serve you as follows.1.We can direct a series of importing affairs for you.2.We can supply you one-stop purchase service of various building materials if you need.
