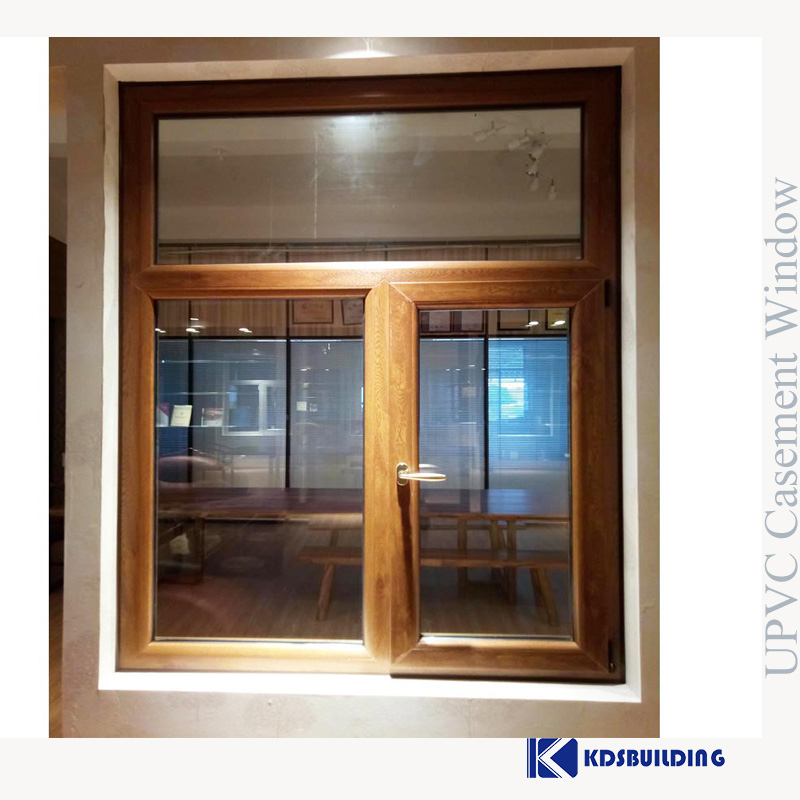

This upvc door and window in wood color has excellent thermal break speciality.
PVC casement windows offer reliable performance with a clean, modern appearance. The insulated PVC profiles help reduce energy consumption, while the casement opening allows easy airflow control. Durable hardware and low maintenance needs make these windows a practical solution for both residential and commercial applications.
series: 60 series PVC
opening style: casement and top fixed
Color: wood grain
Glass: 5mm+9A+5mm clear tempered glass
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.23
Visible Transmittance : 0.41Air tightness : 0.15
Nail Fin Design : NO
Window Screen : With screen
Grille design : no
Item NO.:
KDS-W-P-C-031Product Origin:
ChinaColor:
Customized
Technical Specification:
| Classify | Technical parameter | Other Options | |
| Profile system |
|
|
|
| Material | PVC/UPVC/Vinyl | PVC profile + steel reinforcement | |
| Structure | Multi-chamber pvc profile | 3 chambers, 5 chambers, 7 chambers | |
| thickness | 1.6mm | 1.2mm, 1.4mm, 2.0mm | |
| Finish | black PVC |
Laminated wood grain, grey, white, golden oak |
|
| Glazing system |
|
|
|
| Glass type | 5mm+9A+5mm | Single Glass, Triple Glass | |
| Glass color | Clear | Tinted, blue, green, grey etc | |
| Gas Filling | Argon | Air, Argon,Krypton | |
| Special function | Tempered |
Low-e, laminated, bullet proof,
|
|
| Hardware&Operation |
|
|
|
| Hardware Brand | Chinese top brand Hardware | Roto, Siegenia, Kinlong | |
| Main Hardware | lock,D-type handle, lock, roller | Heavy-duty roller set | |
| Locking system |
flush pull lock |
Multi-point lock, crescent lock |
|
| Sealing | EPDM | Silicone, PVC gasket | |
| Performance Ratings |
|
|
|
| U-Factor |
≤ 0.3 |
≤ 0.25 with triple glass | |
| SHGC |
SHGC ≤ 0.23 |
Low-E for better SHGC |
|
| Wind load |
≥ 3000 pa |
≥ 4500 Pa | |
| Water Tightness |
≥ 450 pa |
≥ 500 Pa | |
| Air Tightness |
≤ 0.4 m3(㎡.h) |
≤ 0.3 m³/(m²·h) | |
| Manufacturing Service |
|
|
|
| Size Range | Sash width: 500–2000 mm Sash height: 500–2000 mm | Customized size | |
| Warranty | 5 Year | except damage caused by human | |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA | ISO9001 |

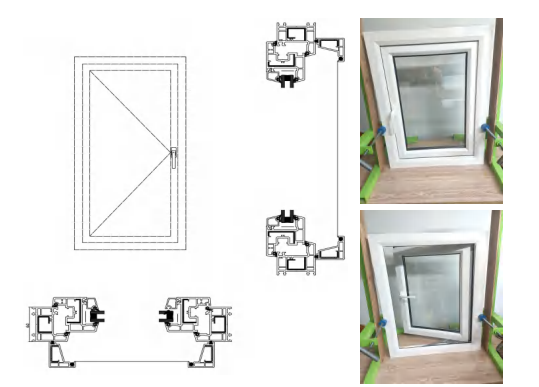

Product Detail:
Look at the installation: three-point production, seven-point installation, if you do not pay attention to the installation standards, it may cause deformation of doors and windows in the future.
The coefficient of thermal expansion of pvc windo is almost 6 times that of steel, so there must be an expansion joint between the window frame and the wall to prevent thermal expansion and contraction or the slight settlement of the house from deforming the doors and windows.
At the same time, in order to ensure the performance of waterproof, heat preservation and sound insulation, the expansion joints must be filled with elastic materials and then sealed with sealant.
The price of these materials is relatively high, and the quality varies greatly. When installing, take care to prevent cutting corners and shoddy materials.

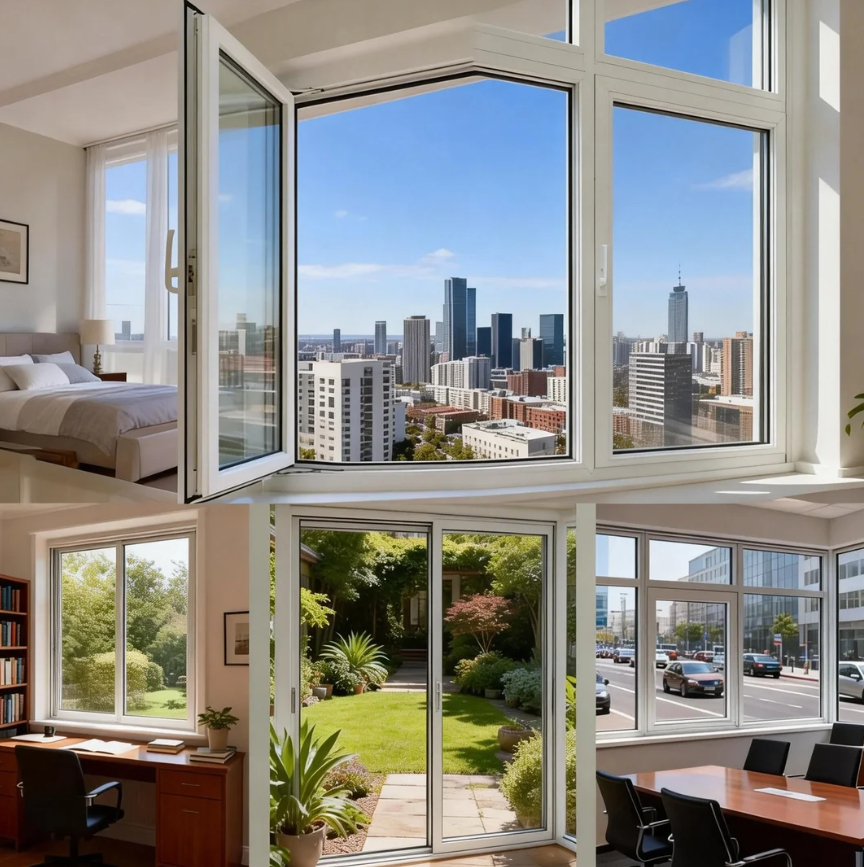

application
faq
UPVC Glass Windows And Doors
Q1:What are the types of your UPVC window and door profiles?
1.Extruded PVC / UPVC Profile. 2.Yes / No fill galvanized steel strengthening reinforcements (1.5mm-2.0mm thickness) into cavities of extruded UPVC profiles.
Q2:What are the types of your UPVC window and door glasses?
1.Type:Tempered,Insulated,Laminated,Low-e,Float,Reflective,Bullet-proof,etc. 2.Layer:Single / Double / Triplex Glasses for reducing summer heat load and winter heat loss.3.Color:Clear(Transparent),Frosted,Grey,Blown,Green,Blue,etc.
4.Thickness:4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm.5.Insulated Glass Spacer:6A,9A,12A,15A,16A.Standard Insulated Glass:5mm+9A/12A+5mm,6mm+9A/12A+6mm with argon gas filled inside.Standard Laminated Glass:5mm+0.38PVB+5mm,5mm+0.76PVB+5mm.6.Quality Standard:European standard CE,Australian standard AS2208,Chinese standard CCC.

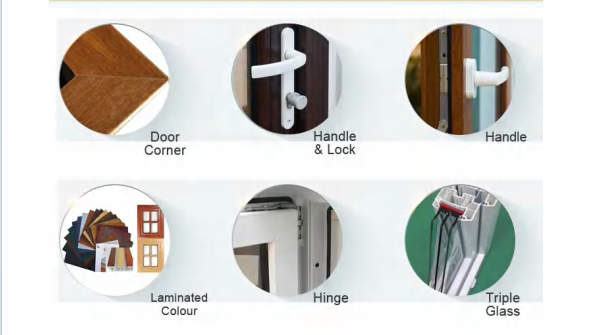

Q3:What are the types of your UPVC window and door accessories?
1.Brand:German, American, Australian and Chinese Top Brands,etc.2.Accessories:handles,hinges,locks,rollers,linkage devices,etc.
Q4:What are the package types of your windows and doors?
1.Steps:(1)Use air blow gun and thinner to clean products surface.(2)Use Air bubble film / PE film / EPE foam to wrap products against sea water corrosion.(3)Use craft paper / corrugated paper to protect product four corners.(4)Load FCL Packing products into container directly.(Note:Use container lashing belt to fasten FCL packing irregular goods.)(5)Load LCL Packing products into plywood cases / iron pallets with packing belt,then into container.(FCL:full container load;LCL:less than a container load)2.List:Pallet list for each pallet of a large amount purchase,saving time for you to sort out each window or door.
Q5:What is delivery time of your windows and doors?
Our goods are usually shipped by 20-50 workdays after payment.Different goods quantity means different delivery time.Please send your detailed windows and doors schedule to us,then we will confirm the exact delivery time for you.
Q6:How can we install your windows and doors at our building side?
We can offer the detailed windows and doors installation drawing for you.We also have our professional installation team in Australia and Philippines who can help you if you need.
Q7:This is my first time to import windows and doors, how should I do?
We have 20 years exporting experience.In order to save both your time and money,we can serve you as follows.1.We can direct a series of importing affairs for you.2.We can supply you one-stop purchase service of various building materials if you need.
