series: 73 series thermal break
opening style: sliding
Glass: 5mm+9A+5mm clear tempered glass
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.23
Item NO.:
KDS-D-A-S-B010Payment:
L/C, T/TProduct Origin:
ChinaColor:
CustomizedShipping Port:
XIAMENLead Time:
25-35 DAYS

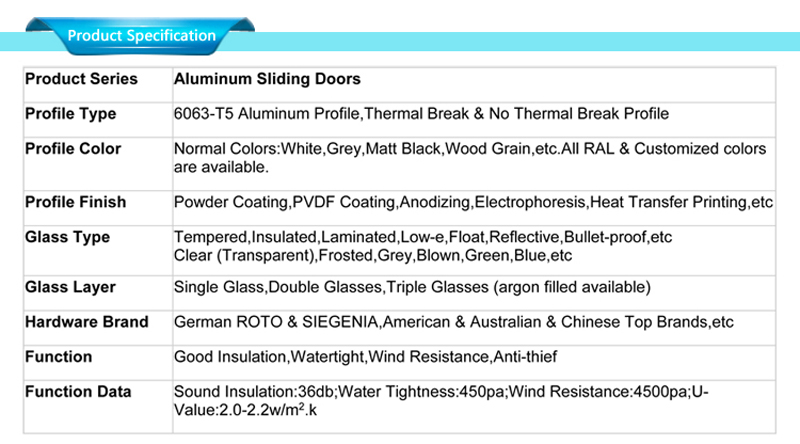

| Technical Specification – Aluminum Windows & Doors | ||

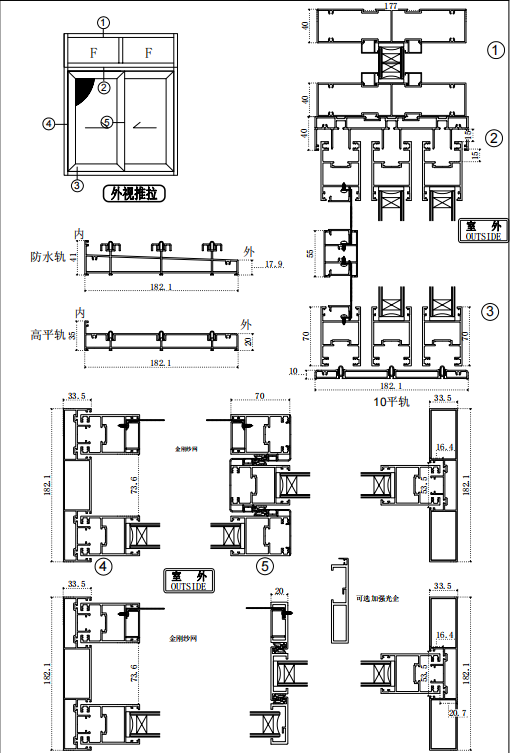

| Profile System | ||
| Classify | Technical Parameter | Other Options |
| Material | 6063-T5 Aluminum Alloy | 6063-T6 |

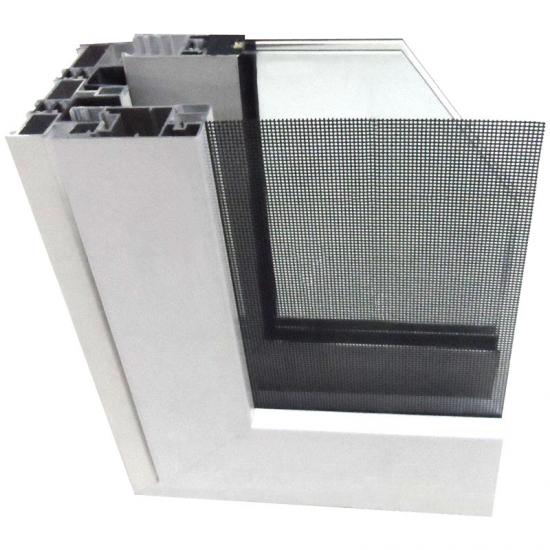

| Structure | Thermal break aluminum profile | Non-thermal break |
| Profile thickness | 1.6 mm | 1.4 mm, 1.8 mm, 2.0 mm |
| Finish | Powder coating | PVDF coating, Anodizing, Wood grain transfer |
| Color | White / Black / Grey | Custom RAL colors |
| Glazing System | ||
| Glass type | 5mm + 12A + 5mm Double Glazing | Single glass, Triple glazing |
| Glass color | Clear | Tinted, Blue, Green, Grey |
| Gas filling | Argon | Air, Krypton |
| Special function | Tempered glass | Low-E, Laminated, Soundproof, Security glass |
| Hardware & Operation | ||
| Hardware brand | Chinese top brand | Roto, Siegenia, Kinlong |

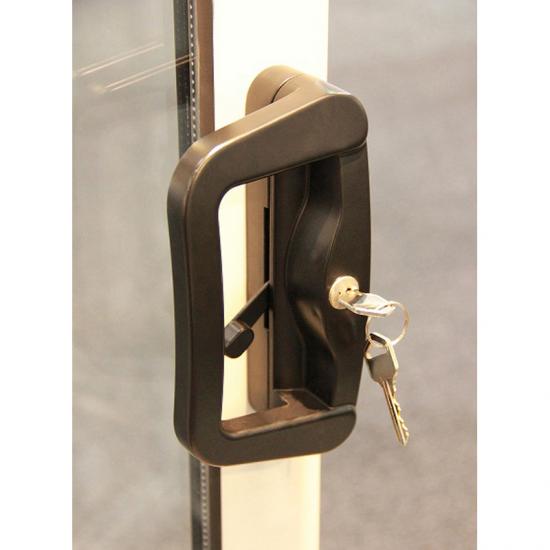

| Main hardware | Lock, handle, hinge, roller | Heavy-duty hardware set |

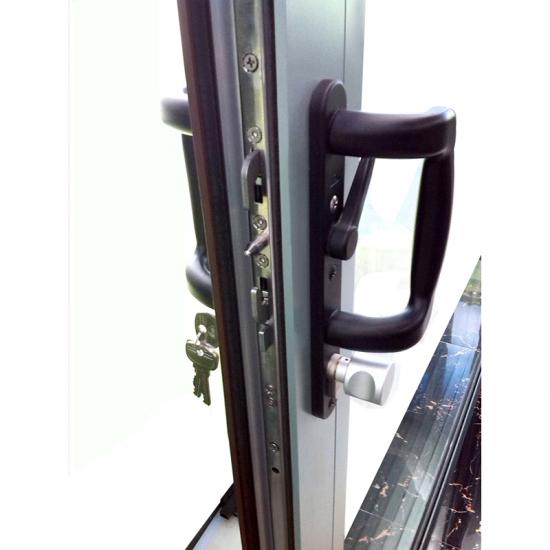

| Locking system | Multi-point locking system | Single point, Crescent lock |
| Operation | sliding | Folding, Lift & Slide |
| Sealing | EPDM gasket | Silicone, PVC gasket |
| Performance Ratings | ||
| U-Factor | ≤ 0.35 | ≤ 0.28 with triple glass |
| SHGC | ≤ 0.25 | Low-E glass for better SHGC |
| Wind load | ≥ 3000 Pa | ≥ 4500 Pa |
| Water tightness | ≥ 450 Pa | ≥ 500 Pa |
| Air tightness | ≤ 0.5 m³/(m²·h) | ≤ 0.3 m³/(m²·h) |
| Manufacturing Service | ||
| Size range | Width: 500–3000 mm Height: 500–3000 mm | Customized size |
| Application | Residential & Commercial | High-rise, Villa, Apartment |
| Warranty | 5 Years | Excluding human damage |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA | ISO9001 |

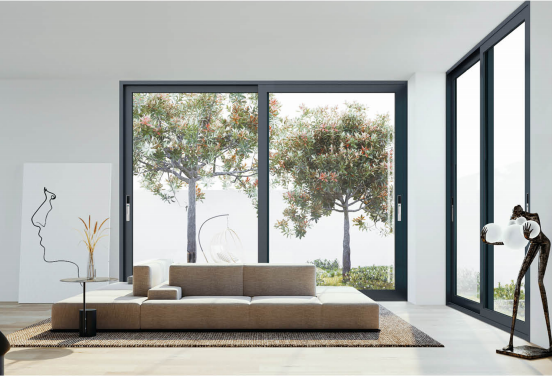

product detail
Aluminum alloy door window is the configuration of general residential foundation, also is the important factor that affects day lighting, ventilation and comfort.
Have you learned about the design standard of aluminum sliding door for kitchen?
In general residential buildings, the window sill height is not less than 0.9m. When the window sill height is less than 0.8m, protective measures should be taken. In public buildings, the window sill height varies from 1.0 to 1.8m, and the sash opening to the public walkway should not be lower than 2.0m.
