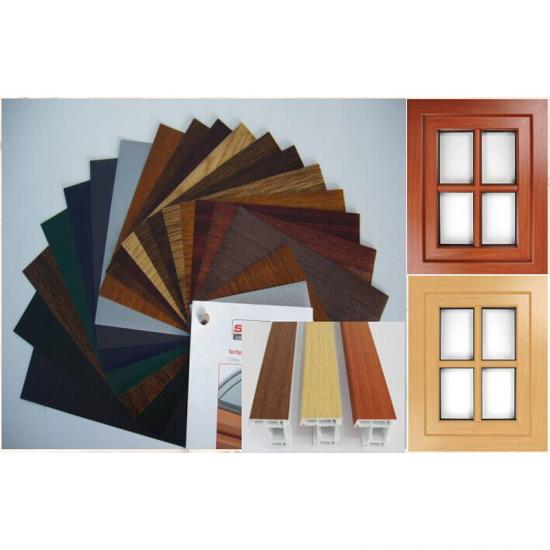

Upvc door and window has many color for choice including natural wood like color.

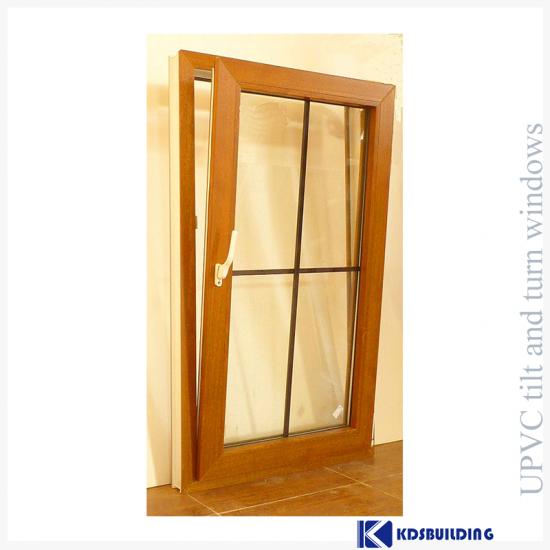

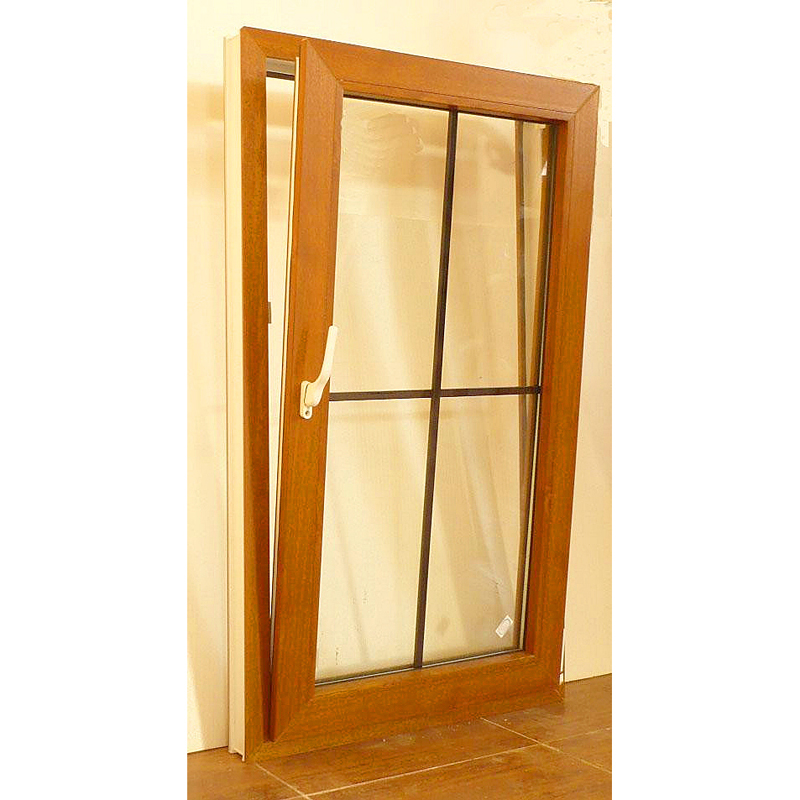

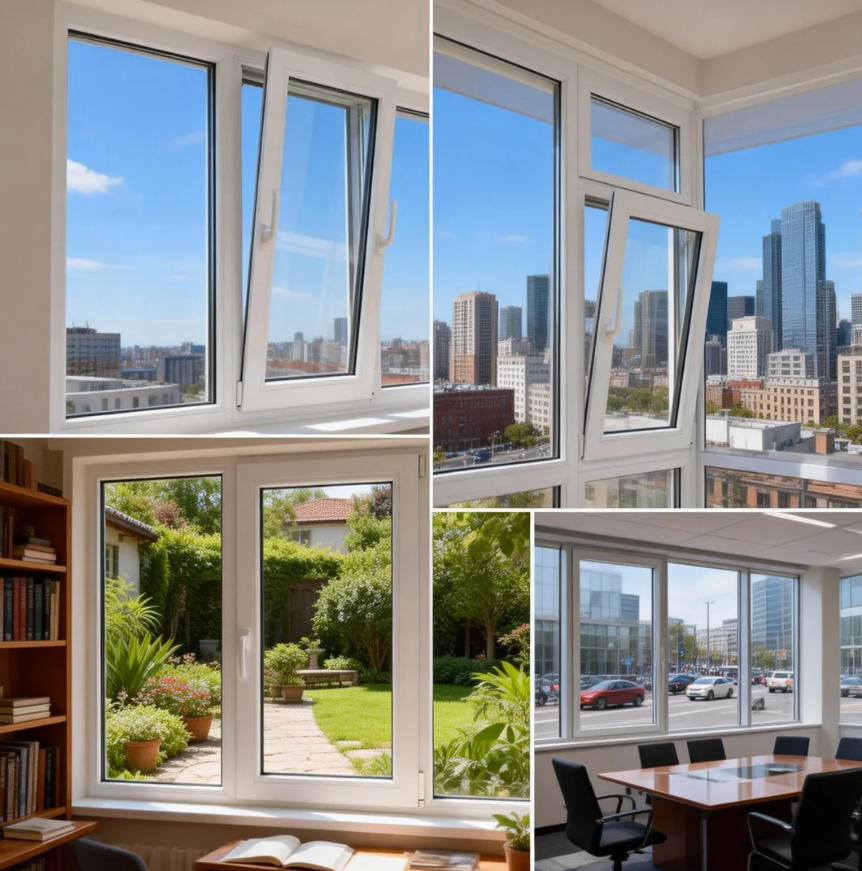

PVC tilt and turn windows combine modern European design with excellent functionality. The tilt position allows safe ventilation while maintaining security, while the turn function enables full opening for easy cleaning and emergency exit. Made from high-quality PVC profiles, these windows provide outstanding thermal insulation, sound reduction, and weather resistance. They are durable, low-maintenance, and ideal for residential and commercial buildings seeking comfort, efficiency, and long-term performance.
series: 60 series PVC
color : Wood grain
opening style: tilt and turn
Glass: 5mm+9A+5mm clear tempered glass
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.21
Visible Transmittance: 0.41
Air Leakage: 0.15
Item NO.:
KDS-W-P-TT-A003Product Origin:
ChinaColor:
Customized

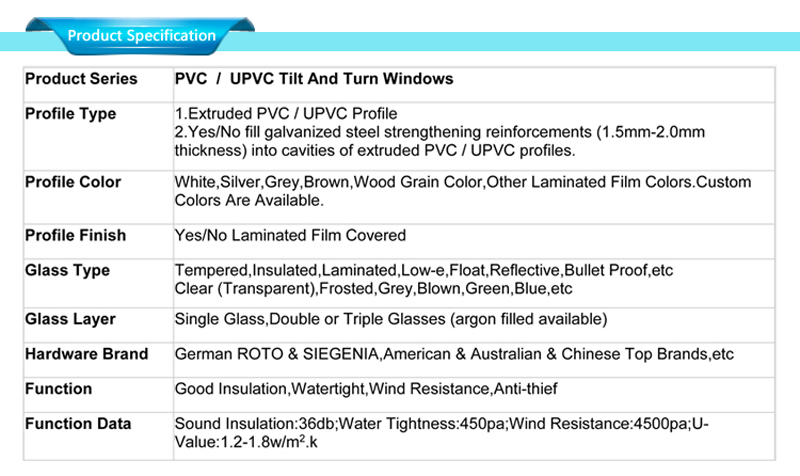

Technical Specification:
| Classify | Technical parameter | Other Options | |
| Profile system |
|
|
|
| Material | PVC/UPVC/Vinyl | PVC profile + steel reinforcement | |

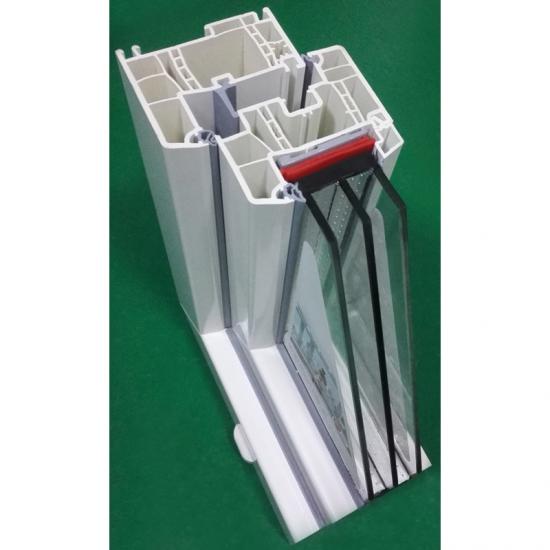

| Structure | Multi-chamber pvc profile |
3 chambers, 5 cham
bers, 7 chambers |
|
| thickness | 2.0mm | 1.6mm, 1.8mm, 2.2mm | |
| Finish | white PVC |
Laminated wood grain, grey, black, golden oak |
|
| Glazing system |
|
|
|
| Glass type | 5mm+9A+5mm | Single Glass, Triple Glass | |
| Glass color | Clear | Tinted, blue, green, grey etc | |
| Gas Filling | Argon | Air, Argon,Krypton | |
| Special function | Tempered |
Low-e, laminated, bullet proof,
|
|
| Hardware&Operation |
|
|
|
| Hardware Brand | Chinese top brand Hardware | Roto, Siegenia, Kinlong | |

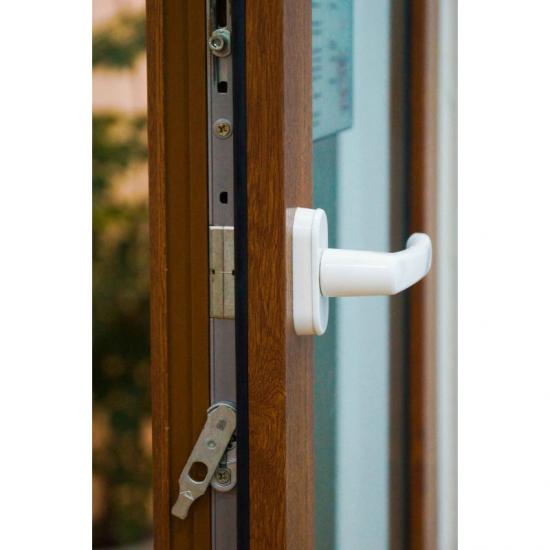

| Main Hardware | lock,D-type handle, lock, roller | Heavy-duty roller set | |
| Locking system |
sash lock |
Multi-point lock, crescent lock |
|
| Sealing | EPDM | Silicone, PVC gasket | |
| Performance Ratings |
|
|
|
| U-Factor |
≤ 0.3 |
≤ 0.25 with triple glass | |
| SHGC |
SHGC ≤ 0.21 |
Low-E for better SHGC |
|
| Wind load |
≥ 3000 pa |
≥ 4500 Pa | |
| Water Tightness |
≥ 450 pa |
≥ 500 Pa | |
| Air Tightness |
≤ 0.4 m3(㎡.h) |
≤ 0.3 m³/(m²·h) | |
| Manufacturing Service |
|
|
|
| Size Range | Sash width: 500–1500 mm Sash height: 500–1800 mm | Customized size | |
| Warranty | 5 Year | except damage caused by human | |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA | ISO9001 |

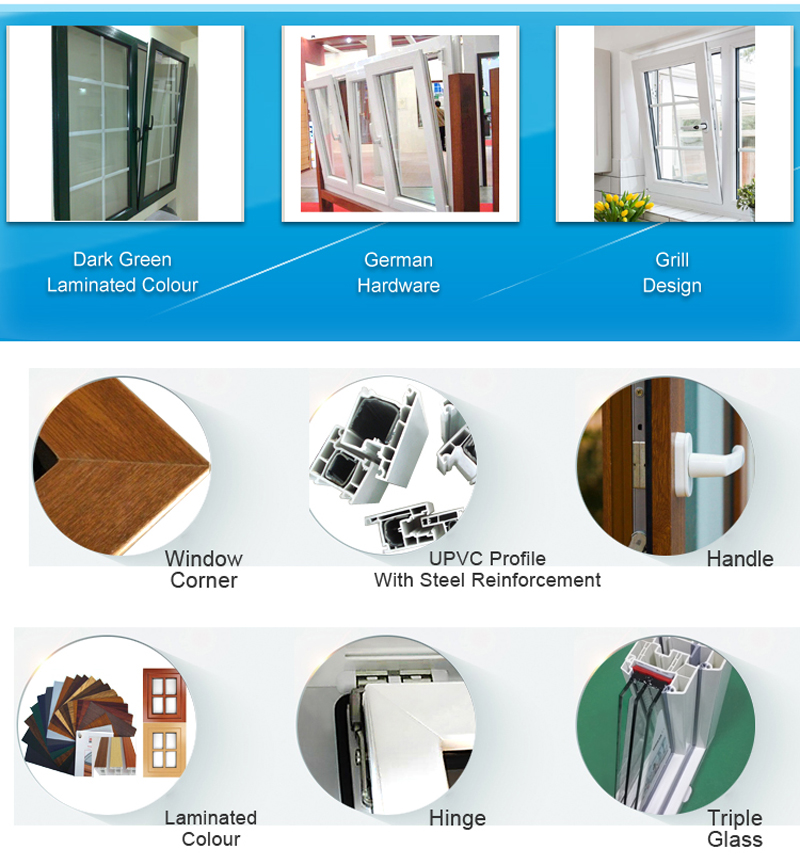

detail

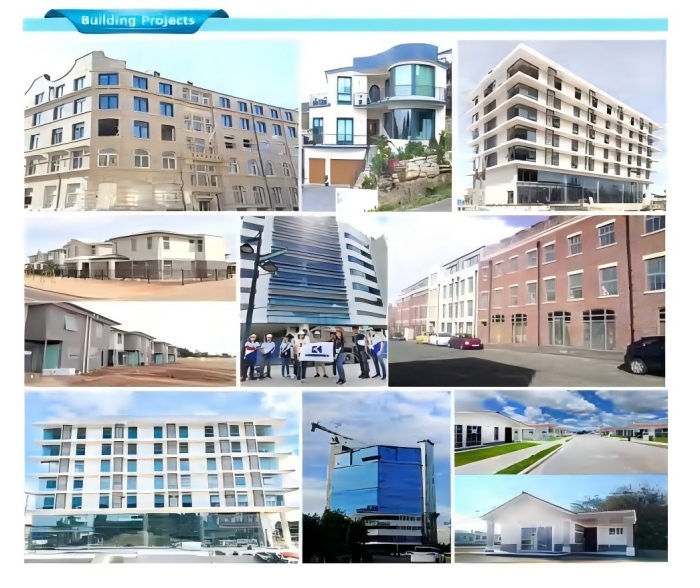

application and project case
FAQ
UPVC Glass Windows And Doors
Q1:What are the types of your UPVC window and door profiles?
1.Extruded PVC / UPVC Profile. 2.Yes / No fill galvanized steel strengthening reinforcements (1.5mm-2.0mm thickness) into cavities of extruded UPVC profiles.
Q2:What are the types of your UPVC window and door glasses?
1.Type:Tempered,Insulated,Laminated,Low-e,Float,Reflective,Bullet-proof,etc. 2.Layer:Single / Double / Triplex Glasses for reducing summer heat load and winter heat loss.3.Color:Clear(Transparent),Frosted,Grey,Blown,Green,Blue,etc.
4.Thickness:4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm.5.Insulated Glass Spacer:6A,9A,12A,15A,16A.Standard Insulated Glass:5mm+9A/12A+5mm,6mm+9A/12A+6mm with argon gas filled inside.Standard Laminated Glass:5mm+0.38PVB+5mm,5mm+0.76PVB+5mm.6.Quality Standard:European standard CE,Australian standard AS2208,Chinese standard CCC.
Q3:What are the types of your UPVC window and door accessories?
1.Brand:German, American, Australian and Chinese Top Brands,etc.2.Accessories:handles,hinges,locks,rollers,linkage devices,etc.
Q4:What are the package types of your windows and doors?
1.Steps:(1)Use air blow gun and thinner to clean products surface.(2)Use Air bubble film / PE film / EPE foam to wrap products against sea water corrosion.(3)Use craft paper / corrugated paper to protect product four corners.(4)Load FCL Packing products into container directly.(Note:Use container lashing belt to fasten FCL packing irregular goods.)(5)Load LCL Packing products into plywood cases / iron pallets with packing belt,then into container.(FCL:full container load;LCL:less than a container load)2.List:Pallet list for each pallet of a large amount purchase,saving time for you to sort out each window or door.
Q5:What is delivery time of your windows and doors?
Our goods are usually shipped by 20-50 workdays after payment.Different goods quantity means different delivery time.Please send your detailed windows and doors schedule to us,then we will confirm the exact delivery time for you.
Q6:How can we install your windows and doors at our building side?
We can offer the detailed windows and doors installation drawing for you.We also have our professional installation team in Australia and Philippines who can help you if you need.
Q7:This is my first time to import windows and doors, how should I do?
We have 20 years exporting experience.In order to save both your time and money,we can serve you as follows.1.We can direct a series of importing affairs for you.2.We can supply you one-stop purchase service of various building materials if you need.
Ken shen
Mobile,whatsapp&viber: +86 13459252158
XIAMEN KDSBUILDING MATERIAL CO., LTD
TEL:+86 592 5284558 FAX:+86 592 5924538
Website: www.kdsbuilding.com
Glass and hardware of plastic window cannot be ignored.
The glass should be smooth and free of water lines. The glass and the plastic profile are not in direct contact, and there is a sealing bead close to the gap. The hardware is complete, the position is correct, the installation is firm, and the use is flexible.
The hardware of high-end upvc windows manufacturers near me are all made of metal, and their inherent strength, appearance, and usability directly affect the performance of doors and windows.
Many low and medium grade Plastic UPVC Sliding Windows use plastic hardware, and their quality and life span have great hidden dangers.
