Item NO.:
KDS-W-TT-P-100Payment:
TTMarket Price:
120price:
$125Product Origin:
ChinaColor:
whiteShipping Port:
ChinaLead Time:
15-30daysOrder(MOQ):
2Product weight:
3000
Technical Specification:
| Classify | Technical parameter | Other Options | |
| Profile system |
|
|
|
| Material | PVC/UPVC/Vinyl | PVC profile + steel reinforcement | |

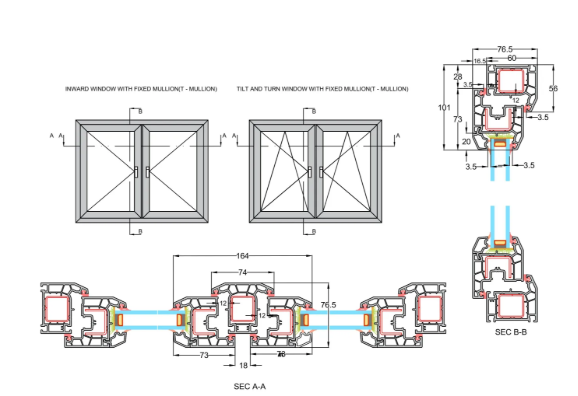

| Structure | Multi-chamber pvc profile | 3 chambers, 5 chambers, 7 chambers | |
| thickness | 2.0mm | 1.6mm, 1.8mm, 2.2mm | |
| Finish | white PVC |
Laminated wood grain, grey, black, golden oak |
|
| Glazing system |
|
|
|
| Glass type | 5mm+9A+5mm | Single Glass, Triple Glass | |
| Glass color | Clear | Tinted, blue, green, grey etc | |
| Gas Filling | Argon | Air, Argon,Krypton | |
| Special function | Tempered |
Low-e, laminated, bullet proof,
|
|
| Hardware&Operation |
|
|
|
| Hardware Brand | Chinese top brand Hardware | Roto, Siegenia, Kinlong | |

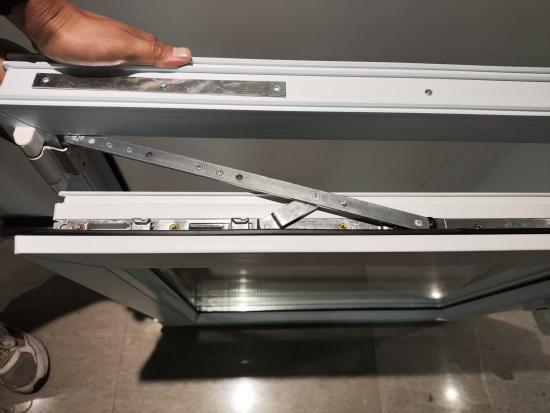

| Main Hardware | lock,D-type handle, lock, roller | Heavy-duty roller set | |
| Locking system |
sash lock |
Multi-point lock, crescent lock |
|
| Sealing | EPDM | Silicone, PVC gasket | |
| Performance Ratings |
|
|
|
| U-Factor |
≤ 0.3 |
≤ 0.25 with triple glass | |
| SHGC |
SHGC ≤ 0.21 |
Low-E for better SHGC |
|
| Wind load |
≥ 3000 pa |
≥ 4500 Pa | |
| Water Tightness |
≥ 450 pa |
≥ 500 Pa | |
| Air Tightness |
≤ 0.4 m3(㎡.h) |
≤ 0.3 m³/(m²·h) | |
| Manufacturing Service |
|
|
|
| Size Range | Sash width: 500–1500 mm Sash height: 500–1800 mm | Customized size | |
| Warranty | 5 Year | except damage caused by human | |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA | ISO9001 |

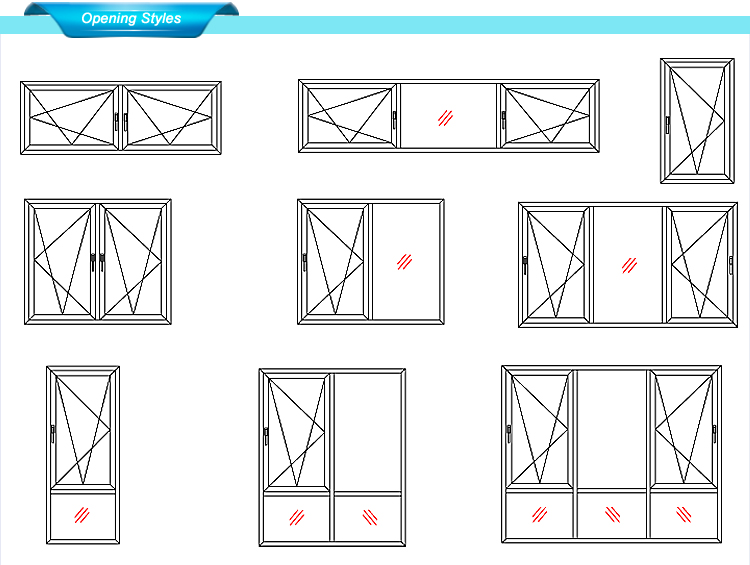

Opening Style:
certification

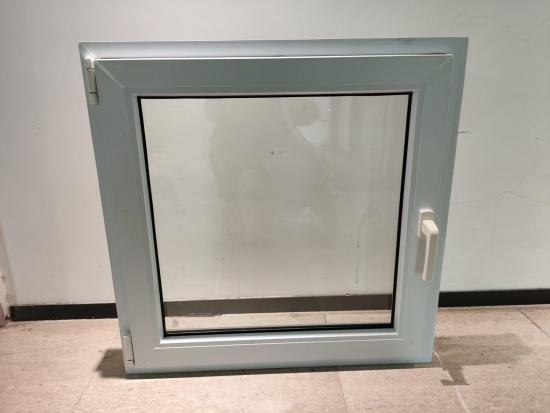

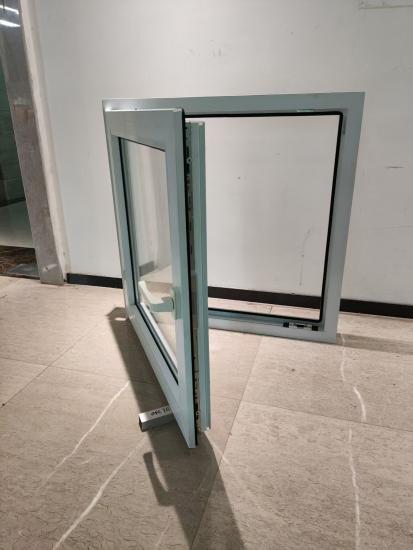

product detail

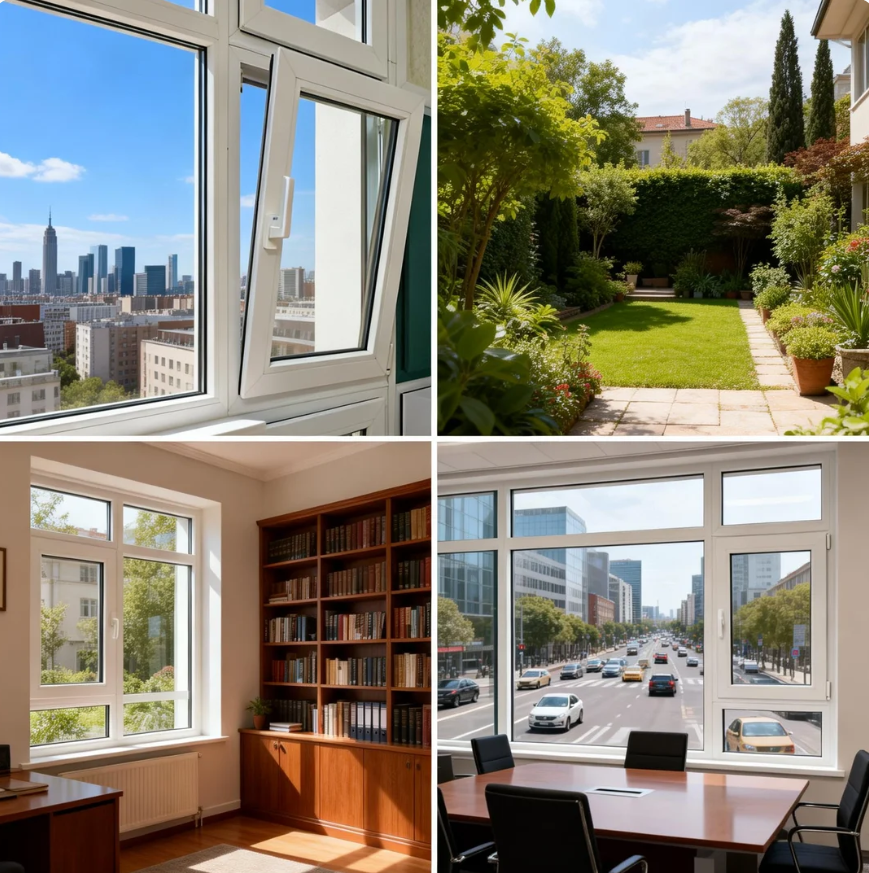

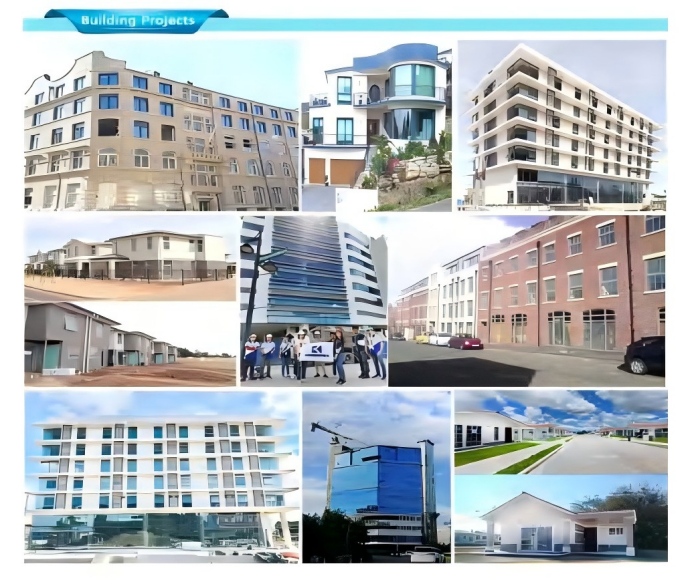

application and project case
FAQ
UPVC Glass Windows And Doors
Q1:What are the types of your UPVC window and door profiles?
1.Extruded PVC / UPVC Profile. 2.Yes / No fill galvanized steel strengthening reinforcements (1.5mm-2.0mm thickness) into cavities of extruded UPVC profiles.
Q2:What are the types of your UPVC window and door glasses?
1.Type:Tempered,Insulated,Laminated,Low-e,Float,Reflective,Bullet-proof,etc. 2.Layer:Single / Double / Triplex Glasses for reducing summer heat load and winter heat loss.3.Color:Clear(Transparent),Frosted,Grey,Blown,Green,Blue,etc.
4.Thickness:4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm.5.Insulated Glass Spacer:6A,9A,12A,15A,16A.Standard Insulated Glass:5mm+9A/12A+5mm,6mm+9A/12A+6mm with argon gas filled inside.Standard Laminated Glass:5mm+0.38PVB+5mm,5mm+0.76PVB+5mm.6.Quality Standard:European standard CE,Australian standard AS2208,Chinese standard CCC.
Q3:What are the types of your UPVC window and door accessories?
1.Brand:German, American, Australian and Chinese Top Brands,etc.2.Accessories:handles,hinges,locks,rollers,linkage devices,etc.
Q4:What are the package types of your windows and doors?
1.Steps:(1)Use air blow gun and thinner to clean products surface.(2)Use Air bubble film / PE film / EPE foam to wrap products against sea water corrosion.(3)Use craft paper / corrugated paper to protect product four corners.(4)Load FCL Packing products into container directly.(Note:Use container lashing belt to fasten FCL packing irregular goods.)(5)Load LCL Packing products into plywood cases / iron pallets with packing belt,then into container.(FCL:full container load;LCL:less than a container load)2.List:Pallet list for each pallet of a large amount purchase,saving time for you to sort out each window or door.
Q5:What is delivery time of your windows and doors?
Our goods are usually shipped by 20-50 workdays after payment.Different goods quantity means different delivery time.Please send your detailed windows and doors schedule to us,then we will confirm the exact delivery time for you.
Q6:How can we install your windows and doors at our building side?
We can offer the detailed windows and doors installation drawing for you.We also have our professional installation team in Australia and Philippines who can help you if you need.
Q7:This is my first time to import windows and doors, how should I do?
We have 20 years exporting experience.In order to save both your time and money,we can serve you as follows.1.We can direct a series of importing affairs for you.2.We can supply you one-stop purchase service of various building materials if you need.
Ken shen
Mobile,whatsapp&viber: +86 13459252158
XIAMEN KDSBUILDING MATERIAL CO., LTD
TEL:+86 592 5284558 FAX:+86 592 5924538
Website: www.kdsbuilding.com
PVC tilt and turn windows are an innovative and versatile solution that combines functionality, security, and energy efficiency. Designed with a dual-opening mechanism, these windows can tilt inward from the top for controlled ventilation or swing open like a casement window for full access, making them ideal for residential and commercial buildings. Made from high-quality PVC, they offer exceptional durability, weather resistance, and low maintenance while providing superior thermal and sound insulation. Their multi-point locking system enhances security, ensuring a tight seal against drafts, noise, and potential intrusions. These windows are available in various colors, sizes, and finishes, allowing customization to match different architectural styles. They also support double or triple glazing for improved energy efficiency, reducing heat loss in winter and keeping interiors cool in summer. The airtight design minimizes energy consumption, making them an eco-friendly choice. Additionally, their ease of operation and cleaning makes them practical for high-rise buildings and homes with limited exterior access. Combining aesthetics with performance, PVC tilt and turn windows are an excellent choice for modern construction, providing enhanced comfort, safety, and long-term value.
