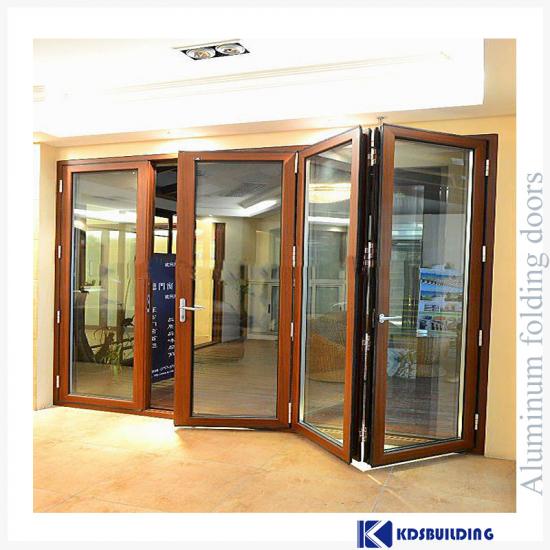

Aluminium Folding Door 35,exterior Aluminium Folding Doors

Product Detail

Technical Specification – Aluminum Windows & Doors
Profile System
Classify	Technical Parameter	Other Options
Material	6063-T5 Aluminum Alloy	6063-T6
Structure	Thermal break aluminum profile	Non-thermal break
Profile thickness	1.6 mm	1.4 mm, 1.8 mm, 2.0 mm
Finish	Powder coating	PVDF coating, Anodizing, Wood grain transfer
Color	White / Black / Grey	Custom RAL colors
Glazing System
Glass type	5mm + 12A + 5mm Double Glazing	Single glass, Triple glazing
Glass color	Clear	Tinted, Blue, Green, Grey
Gas filling	Argon	Air, Krypton
Special function	Tempered glass	Low-E, Laminated, Soundproof, Security glass
Hardware & Operation
Hardware brand	Chinese top brand	Roto, Siegenia, Kinlong
Main hardware	Lock, handle, hinge, roller	Heavy-duty hardware set
Locking system	Multi-point locking system	Single point, Crescent lock
Operation	Casement	Folding, Lift & Slide
Sealing	EPDM gasket	Silicone, PVC gasket
Performance Ratings
U-Factor	≤ 0.35	≤ 0.28 with triple glass
SHGC	≤ 0.25	Low-E glass for better SHGC
Wind load	≥ 3000 Pa	≥ 4500 Pa
Water tightness	≥ 450 Pa	≥ 500 Pa
Air tightness	≤ 0.5 m³/(m²·h)	≤ 0.3 m³/(m²·h)
Manufacturing Service
Size range	Width: 500–3000 mm Height: 500–3000 mm	Customized size
Application	Residential & Commercial	High-rise, Villa, Apartment
Warranty	5 Years	Excluding human damage
Certification	CE, NFRC, AS2047, TITLE 24, AAMA	ISO9001

detail

aluminium foldable door specifications

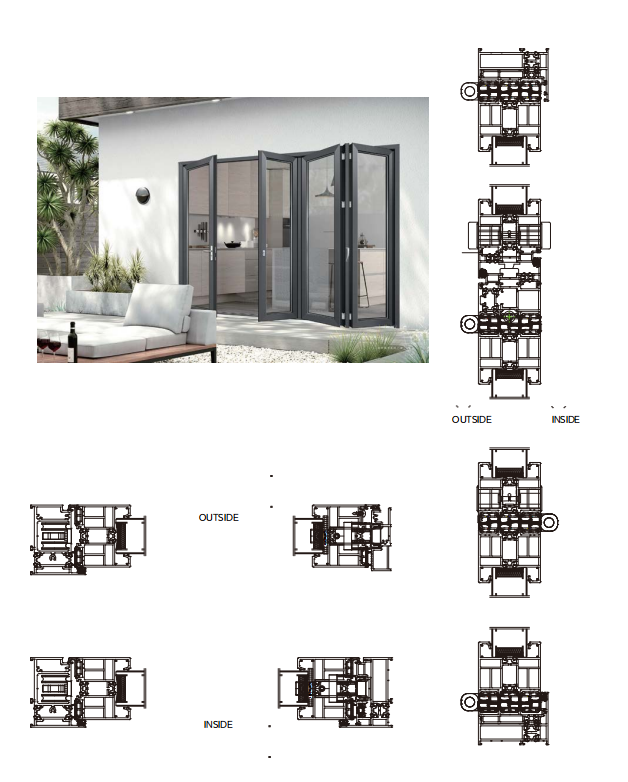

aluminium bi folding doors aluminium bi folding doors detailed drawing

Exhibitions and customer visits

Tags :

Related Products

Low E glass aluminum door for bathroom

These high-end,luxury aluminum bifold exterior doors provide a multi-point locking system which increases security. Engineered for modern lifestyles, aluminum folding doors offer smooth operation, strong structure, and stylish appearance. The folding panels provide flexible opening options, while durable aluminum profiles ensure resistance to corrosion and deformation. Suitable for both residential and commercial buildings, the system delivers long-lasting value. series: 73 series thermal break opening style: folding Glass: 5mm+9A+5mm clear tempered glass Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23

Waterproof oversize exterior aluminum swing door philippines

This exterior bifold door of over size is water proof for exterior use. Designed for open-plan living, aluminum folding doors allow spaces to expand or close as needed. The folding panels move effortlessly, while tight sealing ensures protection against wind and rain. With customizable configurations and finishes, the door system adapts to diverse design and performance requirements. series: 73 series thermal break opening style: folding Glass: 5mm+9A+5mm clear tempered glass Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23

Cheap and high quality aluminium main door

Modern exterior folding aluminum closet doors is power coated and energy saving. KDSBuilding aluminum folding doors deliver excellent performance for large openings and high-end architectural designs. Precision hardware supports smooth folding and long-term use, while aluminum profiles offer strength and corrosion resistance. This system is widely used in villas, resorts, cafes, and commercial spaces. series: 80 series thermal break opening style: folding Glass: 5mm+9A+5mm clear tempered glass Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23

Oversize solid glass waterproof aluminum folding sliding doors

Waterproof exterior door of large aluminum frame glass panel suits for exhibition halls and villas. Aluminum folding doors from KDSBuilding are designed for flexibility, comfort, and durability. The multi-panel system allows wide openings while maintaining smooth operation and secure locking. With optional sound-insulating and energy-efficient glass, the doors enhance both functionality and living quality. series: 72 series thermal break opening style: folding Glass: 5mm+9A+5mm clear tempered glass Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23

Outdoor folding glass aluminum bifold doors

Bi fold door will create more relaxing and entertaining spaces by its room-saving speciality. Our aluminum folding doors are an ideal solution for projects requiring maximum opening space and modern aesthetics. The door panels fold smoothly and stack compactly, creating a seamless transition between indoor and outdoor areas. High-quality aluminum construction ensures durability, stability, and easy maintenance. series: 80 series thermal break opening style: folding Glass: 5mm+9A+5mm clear tempered glass Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23

Aluminium insulated folding bifold aluminum door design

This aluminum bifold door suits for indoors and outdoors installation. KDSBuilding aluminum folding doors are designed to enhance architectural freedom and spatial connection. The slim aluminum frames support wide glass panels, delivering panoramic views and abundant daylight. Optional thermal break profiles and sealing systems improve insulation and weather resistance for year-round comfort. series: 73 series thermal break opening style: folding Glass: 5mm+9A+5mm clear tempered glass Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23

Air tight folding aluminum cr door

Modern exterior folding door is power coated and energy saving for building project. Xiamen KDSBuilding aluminum folding doors combine advanced engineering with elegant design. The folding mechanism allows large openings with minimal effort, while reinforced aluminum frames maintain structural integrity. With various finishes and glazing options available, the doors can be customized to meet different project needs. series: 72 series thermal break opening style: folding Glass: 5mm+9A+5mm clear tempered glass Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23

Aluminium folding door 28

KDS supply aluminum folding door 28. Aluminum folding doors from KDSBuilding create expansive openings without compromising stability or security. The precision-engineered folding system allows easy stacking of panels, while multi-point locking enhances safety. This door solution is ideal for patios, terraces, and large living spaces seeking openness and flexibility. series: 80 series thermal break opening style: folding Glass: 5mm+9A+5mm clear tempered glass Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23
