XIAMEN KDSBUILDING MATERIAL CO.,LTD
KDS Building

Aluminum frameless folding doors

Home | Aluminum doors | Aluminum frameless folding doors |Custom house glass accordion doors modern frameless folding glass door
frameless doors frameless doors frameless doors frameless doors frameless doors frameless doors frameless doors

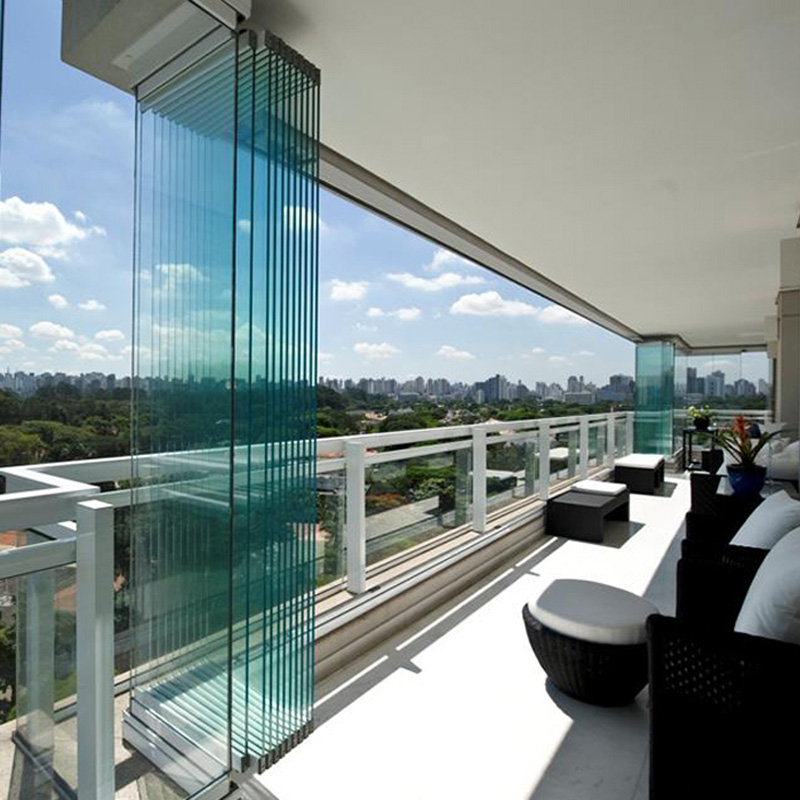

Custom house glass accordion doors modern frameless folding glass door

This model is more and more popular with consumers.

series: 50 series non thermal break aluminum and glass

opening style:  folding

Color: clear glass

Glass: 5mm+9A+5mm clear tempered glass

Certification: NFRC, AAMA, CE, TITLE 24, AS2047

Nail Fin Design  :  NO

Door Screen :  no

Grille design : no

  • Item NO.:

    KDS-D-A-Ffd-08
Inquiry now

Technical Specification – Aluminum Windows & Doors
Profile System
Classify Technical Parameter Other Options
Material 6063-T5 Aluminum Alloy 6063-T6
Structure non Thermal break aluminum profile thermal break
Profile thickness 1.6 mm 1.4 mm, 1.8 mm, 2.0 mm
Finish Powder coating PVDF coating, Anodizing, Wood grain transfer
Color White / Black / Grey Custom RAL colors
Glazing System
Glass type 5mm + 12A + 5mm Double Glazing Single glass, Triple glazing
Glass color Clear Tinted, Blue, Green, Grey
Gas filling Argon Air, Krypton
Special function Tempered glass Low-E, Laminated, Soundproof, Security glass
Hardware & Operation
Hardware brand Chinese top brand Roto, Siegenia, Kinlong
Main hardware Lock, handle, hinge, roller Heavy-duty hardware set
Locking system Multi-point locking system Single point, Crescent lock
Operation  Casement  Folding, Lift & Slide
Sealing EPDM gasket Silicone, PVC gasket
Performance Ratings
U-Factor ≤ 0.35 ≤ 0.28 with triple glass
SHGC ≤ 0.25 Low-E glass for better SHGC
Wind load ≥ 3000 Pa ≥ 4500 Pa
Water tightness ≥ 450 Pa ≥ 500 Pa
Air tightness ≤ 0.5 m³/(m²·h) ≤ 0.3 m³/(m²·h)
Manufacturing Service
Size range Width: 500–3000 mm Height: 500–3000 mm Customized size
Application Residential & Commercial High-rise, Villa, Apartment
Warranty 5 Years Excluding human damage
Certification CE, NFRC, AS2047, TITLE 24, AAMA ISO9001



Product Overview

frameless bi fold shower door specifications

frameless folding shower screen


frameless folding shower screen accessories

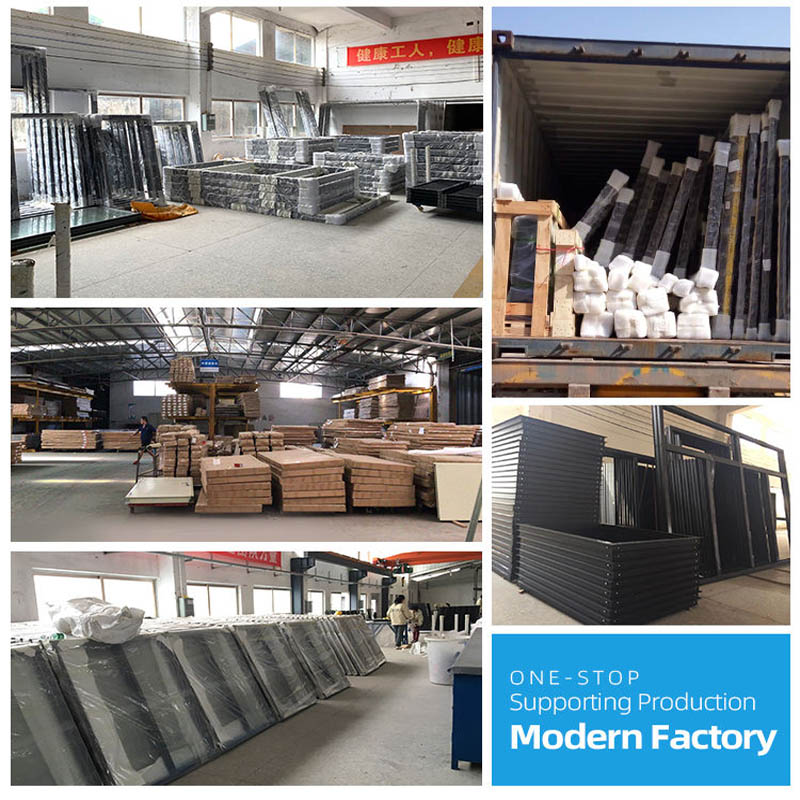

about our factory

Frameless doors are metal materials. Aluminum and various metal elements are made into various alloys. They have incomparable advantages over other alloy profiles: light weight and high strength, and can be extruded into various complex section profiles to meet various new section requirements of door and window designers.
