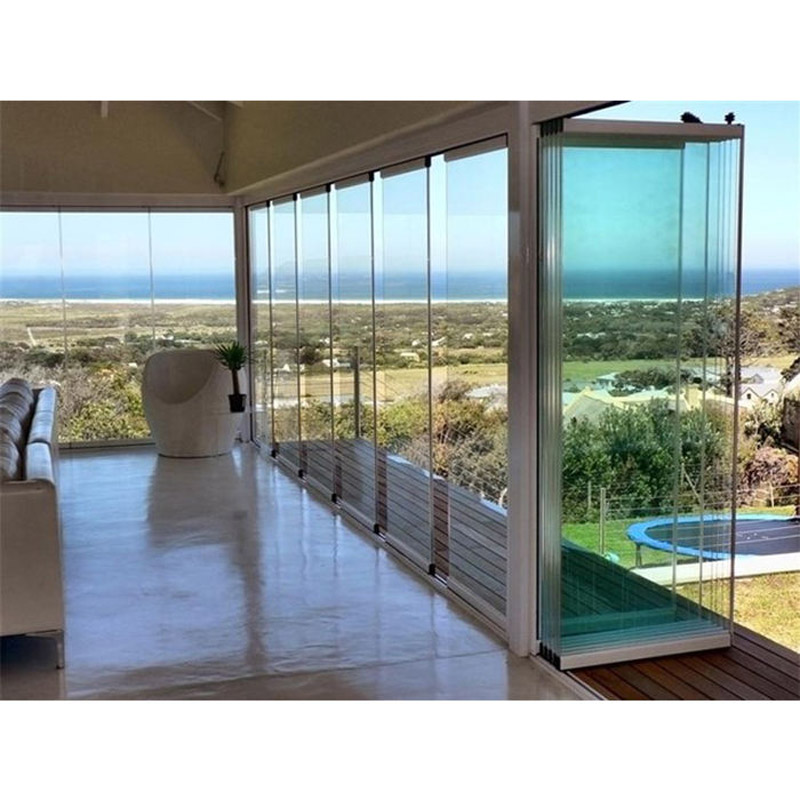

This door is treated by various processes, and its surface is resistant to acid and alkali erosion and is not affected by air pollution, acid rain and ozone. UV resistant, long-term maintenance of inherent color and luster.
series: 50 series non thermal break aluminum and glass
opening style: folding
Color: clear glass
Glass: 5mm+9A+5mm clear tempered glass
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
Nail Fin Design : NO
Door Screen : no
Grille design : no
Item NO.:
KDS-D-A-Ffd-13| Technical Specification – Aluminum Windows & Doors | ||
| Profile System | ||
| Classify | Technical Parameter | Other Options |
| Material | 6063-T5 Aluminum Alloy | 6063-T6 |
| Structure | non Thermal break aluminum profile | thermal break |
| Profile thickness | 1.6 mm | 1.4 mm, 1.8 mm, 2.0 mm |
| Finish | Powder coating | PVDF coating, Anodizing, Wood grain transfer |
| Color | White / Black / Grey | Custom RAL colors |
| Glazing System | ||
| Glass type | 5mm + 12A + 5mm Double Glazing | Single glass, Triple glazing |
| Glass color | Clear | Tinted, Blue, Green, Grey |
| Gas filling | Argon | Air, Krypton |
| Special function | Tempered glass | Low-E, Laminated, Soundproof, Security glass |
| Hardware & Operation | ||
| Hardware brand | Chinese top brand | Roto, Siegenia, Kinlong |
| Main hardware | Lock, handle, hinge, roller | Heavy-duty hardware set |
| Locking system | Multi-point locking system | Single point, Crescent lock |
| Operation | Casement | Folding, Lift & Slide |
| Sealing | EPDM gasket | Silicone, PVC gasket |
| Performance Ratings | ||
| U-Factor | ≤ 0.35 | ≤ 0.28 with triple glass |
| SHGC | ≤ 0.25 | Low-E glass for better SHGC |
| Wind load | ≥ 3000 Pa | ≥ 4500 Pa |
| Water tightness | ≥ 450 Pa | ≥ 500 Pa |
| Air tightness | ≤ 0.5 m³/(m²·h) | ≤ 0.3 m³/(m²·h) |
| Manufacturing Service | ||
| Size range | Width: 500–3000 mm Height: 500–3000 mm | Customized size |
| Application | Residential & Commercial | High-rise, Villa, Apartment |
| Warranty | 5 Years | Excluding human damage |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA | ISO9001 |
After treatment by various processes, the frameless door frame surface is resistant to acid and alkali erosion and free from air pollution, acid rain and ozone. UV resistant, long-term maintenance of inherent color and luster.
Various surface treatments can be carried out on the surface, such as powder spraying, anodizing, electrophoretic coating, wood grain transfer treatment and other surface treatment technologies, with a variety of colors and wood grains. There is a wide choice, which can meet the needs of various architectural decoration and put beautiful clothes on the buildings.
