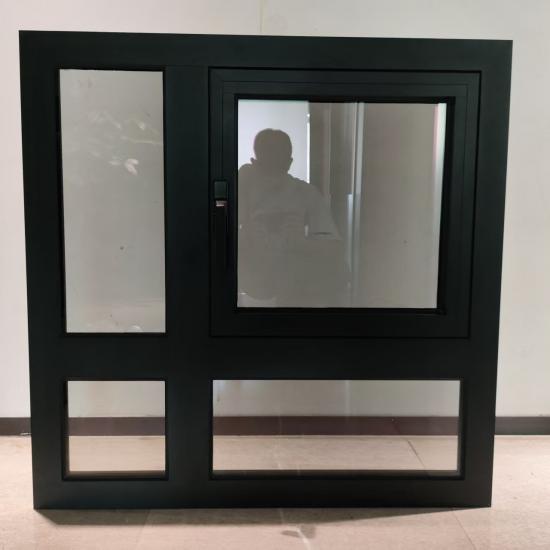

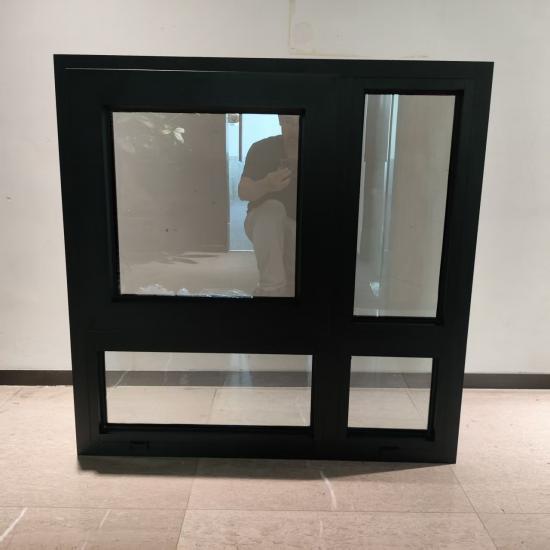

Aluminum casement and fixed window with 55 series thermal break aluminum profile, good at ventilation and have nice view. with double glass options, it can reduce energy lose and keep the house cooler in summer and warmer in winter. And also good at sound proof, can reduce noise effectively, create and quit environment for you.
series: 55 series thermal break
glazing: 5mm+9A+5mm clear tempered
U factor: lower than 0.3
SHGC: lower than 0.23
Item NO.:
KDS-W-A-C-200Payment:
DPMarket Price:
120price:
$110Product Origin:
ChinaColor:
BLACKShipping Port:
ChinaLead Time:
15-30days

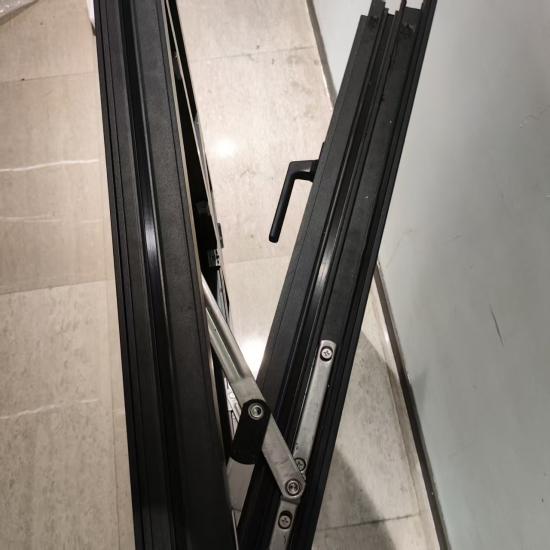

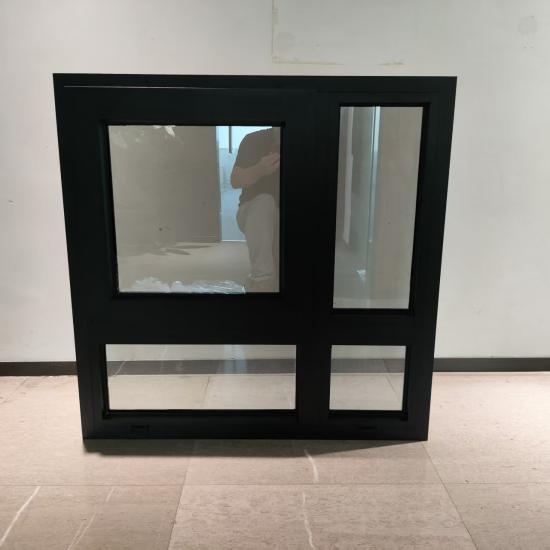

Product series : 55(2.165'') series thermal break aluminum casement (swing) window

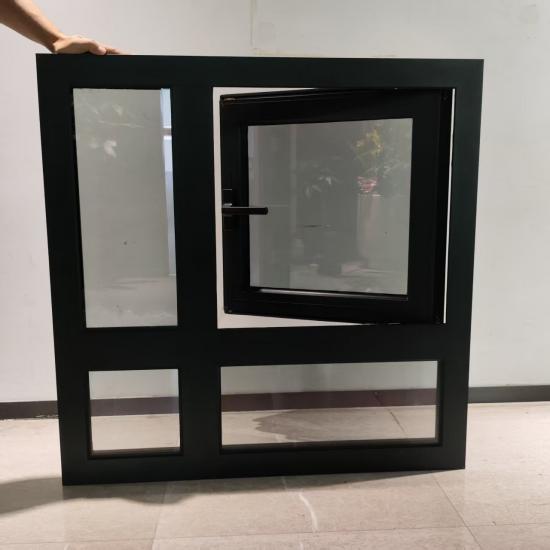

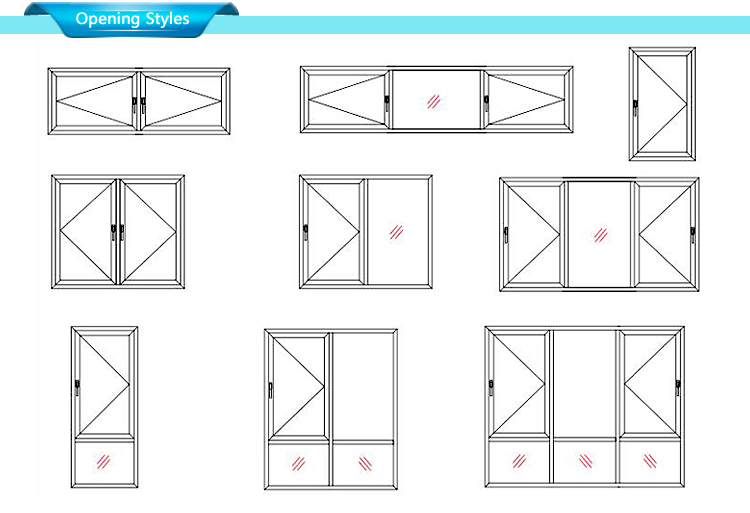

Opening type : Casement(Swing)

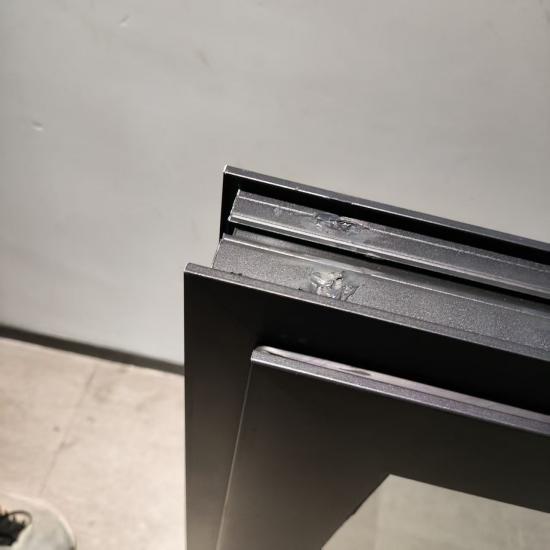

Profile type : 6063-T5 Aluminum profile, thermal break profile of International standard
Profile color : Normal colors: White , Grey, Matte Black, Wood Grain etc. All RAL & customized colors available
Profile finish : Powder coating, PVDF coating, Anodizing, Electrophoresis, Heat transfer printing etc.

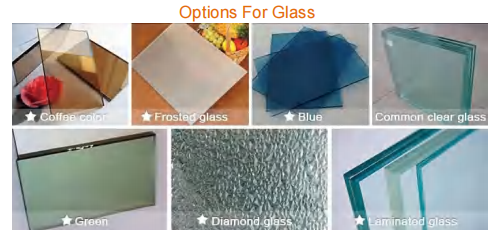

Glass type : Tempered, Insulated, Laminated, Low-e, Float, Reflective, Bullet proof etc.
Glass color : Clear(Transparent), Frosted, Grey, Brown, Green, Blue etc.

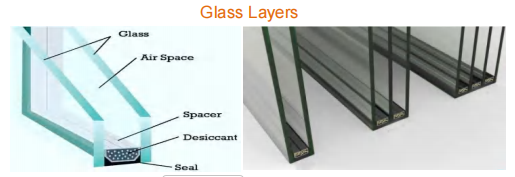

Glass Layer : Single Glass( 4mm, 5mm, 6mm, 8mm, 12mm), Double glass(5mm+9/12A+5mm, 3mm+12A+3mm, 4mm+16/20A+4mm), Triple glass(5mm+9/12A+5mm+9/12A+5mm) etc Argon filled available.

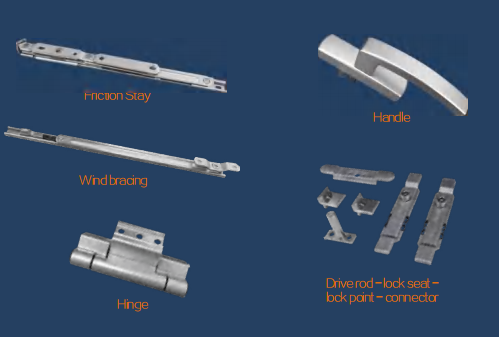

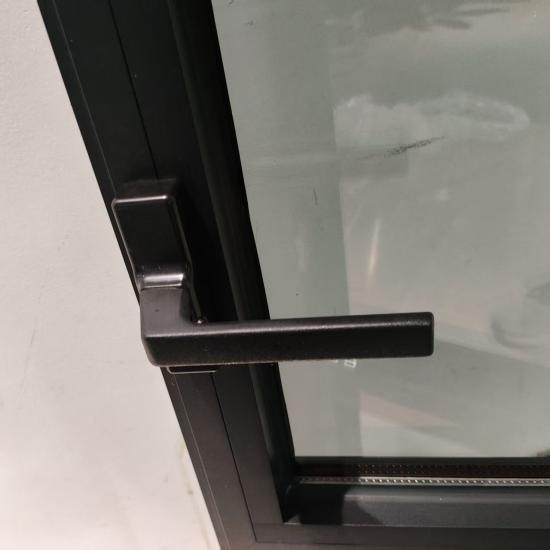

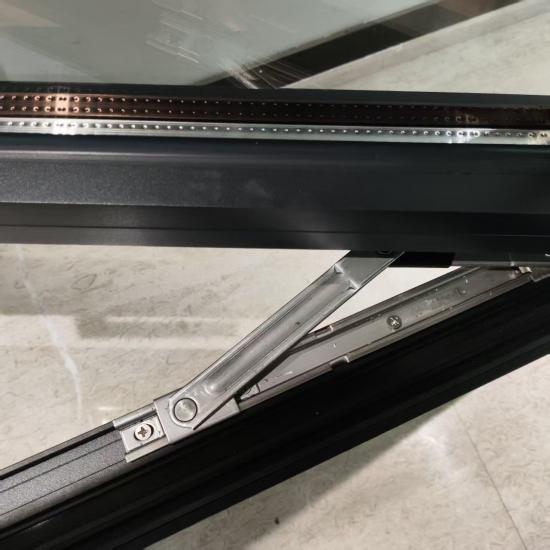

Accessory : International qualified of accessories of German, America, Australia, China etc.
Parameter : U-Factor ≤ 0.3 , SHGC ≤ 0.23 , Sound Insulation ≤ 36 db , Water Tightness ≥ 450 pa , Wind Resistance ≥ 4500 pa , Air Tightness ≤ 0.4 m3(㎡.h)

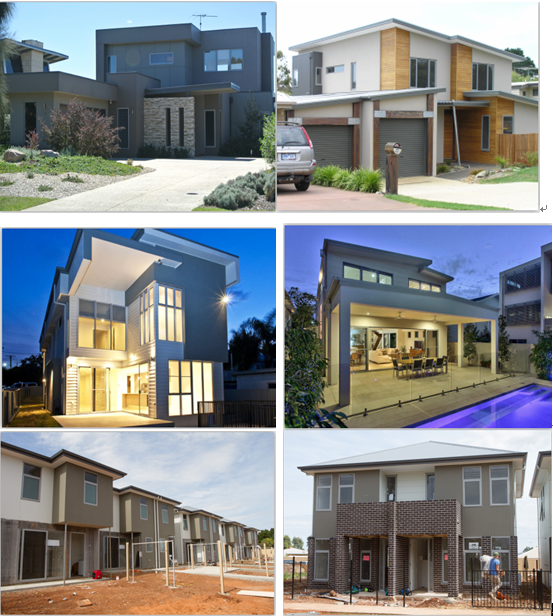

Project Case :
