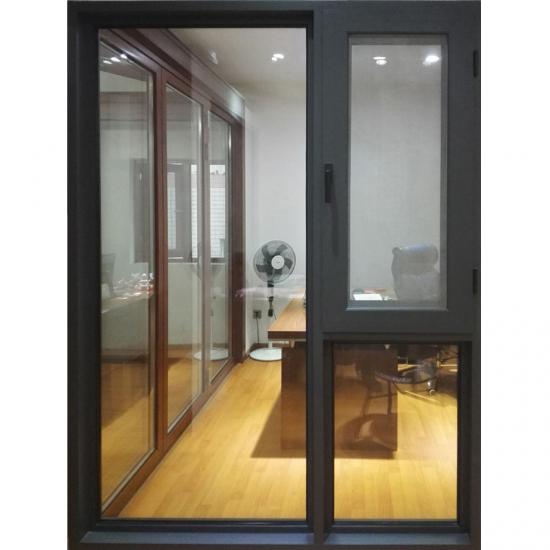

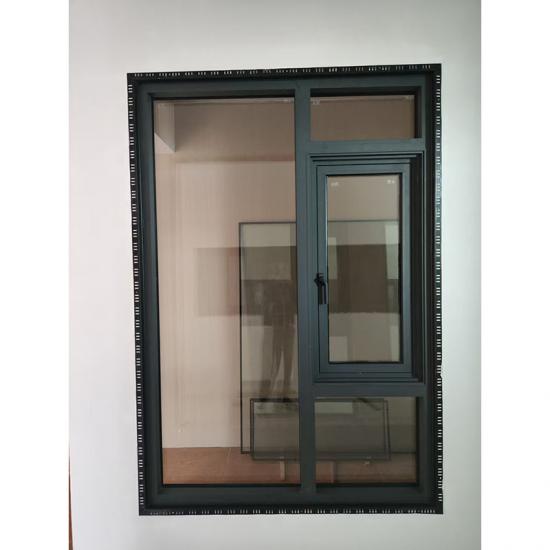

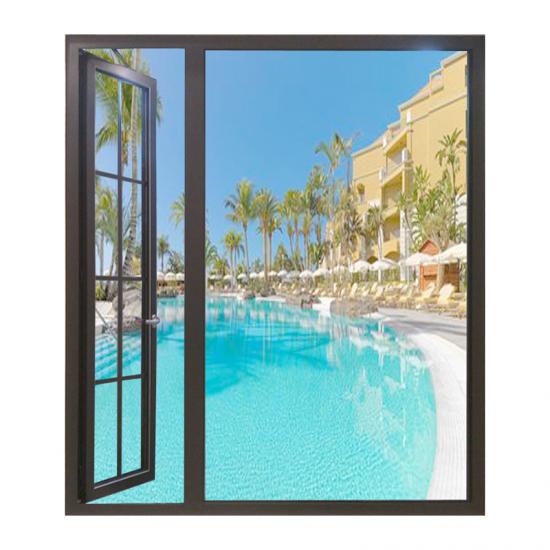

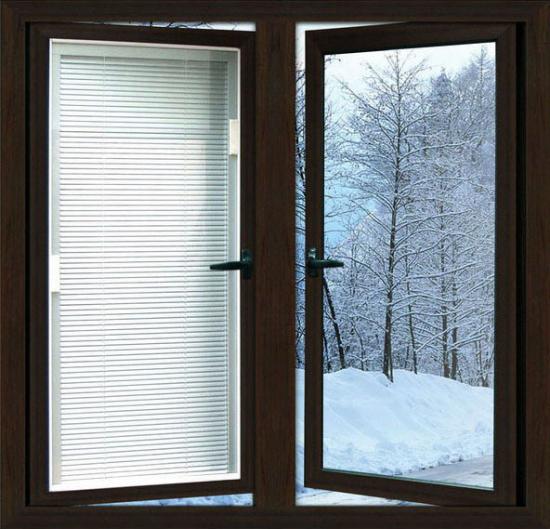

The casement + fixed window combination offers the ideal balance between ventilation, natural light, and energy efficiency. The operable casement sash opens outward on precision hinges, providing excellent airflow and easy cleaning from inside the room. Meanwhile, the fixed panel maximizes unobstructed views while maintaining exceptional thermal insulation. Both sections are built with high-quality aluminum or , depending on project requirements, and paired with low-E double glazing to reduce heat loss and improve comfort. Multi-point locking ensures a tight seal against air and water infiltration, making this window highly suitable for energy-efficient buildings.
series: 100 series thermal break
glazing: 5mm+9A+5mm clear tempered
U factor: lower than 0.3
SHGC: lower than 0.23
Item NO.:
KDS-W-A-C-201Payment:
DPProduct Origin:
ChinaColor:
BLACKShipping Port:
ChinaLead Time:
15-30days

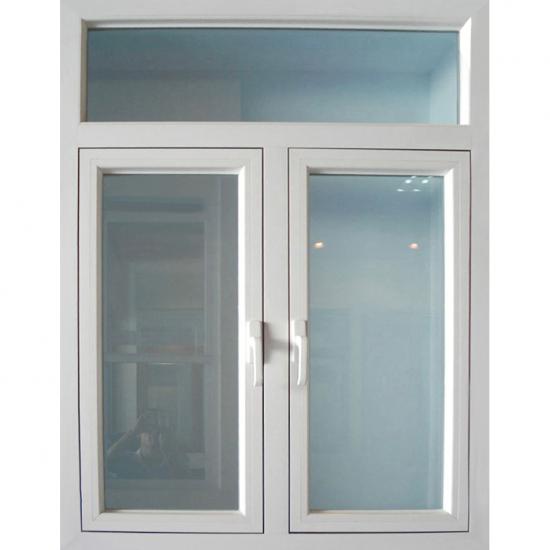

Product series : 100series aluminum casement (swing) window

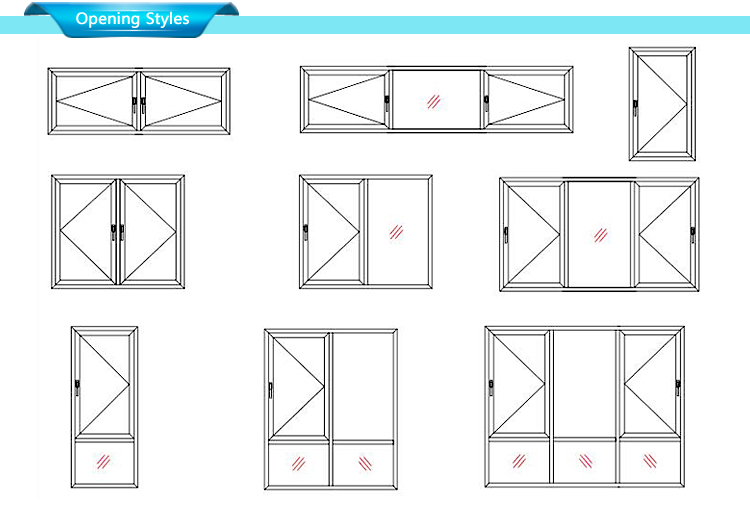

Opening type : Casement(Swing)
Profile type : 6063-T5 Aluminum profile, thermal break& non thermal break profile of International standard
Profile color : Normal colors: White , Grey, Matte Black, Wood Grain etc. All RAL & customized colors available
Profile finish : Powder coating, PVDF coating, Anodizing, Electrophoresis, Heat transfer printing etc.

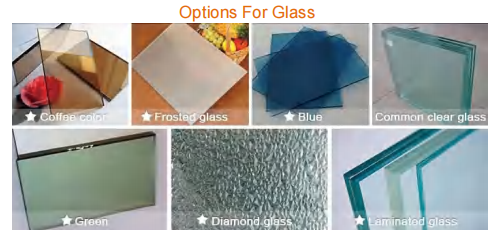

Glass type : Tempered, Insulated, Laminated, Low-e, Float, Reflective, Bullet proof etc.
Glass color : Clear(Transparent), Frosted, Grey, Brown, Green, Blue etc.

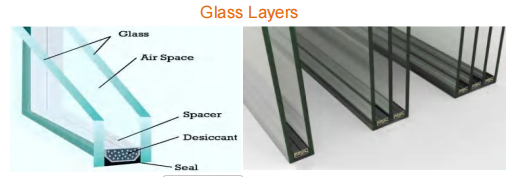

Glass Layer : Single Glass( 4mm, 5mm, 6mm, 8mm, 12mm), Double glass(5mm+9/12A+5mm, 3mm+12A+3mm, 4mm+16/20A+4mm), Triple glass(5mm+9/12A+5mm+9/12A+5mm) etc。 Argon filled available.

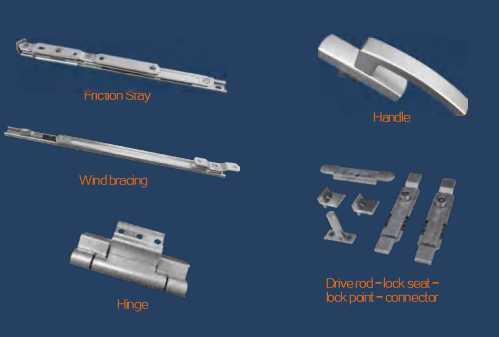

Accessory : International qualified of accessories of German, America, Australia, China etc.

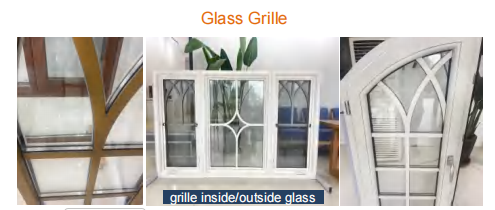

Grille : Grille is made of Aluminum or PVC profile, placing between the panels of insulated glasses or stick to the surface of glass（Optional）.

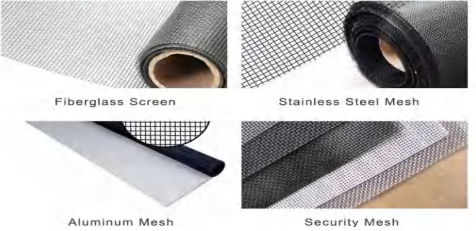

Screen : Fiberglass, Nylon, Stainless steel mesh(Optional). (Outside rolling shutter or inside casement mesh for outward casement window. Fixed or outward casement mesh for inward casement window)
Parameter : U-Factor ≤ 0.3 , SHGC ≤ 0.23 , Sound Insulation ≤ 36 db , Water Tightness ≥ 450 pa , Wind Resistance ≥ 4500 pa , Air Tightness ≤ 0.4 m3(㎡.h)

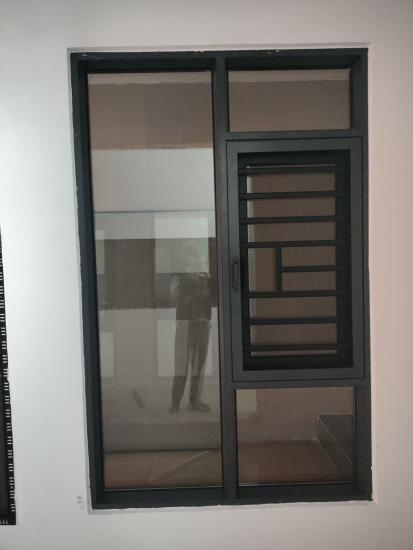

Anti-Theft Bar : We Also can Supply Anti-theft bar inside or outside the window.

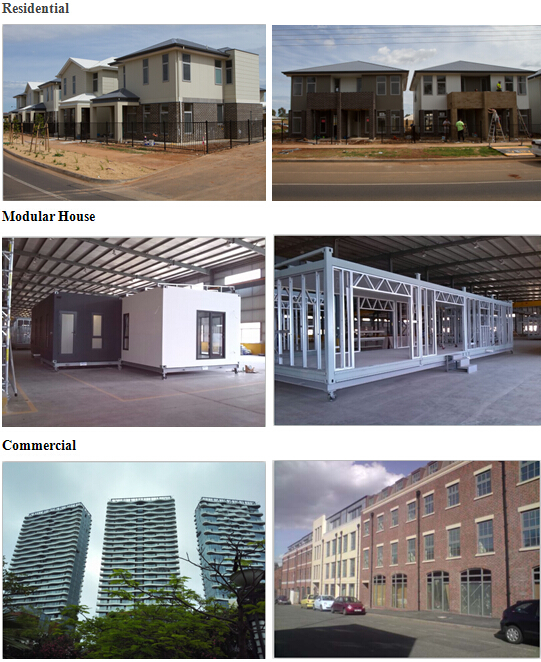

Project Case : We Finished and offer one stop solutions many projects in England, USA, Australia, Philippine etc.
