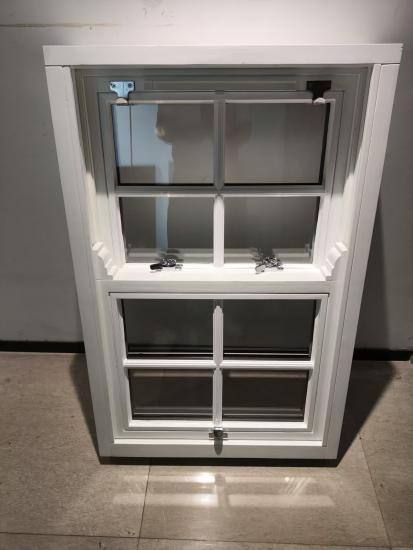

Buy Elegant Wooden Double Hung Window With Grill Design,Elegant Wooden Double Hung Window With Grill Design Suppliers,manufacturers,Customized

Product Detail

Technical Specification

Classify	Technical Parameter	Other Options
Frame System
Frame Material	Solid Wood (Pine / Oak / Meranti)	Engineered Wood, Hardwood
Wood Treatment	Kiln-Dried & Anti-Termite	Vacuum Pressure Treatment
Structure Type	Double Hung (Top & Bottom Operable)	Single Hung
Frame Thickness	68mm	78mm, 88mm
Finish	Water-Based Paint	PU Paint, Stain Finish
Sash System

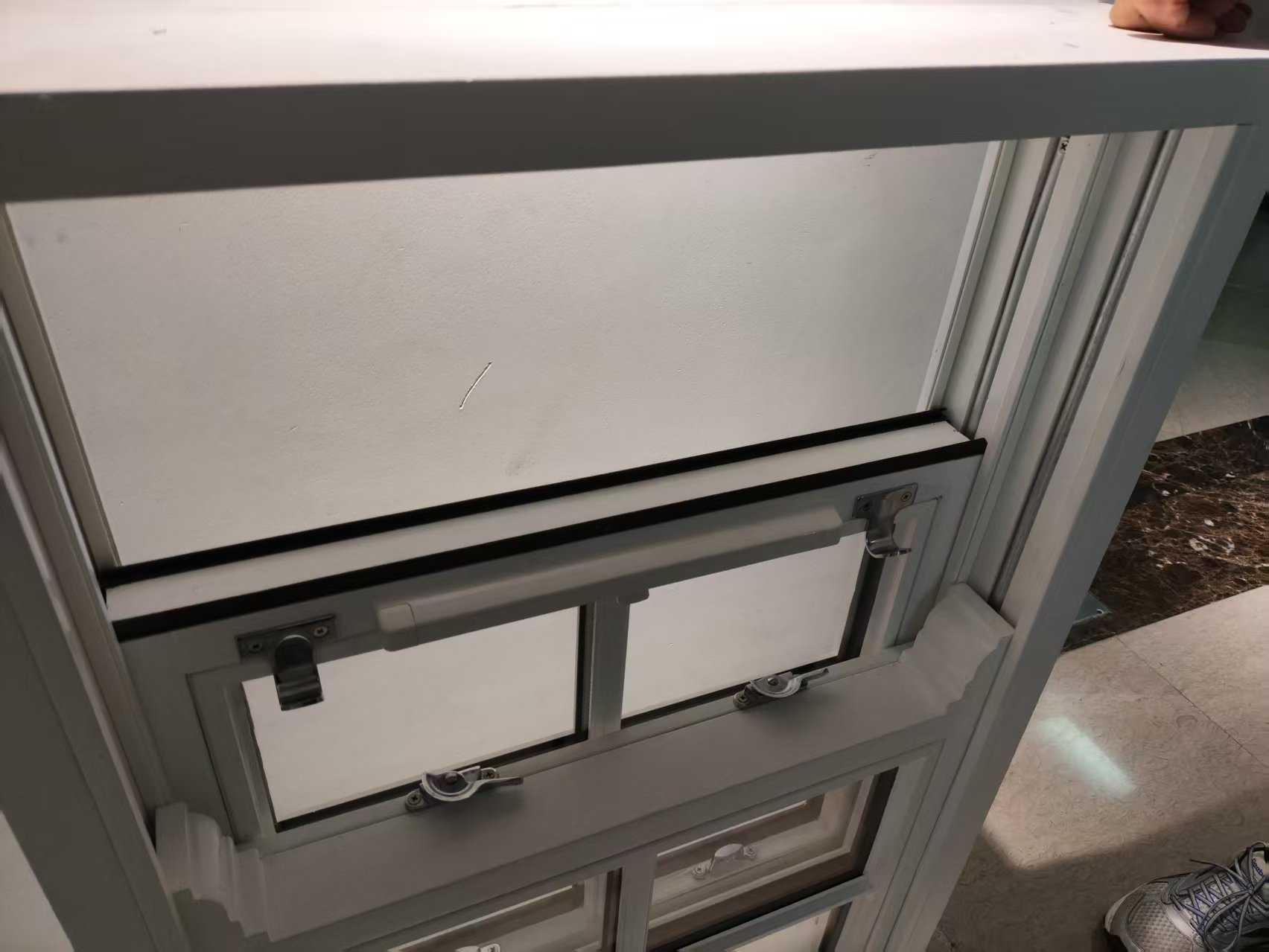

Sash Type	Sliding Vertical Sash	Tilt-in Cleaning Function

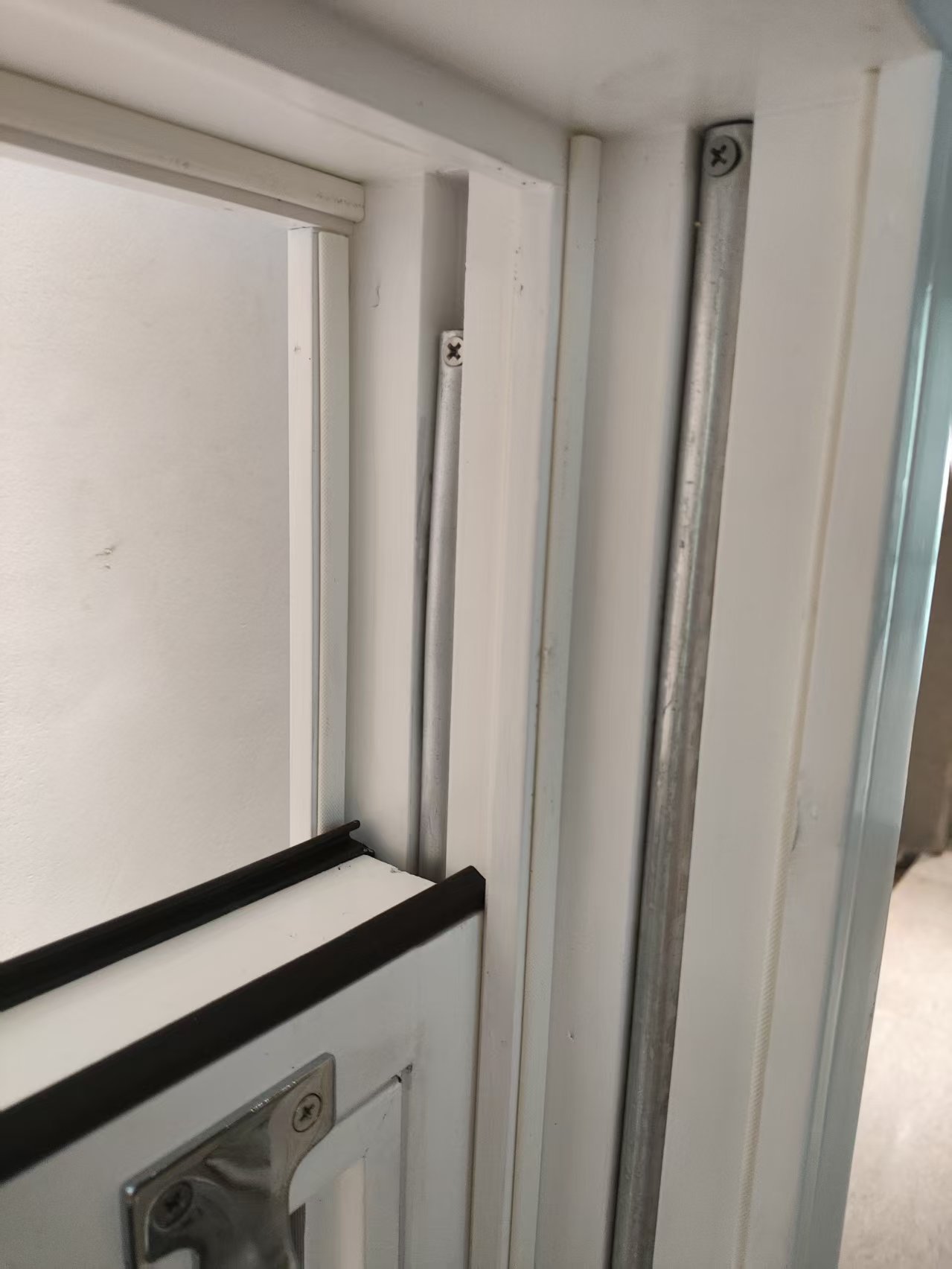

Balance System	Spring Balance	Block & Tackle

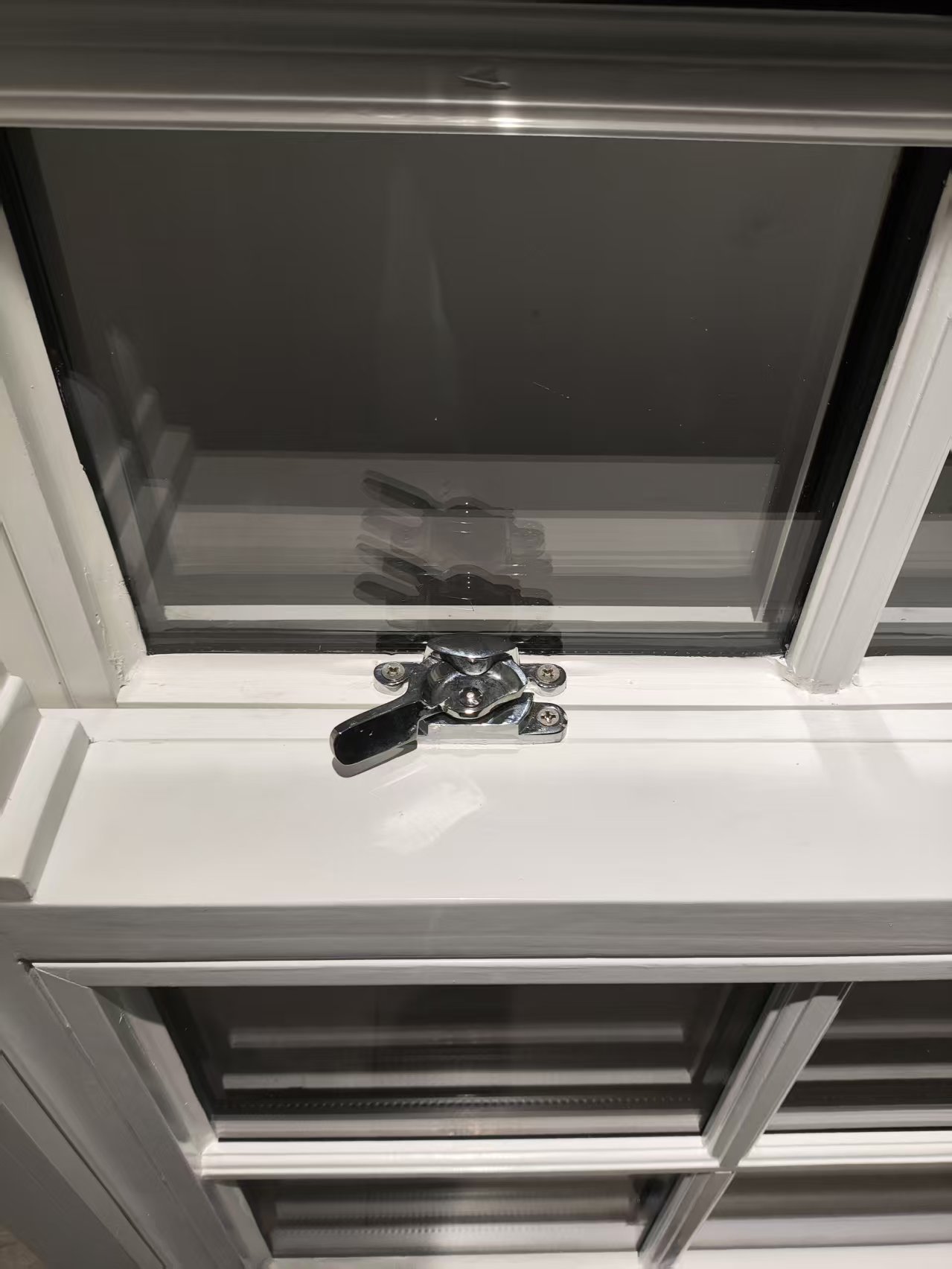

Hardware	Lock & Lift Handle	Premium Brand Hardware
Screen	Optional	Fiberglass, Stainless Steel Mesh
Glazing System
Glass Type	Double Glazed (5+9A+5)	Single Glass, Triple Glass
Glass Option	Tempered Glass	Low-E, Laminated
Glass Color	Clear	Tinted, Grey, Blue
Gas Filling	Air	Argon
Sealing System
Sealing Material	EPDM Weather Seal	Brush Seal, PVC
Air Tightness Design	Multi-Seal Structure	Enhanced Sealing
Performance Ratings
U-Factor	≤ 0.30	Custom
SHGC	≤ 0.25	Custom
Sound Insulation	≥ 30 dB	Enhanced Acoustic
Water Tightness	≥ 300 Pa	Custom
Air Tightness	≤ 0.5 m³(㎡·h)	Custom
Wind Load Resistance	≥ 3000 Pa	Custom
Manufacturing Service
Size Range	Width: 500–1200 mm, Height: 800–2000 mm	Custom Sizes
Installation	Nail Fin / Flange	Retrofit Installation
Delivery Time	20–35 Days	Depending on quantity
Warranty	5 Years	Extended option
Certification	CE, NFRC	AAMA, AS2047

Product Detail
