Xiamen KDSBuilding’s PVC/UPVC sliding windows represent a perfect blend of modern aesthetics, energy efficiency, and durability, making them an ideal choice for both residential and commercial projects. Fabricated using premium-grade unplasticized polyvinyl chloride (UPVC), these windows undergo a meticulous multi-stage manufacturing process to ensure exceptional performance. It begins with the precision extrusion of UPVC profiles, which are then internally reinforced with galvanized steel to enhance structural strength and prevent warping over time. The profiles are cut with advanced CNC machines for exact dimensions, followed by corner welding or mechanical joining to achieve airtight, seamless frames. High-quality EPDM gaskets are inserted to guarantee superior sealing, while double or triple glazing units are fitted to maximize thermal insulation and noise reduction. The sliding mechanism incorporates smooth, corrosion-resistant stainless-steel rollers and a multi-point locking system, ensuring effortless operation and enhanced security.
series: 72 series PVC
opening style: Top sliding and bottom fixed
Color: White
Glass: 5mm+9A+5mm clear tempered glass
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.23
Item NO.:
KDS-W-P-C-100Payment:
DPMarket Price:
120price:
$100Product Origin:
ChinaColor:
RAL colorShipping Port:
ChinaLead Time:
15-45daysOrder(MOQ):

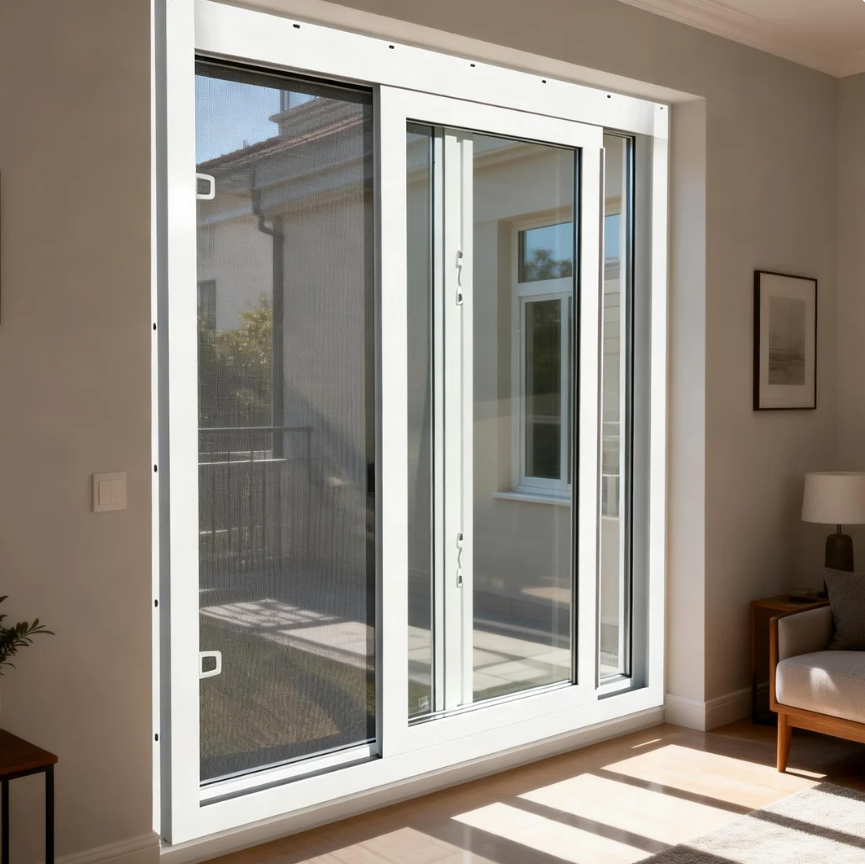

20 square meterDesigned for horizontal movement along sleek tracks, Xiamen KDSBuilding’s sliding windows save valuable interior and exterior space, making them perfect for balconies, patios, and rooms with limited clearance. They provide expansive unobstructed views and excellent ventilation, as one or more panels glide past fixed sections without protruding. The multi-chambered UPVC profiles minimize heat transfer, resulting in impressive U-values that comply with stringent energy efficiency standards. Additionally, the material is naturally resistant to moisture, salt air, and pollution, making it especially suitable for coastal and urban environments.
Technical Specification:
| Classify | Technical parameter | Other Options | |
| Profile system |
|
|
|
| Material | PVC/UPVC/Vinyl | PVC profile + steel reinforcement | |
| Structure | Multi-chamber pvc profile | 3 chambers, 5 chambers, 7 chambers | |
| thickness | 1.6mm | 1.2mm, 1.4mm, 2.0mm | |
| Finish | black PVC |
Laminated wood grain, grey, white, golden oak |
|
| Glazing system |
|
|
|
| Glass type | 5mm+9A+5mm | Single Glass, Triple Glass | |
| Glass color | Clear | Tinted, blue, green, grey etc | |
| Gas Filling | Argon | Air, Argon,Krypton | |
| Special function | Tempered |
Low-e, laminated, bullet proof,
|
|
| Hardware&Operation |
|
|
|
| Hardware Brand | Chinese top brand Hardware | Roto, Siegenia, Kinlong | |

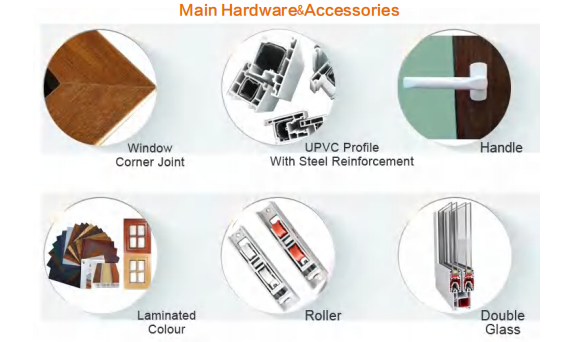

| Main Hardware | lock,D-type handle, lock, roller | Heavy-duty roller set | |
| Locking system |

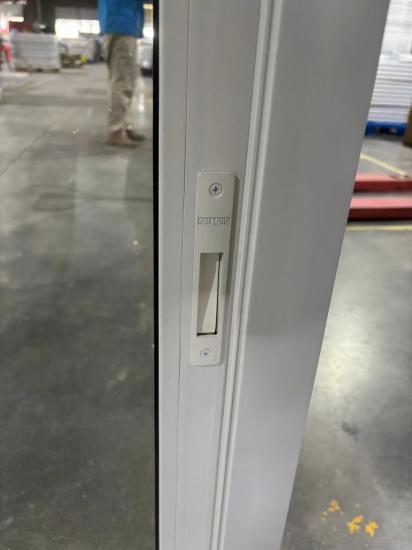

flush pull lock |
Multi-point lock, crescent lock |
|
| Sealing | EPDM | Silicone, PVC gasket | |
| Performance Ratings |
|
|
|
| U-Factor |
≤ 0.3 |
≤ 0.25 with triple glass | |
| SHGC |
SHGC ≤ 0.23 |
Low-E for better SHGC |
|
| Wind load |
≥ 3000 pa |
≥ 4500 Pa | |
| Water Tightness |
≥ 450 pa |
≥ 500 Pa | |
| Air Tightness |
≤ 0.4 m3(㎡.h) |
≤ 0.3 m³/(m²·h) | |
| Manufacturing Service |
|
|
|
| Size Range | Sash width: 500–2000 mm Sash height: 500–2000 mm | Customized size | |
| Warranty | 5 Year | except damage caused by human | |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA | ISO9001 |

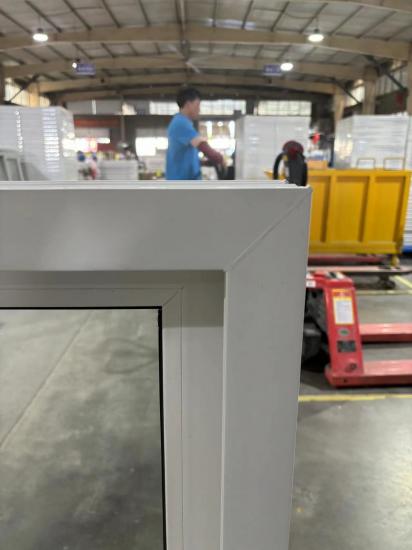

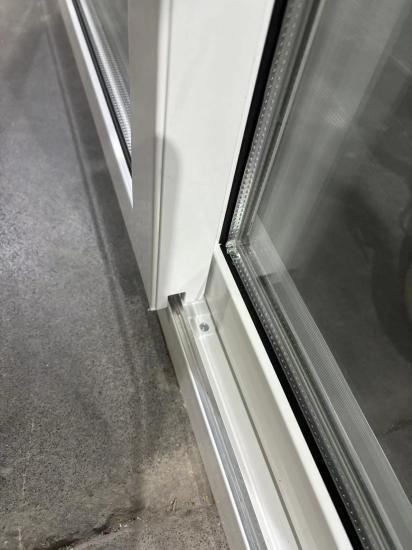

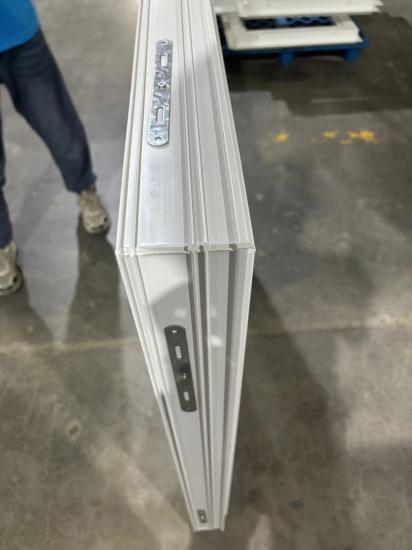

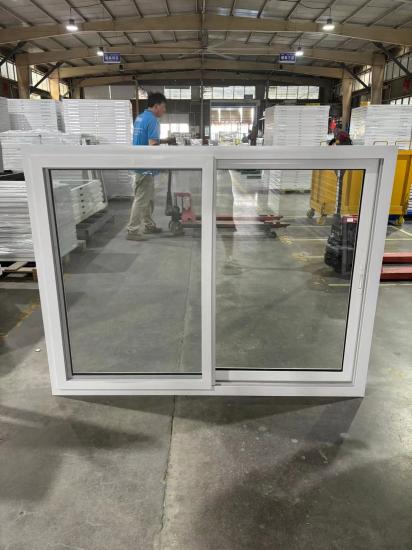

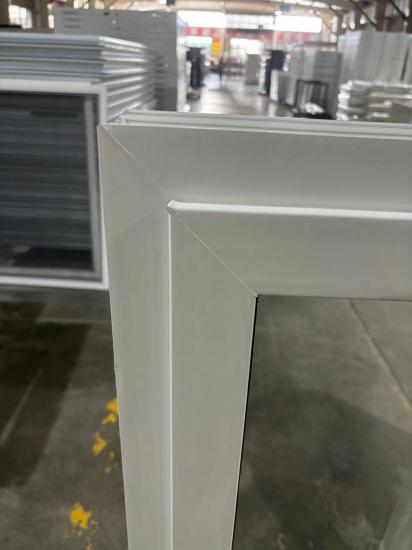

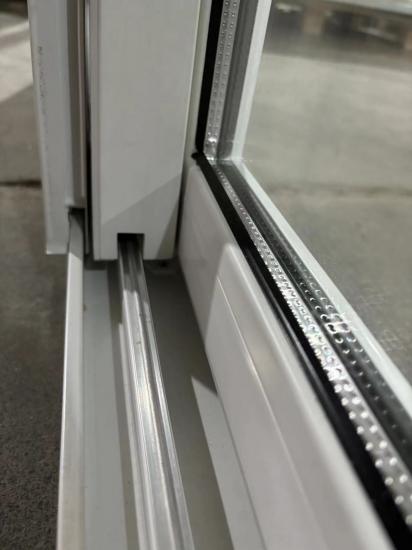

Product Detail:
certification

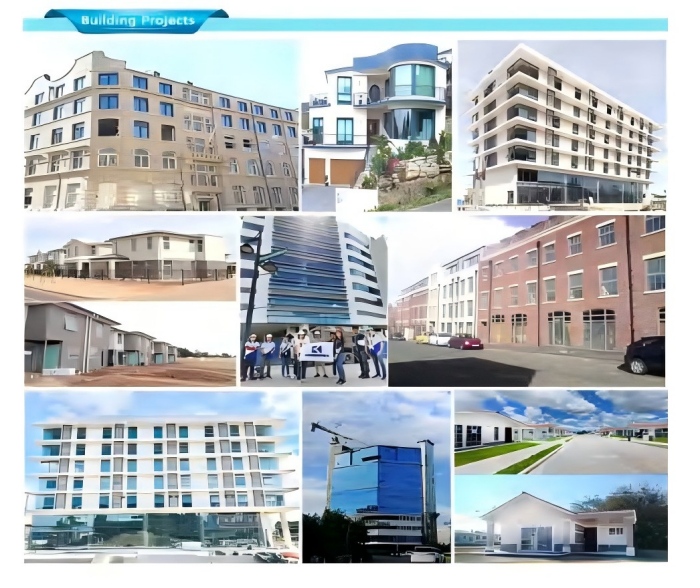

application and project case
FAQ
UPVC Glass Windows And Doors
Q1:What are the types of your UPVC window and door profiles?
1.Extruded PVC / UPVC Profile. 2.Yes / No fill galvanized steel strengthening reinforcements (1.5mm-2.0mm thickness) into cavities of extruded UPVC profiles.
Q2:What are the types of your UPVC window and door glasses?
1.Type:Tempered,Insulated,Laminated,Low-e,Float,Reflective,Bullet-proof,etc. 2.Layer:Single / Double / Triplex Glasses for reducing summer heat load and winter heat loss.3.Color:Clear(Transparent),Frosted,Grey,Blown,Green,Blue,etc.
4.Thickness:4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm.5.Insulated Glass Spacer:6A,9A,12A,15A,16A.Standard Insulated Glass:5mm+9A/12A+5mm,6mm+9A/12A+6mm with argon gas filled inside.Standard Laminated Glass:5mm+0.38PVB+5mm,5mm+0.76PVB+5mm.6.Quality Standard:European standard CE,Australian standard AS2208,Chinese standard CCC.
Q3:What are the types of your UPVC window and door accessories?
1.Brand:German, American, Australian and Chinese Top Brands,etc.2.Accessories:handles,hinges,locks,rollers,linkage devices,etc.
Q4:What are the package types of your windows and doors?
1.Steps:(1)Use air blow gun and thinner to clean products surface.(2)Use Air bubble film / PE film / EPE foam to wrap products against sea water corrosion.(3)Use craft paper / corrugated paper to protect product four corners.(4)Load FCL Packing products into container directly.(Note:Use container lashing belt to fasten FCL packing irregular goods.)(5)Load LCL Packing products into plywood cases / iron pallets with packing belt,then into container.(FCL:full container load;LCL:less than a container load)2.List:Pallet list for each pallet of a large amount purchase,saving time for you to sort out each window or door.
Q5:What is delivery time of your windows and doors?
Our goods are usually shipped by 20-50 workdays after payment.Different goods quantity means different delivery time.Please send your detailed windows and doors schedule to us,then we will confirm the exact delivery time for you.
Q6:How can we install your windows and doors at our building side?
We can offer the detailed windows and doors installation drawing for you.We also have our professional installation team in Australia and Philippines who can help you if you need.
Q7:This is my first time to import windows and doors, how should I do?
We have 20 years exporting experience.In order to save both your time and money,we can serve you as follows.1.We can direct a series of importing affairs for you.2.We can supply you one-stop purchase service of various building materials if you need.
