VC sliding window is a modern, space-efficient window system widely used in residential and commercial buildings. Manufactured from polyvinyl chloride (PVC), this type of window combines durability, energy efficiency, and aesthetic appeal. The sliding mechanism operates horizontally along a track, making it ideal for areas with limited interior or exterior space where traditional casement windows might be obstructed.
PVC sliding windows are known for their low maintenance requirements, excellent insulation properties, and resistance to moisture, termites, and corrosion. The multi-chambered profile enhances thermal and sound insulation, making them suitable for all climates. The double-glazed glass option further improves energy performance by reducing heat transfer and outside noise.
series: 72 series PVC
opening style: Top sliding and bottom fixed
Color: White
Glass: 5mm+9A+5mm clear tempered glass
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.23

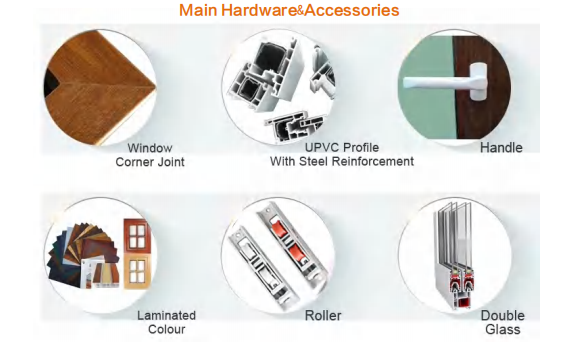

Xiamen KDSBuilding’s PVC sliding windows are crafted with high-precision corner welding, reinforced steel inside frames, and optional security locking systems for added strength and safety. These windows are available in various configurations, including two-track, three-track, and even multi-panel designs, offering design flexibility for large openings and panoramic views.
Easy to operate and clean, PVC sliding windows are a practical and stylish solution for modern architecture. Their sleek appearance, coupled with superior performance, makes them a long-lasting and cost-effective choice for any property.

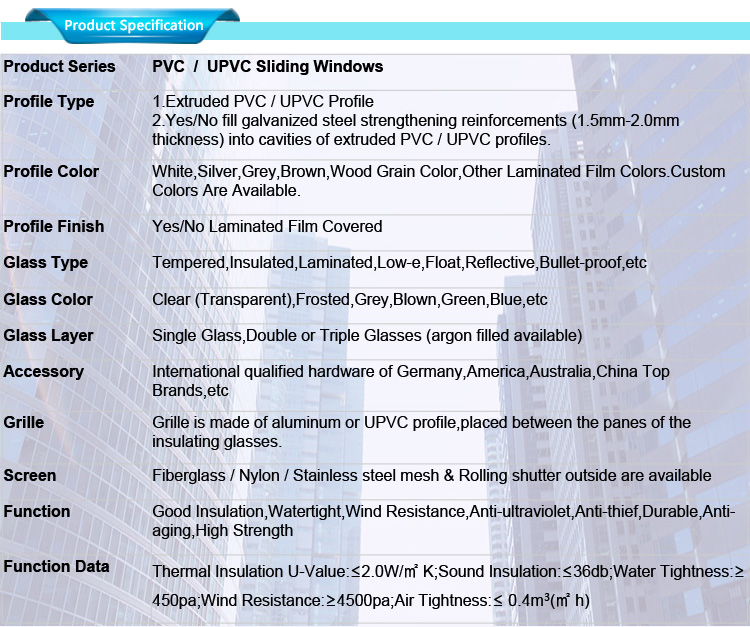

Technical Specification:
| Classify | Technical parameter | Other Options | |
| Profile system |
|
|
|
| Material | PVC/UPVC/Vinyl | PVC profile + steel reinforcement | |

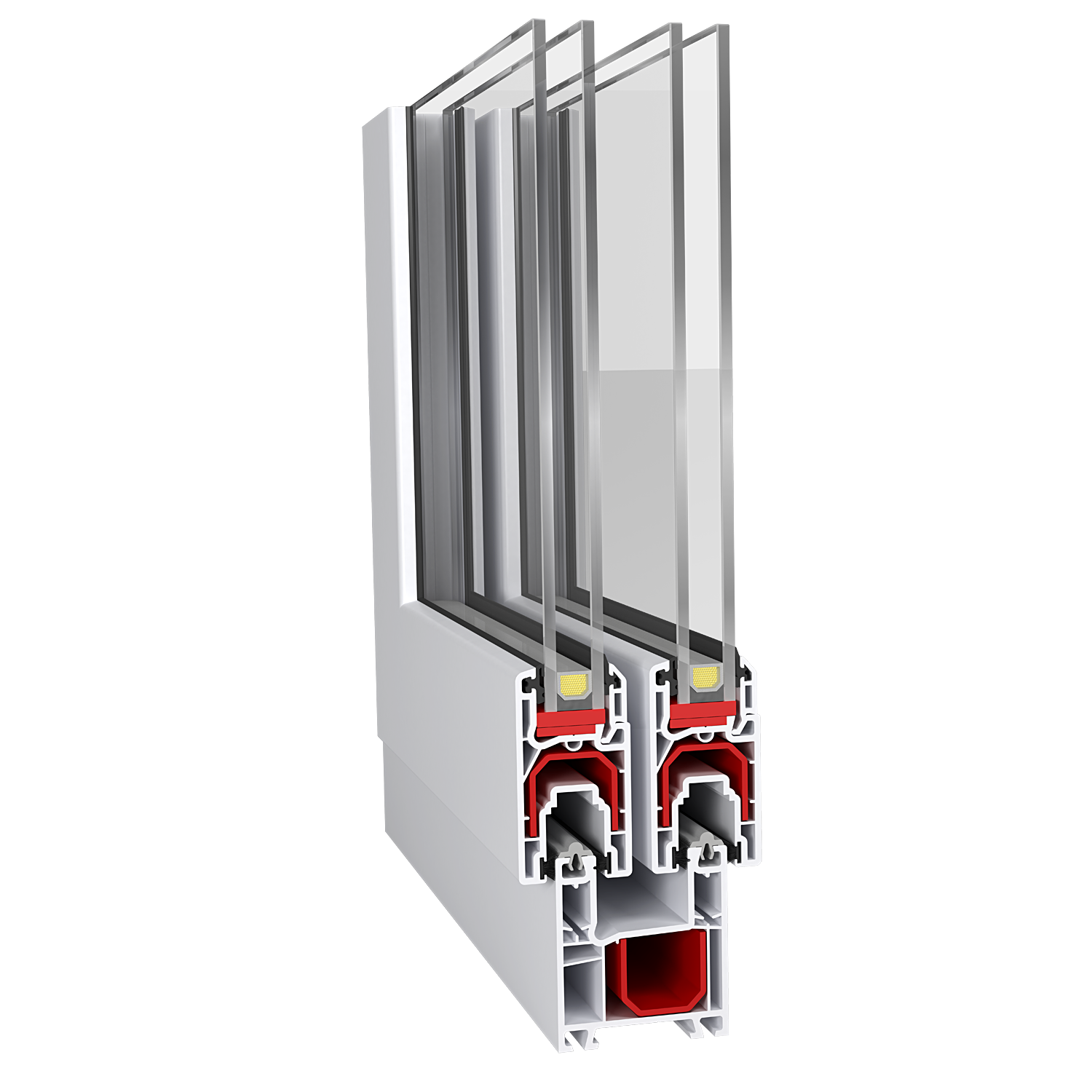

| Structure | Multi-chamber pvc profile | 3 chambers, 5 chambers, 7 chambers | |
|
thickness |
1.6mm | 1.2mm, 1.4mm, 2.0mm | |
| Finish | black PVC |
Laminated wood grain, grey, white, golden oak |
|
| Glazing system |
|
|
|
| Glass type | 5mm+9A+5mm | Single Glass, Triple Glass | |
| Glass color | Clear | Tinted, blue, green, grey etc | |
| Gas Filling | Argon | Air, Argon,Krypton | |
| Special function | Tempered |
Low-e, laminated, bullet proof,
|
|
| Hardware&Operation |
|
|
|
| Hardware Brand | Chinese top brand Hardware | Roto, Siegenia, Kinlong | |
| Main Hardware | lock,D-type handle, lock, roller | Heavy-duty roller set | |
| Locking system |
flush pull lock |
Multi-point lock, crescent lock |
|
| Sealing | EPDM | Silicone, PVC gasket | |
| Performance Ratings |
|
|
|
| U-Factor |
≤ 0.3 |
≤ 0.25 with triple glass | |
| SHGC |
SHGC ≤ 0.23 |
Low-E for better SHGC |
|
| Wind load |
≥ 3000 pa |
≥ 4500 Pa | |
| Water Tightness |
≥ 450 pa |
≥ 500 Pa | |
| Air Tightness |
≤ 0.4 m3(㎡.h) |
≤ 0.3 m³/(m²·h) | |
| Manufacturing Service |
|
|
|
| Size Range | Sash width: 500–2000 mm Sash height: 500–2000 mm | Customized size | |
| Warranty | 5 Year | except damage caused by human | |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA | ISO9001 |

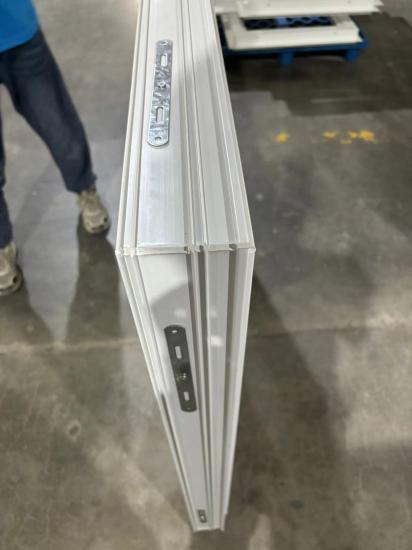

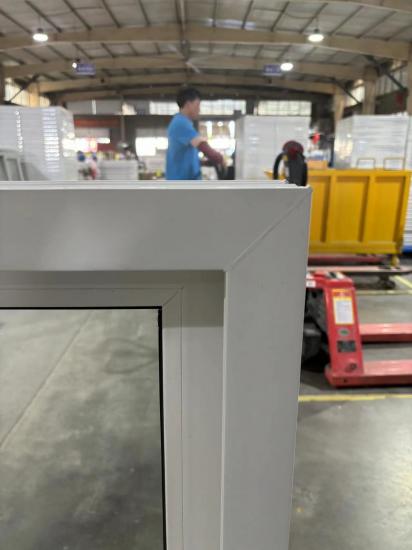

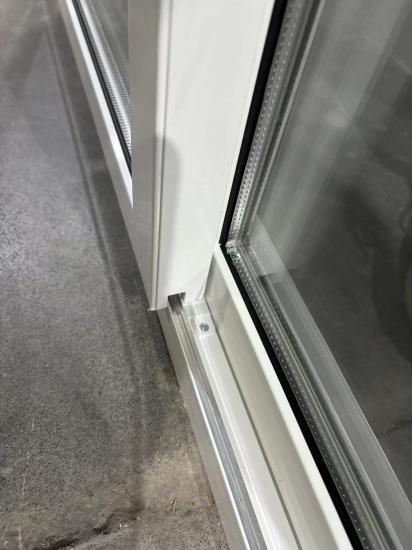

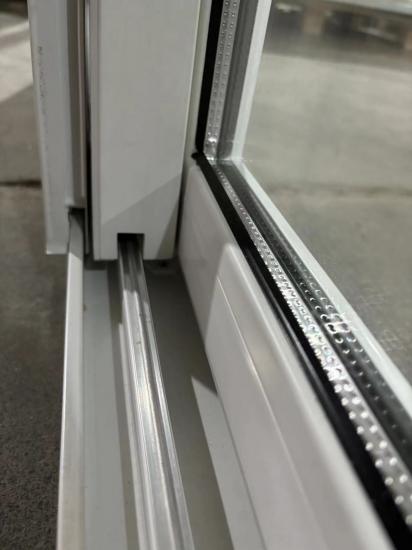

Product Detail:

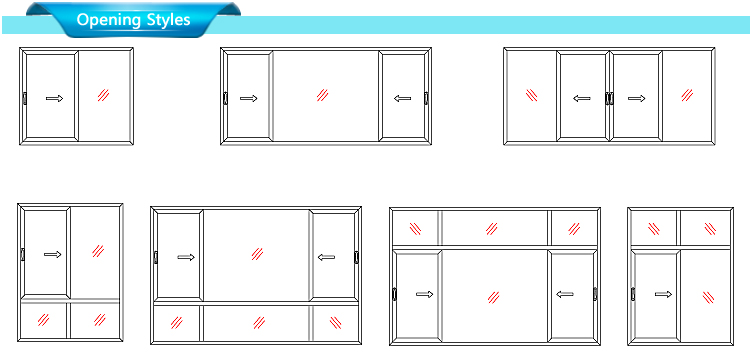

opening style
certification

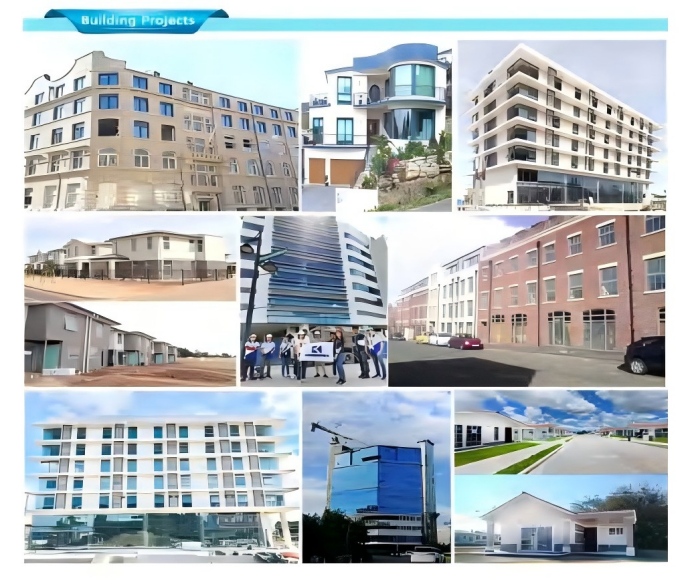

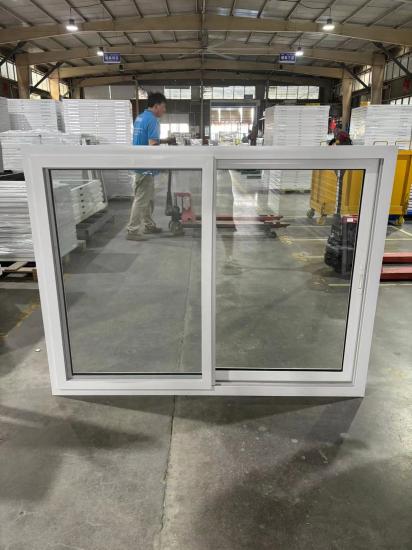

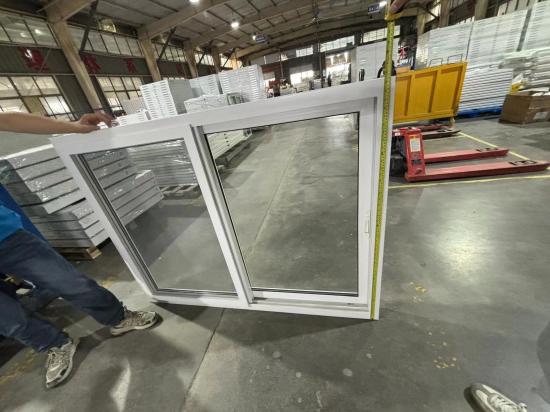

application and project case
FAQ
UPVC Glass Windows And Doors
Q1:What are the types of your UPVC window and door profiles?
1.Extruded PVC / UPVC Profile. 2.Yes / No fill galvanized steel strengthening reinforcements (1.5mm-2.0mm thickness) into cavities of extruded UPVC profiles.
Q2:What are the types of your UPVC window and door glasses?
1.Type:Tempered,Insulated,Laminated,Low-e,Float,Reflective,Bullet-proof,etc. 2.Layer:Single / Double / Triplex Glasses for reducing summer heat load and winter heat loss.3.Color:Clear(Transparent),Frosted,Grey,Blown,Green,Blue,etc.
4.Thickness:4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm.5.Insulated Glass Spacer:6A,9A,12A,15A,16A.Standard Insulated Glass:5mm+9A/12A+5mm,6mm+9A/12A+6mm with argon gas filled inside.Standard Laminated Glass:5mm+0.38PVB+5mm,5mm+0.76PVB+5mm.6.Quality Standard:European standard CE,Australian standard AS2208,Chinese standard CCC.
Q3:What are the types of your UPVC window and door accessories?
1.Brand:German, American, Australian and Chinese Top Brands,etc.2.Accessories:handles,hinges,locks,rollers,linkage devices,etc.
Q4:What are the package types of your windows and doors?
1.Steps:(1)Use air blow gun and thinner to clean products surface.(2)Use Air bubble film / PE film / EPE foam to wrap products against sea water corrosion.(3)Use craft paper / corrugated paper to protect product four corners.(4)Load FCL Packing products into container directly.(Note:Use container lashing belt to fasten FCL packing irregular goods.)(5)Load LCL Packing products into plywood cases / iron pallets with packing belt,then into container.(FCL:full container load;LCL:less than a container load)2.List:Pallet list for each pallet of a large amount purchase,saving time for you to sort out each window or door.
Q5:What is delivery time of your windows and doors?
Our goods are usually shipped by 20-50 workdays after payment.Different goods quantity means different delivery time.Please send your detailed windows and doors schedule to us,then we will confirm the exact delivery time for you.
Q6:How can we install your windows and doors at our building side?
We can offer the detailed windows and doors installation drawing for you.We also have our professional installation team in Australia and Philippines who can help you if you need.
Q7:This is my first time to import windows and doors, how should I do?
We have 20 years exporting experience.In order to save both your time and money,we can serve you as follows.1.We can direct a series of importing affairs for you.2.We can supply you one-stop purchase service of various building materials if you need.
