Glass vinyl pvc pvc bathroom door

For pvc sliding window and door,it is possible for storm water resistance.

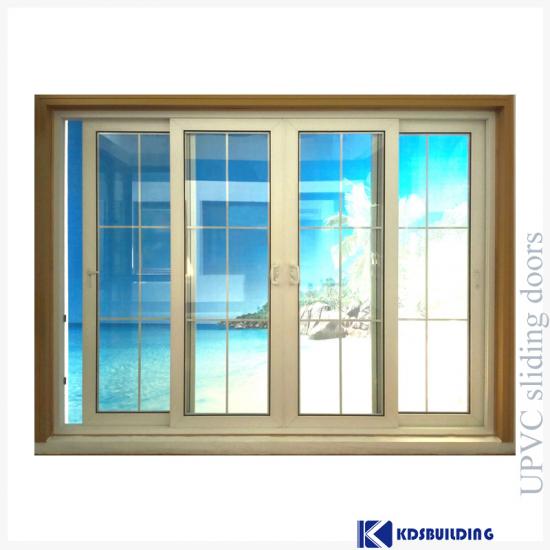

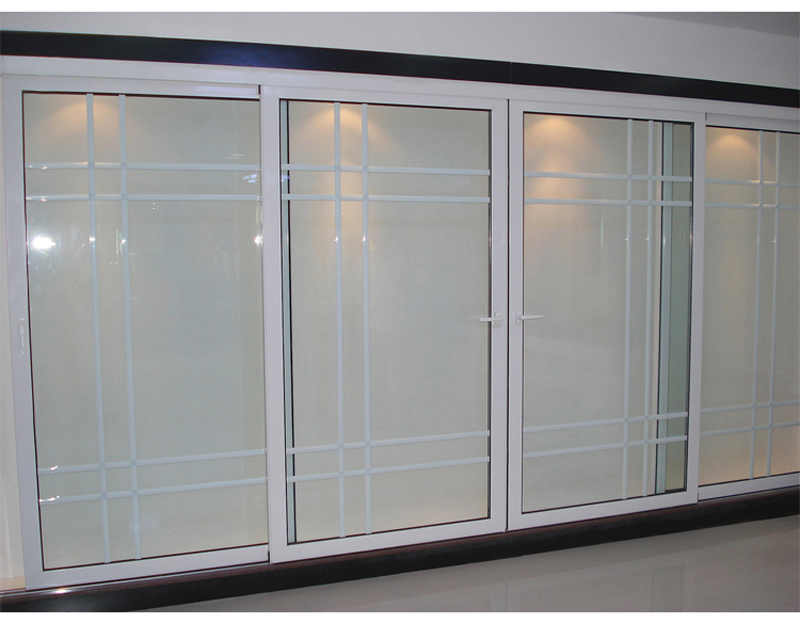

This double-glazed PVC sliding door combines modern design with practical performance. The insulated glass unit reduces energy consumption while improving indoor comfort. The multi-chamber uPVC frame, reinforced with galvanized steel, ensures excellent rigidity and wind resistance. The nail fin installation system enhances water tightness and simplifies integration into new construction projects. With smooth sliding hardware, optional insect screens, and multiple glass configurations, this sliding door is a reliable choice for residential developments, hotels, and commercial buildings.

series: 140 series PVC

opening style: sliding

Glass: 5mm+9A+5mm clear tempered glass

Certification: NFRC, AAMA, CE, TITLE 24, AS2047

U-Factor  ≤ 0.3

SHGC ≤ 0.23

  • Item NO.:

    KDS-D-P-S-002
  • Color:

    Customized

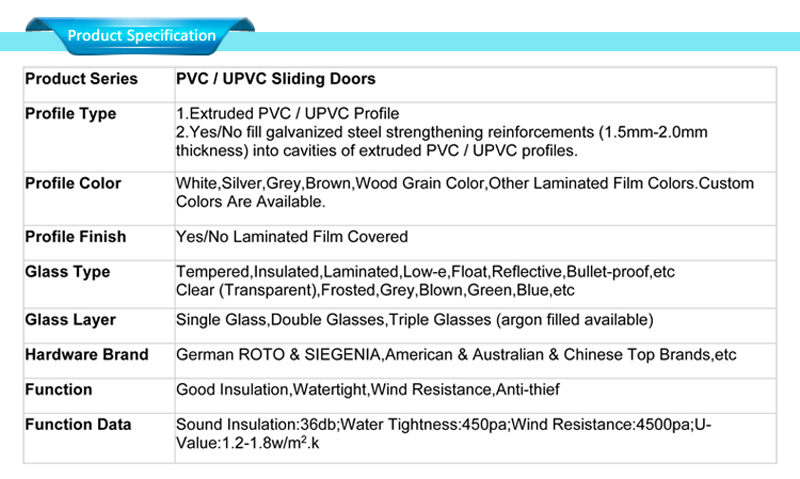

Technical specification:

Classify Technical parameter Other Options
Profile system

Material PVC/UPVC/Vinyl PVC profile + steel reinforcement
Structure Multi-chamber pvc profile 3 chambers, 5 chambers, 7 chambers
thickness 2.0mm 1.6mm, 1.8mm, 2.2mm
Finish white PVC Laminated wood grain, grey, black, golden oak
Glazing system

Glass type 5mm+9A+5mm Single Glass, Triple Glass
Glass color Clear Tinted, blue, green, grey etc
Gas Filling Argon Air, Argon,Krypton
Special function Tempered Low-e, laminated, bullet proof,
soundproof glass, security glass
etc
Hardware&Operation

Hardware Brand Chinese top brand Hardware Roto, Siegenia, Kinlong

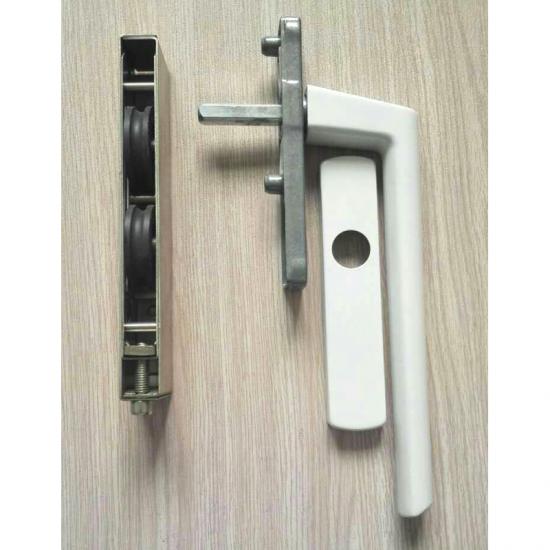

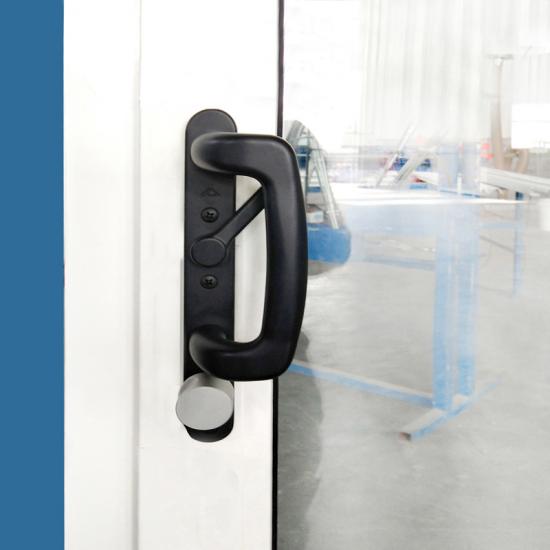

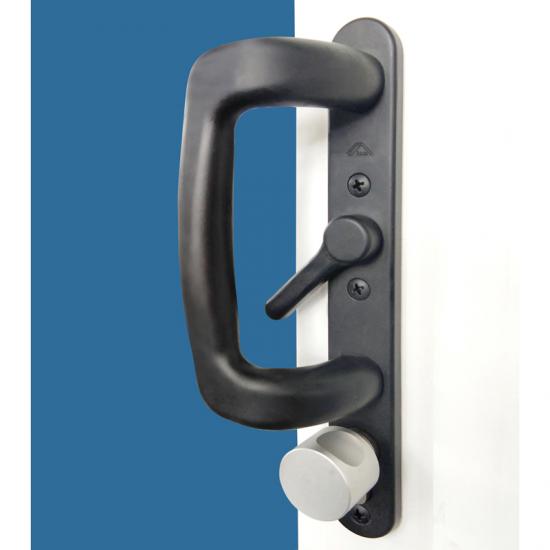

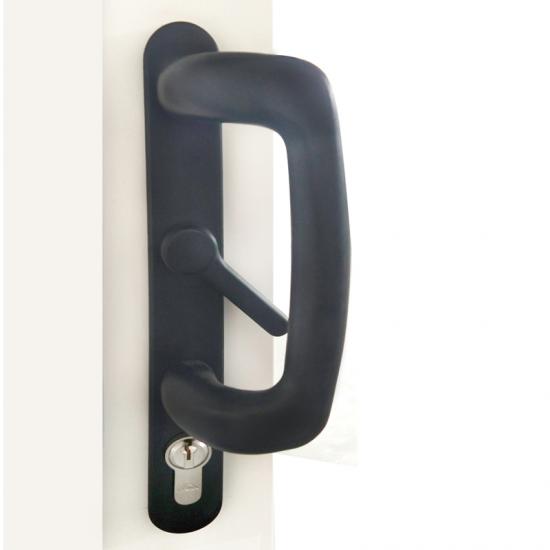

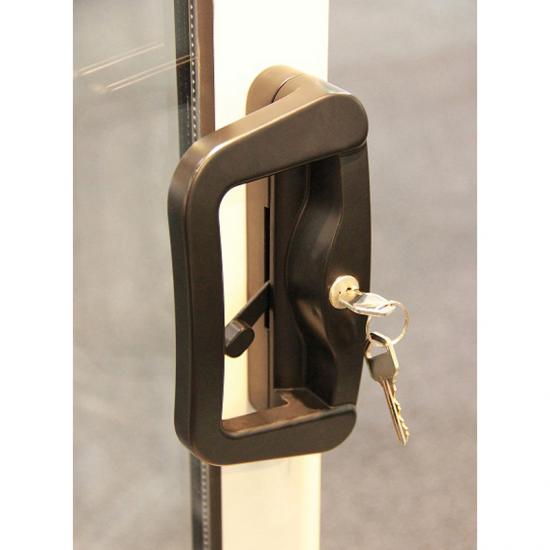

Main Hardware lock,D-type handle, lock, roller Heavy-duty roller set

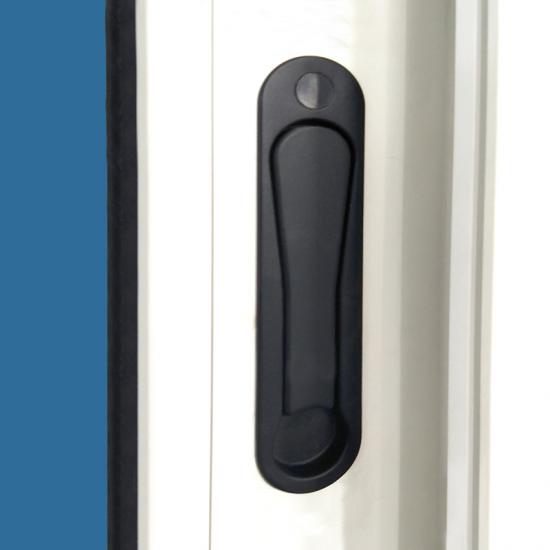

Locking system flush pull lock
Multi-point lock, crescent lock
Sealing EPDM Silicone, PVC gasket
Performance Ratings

U-Factor  ≤ 0.3
≤ 0.25 with triple glass
SHGC SHGC ≤ 0.23
Low-E for better SHGC
Wind load ≥ 3000 pa
≥ 4500 Pa
Water Tightness  ≥ 450 pa
≥ 500 Pa
Air Tightness ≤ 0.4 m3(.h)
≤ 0.3 m³/(m²·h)
Manufacturing Service

Size Range Sash width: 500–1500 mm  Sash height: 500–1800 mm Customized size
Warranty 5 Year except damage caused by human
Certification CE, NFRC, AS2047, TITLE 24, AAMA ISO9001

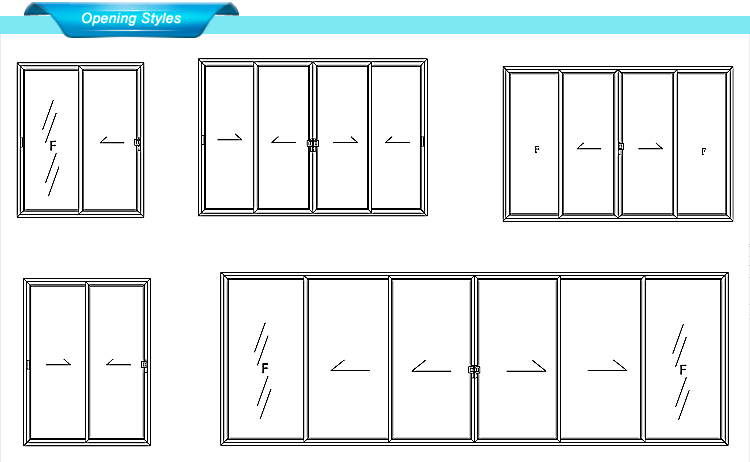

Opening style:

CERTIFICATION

Certified by authorized laboratories, our systems meet North American building codes and energy-saving regulations for residential and commercial projects.

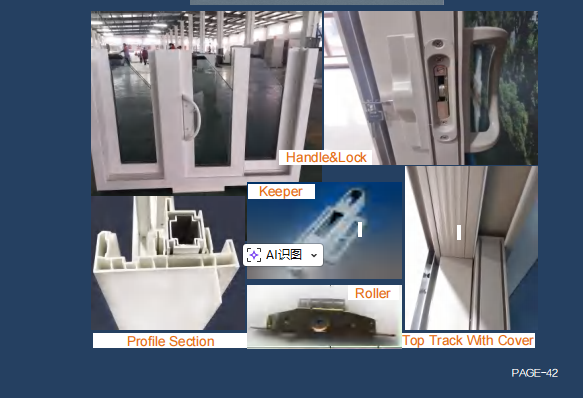

PRODUCT DETAIL

Steel reinforcement enhances frame rigidity and wind resistance.

APPLICATION

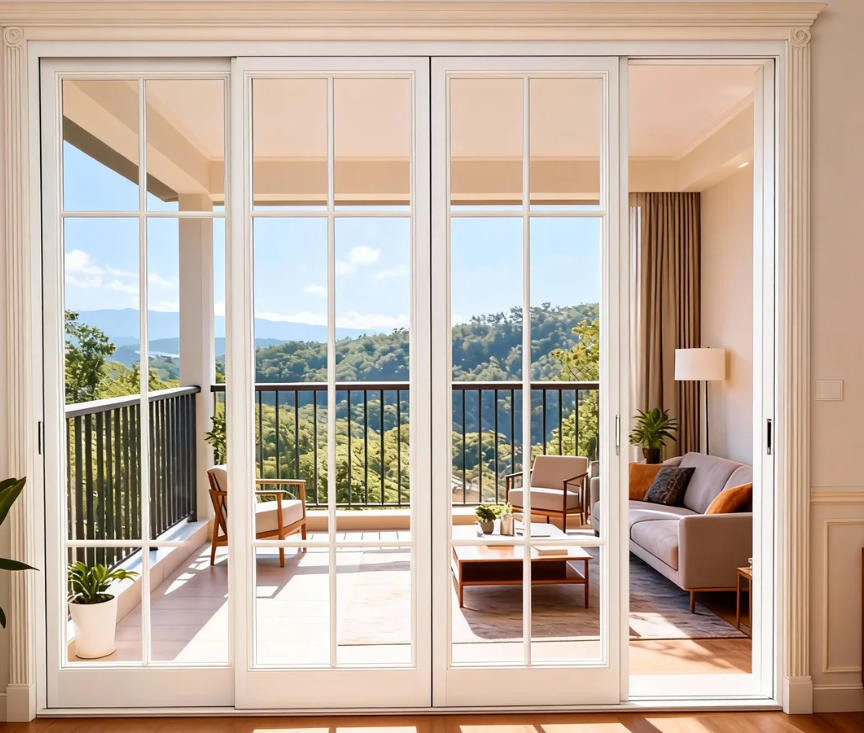

Ideal for patios, balconies, and garden entrances.



Check reinforced steel doors and Windows of upvc

And some manufacturers in order to reduce costs, do not load or do not meet the requirements of the reinforced steel. Customers should pay special attention when choosing products.
