Buy UPVC Sliding Door 003,UPVC Sliding Door 003 Suppliers,manufacturers,Customized

Product Detail

Technical specification:

Classify

Technical parameter

Other Options

Profile system

Material

PVC/UPVC/Vinyl

PVC profile + steel reinforcement

Structure

Multi-chamber pvc profile

3 chambers, 5 chambers, 7 chambers

thickness

2.0mm

1.6mm, 1.8mm, 2.2mm

Finish

white PVC

Laminated wood grain, grey, black, golden oak

Glazing system

Glass type

5mm+9A+5mm

Single Glass, Triple Glass

Glass color

Clear

Tinted, blue, green, grey etc

Gas Filling

Argon

Air, Argon,Krypton

Special function

Tempered

Low-e, laminated, bullet proof,

soundproof glass, security glass

etc

Hardware&Operation

Hardware Brand

Chinese top brand Hardware

Roto, Siegenia, Kinlong

Main Hardware

lock,D-type handle, lock, roller

Heavy-duty roller set

Locking system

flush pull lock

Multi-point lock, crescent lock

Sealing

EPDM

Silicone, PVC gasket

Performance Ratings

U-Factor

≤ 0.3

≤ 0.25 with triple glass

SHGC

SHGC ≤ 0.23

Low-E for better SHGC

Wind load

≥ 3000 pa

≥ 4500 Pa

Water Tightness

≥ 450 pa

≥ 500 Pa

Air Tightness

≤ 0.4 m3(㎡.h)

≤ 0.3 m³/(m²·h)

Manufacturing Service

Size Range

Sash width: 500–1500 mm Sash height: 500–1800 mm

Customized size

Warranty

5 Year

except damage caused by human

Certification

CE, NFRC, AS2047, TITLE 24, AAMA

ISO9001

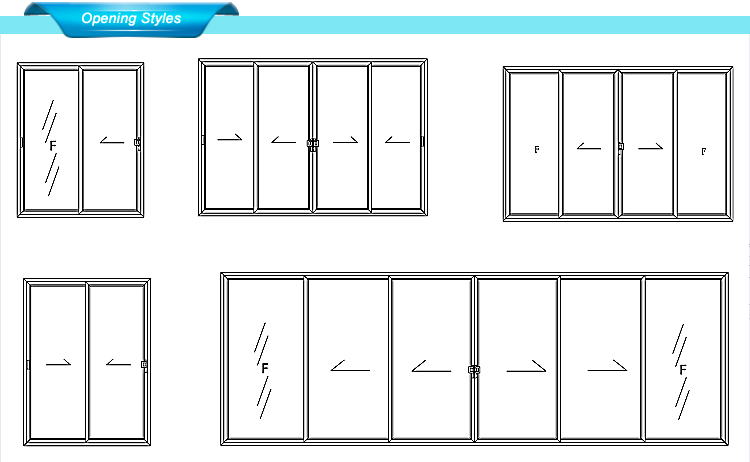

Opening style:

CERTIFICATION

Our windows and doors are manufactured under strict quality control and certified to meet international standards like CE, Energy Star, AAMA, NFRC, AS 2047, Hurricane Impact, Title 24 etc for energy efficiency, safety, and long-term structural performance.

PRODUCT DETAIL

Multi-chamber uPVC profiles improve thermal insulation while maintaining excellent structural strength.

APPLICATION

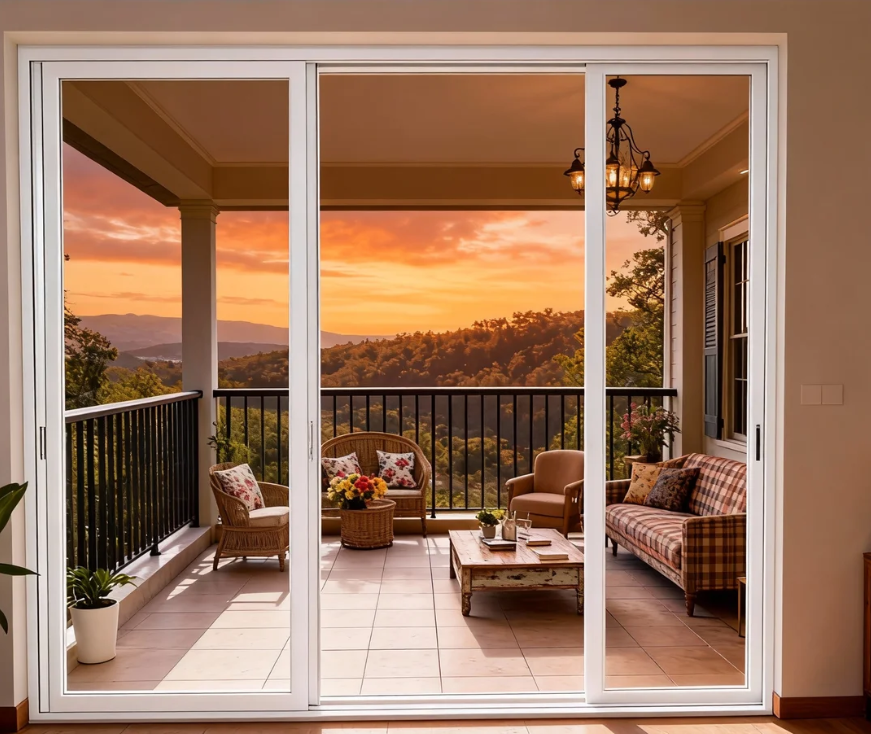

Suitable for residential houses, apartments, and villas.

FAQ

UPVC Glass Windows And Doors

Q1:What are the types of your UPVC window and door profiles?

1.Extruded PVC / UPVC Profile. 2.Yes / No fill galvanized steel strengthening reinforcements (1.5mm-2.0mm thickness) into cavities of extruded UPVC profiles.

Q2:What are the types of your UPVC window and door glasses?

1.Type:Tempered,Insulated,Laminated,Low-e,Float,Reflective,Bullet-proof,etc. 2.Layer:Single / Double / Triplex Glasses for reducing summer heat load and winter heat loss.3.Color:Clear(Transparent),Frosted,Grey,Blown,Green,Blue,etc.

4.Thickness:4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm.5.Insulated Glass Spacer:6A,9A,12A,15A,16A.Standard Insulated Glass:5mm+9A/12A+5mm,6mm+9A/12A+6mm with argon gas filled inside.Standard Laminated Glass:5mm+0.38PVB+5mm,5mm+0.76PVB+5mm.6.Quality Standard:European standard CE,Australian standard AS2208,Chinese standard CCC.

Q3:What are the types of your UPVC window and door accessories?

1.Brand:German, American, Australian and Chinese Top Brands,etc.2.Accessories:handles,hinges,locks,rollers,linkage devices,etc.

Q4:What are the package types of your windows and doors?

1.Steps:(1)Use air blow gun and thinner to clean products surface.(2)Use Air bubble film / PE film / EPE foam to wrap products against sea water corrosion.(3)Use craft paper / corrugated paper to protect product four corners.(4)Load FCL Packing products into container directly.(Note:Use container lashing belt to fasten FCL packing irregular goods.)(5)Load LCL Packing products into plywood cases / iron pallets with packing belt,then into container.(FCL:full container load;LCL:less than a container load)2.List:Pallet list for each pallet of a large amount purchase,saving time for you to sort out each window or door.

Q5:What is delivery time of your windows and doors?

Our goods are usually shipped by 20-50 workdays after payment.Different goods quantity means different delivery time.Please send your detailed windows and doors schedule to us,then we will confirm the exact delivery time for you.

Q6:How can we install your windows and doors at our building side?

We can offer the detailed windows and doors installation drawing for you.We also have our professional installation team in Australia and Philippines who can help you if you need.

Q7:This is my first time to import windows and doors, how should I do?

We have 20 years exporting experience.In order to save both your time and money,we can serve you as follows.1.We can direct a series of importing affairs for you.2.We can supply you one-stop purchase service of various building materials if you need.

Ken shen
Mobile,whatsapp&viber: +86 13459252158

XIAMEN KDSBUILDING MATERIAL CO., LTD
TEL:+86 592 5284558 FAX:+86 592 5924538
Website: www.kdsbuilding.com

E-Mail: ken@kdsbuilding.com
we chart&QQ：18059248558 SKYPE: mrkenshen2000
