Product Detail

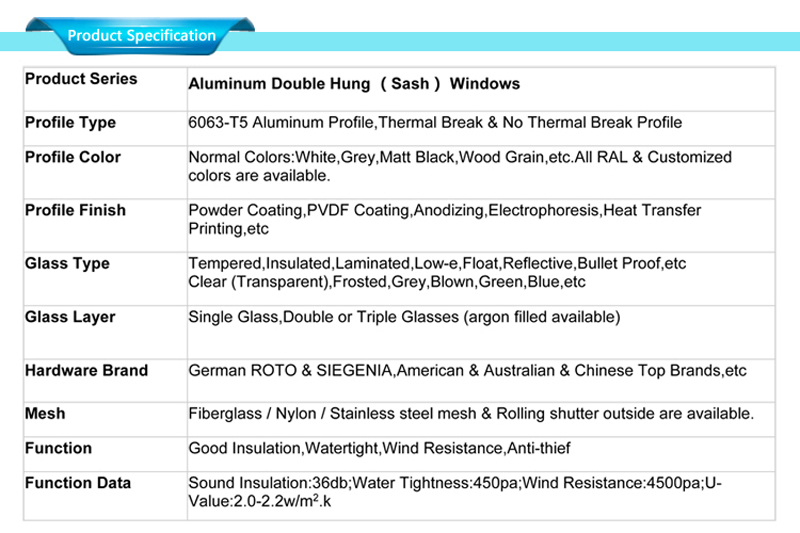

Technical Specification – Aluminum Windows & Doors
Profile System
Classify	Technical Parameter	Other Options
Material	6063-T5 Aluminum Alloy	6063-T6
Structure	Thermal break aluminum profile	Non-thermal break
Profile thickness	1.6 mm	1.4 mm, 1.8 mm, 2.0 mm
Finish	Powder coating	PVDF coating, Anodizing, Wood grain transfer
Color	White / Black / Grey	Custom RAL colors
Glazing System
Glass type	5mm + 12A + 5mm Double Glazing	Single glass, Triple glazing
Glass color	Clear	Tinted, Blue, Green, Grey
Gas filling	Argon	Air, Krypton
Special function	Tempered glass	Low-E, Laminated, Soundproof, Security glass
Hardware & Operation
Hardware brand	Chinese top brand	Roto, Siegenia, Kinlong
Main hardware	Lock, handle, hinge, roller	Heavy-duty hardware set
Locking system	Multi-point locking system	Single point, Crescent lock
Operation	Sliding / Casement / Tilt & Turn/awning/single&double hung	Folding, Lift & Slide,fixed
Sealing	EPDM gasket	Silicone, PVC gasket
Performance Ratings
U-Factor	≤ 0.35	≤ 0.28 with triple glass
SHGC	≤ 0.25	Low-E glass for better SHGC
Wind load	≥ 3000 Pa	≥ 4500 Pa
Water tightness	≥ 450 Pa	≥ 500 Pa
Air tightness	≤ 0.5 m³/(m²·h)	≤ 0.3 m³/(m²·h)
Manufacturing Service
Size range	Width: 500–3000 mm Height: 500–3000 mm	Customized size
Application	Residential & Commercial	High-rise, Villa, Apartment
Warranty	5 Years	Excluding human damage
Certification	CE, NFRC, AS2047, TITLE 24, AAMA	ISO9001

aluminium fabrication sliding window specifications aluminum window designs

Waterproof: aluminum alloy doors and windows material with special formula, bibulous rate is less than 0.1%, the material itself are forms of double-layer sealing between sash, gaps are equipped with excellent sealing strip, and to open a drain box material position.

Angle is through mechanical welding forming, so the broken bridge aluminum alloy double hung window sealed performance is good, don't ooze water and moisture, noise insulation.
