Reliable Quality Up Down Vertical Sliding Latest Aluminum Windows,Up Down Vertical Sliding Latest Aluminum Windows Factory

Product Detail

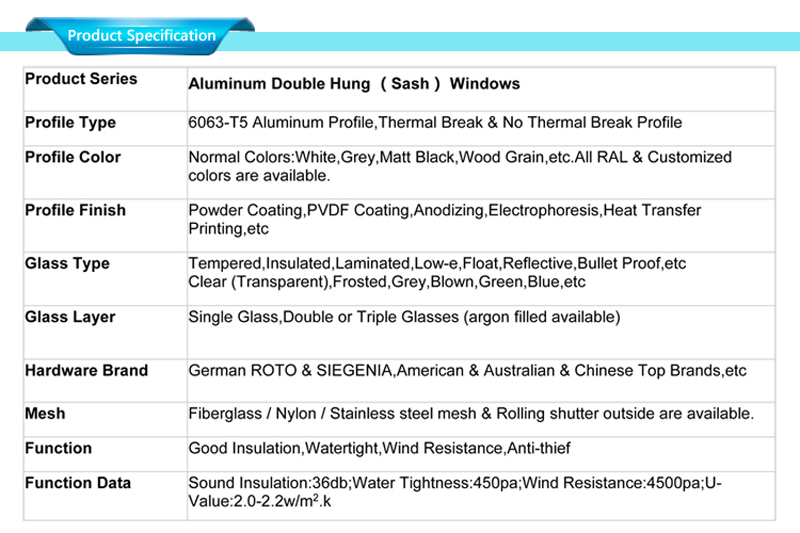

Technical Specification – Aluminum Windows & Doors
Profile System
Classify	Technical Parameter	Other Options
Material	6063-T5 Aluminum Alloy	6063-T6
Structure	Thermal break aluminum profile	Non-thermal break
Profile thickness	1.6 mm	1.4 mm, 1.8 mm, 2.0 mm
Finish	Powder coating	PVDF coating, Anodizing, Wood grain transfer
Color	White / Black / Grey	Custom RAL colors
Glazing System
Glass type	5mm + 12A + 5mm Double Glazing	Single glass, Triple glazing
Glass color	Clear	Tinted, Blue, Green, Grey
Gas filling	Argon	Air, Krypton
Special function	Tempered glass	Low-E, Laminated, Soundproof, Security glass
Hardware & Operation
Hardware brand	Chinese top brand	Roto, Siegenia, Kinlong
Main hardware	Lock, handle, hinge, roller	Heavy-duty hardware set
Locking system	Multi-point locking system	Single point, Crescent lock
Operation	Sliding / Casement / Tilt & Turn/awning/single&double hung	Folding, Lift & Slide,fixed
Sealing	EPDM gasket	Silicone, PVC gasket
Performance Ratings
U-Factor	≤ 0.35	≤ 0.28 with triple glass
SHGC	≤ 0.25	Low-E glass for better SHGC
Wind load	≥ 3000 Pa	≥ 4500 Pa
Water tightness	≥ 450 Pa	≥ 500 Pa
Air tightness	≤ 0.5 m³/(m²·h)	≤ 0.3 m³/(m²·h)
Manufacturing Service
Size range	Width: 500–3000 mm Height: 500–3000 mm	Customized size
Application	Residential & Commercial	High-rise, Villa, Apartment
Warranty	5 Years	Excluding human damage
Certification	CE, NFRC, AS2047, TITLE 24, AAMA	ISO9001

aluminium windows sliding specifications sliding aluminium windows aluminium windows sliding detailed drawing

Everyone wants his house to be beautiful and fashionable, so everyone should pay attention to the appearance when buying latest aluminum windows.

Aluminum alloy doors and Windows accessories: strong oxidation resistance, corrosion resistance is a feature of aluminum alloy doors and Windows, but the overall effect of aluminum alloy doors and Windows play and life extension needs to cooperate in many ways, any one link negligence will lead to the reduction of the service life of aluminum alloy doors and Windows.

Tags :

Related Products

Guards grill aluminum window designs

Glass Type:Tempered,Insulated,Laminated,Low-e,Float,Refective,Bullet-proof,etc.If double hung window needed,custom glass is also available. An aluminum double hung window is an excellent choice for projects requiring durability and ventilation control. The dual-sash design allows fresh air circulation without fully opening the window, enhancing indoor comfort and safety. series: 83 series thermal break opening style: Double Hung and Inward Tilt Glass: 5mm+9A+5mm clear tempered glass Color: white Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23

Aluminum solid glass aluminum white window

Frame Finis：Powder Coating,PVDF Coating,Anodizing,Electrophoresis,heat transfer printing,etc.Choose the design while you need aluminum sash window. Featuring a simple yet functional design, aluminum double hung windows offer easy operation and reliable performance. The use of aluminum ensures low maintenance, strong structural support, and compatibility with modern architectural styles. series: 83 series thermal break opening style: Double Hung and Inward Tilt Glass: 5mm+9A+5mm clear tempered glass Color: white Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23

Alu push up glass and aluminum windows

One frame type for double hung windows：6063-T5 aluminum profile,Thermal Break. Designed for comfort and efficiency, aluminum double hung windows provide excellent ventilation and natural light. When paired with double or insulated glazing, they help improve thermal and sound insulation while maintaining the strength of aluminum profiles. series: 83 series thermal break opening style: Double Hung and Inward Tilt Glass: 5mm+9A+5mm clear tempered glass Color: white Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23

double hung windowaluminium window hardware suppliers

Aluminium frame window hardware suppliers

Tempered glass belongs to safety glass,while it is adopted in product aluminum push up window. Aluminum double hung windows combine classic window style with modern materials. The vertical sliding system does not occupy interior or exterior space, while the aluminum frame delivers stability, durability, and a clean architectural look. series: 83 series thermal break opening style: Double Hung and Inward Tilt Glass: 5mm+9A+5mm clear tempered glass Color: white Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23

Aluminium top hung aluminum window sash

Aluminum sash window for American houses is also called double hung window. An aluminum double hung window allows controlled airflow by opening either the top or bottom sash. Its robust aluminum construction withstands harsh weather conditions and daily use, ensuring reliable performance and a long service life in various climates. series: 83 series thermal break opening style: Double Hung and Inward Tilt Glass: 5mm+9A+5mm clear tempered glass Color: white Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23

Alu metal american sash double hung window

High quality interior or exterior double hung window,made by thermally broken aluminium profiles,has very good heat insulation and energy saving ability. With a space-saving vertical sliding design, aluminum double hung windows offer smooth operation and easy cleaning. Aluminum profiles provide excellent structural strength while maintaining a slim, modern appearance. These windows are ideal for buildings that require practicality and low maintenance. series: 83 series thermal break opening style: Double Hung and Inward Tilt Glass: 5mm+9A+5mm clear tempered glass Color: white Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23

Energy Saving Aluminum lowE Double Glass Hurricane Impact Single Hung Window Double Hung Windows

Aluminum double hung windows are designed with two vertically sliding sashes for flexible and convenient ventilation. The strong aluminum frame ensures long-lasting durability, resistance to corrosion, and stable performance, making them suitable for both residential and commercial applications. series: 83 series thermal break opening style: Double Hung and Inward Tilt Glass: 5mm+9A+5mm clear tempered glass Color: white Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23

Thermal Break Waterproof Soundproof Customized Aluminium Profile Double Hung Window With screen

Combining traditional window style with modern engineering, aluminum double hung windows deliver reliable performance and durability. The aluminum frame ensures strength and longevity, while the vertical sliding design saves space and enhances safety. They are an excellent choice for both renovation and new construction projects. series: 83 series thermal break opening style: Double Hung and Inward Tilt Glass: 5mm+9A+5mm clear tempered glass Color: white Certification: NFRC, AAMA, CE, TITLE 24, AS2047 U-Factor ≤ 0.3 SHGC ≤ 0.23
