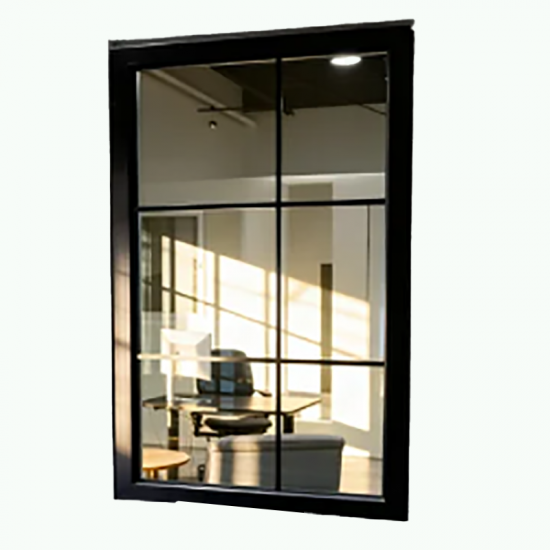

The fixed window is designed to bring maximum natural light outdoor views into any space. As a non-opening structure, it relies on a solid aluminum frame combined with insulated double glazing to deliver outstanding thermal and sound performance. The slim frame design allows for a larger glass area for both residential and commercial buildings. With sealed construction and multi-layer weatherproofing, fixed windows provide exceptional resistance to water, wind, and air leakage. They can be produced in large custom sizes and ideal for stairwells, living rooms, lobbies, and high-rise facades.
series: 55 series thermal break
opening style: fixed(non-open)
Glass: 5mm+9A+5mm clear tempered glass
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.23
Item NO.:
KDS-W-A-F-01Payment:
DPProduct Origin:
ChinaColor:
BLACKShipping Port:
ChinaLead Time:
15-30days

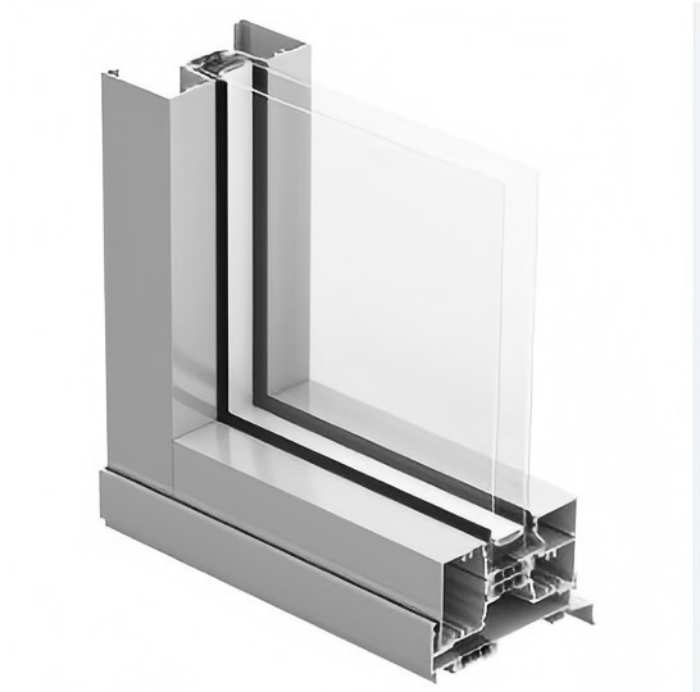

| Product Series | 55 series aluminum thermal break fixed (non-opening) window |
| Profile type |
6063-T5 aluminum thermal break profile |
| Profile finish |
powder coating. ( PVDF coating, anodizing, electrophorosis,heat transfer printing are available) |
| Profile color |
black. other all RAL colors are available |
| Glass color |
Clear. other like frosted, grey, blue, green are available. |
| Glass Type |
tempered.other like insulated, low-e, laminated, float, reflective are available |
| Glass Layer |
double glass. single glass(optional), triple glass(optional) |
| Parameter |
U-Factor ≤ 0.3 , SHGC ≤ 0.23 , Sound Insulation ≤ 36 db |
| Function | anti water, anti dust, noise proof, good sight view, wind resistant |
| Application |
stairwells, living rooms, lobbies, and high-rise facades |

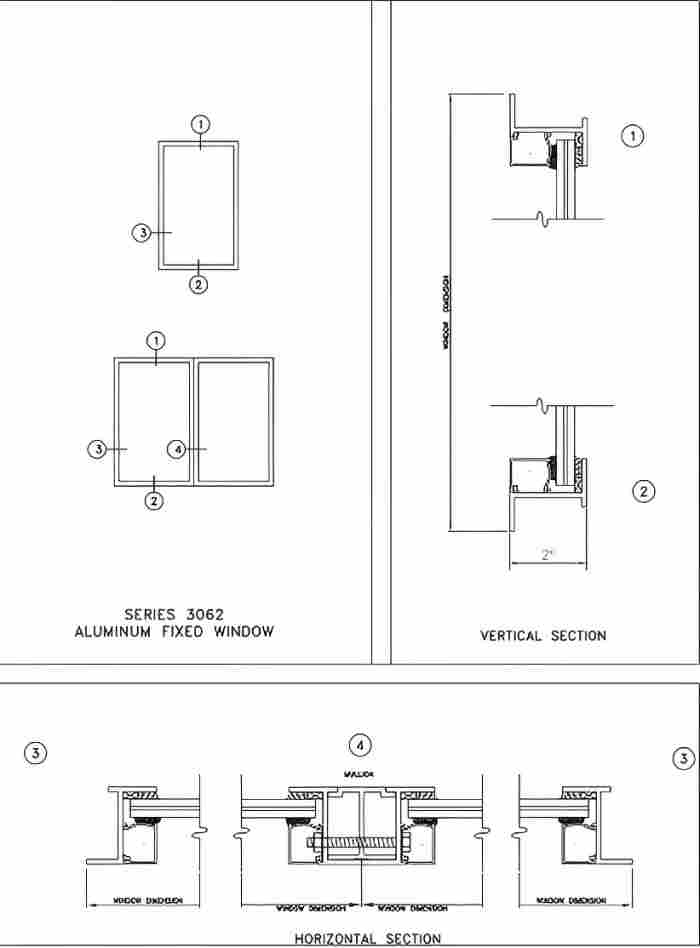

Details:
Application:
Certification:
Project case:
FAQ:
Aluminum Glass Windows And Doors
Q1:What are the colors of your aluminum window and door profiles?
Normal Colors:White,Grey,Matt Black,Wood Grain,etc.AII RAL&Customized colors are avail-able.Please show us your needed colors.
Q2:What are the types of your window and door glasses?
1.Type:Tempered,Insulated,Laminated,Low-e,Float,Reflective,Bulle-proof,etc
2.Layer:Single /Double /Triplex Glasses for reducing summer heat load and winter heat loss.
3.Color:Clear (Transparent),Frosted,Grey,Blown,Green,Blue,etc
4.Thickness:4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
5.Insulated Glass Spacer:6A,9A,12A,15A,16A
Standard Insulated Glass:5mm+9A/12A+5mm,6mm+9A/12A+6mm with argon gas filled inside.
Standard Laminated Glass:5mm+0.38PVB+5mm,5mm+0.76PVB+5mm
6.Quality Standard:European standard CE,Australian standard AS2208,Chinese standard CCC.
Q3:What are the types of your window and door accessories?
1.Brand:German,American,Australian and Chinese Top Brands,etc
2.Accessories:handles,hinges,locks,rollers,inkage devices,etc.
Q4:What are the package types of your windows and doors?
1.Steps:
(1)Use air blow gun and thinner to clean products surface.
(2)Use Air bubble film/PE film/EPE foam to wrap products against sea water corrosion.
(3)Use craft paper /corrugated paper to protect product four corners.
(4)Load FCL Packing products into container directly.(Note:Use container lashing belt to fasten FCLpacking irregular goods.)
(5)Load LCL Packing products into plywood cases /iron pallets with packing belt,then into contain-er.(FCL:full container load;LCL:less than a container load)
2.List:Pallet list for each pallet of a large amount purchase,saving time for you to sort out each window or door.
Q5:What is delivery time of your windows and doors?
Our goods are usually shipped by 20-50 workdays after payment.Different goods quantity means different delivery time.Please send your detailed windows and doors schedule to us,then we will con-firm the exact delivery time for you.
Q6:How can we install your windows and doors at our building side?
We can offer the detailed windows and doors installation drawing for you.We also have our professional installation team in Australia and Philippines who can help you if you need.
Q7:This is my first time to import windows and doors,how should I do?
We have 20 years exporting experience.In order to save both your time and money,we can serve you as follows.
1.We can direct a series of importing affairs for you.
2.We can supply you one-stop purchase service of various building materials if you need.
