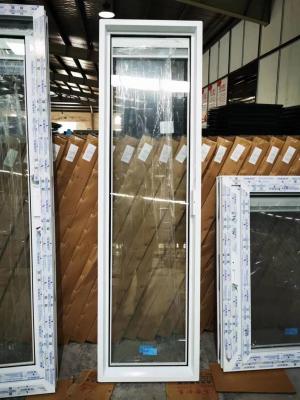

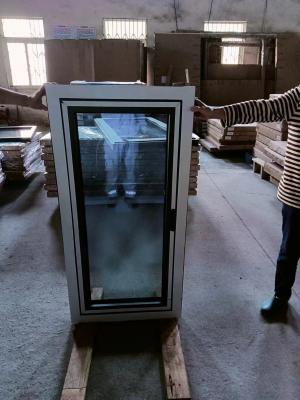

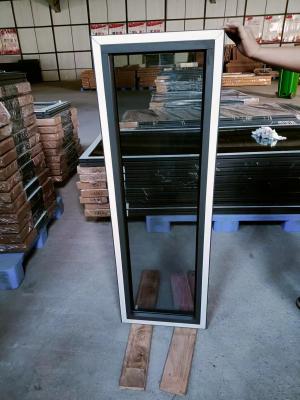

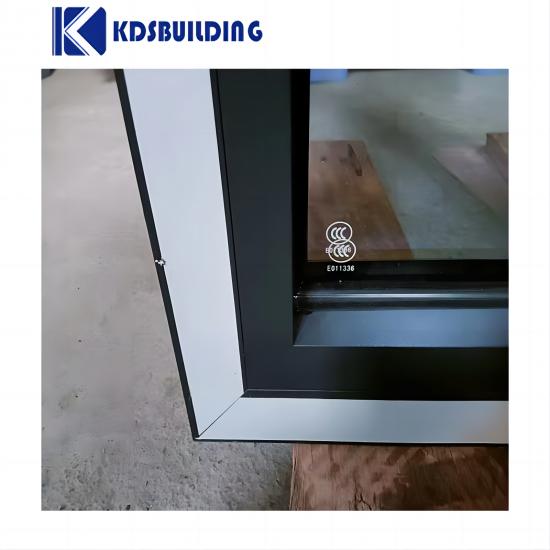

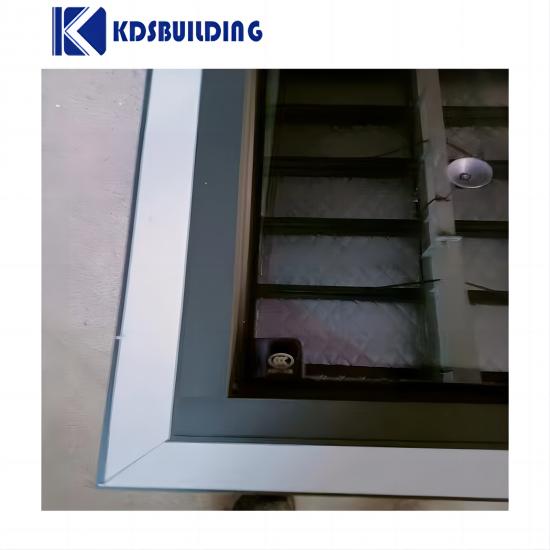

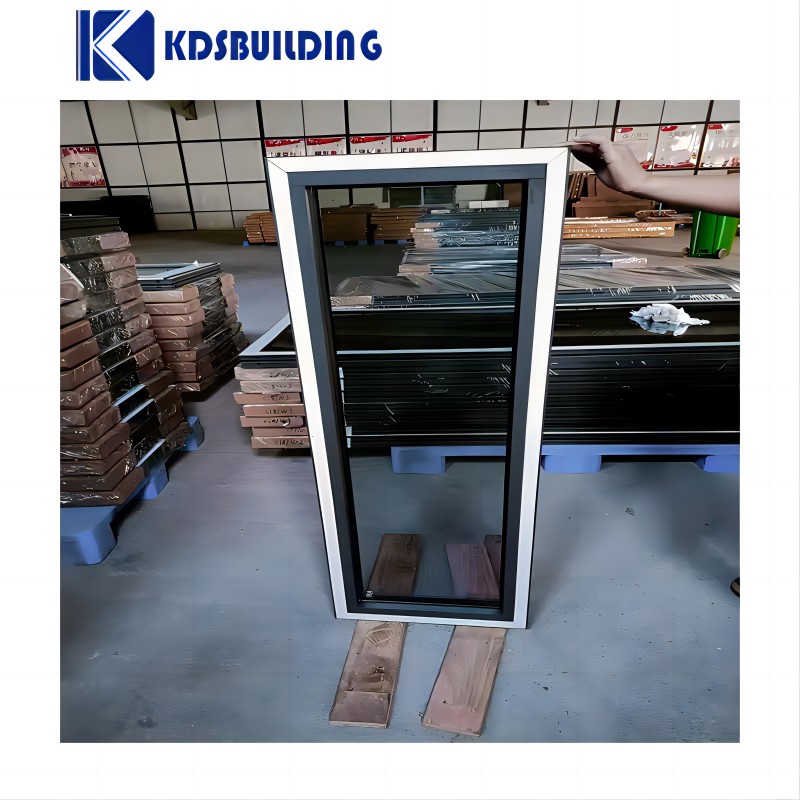

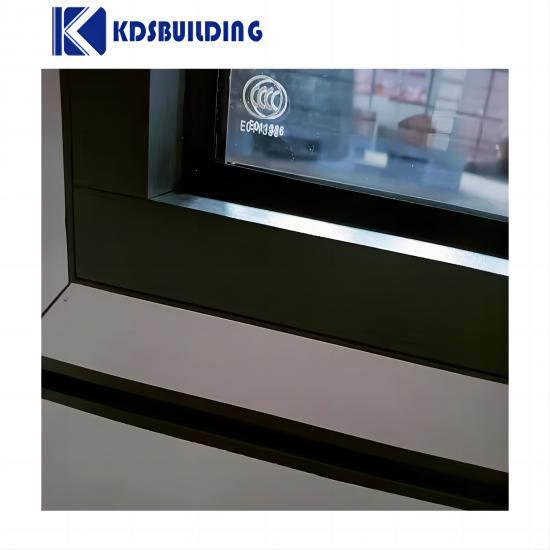

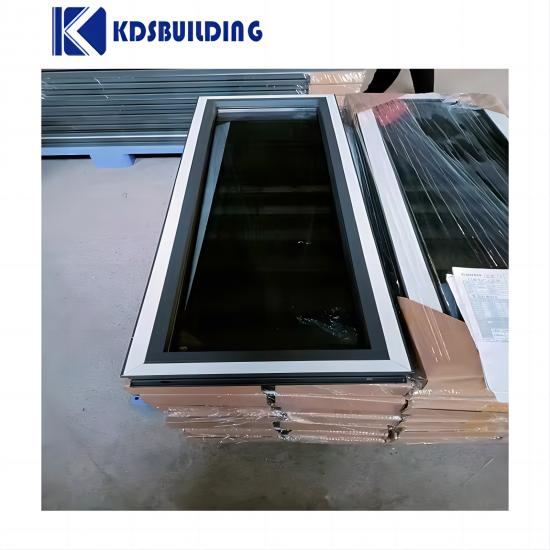

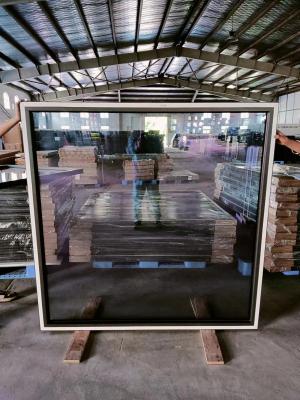

Aluminum fixed windows are designed to provide maximum daylight and unobstructed views. Built with high-strength aluminum profiles, they offer excellent structural stability and long-term durability. As non-opening windows, they deliver superior air and water tightness, making them ideal for facades, curtain walls, and feature windows in modern buildings.
series: 55 series thermal break
opening style: non opening
Glass: 5mm+9A+5mm clear tempered glass
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.23
Item NO.:
KDS-W-A-FX-001Payment:
TTprice:
$78/Square meterProduct Origin:
ChinaColor:
RAL colorShipping Port:
ChinaLead Time:
15-30daysOrder(MOQ):
1m2
| Technical Specification – Aluminum Windows & Doors | ||
| Profile System | ||
| Classify | Technical Parameter | Other Options |
| Material | 6063-T5 Aluminum Alloy | 6063-T6 |
| Structure | Thermal break aluminum profile | Non-thermal break |
| Profile thickness | 1.6 mm | 1.4 mm, 1.8 mm, 2.0 mm |
| Finish | Powder coating | PVDF coating, Anodizing, Wood grain transfer |
| Color | White / Black / Grey | Custom RAL colors |
| Glazing System | ||
| Glass type | 5mm + 12A + 5mm Double Glazing | Single glass, Triple glazing |
| Glass color | Clear | Tinted, Blue, Green, Grey |
| Gas filling | Argon | Air, Krypton |
| Special function | Tempered glass | Low-E, Laminated, Soundproof, Security glass |
| Hardware & Operation | ||
| Hardware brand | Chinese top brand | Roto, Siegenia, Kinlong |
| Main hardware | Lock, handle, hinge, roller | Heavy-duty hardware set |
| Locking system | Multi-point locking system | Single point, Crescent lock |
| Operation | Sliding / Casement / Tilt & Turn/awning/single&double hung | Folding, Lift & Slide,fixed |
| Sealing | EPDM gasket | Silicone, PVC gasket |
| Performance Ratings | ||
| U-Factor | ≤ 0.35 | ≤ 0.28 with triple glass |
| SHGC | ≤ 0.25 | Low-E glass for better SHGC |
| Wind load | ≥ 3000 Pa | ≥ 4500 Pa |
| Water tightness | ≥ 450 Pa | ≥ 500 Pa |
| Air tightness | ≤ 0.5 m³/(m²·h) | ≤ 0.3 m³/(m²·h) |
| Manufacturing Service | ||
| Size range | Width: 500–3000 mm Height: 500–3000 mm | Customized size |
| Application | Residential & Commercial | High-rise, Villa, Apartment |
| Warranty | 5 Years | Excluding human damage |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA | ISO9001 |
Fixed windows are windows that are usually made of glass directly inlaid on the window frame or the window sash is fixed on the window frame and cannot be opened. They are only used for lighting and viewing. They are usually used for lighting windows in corridors, stairwells and certain parts of general windows.
