Hurricane Impact Resistant Bedroom Aluminium Door,interior Decorative Sliding Door

Product Detail

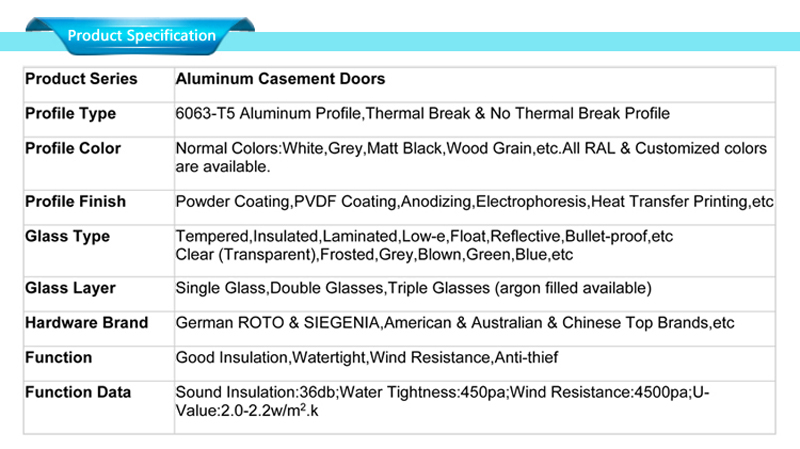

Technical Specification – Aluminum Windows & Doors
Profile System
Classify	Technical Parameter	Other Options
Material	6063-T5 Aluminum Alloy	6063-T6
Structure	Thermal break aluminum profile	Non-thermal break
Profile thickness	1.6 mm	1.4 mm, 1.8 mm, 2.0 mm
Finish	Powder coating	PVDF coating, Anodizing, Wood grain transfer
Color	White / Black / Grey	Custom RAL colors
Glazing System
Glass type	5mm + 12A + 5mm Double Glazing	Single glass, Triple glazing
Glass color	Clear	Tinted, Blue, Green, Grey
Gas filling	Argon	Air, Krypton
Special function	Tempered glass	Low-E, Laminated, Soundproof, Security glass

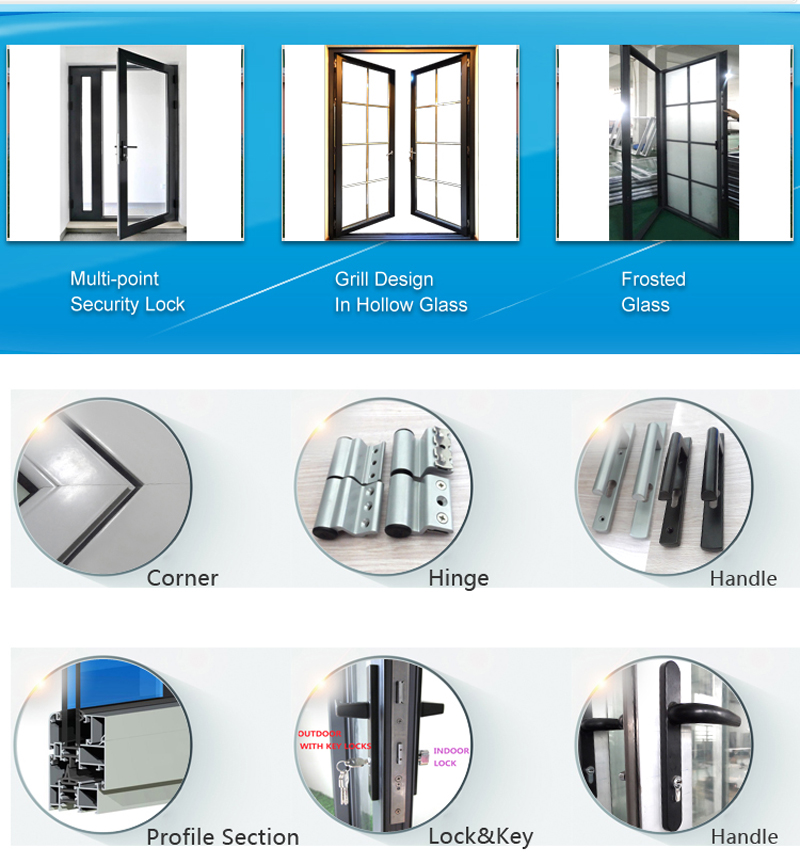

Hardware & Operation
Hardware brand	Chinese top brand	Roto, Siegenia, Kinlong
Main hardware	Lock, handle, hinge, roller	Heavy-duty hardware set

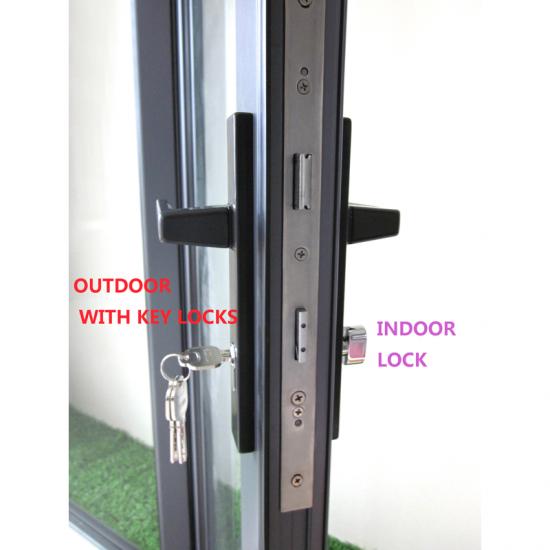

Locking system	Multi-point locking system	Single point, Crescent lock
Operation	Sliding / Casement / Tilt & Turn/awning/single&double hung	Folding, Lift & Slide,fixed
Sealing	EPDM gasket	Silicone, PVC gasket
Performance Ratings
U-Factor	≤ 0.35	≤ 0.28 with triple glass
SHGC	≤ 0.25	Low-E glass for better SHGC
Wind load	≥ 3000 Pa	≥ 4500 Pa
Water tightness	≥ 450 Pa	≥ 500 Pa
Air tightness	≤ 0.5 m³/(m²·h)	≤ 0.3 m³/(m²·h)
Manufacturing Service
Size range	Width: 500–3000 mm Height: 500–3000 mm	Customized size
Application	Residential & Commercial	High-rise, Villa, Apartment
Warranty	5 Years	Excluding human damage
Certification	CE, NFRC, AS2047, TITLE 24, AAMA	ISO9001

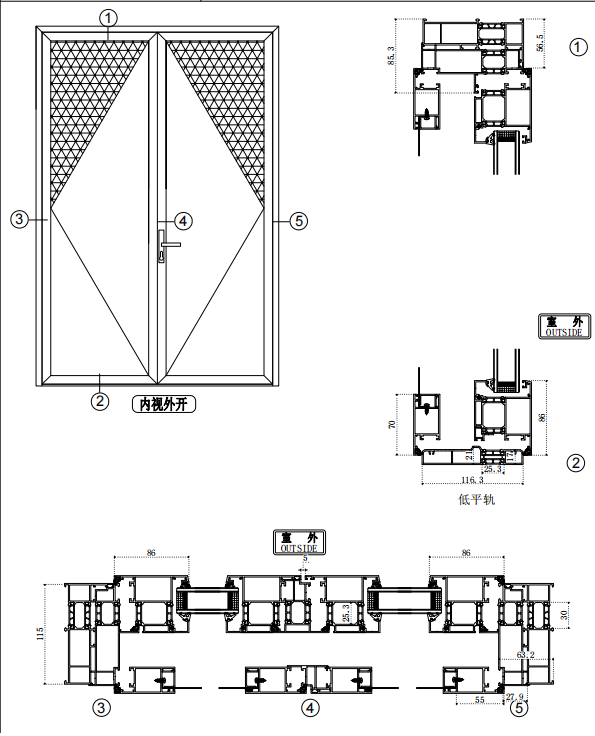

aluminum fabrication doors specifications bedroom aluminium door aluminum fabrication doors detailed drawing

Accessories quality of bedroom aluminium door is not good, with a year or two began to deformation, loose, a pile of trouble will follow. At ordinary times switch aluminum alloy doors and Windows are inseparable from accessories.

Choose high grade aluminium alloy door window profile to go up even tie-in high grade aluminium alloy door window fittings, ability lets the life of aluminium alloy door window get prolong.

It is good to choose hardware fittings of high grade aluminium alloy door window so.
