Aluminum glass tilt and slide door are designed with qualified aluminium profile and clear glaze, which is suitable to apply to commercial office and supermarket buildings and home.
series: 116 series thermal break aluminum
opening style: tilt ans sliding
Color: black
Glass: 5mm+9A+5mm clear tempered glass
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.23
Air tightness : 0.15
Nail Fin Design : NO
Door Screen : no
Grille design : no
Item NO.:
KDS-D-A-TS-001-1Payment:
L/C, T/TProduct Origin:
ChinaColor:
CustomizedShipping Port:
Xiamen,Lead Time:
15-25 days
| Technical Specification – Aluminum Windows & Doors | ||
| Profile System | ||
| Classify | Technical Parameter | Other Options |

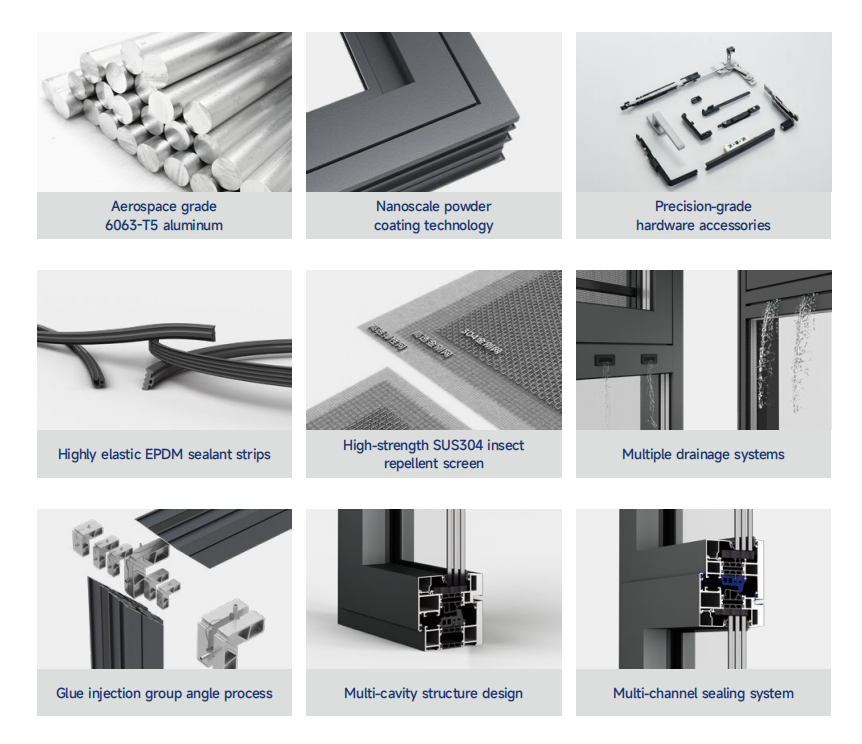

| Material | 6063-T5 Aluminum Alloy | 6063-T6 |
| Structure | non Thermal break aluminum profile | thermal break |
| Profile thickness | 1.6 mm | 1.4 mm, 1.8 mm, 2.0 mm |
| Finish | Powder coating | PVDF coating, Anodizing, Wood grain transfer |
| Color | White / Black / Grey | Custom RAL colors |
| Glazing System | ||
| Glass type | 5mm + 12A + 5mm Double Glazing | Single glass, Triple glazing |
| Glass color | Clear | Tinted, Blue, Green, Grey |
| Gas filling | Argon | Air, Krypton |
| Special function | Tempered glass | Low-E, Laminated, Soundproof, Security glass |
| Hardware & Operation | ||
| Hardware brand | Chinese top brand | Roto, Siegenia, Kinlong |

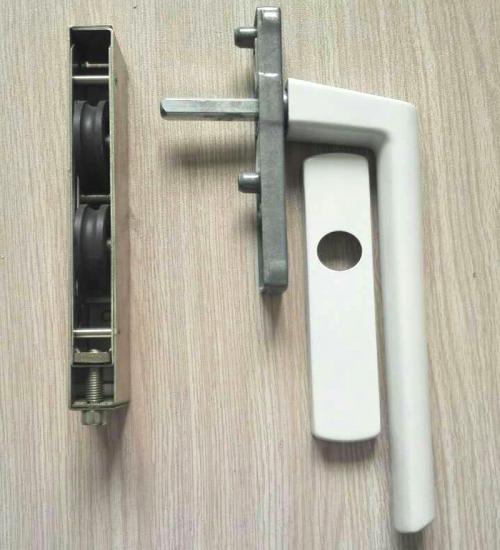

| Main hardware | Lock, handle, hinge, roller | Heavy-duty hardware set |
| Locking system | Multi-point locking system | Single point, Crescent lock |
| Operation | Casement | Folding, Lift & Slide |
| Sealing | EPDM gasket | Silicone, PVC gasket |
| Performance Ratings | ||
| U-Factor | ≤ 0.35 | ≤ 0.28 with triple glass |
| SHGC | ≤ 0.25 | Low-E glass for better SHGC |
| Wind load | ≥ 3000 Pa | ≥ 4500 Pa |
| Water tightness | ≥ 450 Pa | ≥ 500 Pa |
| Air tightness | ≤ 0.5 m³/(m²·h) | ≤ 0.3 m³/(m²·h) |
| Manufacturing Service | ||
| Size range | Width: 500–3000 mm Height: 500–3000 mm | Customized size |
| Application | Residential & Commercial | High-rise, Villa, Apartment |
| Warranty | 5 Years | Excluding human damage |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA |
ISO9001 |
After the wet installation of aluminum alloy doors and windows is complete, the installation of glass and Windows can begin, before removing the adhesive tape or plastic tape of protection and dirt from the window frame section.
After the installation of the glass and sash of aluminum door and frame, it should be checked whether the fittings are missing, whether the installation is firm, and the sash is open and closed flexibly. Before acceptance, the outwards casement should be closed to prevent the damage of the sash caused by high wind and heavy rain.
