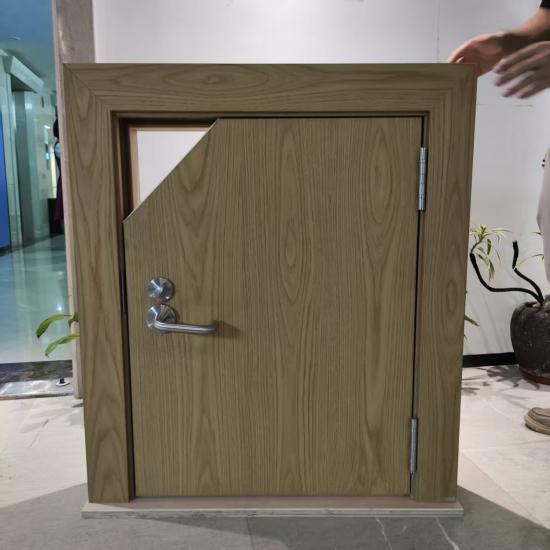

The Wooden Fire Rated Casement Door from KDSBuilding combines natural elegance with advanced fire protection technology, making it an ideal choice for both residential and commercial applications. Engineered with precision, each door is constructed using high-density fire-resistant materials and solid timber, ensuring outstanding durability and a certified fire-resistance rating that meets UL, EN, BS and international safety standards.
opening style: Casement(Swing)
Glass: 5mm fire rated clear tempered glass(optional)
Color: wood color
Certification: UL, EN, BS
Fire Rated Time: 90 Minutes
Item NO.:
KDS-D-W-FC-001Payment:
DPProduct Origin:
ChinaColor:
CUSTOMIZEDShipping Port:
ChinaLead Time:
15-30daysTechnical Specification:
| Classify | Technical parameter | Other Options |
| Profile system |
|
|
| Material | Wooden | Steel |
| Core Material | Perlite Fire proof Material | Calcium Silicate Board, Rockwool , Cellular Ceramic etc |
| thickness | 1.0mm | 0.8mm, 1.0mm, 1.2mm, 1.5mm |
| Finish | painting |
|
| Reinforcement |
|
|
| Hinge | 10 GA (3.5 MM) | according to requirement |
| Closer | 12 GA (2.5 MM) | according to requirement |
| Lock | 16 GA (1.5 MM) | according to requirement |
| Strike Plate | 16 GA (1.5 MM) | according to requirement |
| Hardware&Operation |
|
|
| Hardware Brand | Chinese top brand Hardware | Dorma, Geze, Kinglong, Gmt etc |
| Main Hardware | Fire mortise lock,door closer, panic bar, seal, panic bar, vision glass | KingLong |
| Locking system |
multi point lock |
Multi-Point Locking System,Hook Lock, Cylinder Key Lock, D-Handle / Pull Handle with Key Lock etc |
| Sealing | EPDM | EPDM, PVC |
| Performance Ratings |
|
|
| Fire Rating Time |
90 Minutes |
20 minutes to 180 minutes |
| Heat Insulation |
≤ 140°C |
140°C to 180°C |
| Heat Radiation |
≤ 15 kW/m² |
15 kW/m² to 30 kW/m² |
| Manufacturing Service |
|
|
| Size Range | Sash width(Single Door): 500-1200 mm, Sash height(Single Door): 2400-2600mm | Sash Width (Double Door): 1800-2600 mm Sash height (Double Door): 2100-2600 mm |
| Warranty | 3 Year | except damage caused by human |
| Certification |
UL, EN, BS |
GB 12955, |

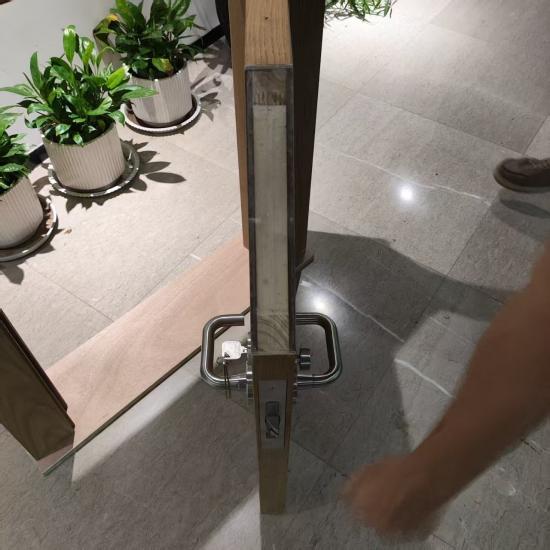

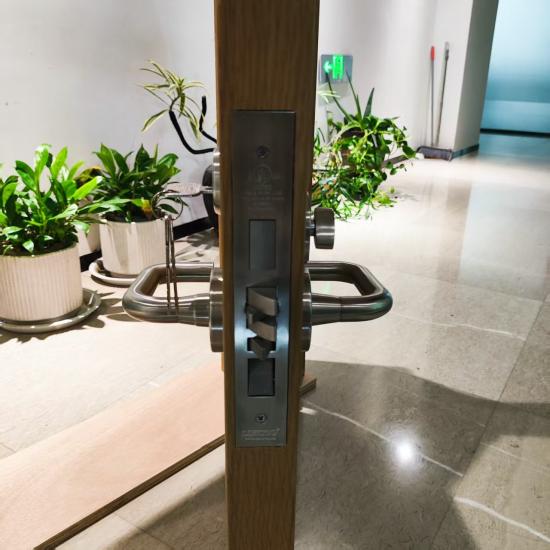

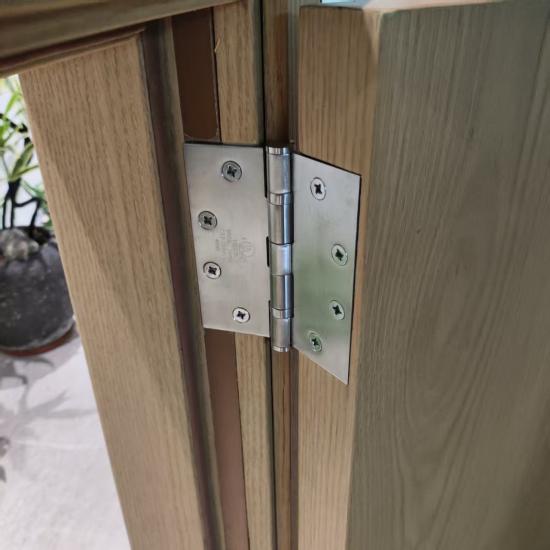

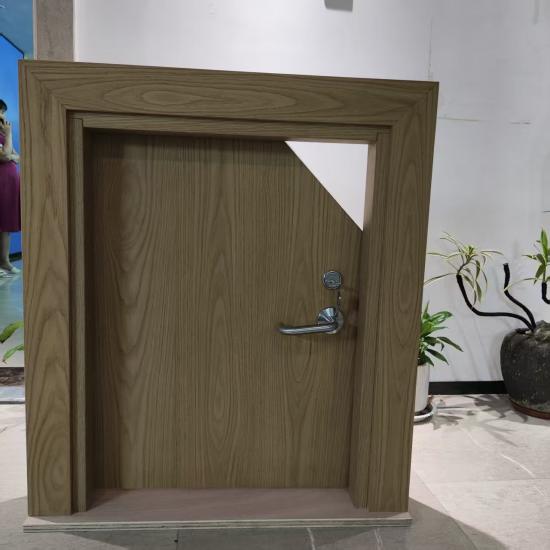

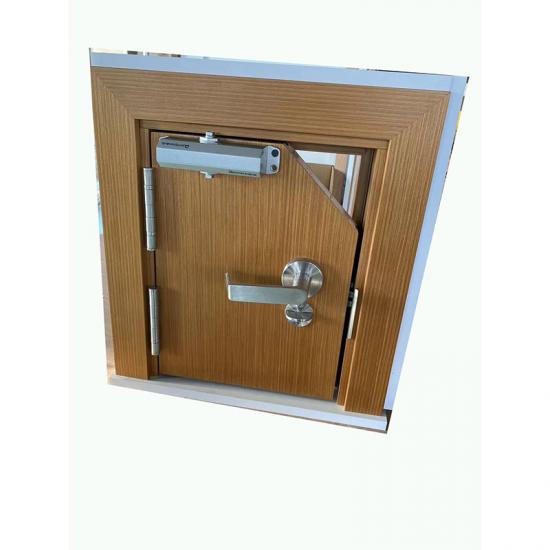

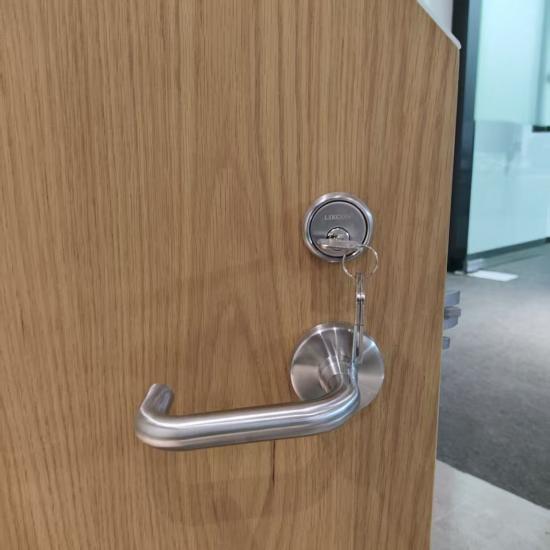

Door Detail:
Certification:

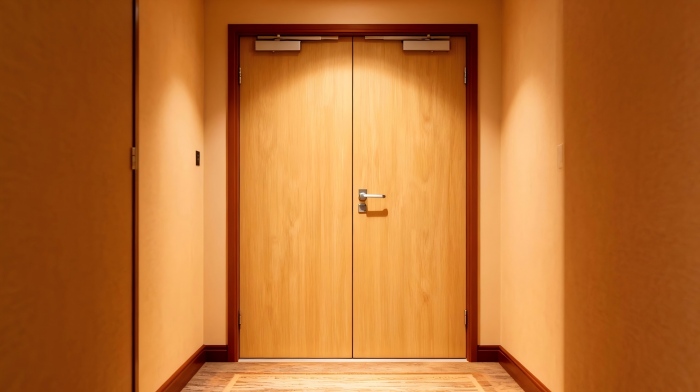

Application:
Project case:
FAQ:
Wooden Fire Rated doors
Q1:What are the colors of your wooden fire rated door profiles?
Normal Colors:wood colors
Q2:What are the types of your fire rated door vision glasses?
The vision glass are optional.
1.Type:fire rated
2.Layer:Single /Double /Triplex Glasses
3.Color:Clear (Transparent),Frosted,Grey,Blown,Green,Blue,etc
4.Thickness:4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
5.Insulated Glass Spacer:6A,9A,12A,15A,16A
Standard Insulated Glass:5mm+9A/12A+5mm,6mm+9A/12A+6mm with argon gas filled inside.
6.Quality Standard:UL, BS, EN
Q3:What are the types of your wooden fire rated door accessories?
1.Brand:German,American,Australian and Chinese Top Brands,etc
2.Accessories:lock, panic bar, door closer, hinge, vision glass, smoke seal etc.
Q4:What are the package types of your fire rated doors?
1.Steps:
(1)Use air blow gun and thinner to clean products surface.
(2)Use Air bubble film/PE film/EPE foam to wrap products against sea water corrosion.
(3)Use craft paper /corrugated paper to protect product four corners.
(4)Load FCL Packing products into container directly.(Note:Use container lashing belt to fasten FCL packing irregular goods.)
(5)Load LCL Packing products into plywood cases /iron pallets with packing belt,then into contain-er.(FCL:full container load;LCL:less than a container load)
2.List:Pallet list for each pallet of a large amount purchase,saving time for you to sort out each window or door.
Q5:What is delivery time of your wooden fire doors?
Our goods are usually shipped by 20-50 workdays after payment.Different goods quantity means different delivery time.Please send your detailed windows and doors schedule to us,then we will con-firm the exact delivery time for you.
Q6:How can we install your doors at our building side?
We can offer the detailed doors installation drawing for you.We also have our professional installation team in Australia and Philippines who can help you if you need.
Q7:This is my first time to import doors,how should I do?
We have 20 years exporting experience.In order to save both your time and money,we can serve you as follows.
1.We can direct a series of importing affairs for you.
2.We can supply you one-stop purchase service of various building materials if you need.
