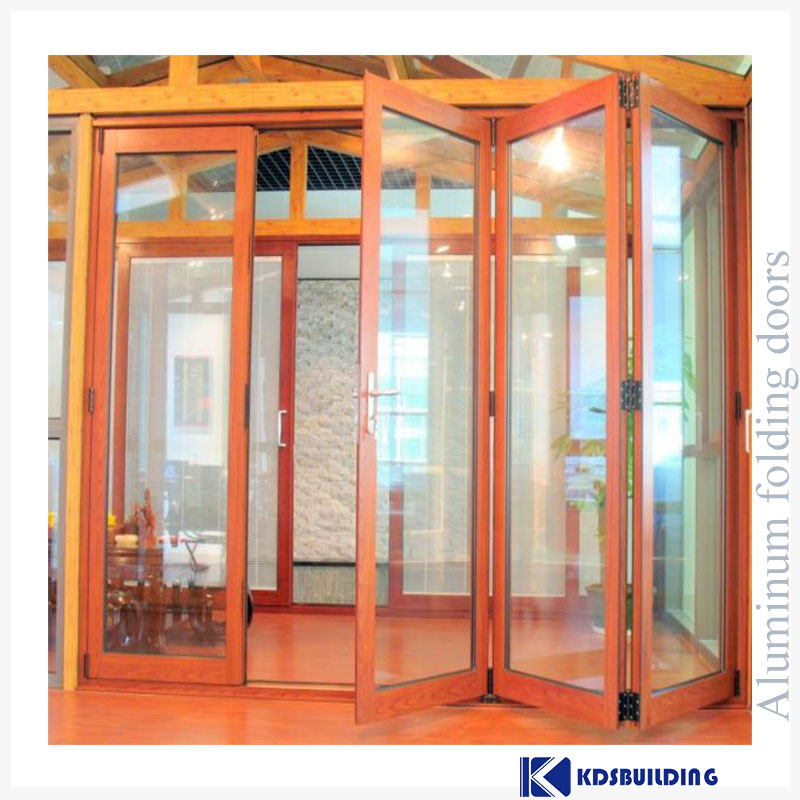

Aluminium folding door 38

KDS supply aluminum folding door 38.

Designed for large openings, aluminum folding doors offer outstanding flexibility and space-saving performance. Reinforced aluminum profiles support large glass panels, while high-quality rollers ensure smooth and quiet operation. Ideal for patios, balconies, and commercial entrances, the door system enhances ventilation, natural light, and architectural style.

series: 73 series thermal break

opening style: folding

Glass: 5mm+9A+5mm clear tempered glass

Certification: NFRC, AAMA, CE, TITLE 24, AS2047

U-Factor  ≤ 0.3

SHGC ≤ 0.23

  • Item NO.:

    KDS-D-A-FD-038
  • Payment:

    L/C, T/T
  • Product Origin:

    China
  • Color:

    Customized
  • Shipping Port:

    XIAMEN
  • Lead Time:

    25-35 DAYS

Technical Specification – Aluminum Windows & Doors
Profile System
Classify Technical Parameter Other Options
Material 6063-T5 Aluminum Alloy 6063-T6

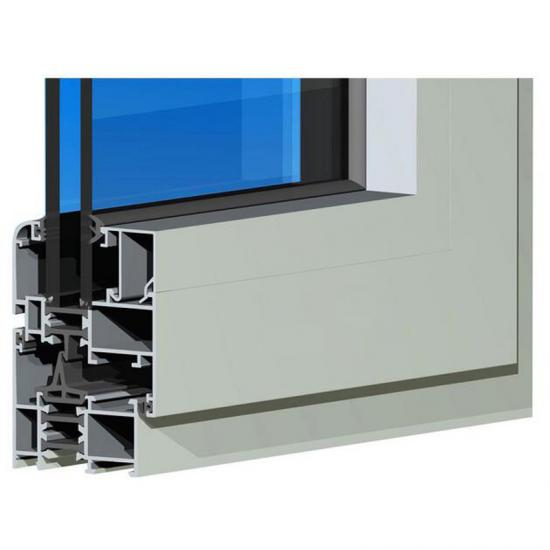

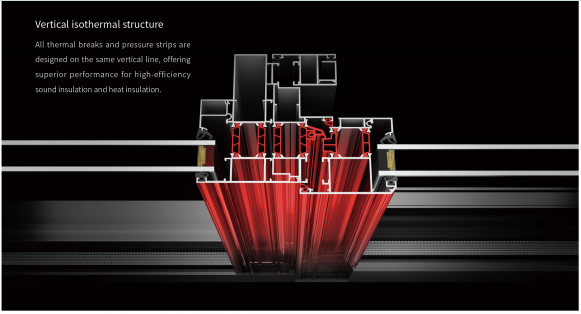

Structure Thermal break aluminum profile Non-thermal break
Profile thickness 1.6 mm 1.4 mm, 1.8 mm, 2.0 mm
Finish Powder coating PVDF coating, Anodizing, Wood grain transfer
Color White / Black / Grey Custom RAL colors
Glazing System
Glass type 5mm + 12A + 5mm Double Glazing Single glass, Triple glazing
Glass color Clear Tinted, Blue, Green, Grey
Gas filling Argon Air, Krypton
Special function Tempered glass Low-E, Laminated, Soundproof, Security glass
Hardware & Operation
Hardware brand Chinese top brand Roto, Siegenia, Kinlong

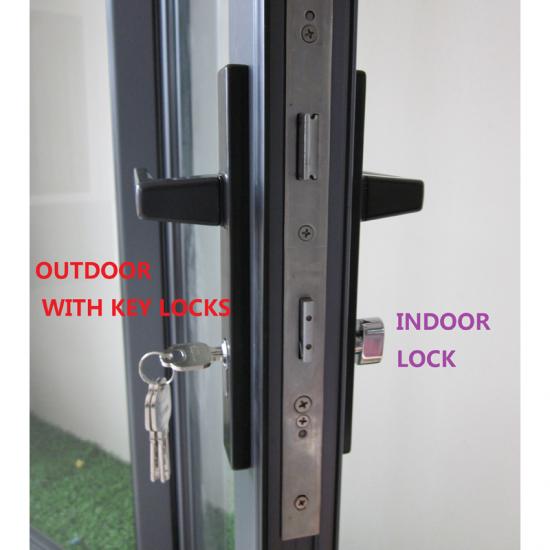

Main hardware Lock, handle, hinge, roller Heavy-duty hardware set
Locking system Multi-point locking system Single point, Crescent lock
Operation  Casement  Folding, Lift & Slide
Sealing EPDM gasket Silicone, PVC gasket
Performance Ratings
U-Factor ≤ 0.35 ≤ 0.28 with triple glass
SHGC ≤ 0.25 Low-E glass for better SHGC
Wind load ≥ 3000 Pa ≥ 4500 Pa
Water tightness ≥ 450 Pa ≥ 500 Pa
Air tightness ≤ 0.5 m³/(m²·h) ≤ 0.3 m³/(m²·h)
Manufacturing Service
Size range Width: 500–3000 mm Height: 500–3000 mm Customized size
Application Residential & Commercial High-rise, Villa, Apartment
Warranty 5 Years Excluding human damage
Certification CE, NFRC, AS2047, TITLE 24, AAMA ISO9001

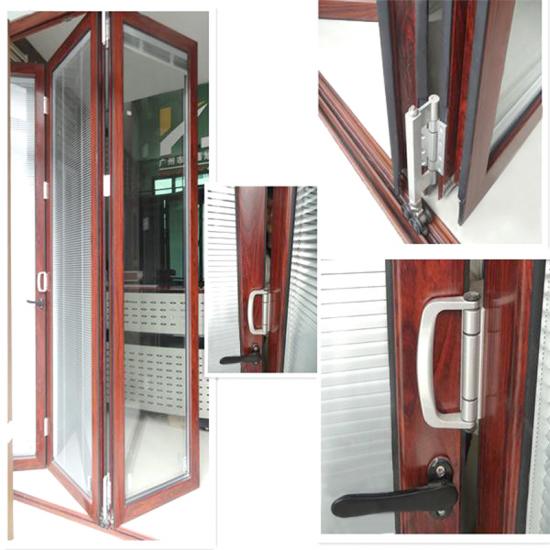

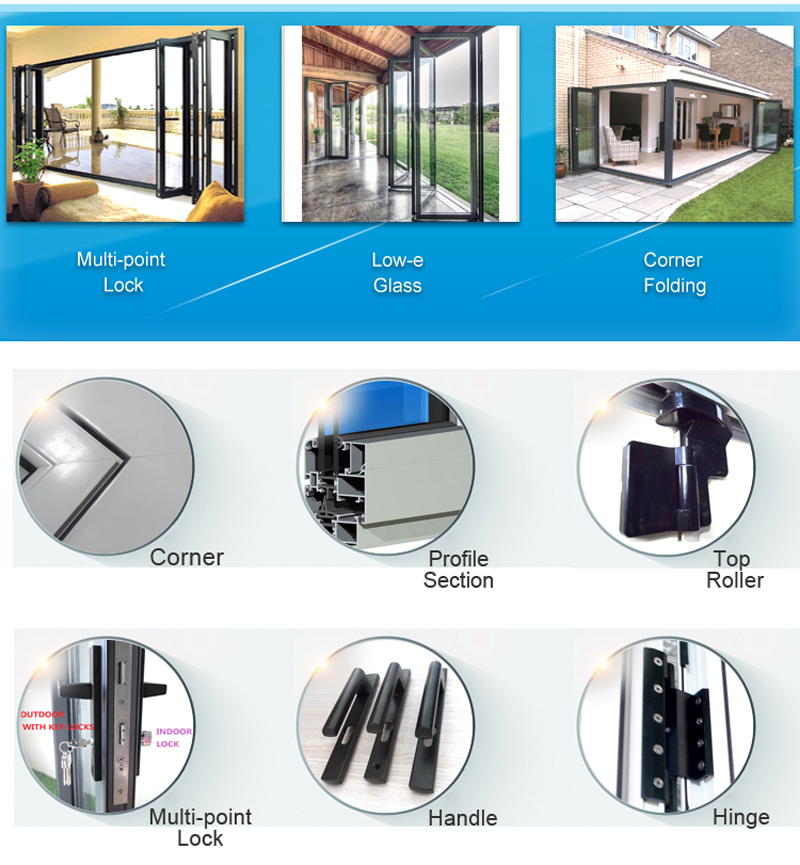

detail

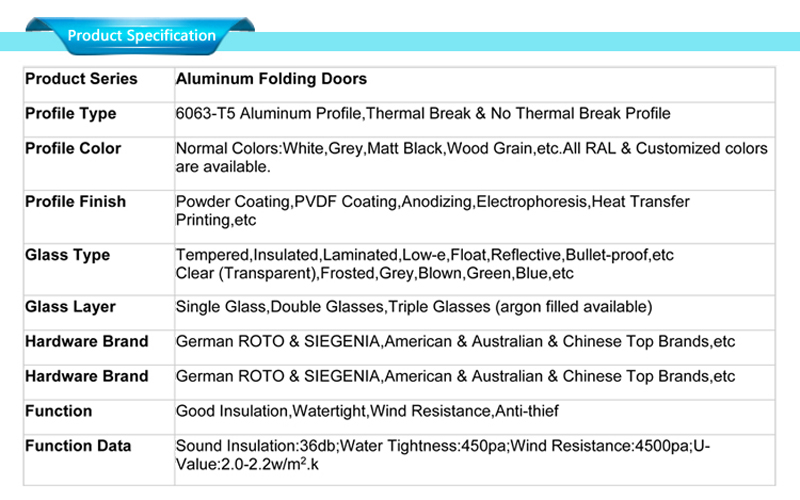

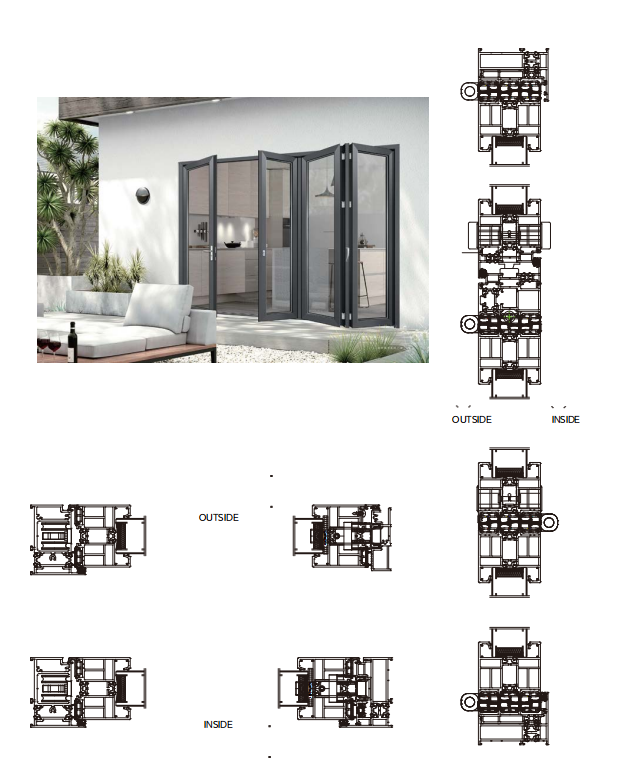

glass aluminium doors specifications

glass aluminium doorsaluminium doors and windows accessories
