New Commercial Aluminum Office Store Front Pivot Floor spring door,solid Wood Interior Doors

Product Detail

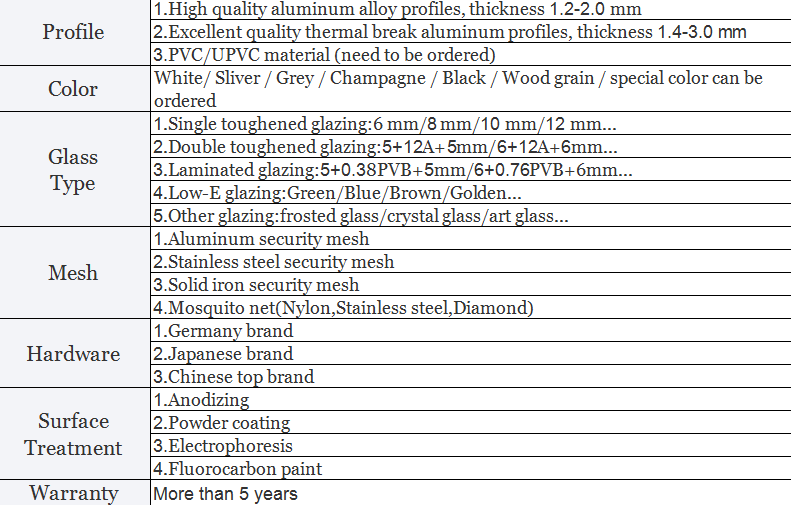

Technical Specification – Aluminum Windows & Doors

Profile System

Classify Technical Parameter Other Options

Material 6063-T5 Aluminum Alloy 6063-T6

Structure non Thermal break aluminum profile thermal break

Profile thickness 1.6 mm 1.4 mm, 1.8 mm, 2.0 mm

Finish Powder coating PVDF coating, Anodizing, Wood grain transfer

Color White / Black / Grey Custom RAL colors

Glazing System

Glass type 5mm + 12A + 5mm Double Glazing Single glass, Triple glazing

Glass color Clear Tinted, Blue, Green, Grey

Gas filling Argon Air, Krypton

Special function Tempered glass Low-E, Laminated, Soundproof, Security glass

Hardware & Operation

Hardware brand Chinese top brand Roto, Siegenia, Kinlong

Main hardware Lock, handle, hinge, roller Heavy-duty hardware set

Locking system Multi-point locking system Single point, Crescent lock

Operation Casement Folding, Lift & Slide

Sealing EPDM gasket Silicone, PVC gasket

Performance Ratings

U-Factor ≤ 0.35 ≤ 0.28 with triple glass

SHGC ≤ 0.25 Low-E glass for better SHGC

Wind load ≥ 3000 Pa ≥ 4500 Pa

Water tightness ≥ 450 Pa ≥ 500 Pa

Air tightness ≤ 0.5 m³/(m²·h) ≤ 0.3 m³/(m²·h)

Manufacturing Service

Size range Width: 500–3000 mm Height: 500–3000 mm Customized size

Application Residential & Commercial High-rise, Villa, Apartment

Warranty 5 Years Excluding human damage

Certification CE, NFRC, AS2047, TITLE 24, AAMA ISO9001

product detail

overhead door springs specifications

door lock spring

floor spring door accessories

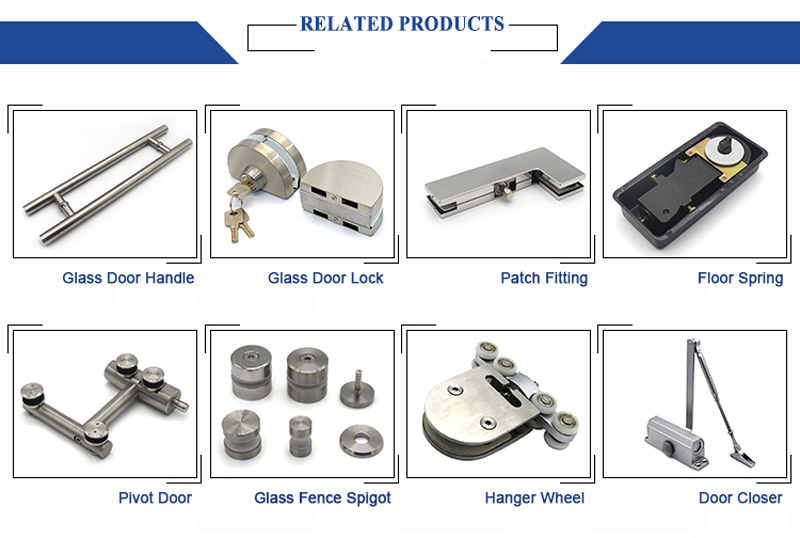

aluminium glass pivot door related products

The selection of ground spring of door springs mainly selects different types of ground spring according to the weight of glass door.
The larger the size of the ground spring, the better. If the size of the ground spring is too large, it will be very laborious to open the door. It's good to be appropriate to the specification of the door. Floor springs are designed according to the weight and width of the door. Each floor spring has a certain bearing range.

Tags :

Related Products

New Design And Hot Sale Tempered Glass Aluminium Pivot Door Springs

This door springs are equiped with tempered glass, and hydraulic gymnastics spring floor door closer. series: 50 series non thermal break aluminum opening style: casement Color: black Glass: 5mm+9A+5mm clear tempered glass Certification: NFRC, AAMA, CE, TITLE 24, AS2047 Nail Fin Design : NO Door Screen : no Grille design : no

New style Aluminum Glass Pivot Entry Spring Door Closer

The ground spring is a hydraulic door closer, but the device that compresses the spring is a worm gear rather than a rack and pinion. series: 50 series non thermal break aluminum opening style: casement Color: black Glass: 5mm+9A+5mm clear tempered glass Certification: NFRC, AAMA, CE, TITLE 24, AS2047 Nail Fin Design : NO Door Screen : no Grille design : no

Metal pivoting entry doors for residential entrance casement modern designs pivot tall doors

Before installation, the construction shall be carried out according to the plan, and the varieties, standards, opening direction and support pieces of doors and windows shall be checked. Aluminum spring doors from Xiamen KDSBuilding are designed for smooth, automatic closing and long-term durability. Made with high-strength aluminum profiles and reliable spring mechanisms, they are ideal for commercial and high-traffic areas. The door offers excellent corrosion resistance, easy maintenance, and stable performance for shops, offices, and public buildings. series: 50 series non thermal break aluminum opening style: casement Color: black Glass: 5mm+9A+5mm clear tempered glass Certification: NFRC, AAMA, CE, TITLE 24, AS2047 Visible Transmittance : 0.41 Nail Fin Design : NO Door Screen : no Grille design : no

European standard front entry door spring

The national standard of floor spring door is that the first-class product is opened ≥ 300000 times (actually the minimum standard of qualified products), the high-quality product is opened ≥ 500000 times, and the European standard is the minimum 500000 times. series: 50 series non thermal break aluminum opening style: casement Color: black Glass: 5mm+9A+5mm clear tempered glass Certification: NFRC, AAMA, CE, TITLE 24, AS2047 Nail Fin Design : NO Door Screen : no Grille design : no

Triple glazed wooden doors and windows

For double hung window different profiles and different composite glass are selected.

Skylight aluminum doors and windows near me

Popular Australia Standard awning window with competitive price, glass 5+9a+5mm clear tempered glass is available for you.

High quality solid wood folding door 009

When you purchase solid wood door 009, you purchase directly from the factory.

Frameless folding glass doors exterior entry patio doors

This door is treated by various processes, and its surface is resistant to acid and alkali erosion and is not affected by air pollution, acid rain and ozone. UV resistant, long-term maintenance of inherent color and luster. series: 50 series non thermal break aluminum and glass opening style: folding Color: clear glass Glass: 5mm+9A+5mm clear tempered glass Certification: NFRC, AAMA, CE, TITLE 24, AS2047 Nail Fin Design : NO Door Screen : no Grille design : no
