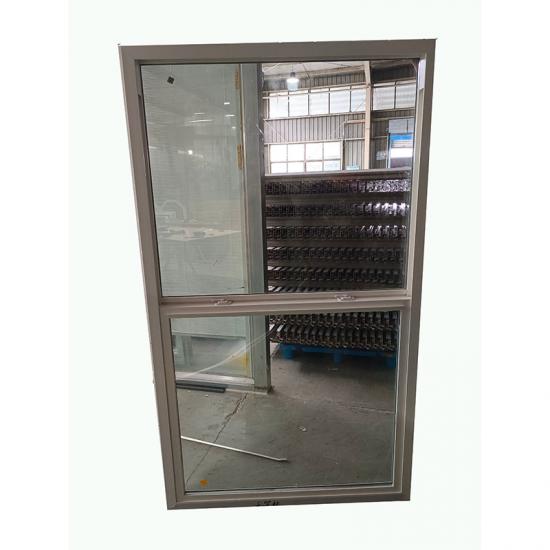

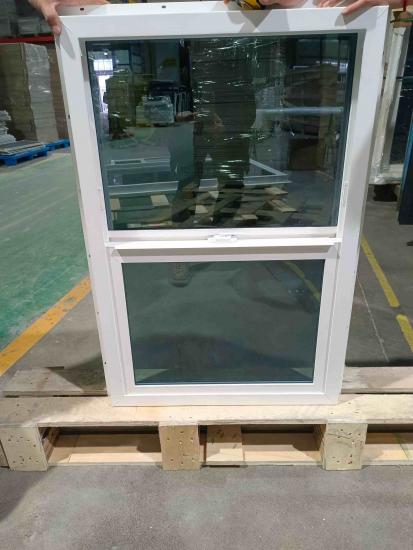

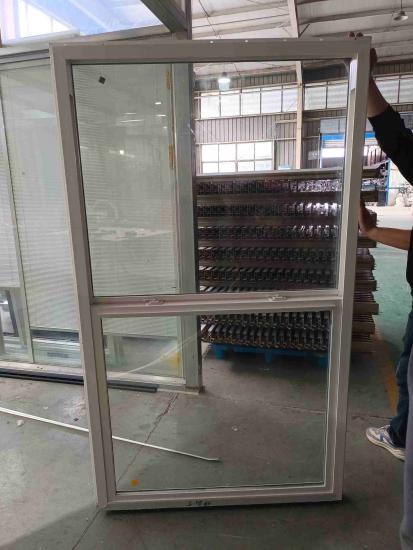

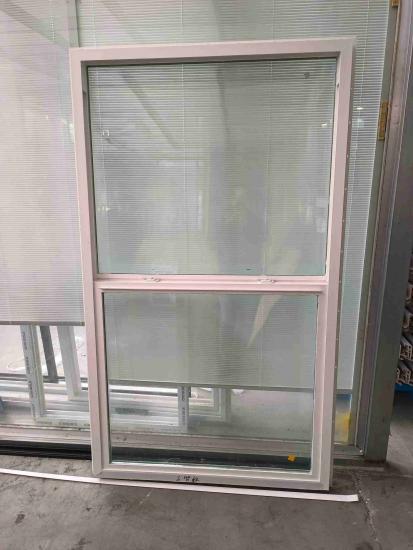

Practical and Elegant PVC Single Hung Window for Lasting Comfort and Efficiency

The PVC Single Hung Window from Xiamen KDSBuilding combines traditional design with modern innovation to create a window that is both functional and visually appealing. Featuring a vertically sliding lower sash and a fixed upper sash, this design offers smooth operation, efficient ventilation, and enhanced energy performance. Constructed from high-quality PVC profiles, the window provides excellent resistance to corrosion, moisture, and UV radiation, making it durable and low-maintenance in any climate. The double-glazed glass and multi-chamber frame design deliver superior insulation, helping to reduce heat transfer and noise infiltration. Equipped with secure locking mechanisms and airtight sealing, it effectively prevents water and air leakage, ensuring lasting performance and safety.

series: 82 series PVC

opening style: Single Hung

Glass: 3mm+12A+3mm clear tempered glass

Certification: NFRC, AAMA, CE, TITLE 24, AS2047

U-Factor  ≤ 0.3

SHGC ≤ 0.21

  • Item NO.:

    KDS-W-P-SH-006

  • Payment:

    DP

  • Product Origin:

    China

  • Color:

    CUSTOMIZED

  • Shipping Port:

    China

  • Lead Time:

    15-30days
Inquiry now

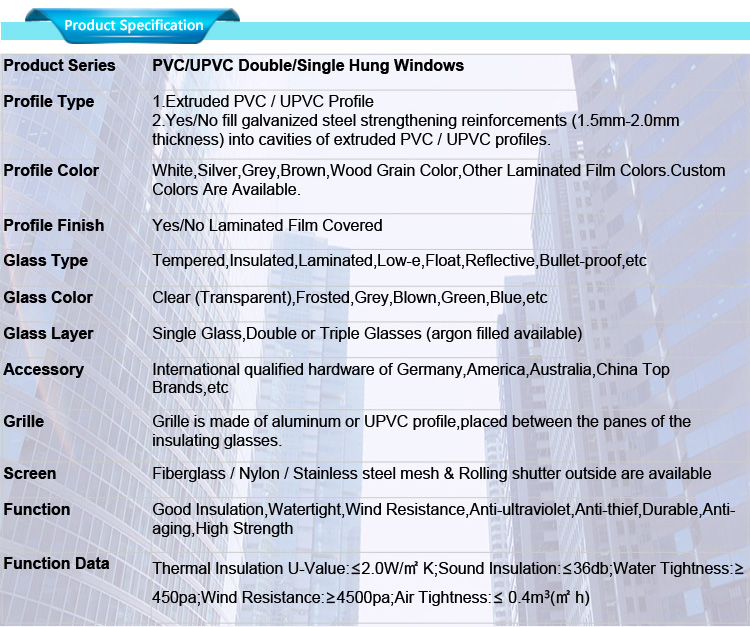

Technical specification:

Classify Technical parameter Other Options
Profile system

Material PVC/UPVC/Vinyl PVC profile + steel reinforcement
Structure Multi-chamber pvc profile 3 chambers, 5 chambers, 7 chambers
thickness 2.0mm 1.6mm, 1.8mm, 2.2mm
Finish white PVC Laminated wood grain, grey, black, golden oak
Glazing system

Glass type 5mm+9A+5mm Single Glass, Triple Glass
Glass color Clear Tinted, blue, green, grey etc
Gas Filling Argon Air, Argon,Krypton
Special function Tempered Low-e, laminated, bullet proof,
soundproof glass, security glass
etc
Hardware&Operation

Hardware Brand Chinese top brand Hardware Roto, Siegenia, Kinlong

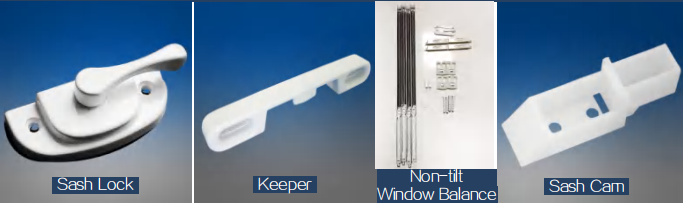

Main Hardware lock,D-type handle, lock, roller Heavy-duty roller set
Locking system flush pull lock
 Multi-point lock, crescent lock
Sealing EPDM Silicone, PVC gasket
Performance Ratings

U-Factor  ≤ 0.3
 ≤ 0.25 with triple glass
SHGC SHGC ≤ 0.21
 Low-E for better SHGC
Wind load ≥ 3000 pa
 ≥ 4500 Pa
Water Tightness  ≥ 450 pa
 ≥ 500 Pa
Air Tightness ≤ 0.4 m3(㎡.h)
 ≤ 0.3 m³/(m²·h)
Manufacturing Service

Size Range Sash width: 500–1500 mm  Sash height: 500–1800 mm Customized size
Warranty 5 Year except damage caused by human
Certification CE, NFRC, AS2047, TITLE 24, AAMA ISO9001

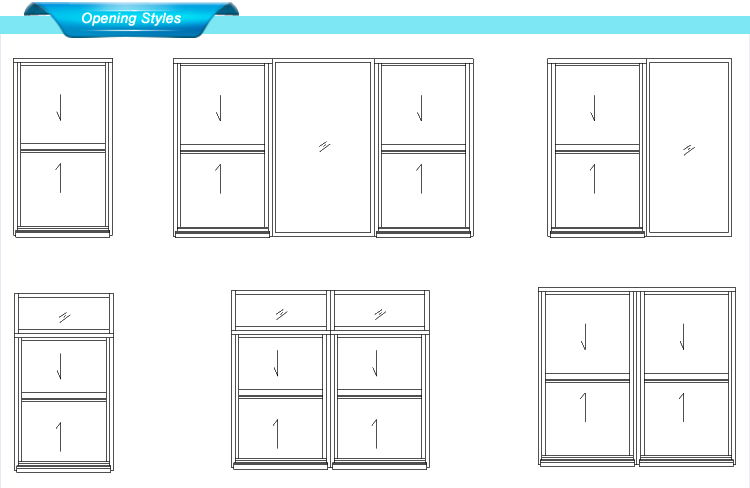

Opening style:

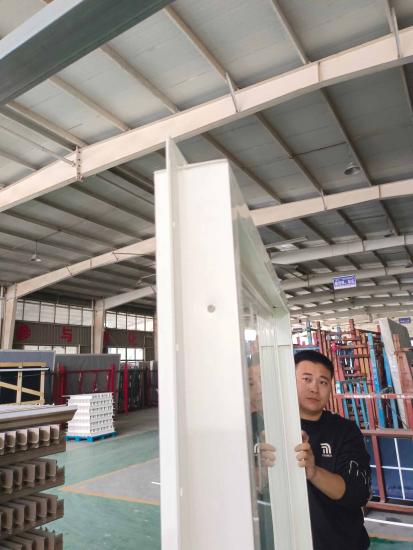

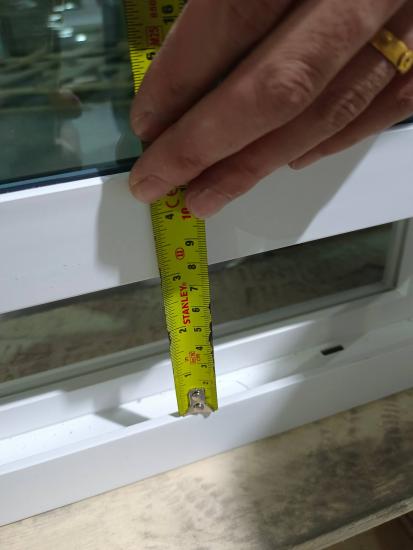

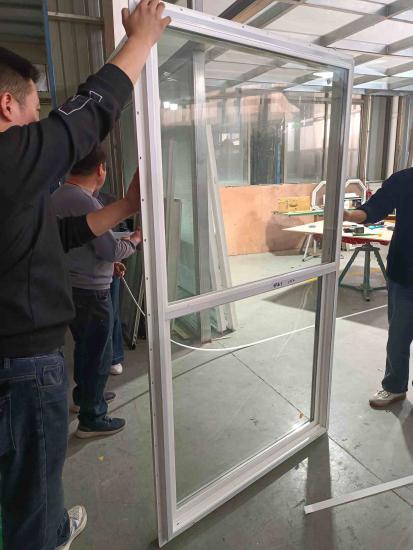

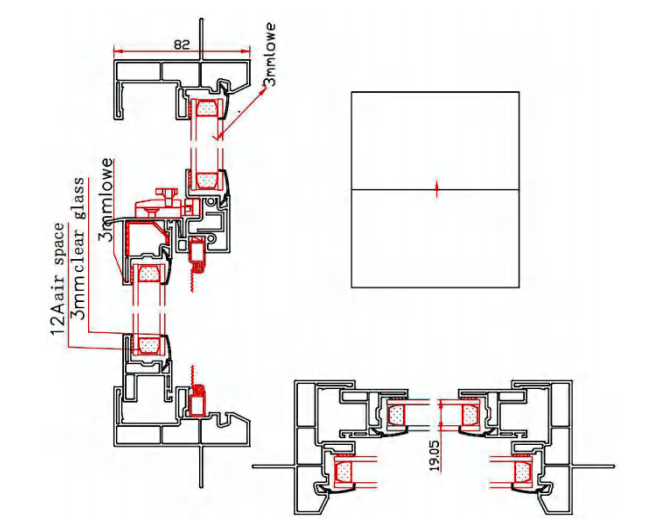

Product detail:





Certification:

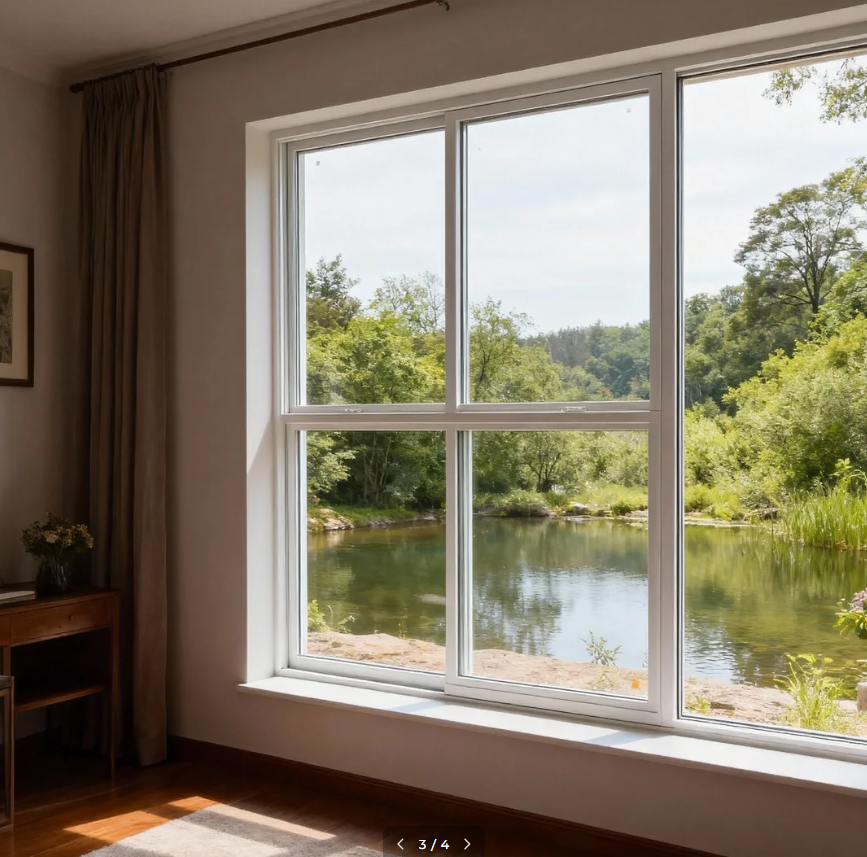

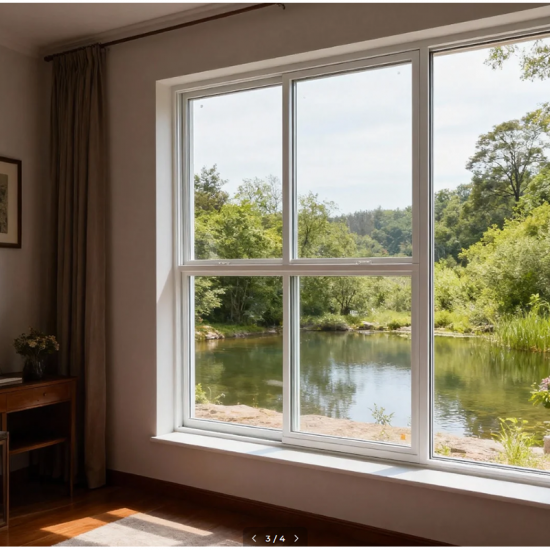

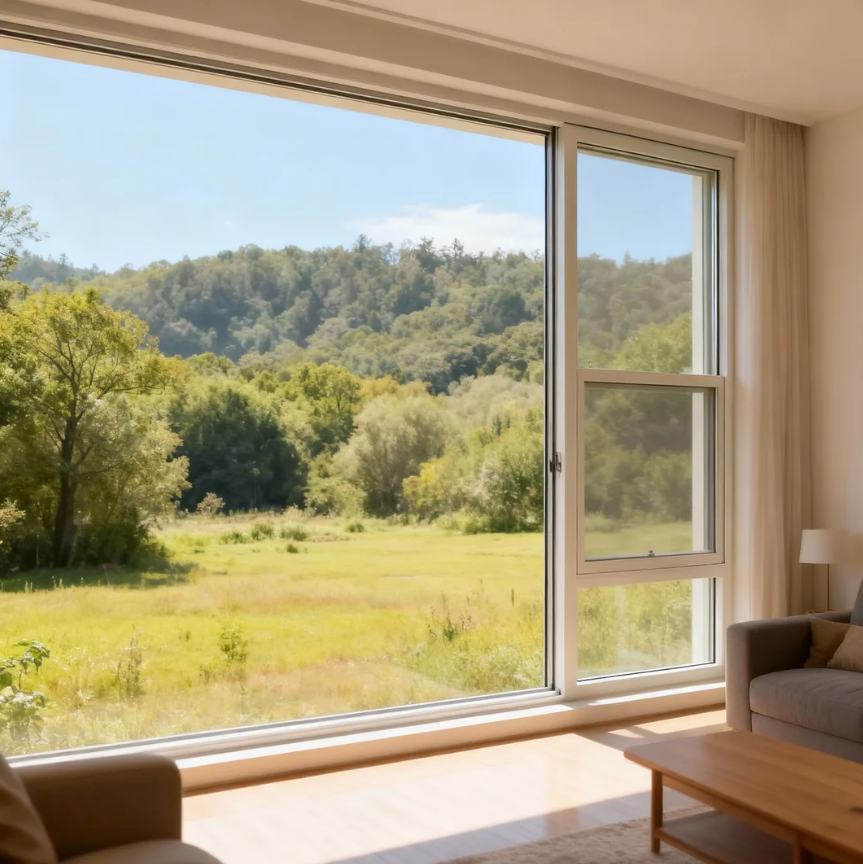

Application:





FAQ:

UPVC Glass Windows And Doors

Q1:What are the types of your UPVC window and door profiles?

1.Extruded PVC / UPVC Profile. 2.Yes / No fill galvanized steel strengthening reinforcements (1.5mm-2.0mm thickness) into cavities of extruded UPVC profiles.

Q2:What are the types of your UPVC window and door glasses?

1.Type:Tempered,Insulated,Laminated,Low-e,Float,Reflective,Bullet-proof,etc. 2.Layer:Single / Double / Triplex Glasses for reducing summer heat load and winter heat  loss.3.Color:Clear(Transparent),Frosted,Grey,Blown,Green,Blue,etc.

4.Thickness:4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm.5.Insulated Glass Spacer:6A,9A,12A,15A,16A.Standard Insulated Glass:5mm+9A/12A+5mm,6mm+9A/12A+6mm with argon gas filled inside.Standard Laminated Glass:5mm+0.38PVB+5mm,5mm+0.76PVB+5mm.6.Quality Standard:European standard CE,Australian standard AS2208,Chinese standard CCC.

Q3:What are the types of your UPVC window and door accessories?

1.Brand:German, American, Australian and Chinese Top Brands,etc.2.Accessories:handles,hinges,locks,rollers,linkage devices,etc.

Q4:What are the package types of your windows and doors?

1.Steps:(1)Use air blow gun and thinner to clean products surface.(2)Use Air bubble film / PE film / EPE foam to wrap products against sea water corrosion.(3)Use craft paper / corrugated paper to protect product four corners.(4)Load FCL Packing products into container directly.(Note:Use container lashing belt to fasten FCL packing irregular goods.)(5)Load LCL Packing products into plywood cases / iron pallets with packing belt,then into container.(FCL:full container load;LCL:less than a container load)2.List:Pallet list for each pallet of a large amount purchase,saving time for you to sort out each window or door.

Q5:What is delivery time of your windows and doors?

Our goods are usually shipped by 20-50 workdays after payment.Different goods quantity means different delivery time.Please send your detailed windows and doors schedule to us,then we will confirm the exact delivery time for you.

Q6:How can we install your windows and doors at our building side?

We can offer the detailed windows and doors installation drawing for you.We also have our professional installation team in Australia and Philippines who can help you if you need.

Q7:This is my first time to import windows and doors, how should I do?

We have 20 years exporting experience.In order to save both your time and money,we can serve you as follows.1.We can direct a series of importing affairs for you.2.We can supply you one-stop purchase service of various building materials if you need.
