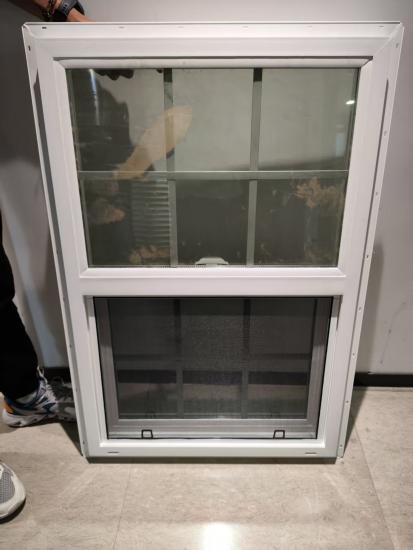

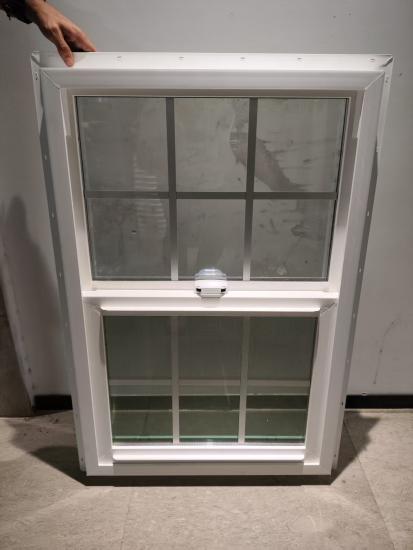

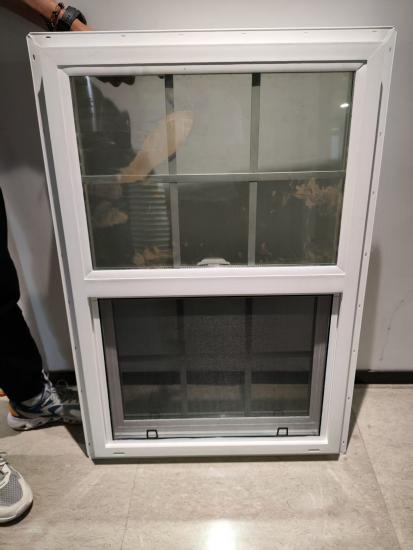

Aluminum single hung window grille design single hung window

Aluminum single hung windows are a sleek and practical window solution known for their strength, durability, and modern appearance. In this design, the bottom sash slides vertically while the top sash remains fixed, offering controlled ventilation and a secure closure. The lightweight yet strong aluminum frame resists rust, corrosion, and warping, making it ideal for both residential and commercial buildings. With minimal maintenance and excellent thermal performance when paired with insulated glass, these windows offer long-term energy efficiency. Their clean lines and customizable finishes complement contemporary architectural styles, delivering both functionality and aesthetic appeal in a space-saving design

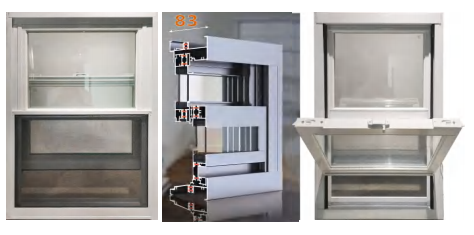

series: 55 series thermal break

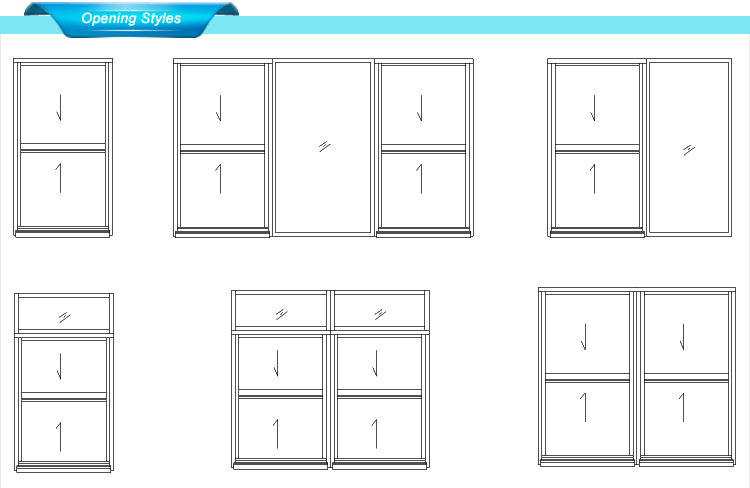

opening style: Single Hung

color : white

Glass: 5mm+9A+5mm clear tempered glass

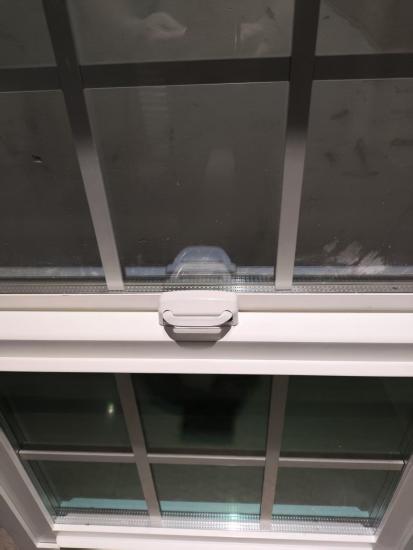

Grille : yes

Screen : yes

Certification: NFRC, AAMA, CE, TITLE 24, AS2047

U-Factor  ≤ 0.3

SHGC ≤ 0.23

  • Item NO.:

    KDS-W-A-SH-001
  • Payment:

    DP
  • price:

    $130/square meters
  • Product Origin:

    China
  • Color:

    RAL color
  • Shipping Port:

    China
  • Lead Time:

    15-30days
  • Order(MOQ):

    100 SQUARE METERS

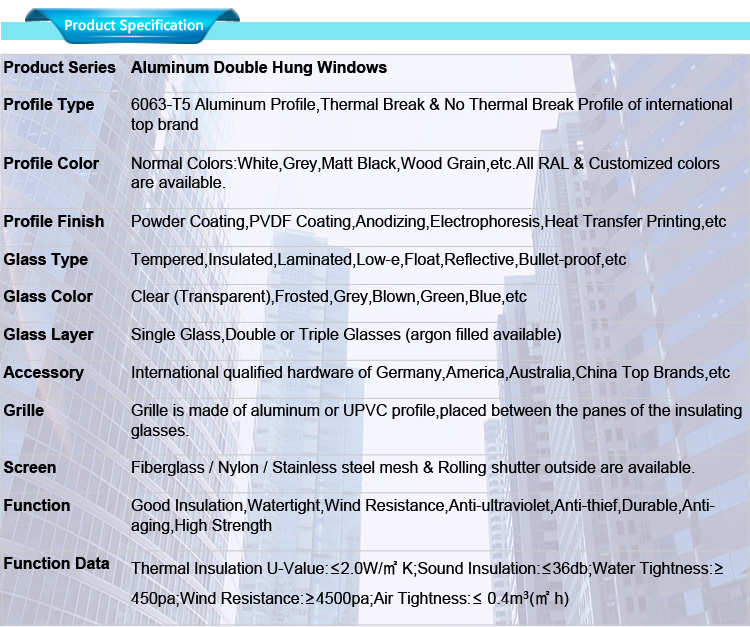

Technical Specification – Aluminum Windows & Doors
Profile System
Classify Technical Parameter Other Options
Material 6063-T5 Aluminum Alloy 6063-T6
Structure Thermal break aluminum profile Non-thermal break
Profile thickness 1.6 mm 1.4 mm, 1.8 mm, 2.0 mm
Finish Powder coating PVDF coating, Anodizing, Wood grain transfer
Color White / Black / Grey Custom RAL colors
Glazing System
Glass type 5mm + 12A + 5mm Double Glazing Single glass, Triple glazing
Glass color Clear Tinted, Blue, Green, Grey
Gas filling Argon Air, Krypton
Special function Tempered glass Low-E, Laminated, Soundproof, Security glass
Hardware & Operation
Hardware brand Chinese top brand Roto, Siegenia, Kinlong

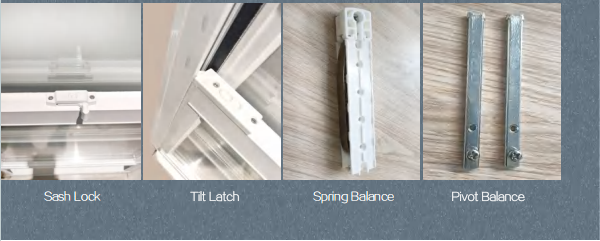

Main hardware Lock, handle, hinge, roller Heavy-duty hardware set

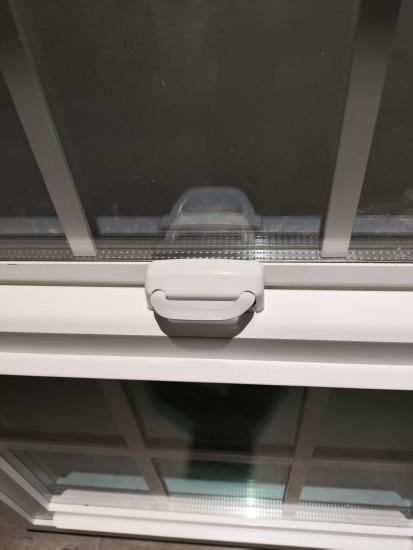

Locking system Multi-point locking system Single point, Crescent lock
Operation  Sliding / Casement / Tilt & Turn/awning/single&double hung Folding, Lift & Slide,fixed
Sealing EPDM gasket Silicone, PVC gasket
Performance Ratings
U-Factor ≤ 0.35 ≤ 0.28 with triple glass
SHGC ≤ 0.25 Low-E glass for better SHGC
Wind load ≥ 3000 Pa ≥ 4500 Pa
Water tightness ≥ 450 Pa ≥ 500 Pa
Air tightness ≤ 0.5 m³/(m²·h) ≤ 0.3 m³/(m²·h)
Manufacturing Service
Size range Width: 500–3000 mm Height: 500–3000 mm Customized size
Application Residential & Commercial High-rise, Villa, Apartment
Warranty 5 Years Excluding human damage
Certification CE, NFRC, AS2047, TITLE 24, AAMA ISO9001
