Factory Price System Sliding Window,system Sliding Window Online

system sliding window

system window is a fully integrated window solution where the frame, glazing, hardware, and sealing components are all engineered to work together for optimal performance. Unlike traditional windows assembled from separate parts, system windows are precision-designed for superior energy efficiency, air and water tightness, sound insulation, and structural strength. Commonly made from materials like aluminum or uPVC, they offer modern aesthetics, reliable durability, and are often certified to meet international standards such as NFRC or CE. System windows are ideal for both residential and commercial buildings, ensuring consistent quality, easier installation, and long-term value.

Product Detail

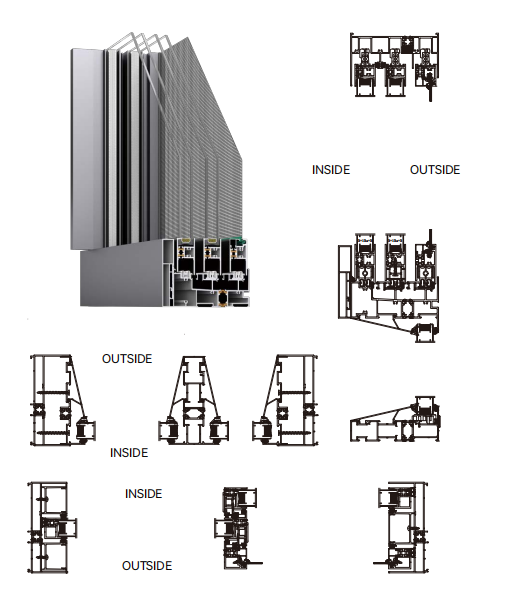

Product series : 138(5.433'') series aluminum sliding window

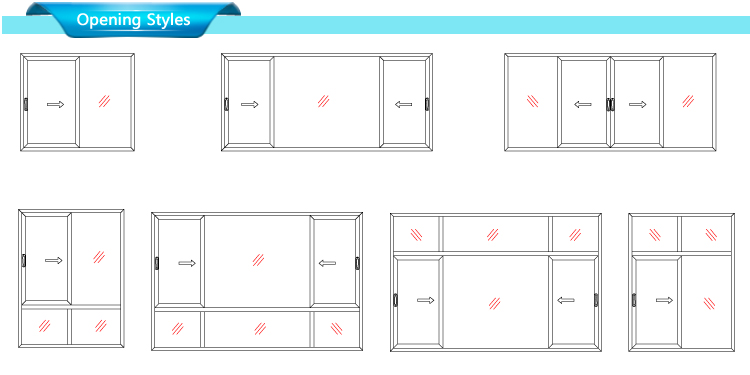

Opening type : sliding

Profile type : 6063-T5 Aluminum profile, thermal break& non thermal break profile of International standard

Profile color : Normal colors: White , Grey, Matte Black, Wood Grain etc. All RAL & customized colors available

Profile finish : Powder coating, PVDF coating, Anodizing, Electrophoresis, Heat transfer printing etc.

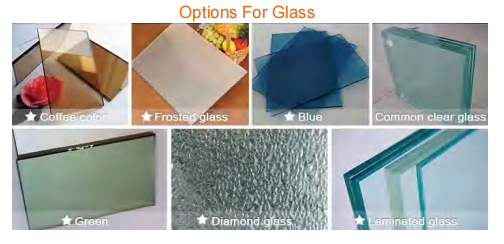

Glass type : Tempered, Insulated, Laminated, Low-e, Float, Reflective, Bullet proof etc.

Glass color : Clear(Transparent), Frosted, Grey, Brown, Green, Blue etc.

Glass Layer : Single Glass( 4mm, 5mm, 6mm, 8mm, 12mm), Double glass(5mm+9/12A+5mm, 3mm+12A+3mm, 4mm+16/20A+4mm), Triple glass(5mm+9/12A+5mm+9/12A+5mm) etc Argon filled available.

Accessory : International qualified of accessories of German, America, Australia, China etc.

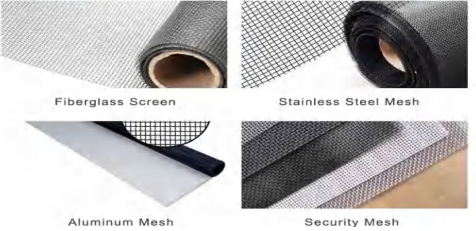

Screen : Fiberglass, Nylon, Stainless steel mesh. (Outside rolling shutter or inside casement mesh for outward casement window. Fixed or outward casement mesh for inward casement window)

Parameter : U-Factor ≤ 0.3 , SHGC ≤ 0.23 , Sound Insulation ≤ 36 db , Water Tightness ≥ 450 pa , Wind Resistance ≥ 4500 pa , Air Tightness ≤ 0.4 m³(㎡.h)

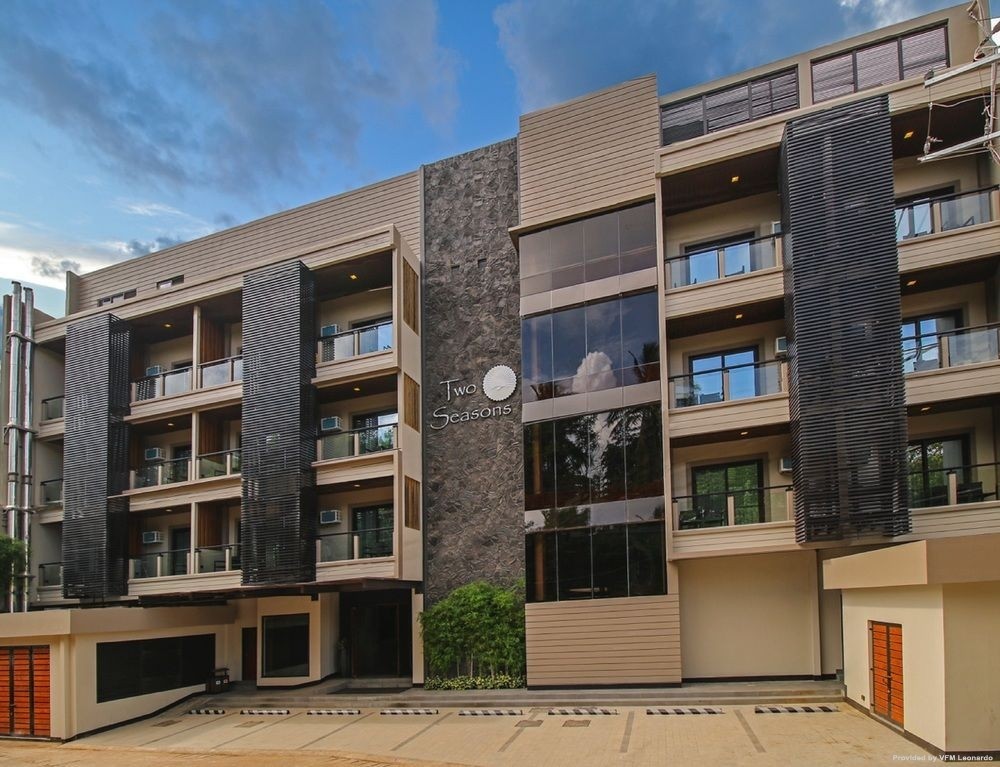

Project case :

Tags :
