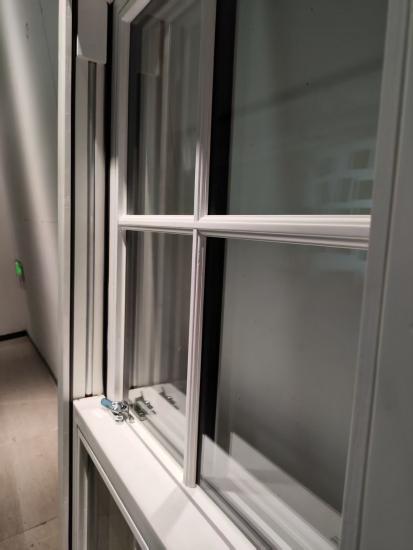

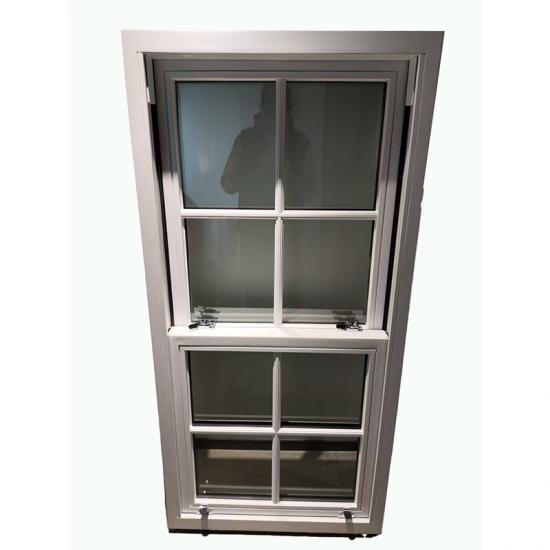

wooden single hung window with double glazing and decorative grille design combines classic aesthetics with modern performance. Crafted from high-quality timber, it offers natural warmth and timeless appeal, while the insulated double-glazed glass enhances thermal efficiency and sound reduction. The fixed upper sash and smoothly operating lower sash provide reliable ventilation and ease of use. Elegant grille patterns add architectural character, making this window an ideal choice for traditional and upscale residential projects.
series: Wooden Profile Window
opening style: Single Hung
Glass: 5mm+9A+5mm clear tempered glass
Grille Design: Yes
Color: white
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.23
Item NO.:
KDS-W-W-SH-001Payment:
DPProduct Origin:
ChinaColor:
whiteShipping Port:
ChinaLead Time:
15-30days
| Classify | Technical Parameter | Other Options |
| Profile System | ||
| Material | Engineered solid wood / laminated timber | Pine, Oak, Meranti, Teak |
| Structure | Single hung (top fixed + bottom operable) | Custom configurations |
| Profile Thickness | ≥ 68 mm | 78 mm, 88 mm |
| Surface Finish | Water-based paint / stain | PU paint, natural oil finish |
| Glazing System | ||
| Glass Type | 5mm + 12A + 5mm Double Glazing | Single glass, Triple glazing |
| Glass Color | Clear | Low-E, tinted, grey, bronze |
| Gas Filling | Argon | Air |
| Special Function | Tempered safety glass | Laminated, Low-E |

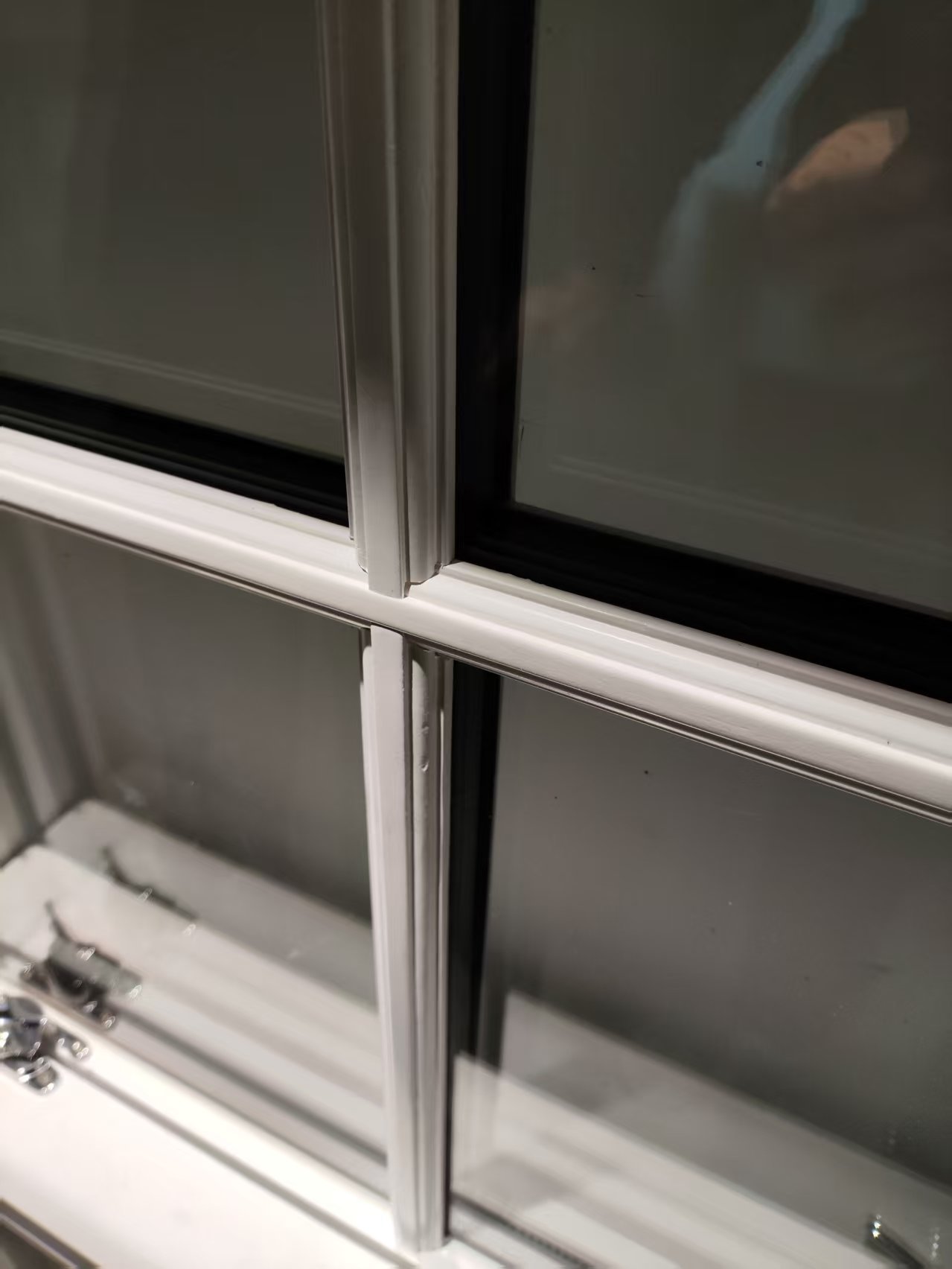

| Grille Design | Internal / external decorative grille | Custom patterns |
| Hardware & Operation | ||
| Hardware Brand | High-quality international hardware | Roto, Siegenia |
| Operation | Vertical sliding (single hung) | Tilt-in cleaning option |

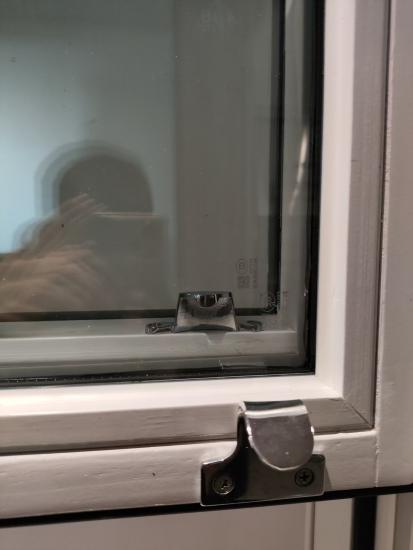

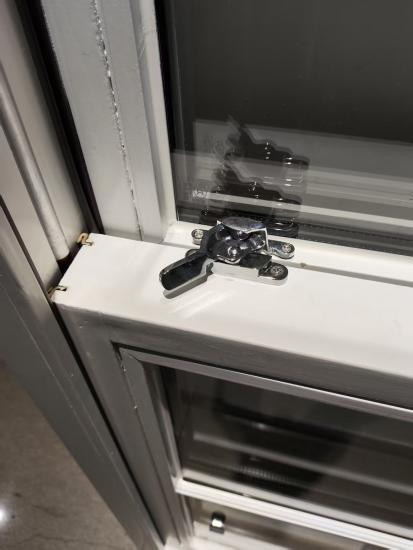

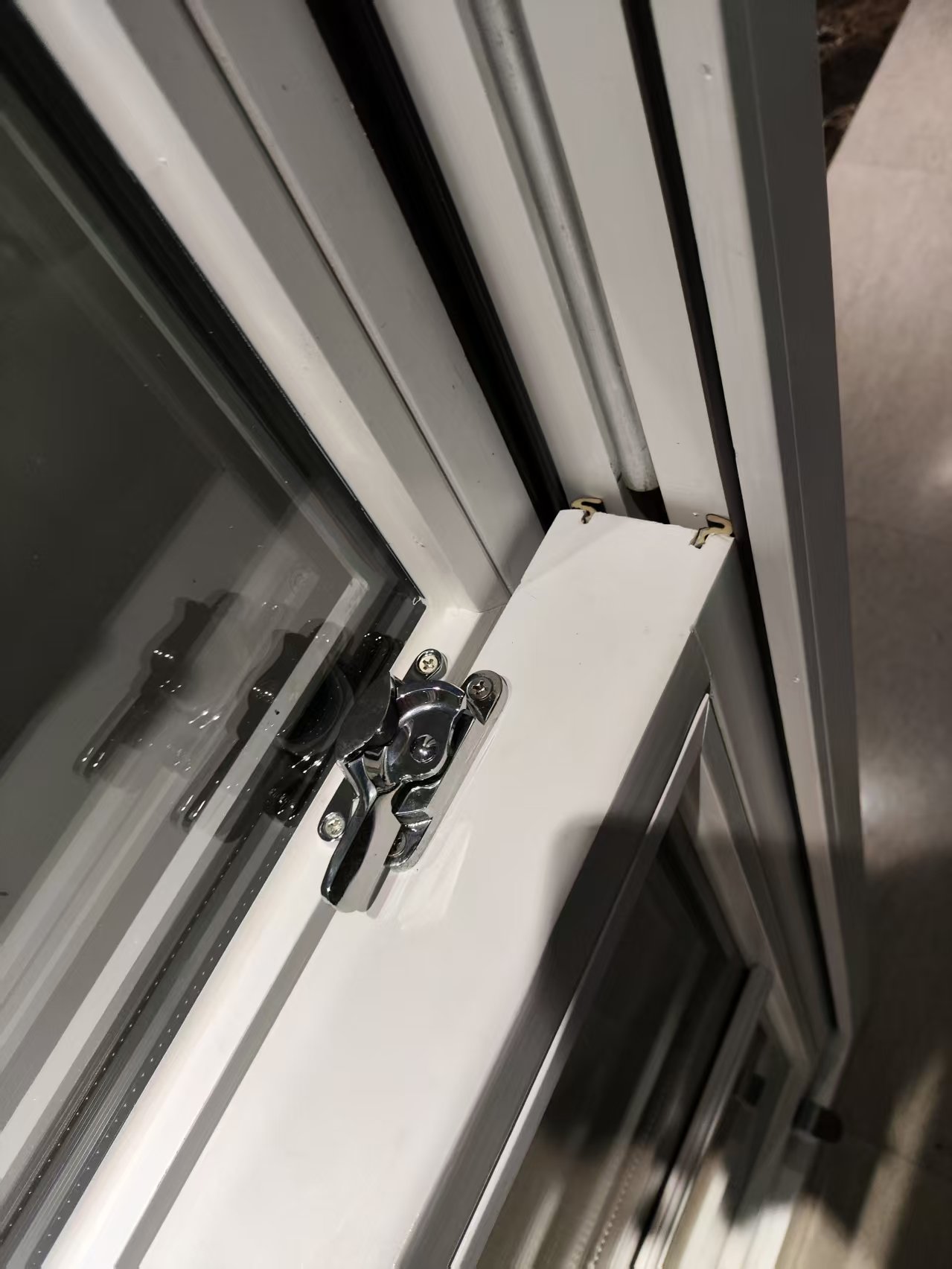

| Locking System | Cam lock / sash lock | Multi-point locking |
| Sealing | EPDM weather stripping | Silicone + brush seal |
| Performance Ratings | ||
| U-Factor | ≤ 0.30 | Project-based |
| SHGC | ≤ 0.25 | Project-based |
| Wind Load | ≥ 3000 Pa | Enhanced on request |
| Water Tightness | ≥ 300 Pa | |
| Air Tightness | ≤ 0.6 m³/(㎡·h) | |
| Manufacturing Service | ||
| Size Range | Width: 600–1500 mmHeight: 900–2400 mm | Custom sizes |
| Warranty | 5 Years | Excludes human damage |
| Certification | CE, NFRC, AS2047, AAMA | Regional compliance |
FAQ
Wooden Glass Windows And Doors
Q1:What are the colors of your wooden window and door profiles?
Normal Colors:White,Grey,Matt Black,Wood Grain,etc.AII RAL&Customized colors are available.Please show us your needed colors.
Q2:What are the types of your window and door glasses?
1.Type:Tempered,Insulated,Laminated,Low-e,Float,Reflective,Bullet proof,etc
2.Layer:Single /Double /Triplex Glasses for reducing summer heat load and winter heat loss.
3.Color:Clear (Transparent),Frosted,Grey,Blown,Green,Blue,etc
4.Thickness:4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
5.Insulated Glass Spacer:6A,9A,12A,15A,16A
Standard Insulated Glass:5mm+9A/12A+5mm,6mm+9A/12A+6mm with argon gas filled inside.
Standard Laminated Glass:5mm+0.38PVB+5mm,5mm+0.76PVB+5mm
6.Quality Standard:European standard CE,Australian standard AS2208,Chinese standard CCC.
Q3:What are the types of your window and door accessories?
1.Brand:German,American,Australian and Chinese Top Brands,etc
2.Accessories:handles,hinges,locks,rollers,in cage devices,etc.
Q4:What are the package types of your windows and doors?
1.Steps:
(1)Use air blow gun and thinner to clean products surface.
(2)Use Air bubble film/PE film/EPE foam to wrap products against sea water corrosion.
(3)Use craft paper /corrugated paper to protect product four corners.
(4)Load FCL Packing products into container directly.(Note:Use container lashing belt to fasten FCL packing irregular goods.)
(5)Load LCL Packing products into plywood cases /iron pallets with packing belt,then into contain-er.(FCL:full container load;LCL:less than a container load)
2.List:Pallet list for each pallet of a large amount purchase,saving time for you to sort out each window or door.
Q5:What is delivery time of your windows and doors?
Our goods are usually shipped by 20-50 workdays after payment.Different goods quantity means different delivery time.Please send your detailed windows and doors schedule to us,then we will con-firm the exact delivery time for you.
Q6:How can we install your windows and doors at our building side?
We can offer the detailed windows and doors installation drawing for you.We also have our professional installation team in Australia and Philippines who can help you if you need.
Q7:This is my first time to import windows and doors,how should I do?
We have 20 years exporting experience.In order to save both your time and money,we can serve you as follows.
1.We can direct a series of importing affairs for you.
2.We can supply you one-stop purchase service of various building materials if you need.
