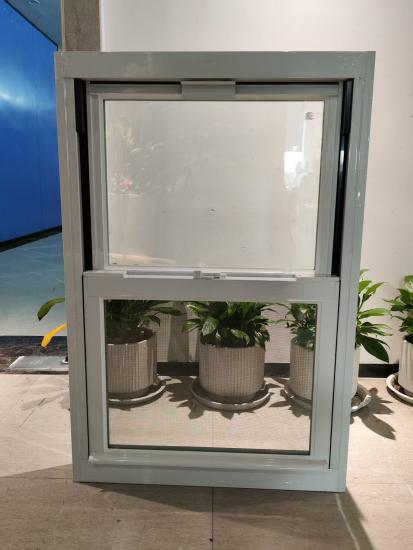

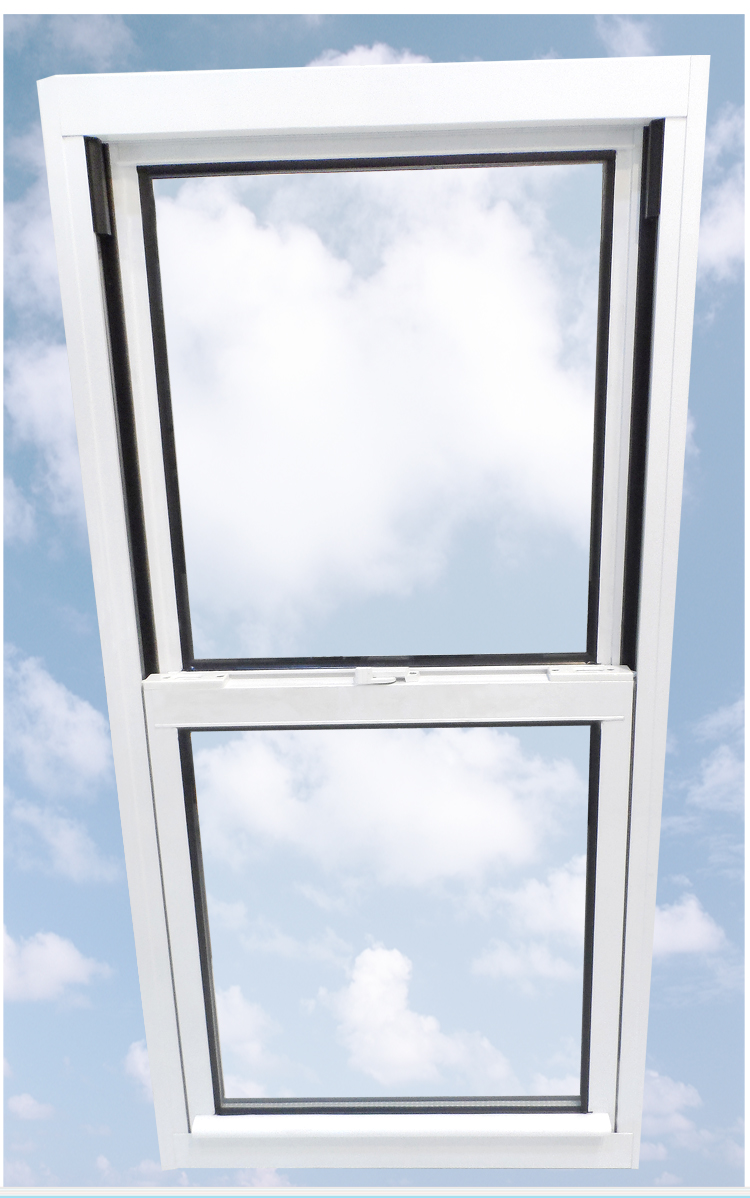

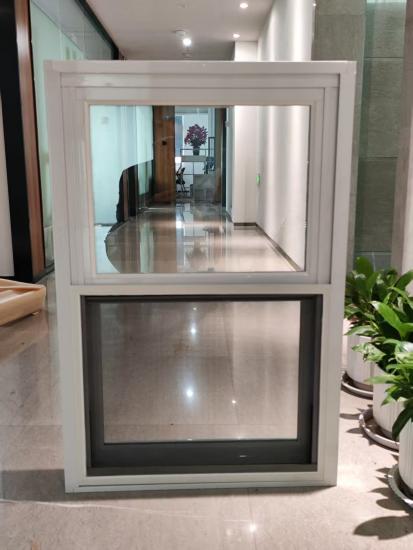

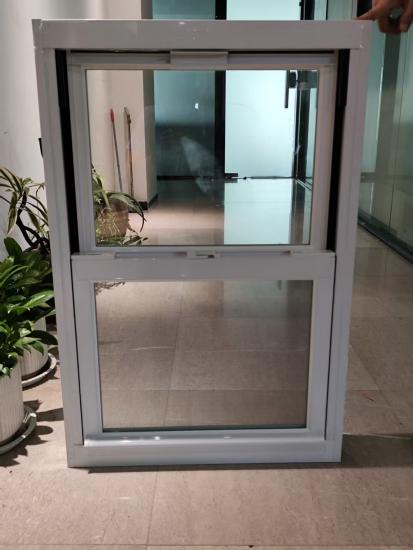

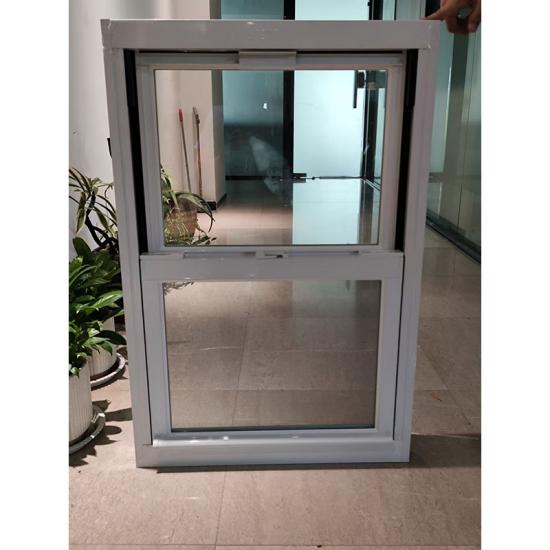

The Aluminum Double Hung and Tilt Window from Xiamen KDSBuilding combines elegant design, smooth functionality, and outstanding thermal performance for modern residential and commercial projects. Manufactured with high-quality thermal break aluminum profiles and double-glazed insulated glass units, this window ensures excellent energy efficiency, sound insulation, and condensation resistance. The double-hung mechanism allows both the upper and lower sashes to slide vertically for flexible ventilation, while the tilt function provides easy inward tilting for convenient cleaning and secure airflow control.
series: 83 series thermal break
opening style: Double Hung and Inward Tilt
Glass: 5mm+9A+5mm clear tempered glass
Color: white
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.23
Item NO.:
KDS-W-A-DH-010Payment:
DPProduct Origin:
ChinaColor:
CUSTOMIZEDShipping Port:
ChinaLead Time:
15-30daysTechnical Specification:
| Classify | Technical parameter | Other Options |
| Profile system |
|
|
| Material | 6063-T5 Aluminum | 6063-T5, 6063-T6 |
| Structure | Thermal break | Thermal break, non thermal break |
| thickness | 1.6mm | 1.4mm, 1.8mm, 2.0mm |
| Finish | Powder coating | PVDF coating, Anodizing |
| Glazing system |
|
|
| Glass type | 5mm+9A+5mm | Single Glass, Triple Glass |
| Glass color | Clear | Tinted, blue, green, grey etc |
| Gas Filling | Argon | Air, Argon |
| Special function | Tempered | Low-e, laminated, bullet proof etc |
| Hardware&Operation |
|
|
| Hardware Brand | Chinese top brand Hardware | King long, Roto etc. |

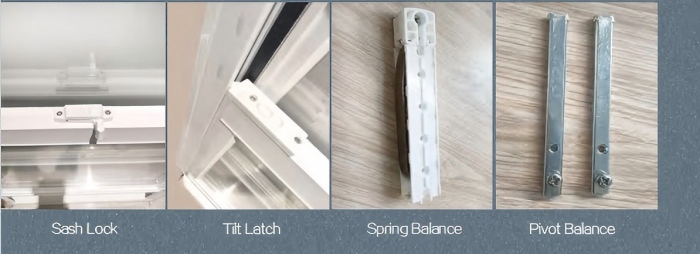

| Main Hardware | lock,D-type handle, lock, roller | King long Brand |
| Locking system |

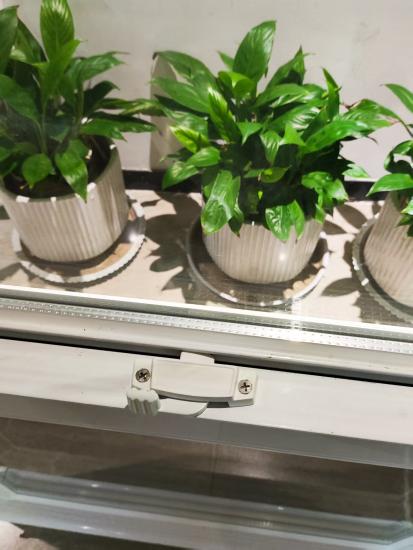

flush pull lock |
Multi-Point Locking System,Hook Lock, Cylinder Key Lock, D-Handle / Pull Handle with Key Lock etc |
| Sealing | EPDM | EPDM, PVC |
| Performance Ratings |
|
|
| U-Factor |
≤ 0.3 |
/ |
| SHGC |
SHGC ≤ 0.23 |
/ |
| Wind load |
≥ 4500 pa |
/ |
| Water Tightness |
≥ 450 pa |
/ |
| Air Tightness |
≤ 0.4 m3(㎡.h) |
/ |
| Manufacturing Service |
|
|
| Size Range | Sash width: 750-2000 mm, Sash height: 750-3000mm | / |
| Warranty | 5 Year | except damage caused by human |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA | / |

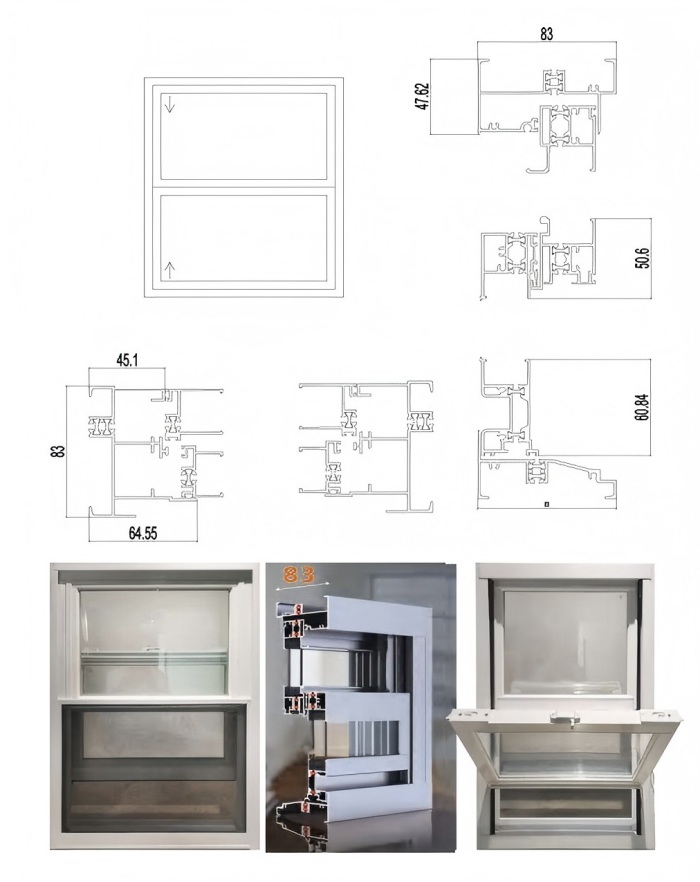

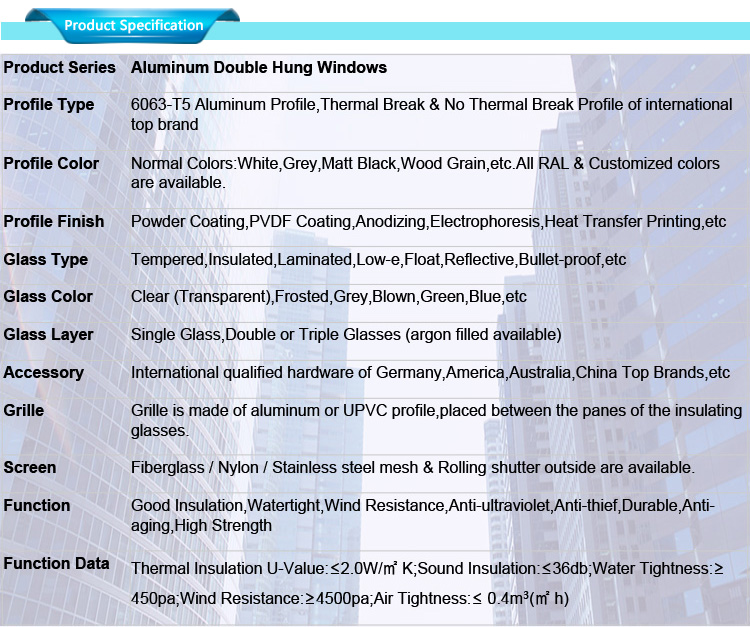

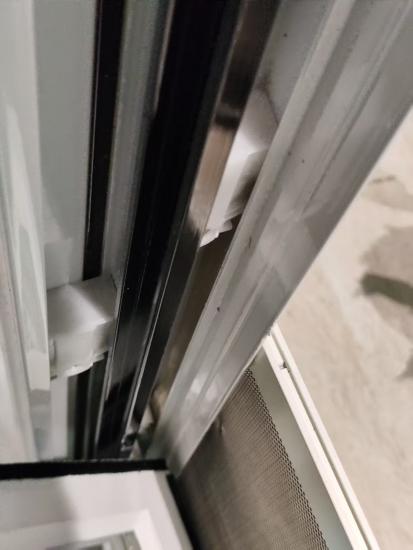

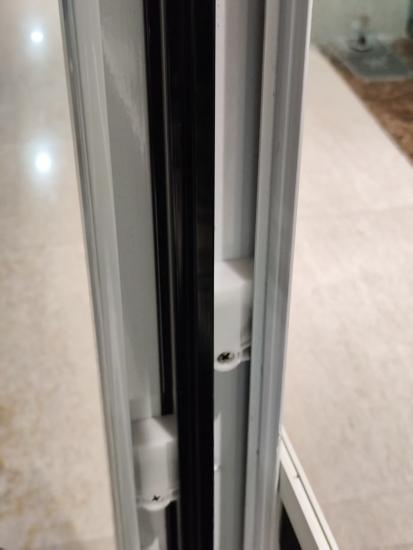

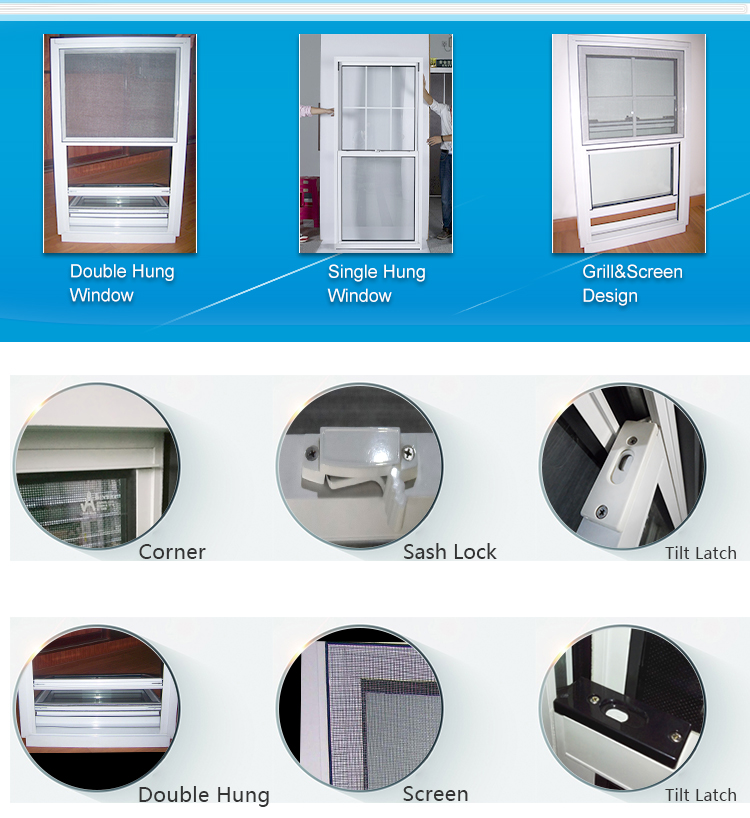

Product Detail:
Certification:

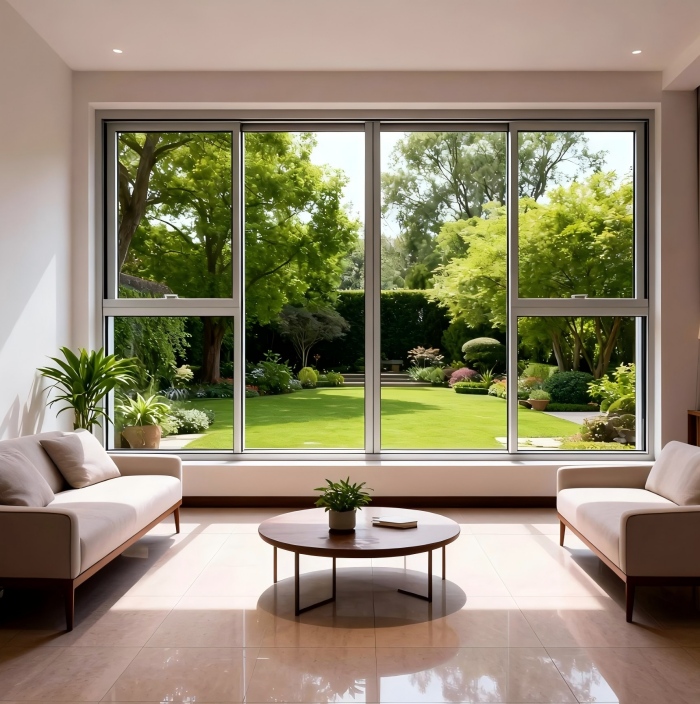

Application:

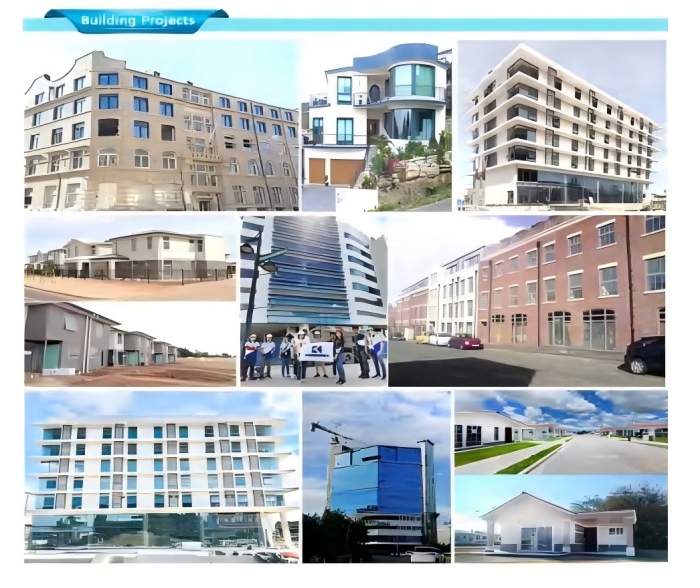

Project Case
FAQ:
Aluminum Glass Windows And Doors
Q1:What are the colors of your aluminum window and door profiles?
Normal Colors:White,Grey,Matt Black,Wood Grain,etc.AII RAL&Customized colors are available.Please show us your needed colors.
Q2:What are the types of your window and door glasses?
1.Type:Tempered,Insulated,Laminated,Low-e,Float,Reflective,Bullet proof,etc
2.Layer:Single /Double /Triplex Glasses for reducing summer heat load and winter heat loss.
3.Color:Clear (Transparent),Frosted,Grey,Blown,Green,Blue,etc
4.Thickness:4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
5.Insulated Glass Spacer:6A,9A,12A,15A,16A
Standard Insulated Glass:5mm+9A/12A+5mm,6mm+9A/12A+6mm with argon gas filled inside.
Standard Laminated Glass:5mm+0.38PVB+5mm,5mm+0.76PVB+5mm
6.Quality Standard:European standard CE,Australian standard AS2208,Chinese standard CCC.
Q3:What are the types of your window and door accessories?
1.Brand:German,American,Australian and Chinese Top Brands,etc
2.Accessories:handles,hinges,locks,rollers,in cage devices,etc.
Q4:What are the package types of your windows and doors?
1.Steps:
(1)Use air blow gun and thinner to clean products surface.
(2)Use Air bubble film/PE film/EPE foam to wrap products against sea water corrosion.
(3)Use craft paper /corrugated paper to protect product four corners.
(4)Load FCL Packing products into container directly.(Note:Use container lashing belt to fasten FCL packing irregular goods.)
(5)Load LCL Packing products into plywood cases /iron pallets with packing belt,then into contain-er.(FCL:full container load;LCL:less than a container load)
2.List:Pallet list for each pallet of a large amount purchase,saving time for you to sort out each window or door.
Q5:What is delivery time of your windows and doors?
Our goods are usually shipped by 20-50 workdays after payment.Different goods quantity means different delivery time.Please send your detailed windows and doors schedule to us,then we will con-firm the exact delivery time for you.
Q6:How can we install your windows and doors at our building side?
We can offer the detailed windows and doors installation drawing for you.We also have our professional installation team in Australia and Philippines who can help you if you need.
Q7:This is my first time to import windows and doors,how should I do?
We have 20 years exporting experience.In order to save both your time and money,we can serve you as follows.
1.We can direct a series of importing affairs for you.
2.We can supply you one-stop purchase service of various building materials if you need.
