XIAMEN KDSBUILDING MATERIAL CO.,LTD

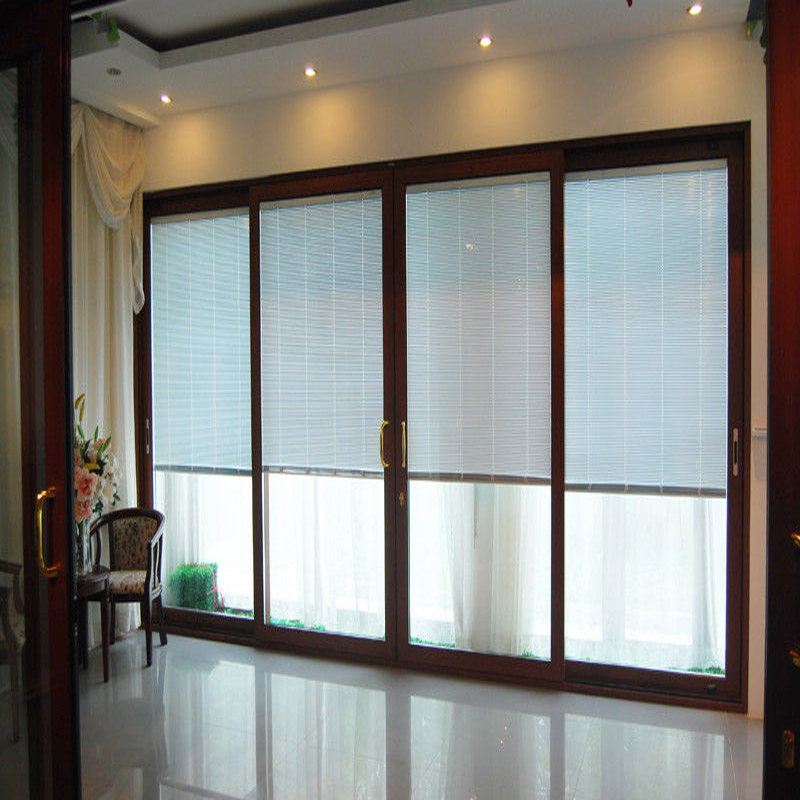

Aluminum Lift and Sliding Door 004

When you purchase aluminum lift and sliding door 004, you purchase directly from the factory.

Xiamen KDSBuilding lift and sliding doors provide a premium solution for modern buildings requiring large openings and strong sealing performance. The lift mechanism reduces wear on rollers and tracks, extending service life. Combined with Low-E double glazing and thermal break aluminum profiles, the door achieves excellent insulation and weather resistance.

series: 140 series thermal break

opening style: Lift and Sliding

Glass: 5mm+9A+5mm clear tempered glass

Color: white

Certification: NFRC, AAMA, CE, TITLE 24, AS2047

U-Factor  ≤ 0.3

SHGC ≤ 0.23

  • Item NO.:

    KDS-D-A-LS-004
  • Payment:

    L/C, T/T
  • Product Origin:

    China
  • Color:

    Customized
  • Shipping Port:

    XIAMEN
  • Lead Time:

    15-35 DAYS

Technical Specification – Aluminum Windows & Doors
Profile System
Classify Technical Parameter Other Options
Material 6063-T5 Aluminum Alloy 6063-T6
Structure Thermal break aluminum profile Non-thermal break
Profile thickness 1.6 mm 1.4 mm, 1.8 mm, 2.0 mm
Finish Powder coating PVDF coating, Anodizing, Wood grain transfer
Color White / Black / Grey Custom RAL colors
Glazing System
Glass type 5mm + 12A + 5mm Double Glazing Single glass, Triple glazing
Glass color Clear Tinted, Blue, Green, Grey
Gas filling Argon Air, Krypton
Special function Tempered glass Low-E, Laminated, Soundproof, Security glass
Hardware & Operation
Hardware brand Chinese top brand Roto, Siegenia, Kinlong
Main hardware Lock, handle, hinge, roller Heavy-duty hardware set
Locking system Multi-point locking system Single point, Crescent lock
Operation  Casement  Folding, Lift & Slide
Sealing EPDM gasket Silicone, PVC gasket
Performance Ratings
U-Factor ≤ 0.35 ≤ 0.28 with triple glass
SHGC ≤ 0.25 Low-E glass for better SHGC
Wind load ≥ 3000 Pa ≥ 4500 Pa
Water tightness ≥ 450 Pa ≥ 500 Pa
Air tightness ≤ 0.5 m³/(m²·h) ≤ 0.3 m³/(m²·h)
Manufacturing Service
Size range Width: 500–3000 mm Height: 500–3000 mm Customized size
Application Residential & Commercial High-rise, Villa, Apartment
Warranty 5 Years Excluding human damage
Certification CE, NFRC, AS2047, TITLE 24, AAMA ISO9001

detail

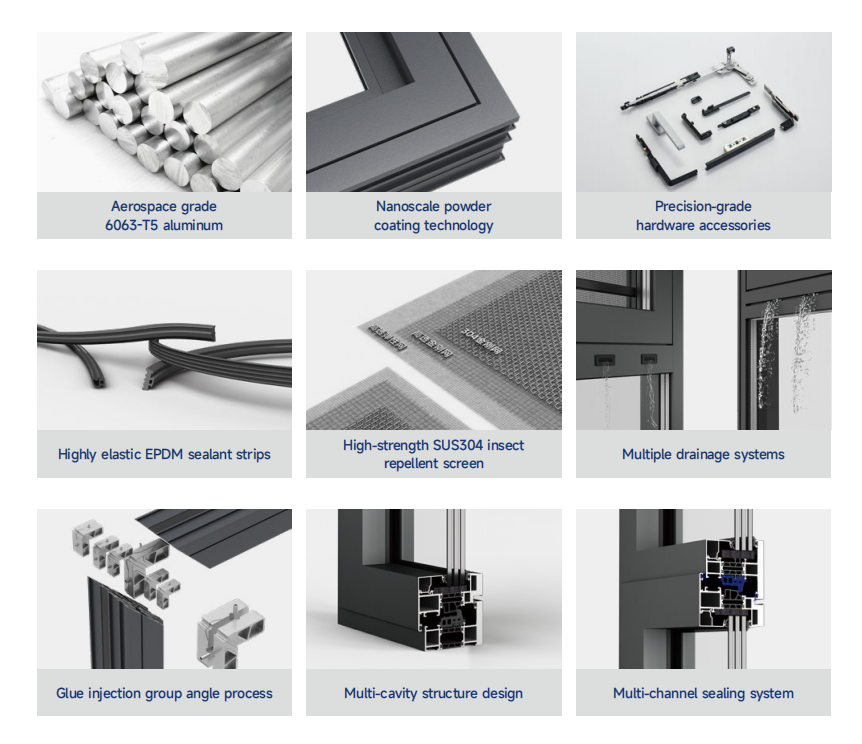

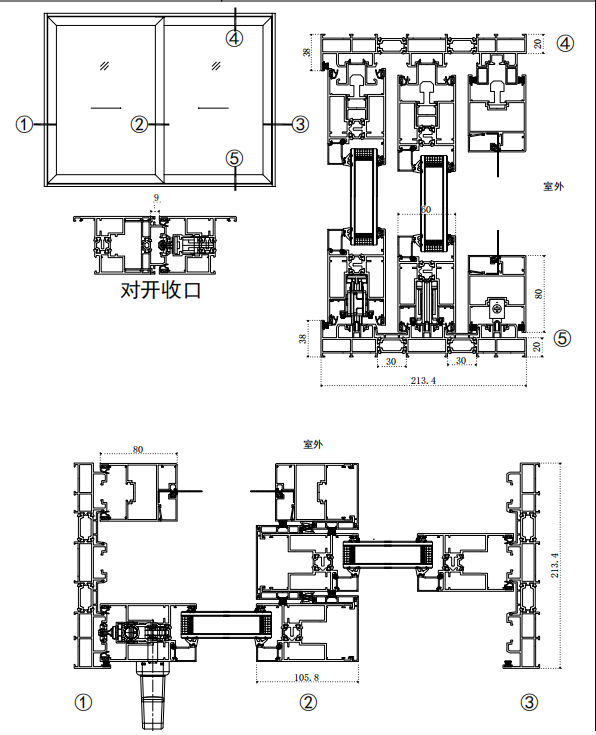

smart aluminium sliding doors specificationssmart aluminium sliding doorsaluminum sliding door detailed drawing
