Aluminum sliding glass door price philippines

This lift and slide doors are in black color and has pvc roll shutter inside double glasses.

Our aluminum lift and sliding doors are engineered for smooth movement, high load capacity, and reliable sealing. The system allows oversized glass panels to slide effortlessly while maintaining strong wind, water, and air tightness when closed. Suitable for residential and commercial projects, it delivers durability, comfort, and contemporary design.

series: 140 series thermal break

opening style: Lift and Sliding

Glass: 5mm+9A+5mm clear tempered glass

Color: white

Certification: NFRC, AAMA, CE, TITLE 24, AS2047

U-Factor  ≤ 0.3

SHGC ≤ 0.23

  • Item NO.:

    KDS-D-A-LS-002
  • Payment:

    L/C, T/T
  • Product Origin:

    China
  • Color:

    Customized
  • Shipping Port:

    XIAMEN
  • Lead Time:

    15-35 DAYS

Technical Specification – Aluminum Windows & Doors
Profile System
Classify Technical Parameter Other Options
Material 6063-T5 Aluminum Alloy 6063-T6
Structure Thermal break aluminum profile Non-thermal break
Profile thickness 1.6 mm 1.4 mm, 1.8 mm, 2.0 mm
Finish Powder coating PVDF coating, Anodizing, Wood grain transfer
Color White / Black / Grey Custom RAL colors
Glazing System
Glass type 5mm + 12A + 5mm Double Glazing Single glass, Triple glazing
Glass color Clear Tinted, Blue, Green, Grey
Gas filling Argon Air, Krypton
Special function Tempered glass Low-E, Laminated, Soundproof, Security glass
Hardware & Operation
Hardware brand Chinese top brand Roto, Siegenia, Kinlong
Main hardware Lock, handle, hinge, roller Heavy-duty hardware set
Locking system Multi-point locking system Single point, Crescent lock
Operation  Casement  Folding, Lift & Slide
Sealing EPDM gasket Silicone, PVC gasket
Performance Ratings
U-Factor ≤ 0.35 ≤ 0.28 with triple glass
SHGC ≤ 0.25 Low-E glass for better SHGC
Wind load ≥ 3000 Pa ≥ 4500 Pa
Water tightness ≥ 450 Pa ≥ 500 Pa
Air tightness ≤ 0.5 m³/(m²·h) ≤ 0.3 m³/(m²·h)
Manufacturing Service
Size range Width: 500–3000 mm Height: 500–3000 mm Customized size
Application Residential & Commercial High-rise, Villa, Apartment
Warranty 5 Years Excluding human damage
Certification CE, NFRC, AS2047, TITLE 24, AAMA ISO9001

detail

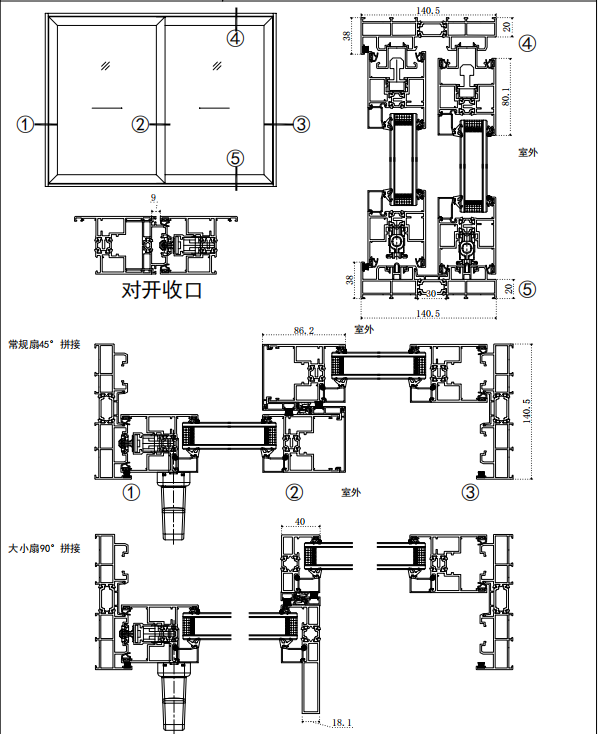

door aluminum glass specificationsaluminum sliding dooraluminum sliding door detailed drawing


After the aluminum alloy doors and windows are on the wall, wooden wedges must be used to adjust the positioning, and then fixed with shooting nails, pay attention to the use of nails, wooden wedges fixed.

The next is the caulking treatment, before caulking should please supervision unit (or construction unit) for concealed project acceptance (hydropower transformation and waterproof project, etc.) record, and check the verticality, levelness and diagonal angle of aluminum sliding glass door price philippines, after caulking wooden wedge should be removed in time, avoid forgetting in the seam.
