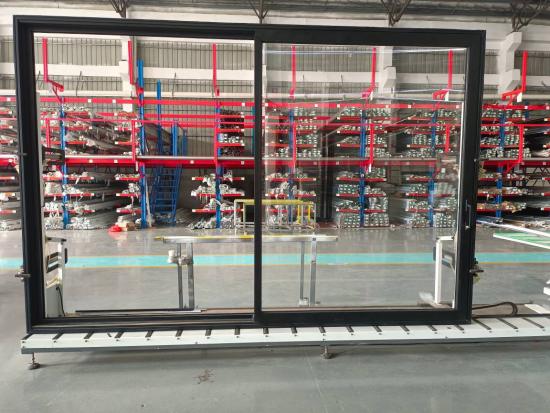

The lift and sliding door is crafted for projects requiring excellent energy performance and effortless handling of large, heavy glass panels. Using a unique lift-slide mechanism, the handle lifts the door off its seals before sliding, ensuring smooth movement with minimal resistance. providing top-level water tightness, air tightness, and security. Equipped with thermal-break aluminum profiles and double , the door delivers outstanding insulation and comfort in both warm and cold climates. Ideal for villas and luxury residences.
series: 80 series thermal break
opening style: lift and sliding
Glass: 3mm+12A+3mm clear tempered glass
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.23
Item NO.:
KDS-D-A-LS-001Payment:
DPProduct Origin:
ChinaColor:
BLACKShipping Port:
ChinaLead Time:
15-30days|
Product Series |
80 series aluminum thermal break lift and sliding door |
|
Profile type |
6063-T5 aluminum thermal break profile |
|
profile color |
black. other all RAL colors are available |
|
Profile finish |
powder coating. PVDF coating, anodizing, electrophorosis,heat transfer printing are available |
|
Glass type |
tempered.other like insulated, low-e, laminated, float, reflective are available |
|
Glass color |
Clear. other like frosted, grey, blue, green are available. |
|
Glass layer |
double glass. single glass(optional), triple glass(optional) |
|
Screen |
optional. fiberglass, stainless steel mesh, nylon are available. |
|
Grille |
optional. placed inside glass panels or stick glass surface |
|
Function |
Good insulation, water proof. wind resistant |
|
Parameter |
U-Factor ≤ 0.3 , SHGC ≤ 0.23 , Sound Insulation ≤ 36 db , Water Tightness ≥ 450 pa , Wind Resistance ≥ 4500 pa , Air Tightness ≤ 0.4 m3(㎡.h) |
|
Application |
villas and luxury residences. |

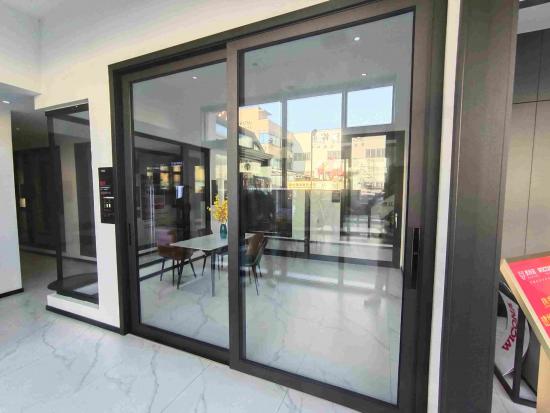

Opening style:

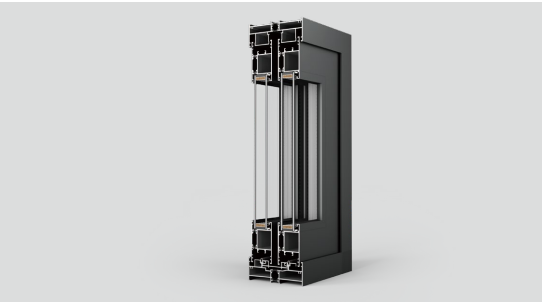

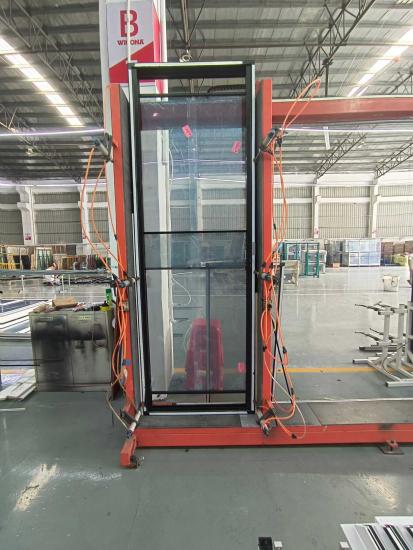

Detail:
Certification:

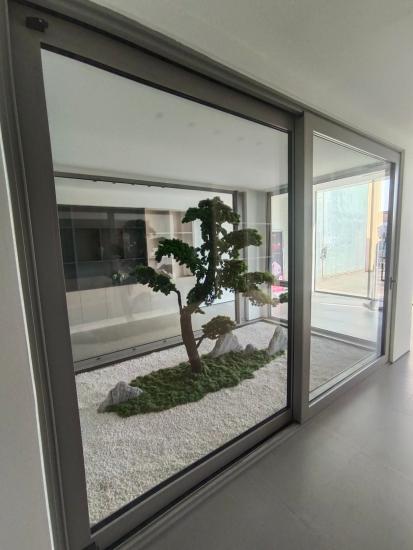

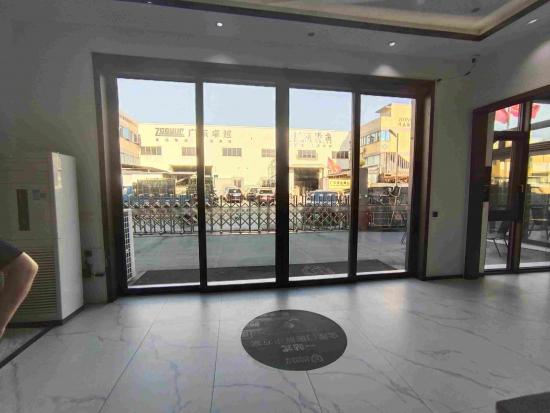

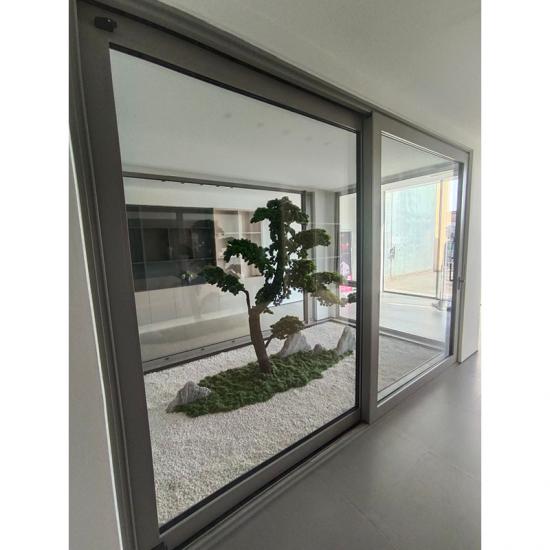

Project case:
FAQ:
Aluminum Glass Doors
Q1:What are the colors of your aluminum window and door profiles?
Normal Colors:White,Grey,Matt Black,Wood Grain,etc.AII RAL&Customized colors are avail-able.Please show us your needed colors.
Q2:What are the types of your window and door glasses?
1.Type:Tempered,Insulated,Laminated,Low-e,Float,Reflective,Bulle-proof,etc
2.Layer:Single /Double /Triplex Glasses for reducing summer heat load and winter heat loss.
3.Color:Clear (Transparent),Frosted,Grey,Blown,Green,Blue,etc
4.Thickness:4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
5.Insulated Glass Spacer:6A,9A,12A,15A,16A
Standard Insulated Glass:5mm+9A/12A+5mm,6mm+9A/12A+6mm with argon gas filled inside.
Standard Laminated Glass:5mm+0.38PVB+5mm,5mm+0.76PVB+5mm
6.Quality Standard:European standard CE,Australian standard AS2208,Chinese standard CCC.
Q3:What are the types of your window and door accessories?
1.Brand:German,American,Australian and Chinese Top Brands,etc
2.Accessories:handles,hinges,locks,rollers,inkage devices,etc.
Q4:What are the package types of your windows and doors?
1.Steps:
(1)Use air blow gun and thinner to clean products surface.
(2)Use Air bubble film/PE film/EPE foam to wrap products against sea water corrosion.
(3)Use craft paper /corrugated paper to protect product four corners.
(4)Load FCL Packing products into container directly.(Note:Use container lashing belt to fasten FCLpacking irregular goods.)
(5)Load LCL Packing products into plywood cases /iron pallets with packing belt,then into contain-er.(FCL:full container load;LCL:less than a container load)
2.List:Pallet list for each pallet of a large amount purchase,saving time for you to sort out eachwindow or door.
Q5:What is delivery time of your windows and doors?
Our goods are usually shipped by 20-50 workdays after payment. Different goods quantity means different delivery time. Please send your detailed windows and doors schedule to us, then we will con-firm the exact delivery time for you.
Q6:How can we install your windows and doors at our building side?
We can offer the detailed windows and doors installation drawing for you.We also have our professional installation team in Australia and Philippines who can help you if you need.
Q7:This is my first time to import windows and doors,how should I do?
We have 20 years exporting experience.In order to save both your time and money,we can serve you as follows.
1.We can direct a series of importing affairs for you.
2.We can supply you one-stop purchase service of various building materials if you need.
