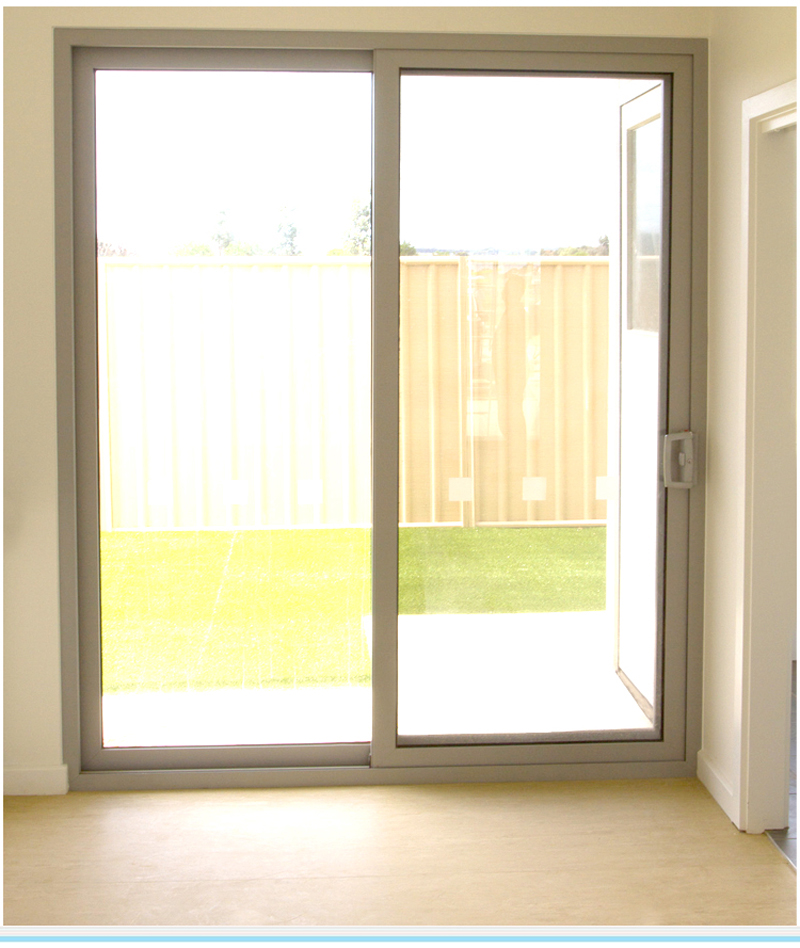

Aluminum sliding patio doors are used for lighting and heat insulation for home and shops and offices.
Aluminum sliding doors provide a smart solution for maximizing usable space. Their sturdy aluminum frames support large glass panels while maintaining stability and safety. Easy-glide tracks, weather-resistant seals, and customizable finishes make them a versatile choice for various architectural applications.
series: 60 series thermal break
opening style: sliding
Glass: 5mm+9A+5mm clear tempered glass
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.23
Item NO.:
KDS-D-A-S-B012Payment:
L/C,D/A,D/P,T/T,Western Union,MoneyGramMarket Price:
165Product Origin:
ChinaColor:
As shownShipping Port:
XIAMENLead Time:
15-25 DAYSOrder(MOQ):
1

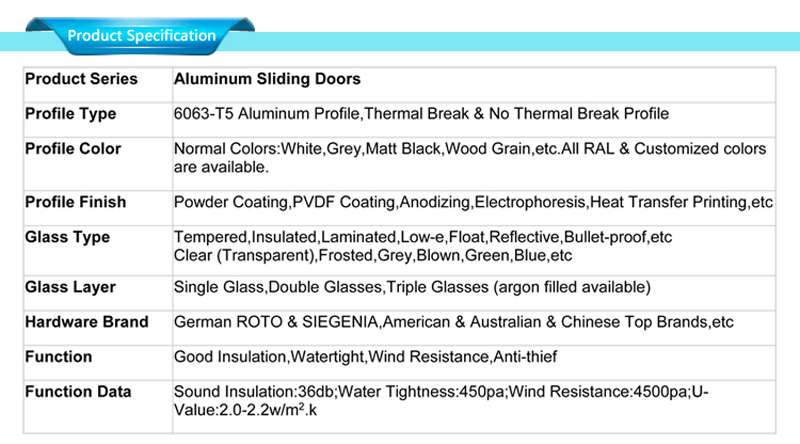

| Technical Specification – Aluminum Windows & Doors | ||
| Profile System | ||
| Classify | Technical Parameter | Other Options |
| Material | 6063-T5 Aluminum Alloy | 6063-T6 |

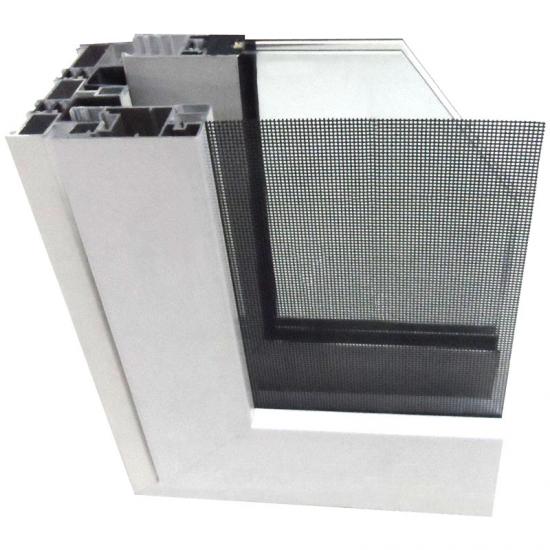

| Structure | Thermal break aluminum profile | Non-thermal break |
| Profile thickness | 1.6 mm | 1.4 mm, 1.8 mm, 2.0 mm |
| Finish | Powder coating | PVDF coating, Anodizing, Wood grain transfer |
| Color | White / Black / Grey | Custom RAL colors |
| Glazing System | ||
| Glass type | 5mm + 12A + 5mm Double Glazing | Single glass, Triple glazing |
| Glass color | Clear | Tinted, Blue, Green, Grey |
| Gas filling | Argon | Air, Krypton |
| Special function | Tempered glass | Low-E, Laminated, Soundproof, Security glass |
| Hardware & Operation | ||
| Hardware brand | Chinese top brand | Roto, Siegenia, Kinlong |

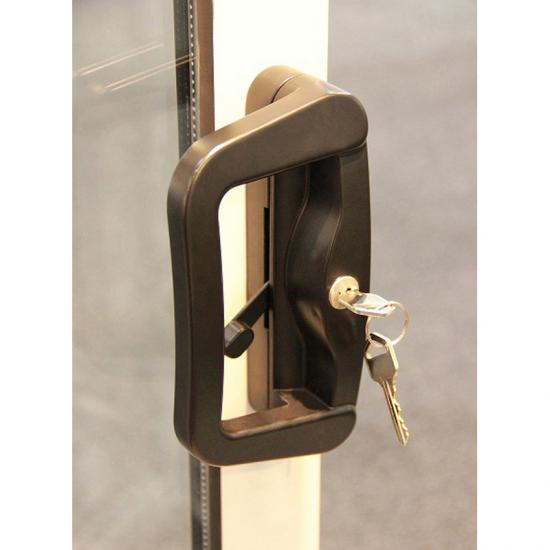

| Main hardware | Lock, handle, hinge, roller | Heavy-duty hardware set |

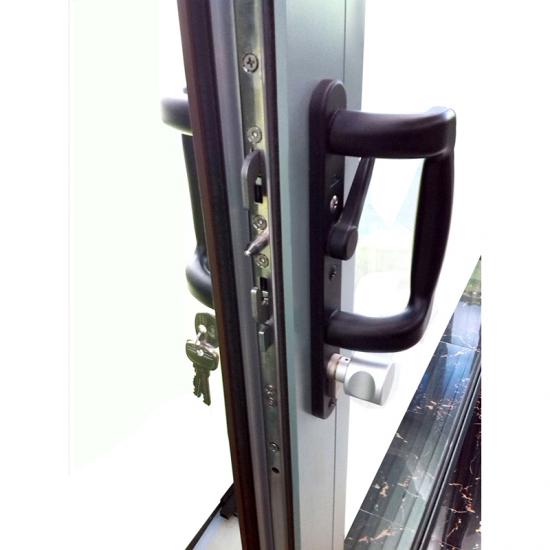

| Locking system | Multi-point locking system | Single point, Crescent lock |
| Operation | sliding | Folding, Lift & Slide |
| Sealing | EPDM gasket | Silicone, PVC gasket |
| Performance Ratings | ||
| U-Factor | ≤ 0.35 | ≤ 0.28 with triple glass |
| SHGC | ≤ 0.25 | Low-E glass for better SHGC |
| Wind load | ≥ 3000 Pa | ≥ 4500 Pa |
| Water tightness | ≥ 450 Pa | ≥ 500 Pa |
| Air tightness | ≤ 0.5 m³/(m²·h) | ≤ 0.3 m³/(m²·h) |
| Manufacturing Service | ||
| Size range | Width: 500–3000 mm Height: 500–3000 mm | Customized size |
| Application | Residential & Commercial | High-rise, Villa, Apartment |
| Warranty | 5 Years | Excluding human damage |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA | ISO9001 |
product detail
Profile strength: the tensile strength of good doors and windows should reach 157 n/m2 and yield strength is required to reach 108 n/m2. When aluminium door sliding of aluminium alloy of storefront choose and buy, owner people can use hand moderate bend profile, after letting go should be able to answer undisturbed state.
Surface chroma: good profile of aluminium alloy door window is same colour and lustre of aluminium alloy profile should be consistent, if chromatic aberration is very obvious, unfavorable choose and buy.
