Office glass blind door adopt elegant and innovative way to enlarge the feel of any room and to connect the inside with the outside scene.

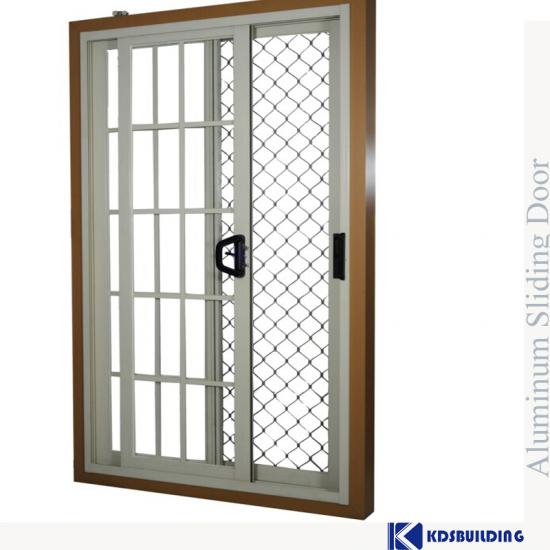

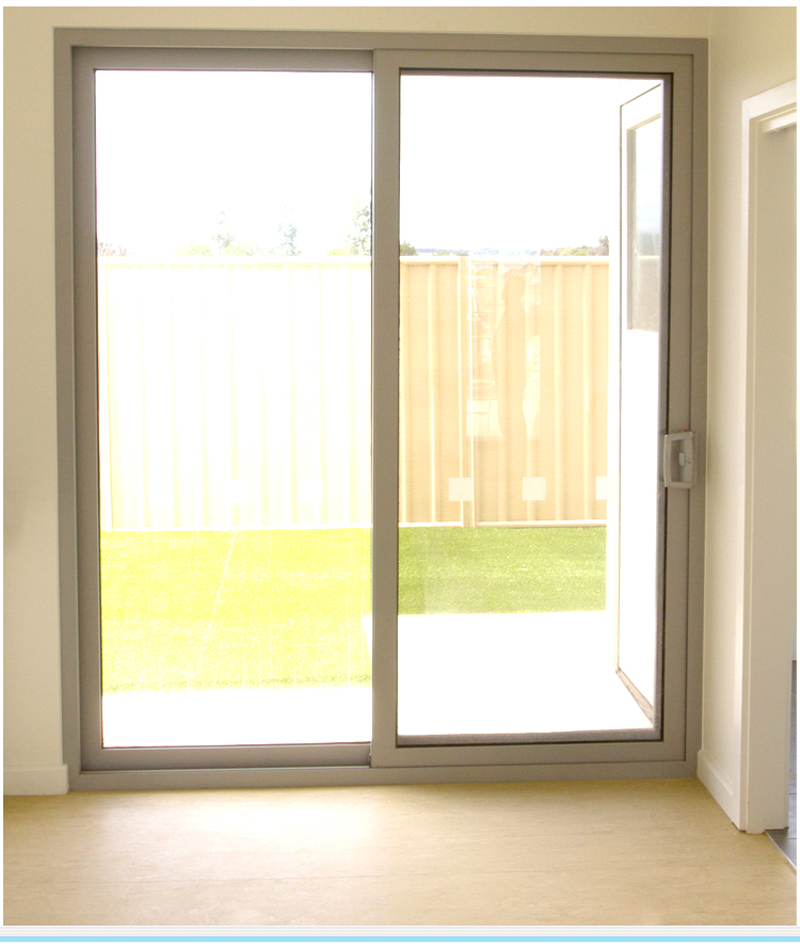

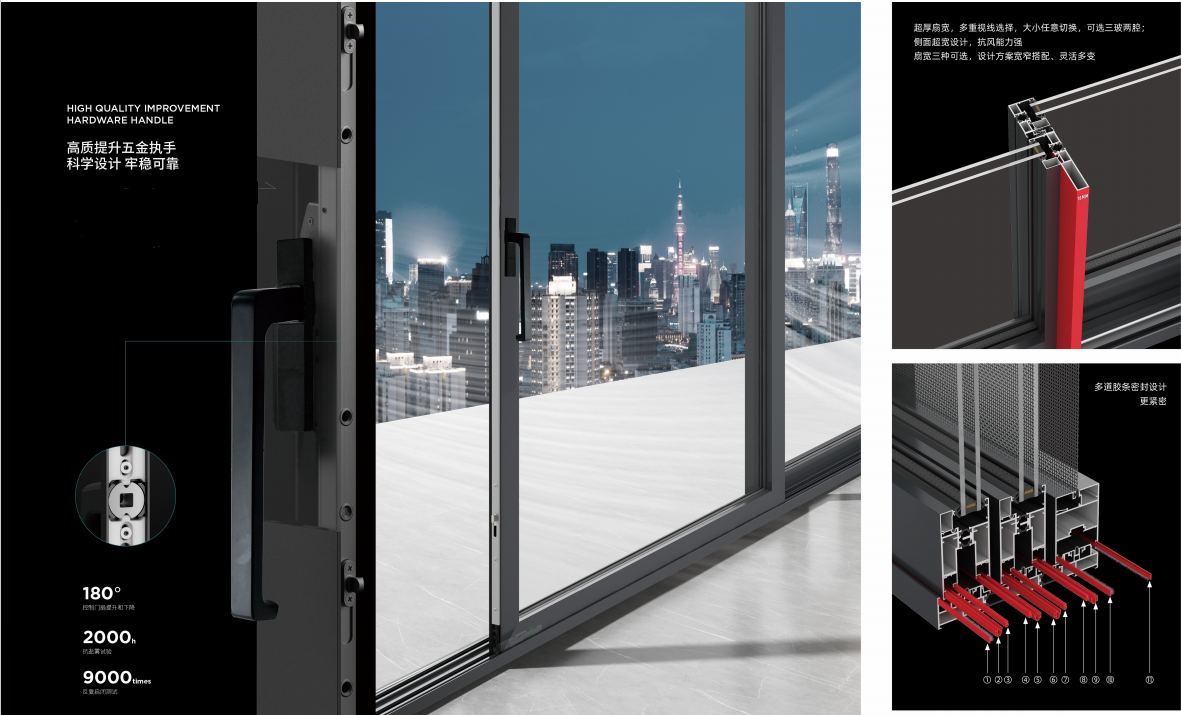

This aluminum sliding door system is built for smooth performance and lasting durability. The aluminum profile resists corrosion and deformation, while precision rollers ensure quiet sliding. Suitable for balconies, terraces, and commercial entrances, it offers a clean appearance and reliable functionality.
series: 60 series thermal break
opening style: sliding
Glass: 5mm+9A+5mm clear tempered glass
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.23
Item NO.:
KDS-D-A-S-027Payment:
L/C,D/A,D/P,T/T,Western Union,MoneyGramMarket Price:
165Product Origin:
ChinaColor:
As shownShipping Port:
XIAMENLead Time:
15-25 DAYSOrder(MOQ):
1

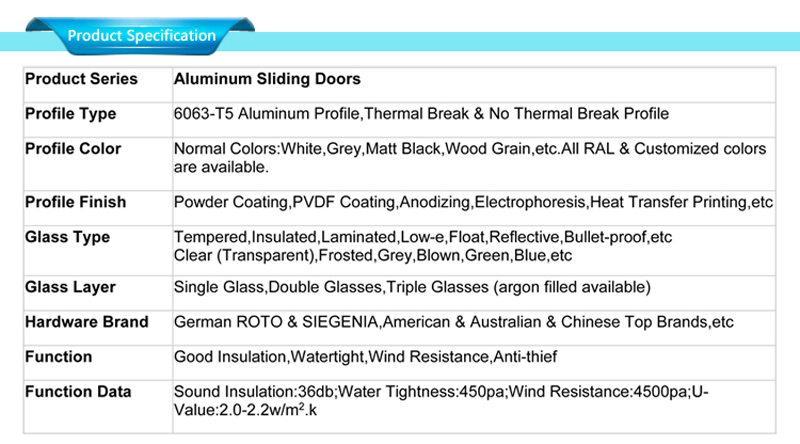

| Technical Specification – Aluminum Windows & Doors | ||
| Profile System | ||
| Classify | Technical Parameter | Other Options |
| Material | 6063-T5 Aluminum Alloy | 6063-T6 |

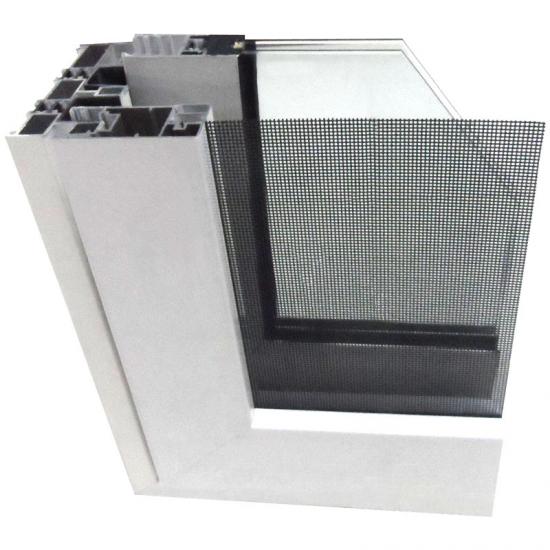

| Structure | Thermal break aluminum profile | Non-thermal break |
| Profile thickness | 1.6 mm | 1.4 mm, 1.8 mm, 2.0 mm |
| Finish | Powder coating | PVDF coating, Anodizing, Wood grain transfer |
| Color | White / Black / Grey | Custom RAL colors |
| Glazing System | ||
| Glass type | 5mm + 12A + 5mm Double Glazing | Single glass, Triple glazing |
| Glass color | Clear | Tinted, Blue, Green, Grey |
| Gas filling | Argon | Air, Krypton |
| Special function | Tempered glass | Low-E, Laminated, Soundproof, Security glass |
| Hardware & Operation | ||
| Hardware brand | Chinese top brand | Roto, Siegenia, Kinlong |

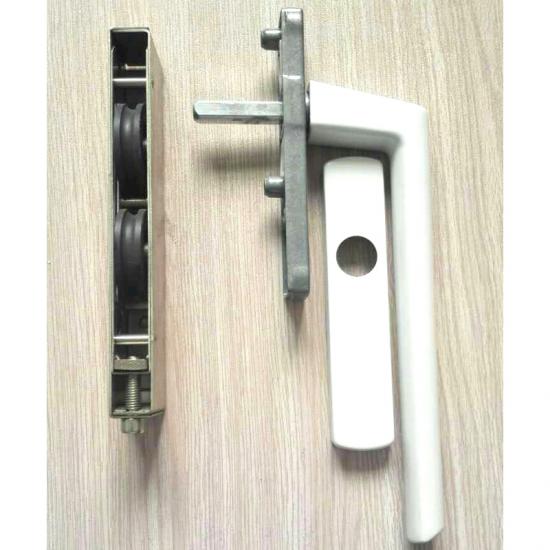

| Main hardware | Lock, handle, hinge, roller | Heavy-duty hardware set |

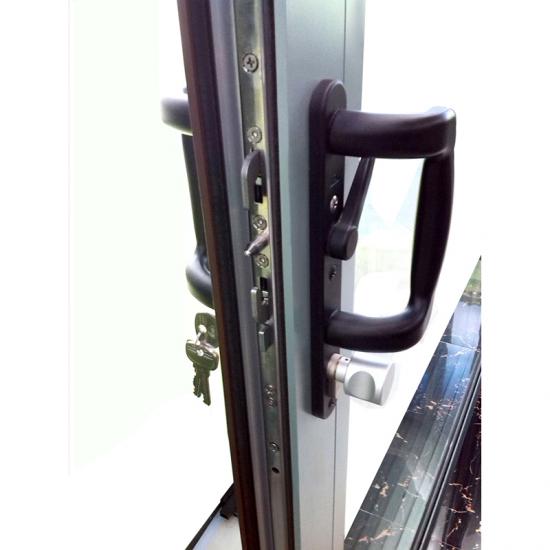

| Locking system | Multi-point locking system | Single point, Crescent lock |
| Operation | sliding | Folding, Lift & Slide |
| Sealing | EPDM gasket | Silicone, PVC gasket |
| Performance Ratings | ||
| U-Factor | ≤ 0.35 | ≤ 0.28 with triple glass |
| SHGC | ≤ 0.25 | Low-E glass for better SHGC |
| Wind load | ≥ 3000 Pa | ≥ 4500 Pa |
| Water tightness | ≥ 450 Pa | ≥ 500 Pa |
| Air tightness | ≤ 0.5 m³/(m²·h) | ≤ 0.3 m³/(m²·h) |
| Manufacturing Service | ||
| Size range | Width: 500–3000 mm Height: 500–3000 mm | Customized size |
| Application | Residential & Commercial | High-rise, Villa, Apartment |
| Warranty | 5 Years | Excluding human damage |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA | ISO9001 |
product detail
The market of aluminium alloy door window is bigger and bigger now, aluminium kitchen door designs is used on a lot of buildings, say to should learn how to judge material of aluminium alloy door window as a shrewd consumer so stand or fall, how to judge the stand or fall of aluminium alloy door window shrewdly.

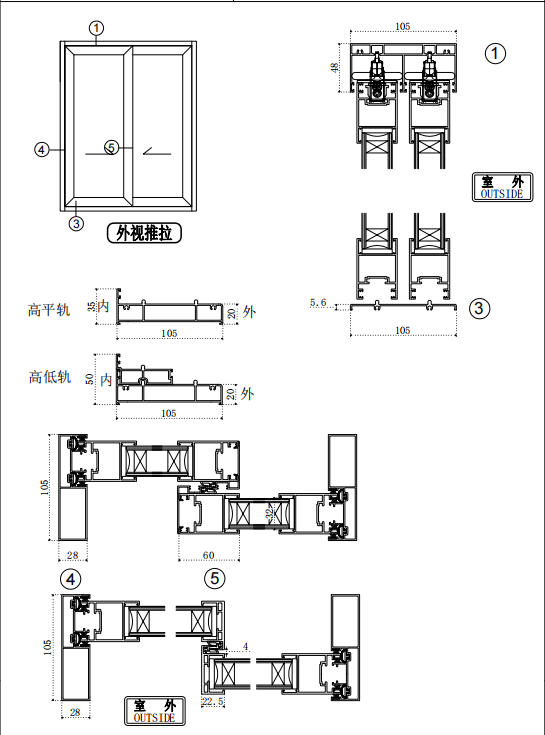

Profile thickness: aluminum alloy sliding door has 70 series, 90 series commonly two kinds, the aluminum alloy sliding door of residential interior uses 70 series to be ok.
The series number of doors and windows indicates the number of millimeters in the thickness of the door frame.
Aluminum alloy sliding Windows used as closed balconies should not be less than 70 series.
