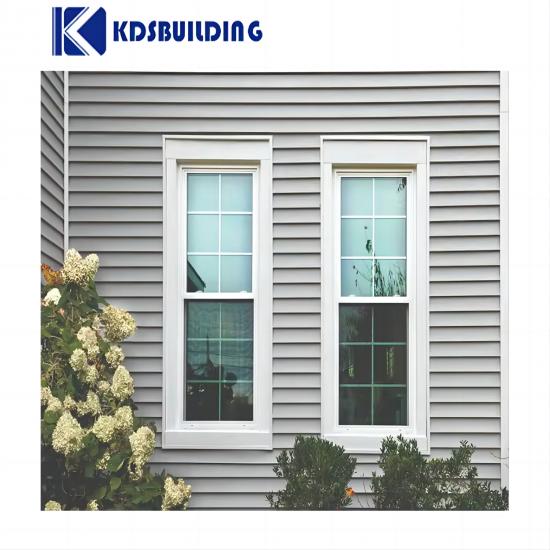

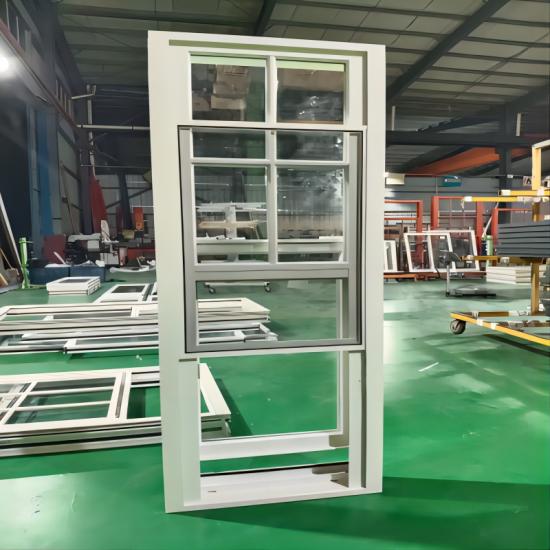

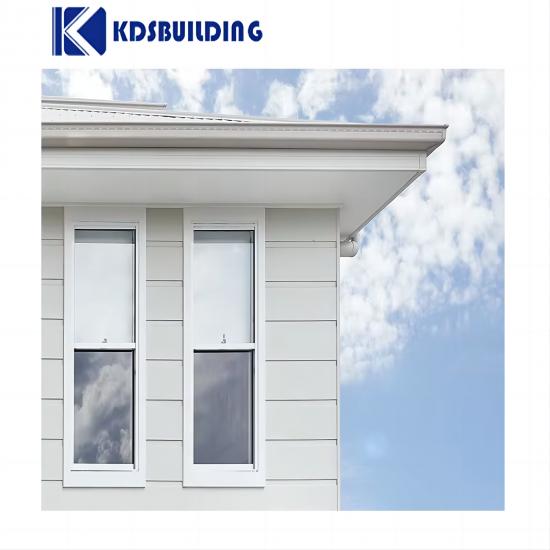

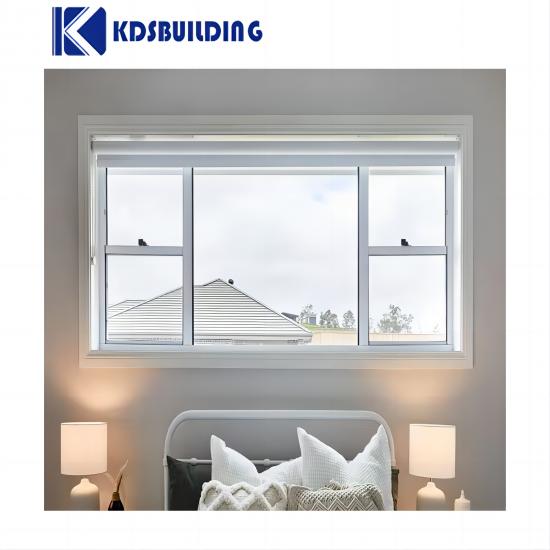

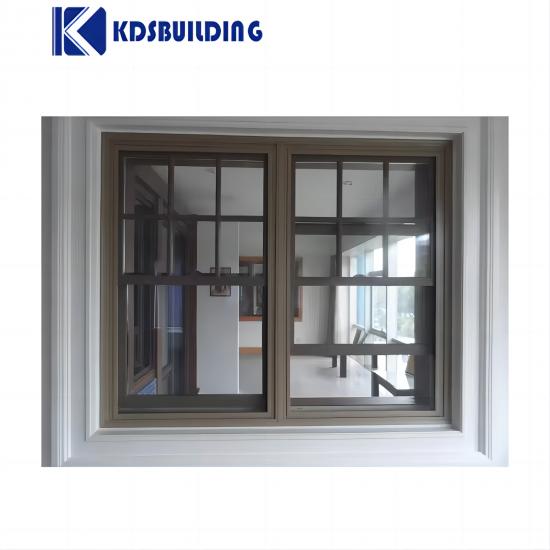

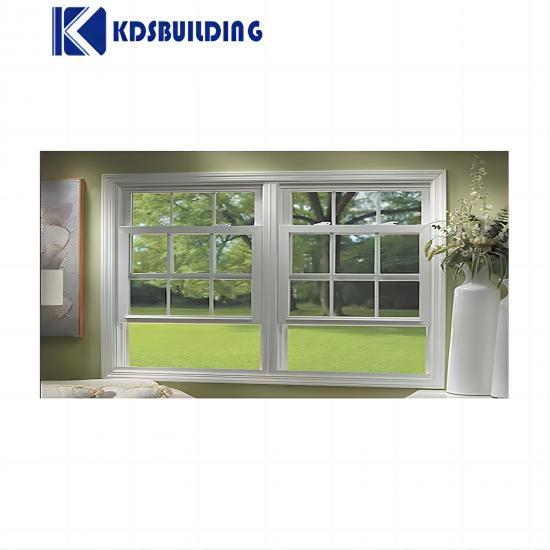

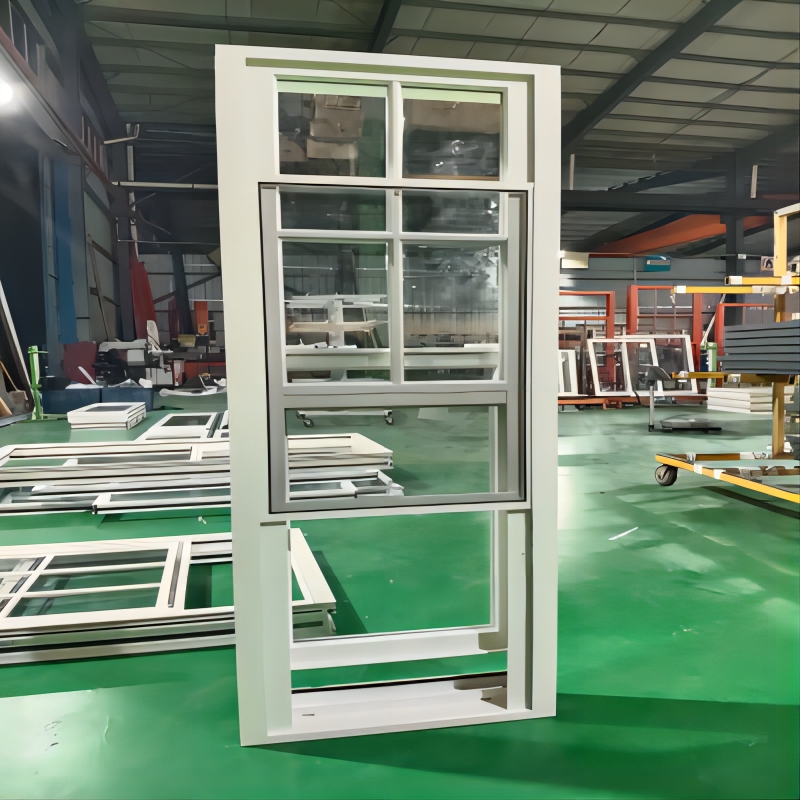

Designed for practicality and performance, aluminum double hung windows allow efficient airflow without protruding outward. The strong aluminum construction resists corrosion and deformation, making it suitable for various climates. With optional insulated glazing, these windows also contribute to improved thermal and acoustic performance.

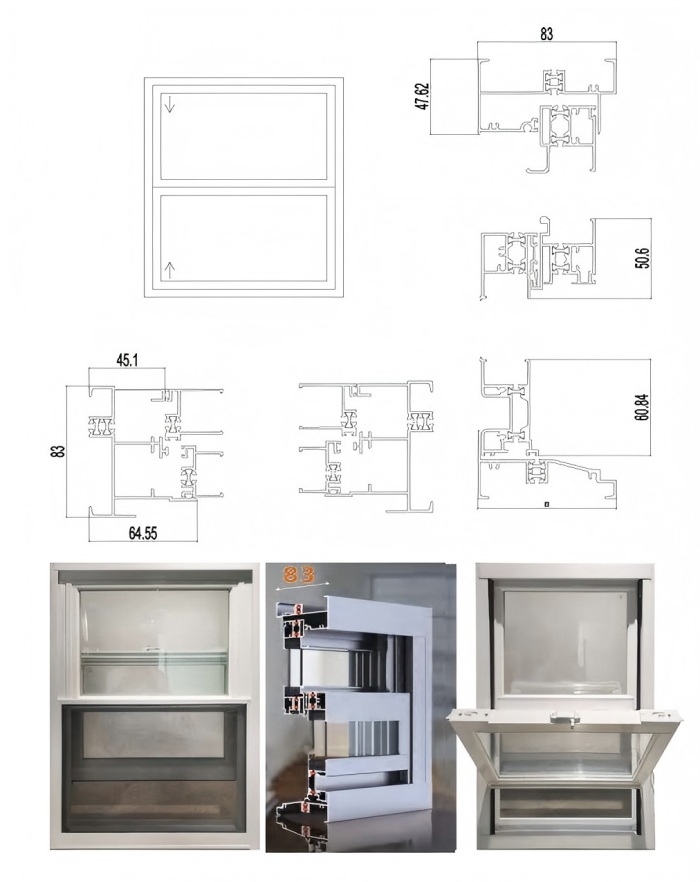

series: 83 series thermal break
opening style: Double Hung and Inward Tilt
Glass: 5mm+9A+5mm clear tempered glass
Color: white
Certification: NFRC, AAMA, CE, TITLE 24, AS2047
U-Factor ≤ 0.3
SHGC ≤ 0.23
Item NO.:
KDS-W-A-H-010Payment:
TTprice:
$80/Square meterProduct Origin:
ChinaColor:
RAL colorShipping Port:
ChinaLead Time:
15-30daysOrder(MOQ):
1m2
| Technical Specification – Aluminum Windows & Doors | ||
| Profile System | ||
| Classify | Technical Parameter | Other Options |
| Material | 6063-T5 Aluminum Alloy | 6063-T6 |
| Structure | Thermal break aluminum profile | Non-thermal break |
| Profile thickness | 1.6 mm | 1.4 mm, 1.8 mm, 2.0 mm |
| Finish | Powder coating | PVDF coating, Anodizing, Wood grain transfer |
| Color | White / Black / Grey | Custom RAL colors |
| Glazing System | ||
| Glass type | 5mm + 12A + 5mm Double Glazing | Single glass, Triple glazing |
| Glass color | Clear | Tinted, Blue, Green, Grey |
| Gas filling | Argon | Air, Krypton |
| Special function | Tempered glass | Low-E, Laminated, Soundproof, Security glass |
| Hardware & Operation | ||
| Hardware brand | Chinese top brand | Roto, Siegenia, Kinlong |
| Main hardware | Lock, handle, hinge, roller | Heavy-duty hardware set |
| Locking system | Multi-point locking system | Single point, Crescent lock |
| Operation | Sliding / Casement / Tilt & Turn/awning/single&double hung | Folding, Lift & Slide,fixed |
| Sealing | EPDM gasket | Silicone, PVC gasket |
| Performance Ratings | ||
| U-Factor | ≤ 0.35 | ≤ 0.28 with triple glass |
| SHGC | ≤ 0.25 | Low-E glass for better SHGC |
| Wind load | ≥ 3000 Pa | ≥ 4500 Pa |
| Water tightness | ≥ 450 Pa | ≥ 500 Pa |
| Air tightness | ≤ 0.5 m³/(m²·h) | ≤ 0.3 m³/(m²·h) |
| Manufacturing Service | ||
| Size range | Width: 500–3000 mm Height: 500–3000 mm | Customized size |
| Application | Residential & Commercial | High-rise, Villa, Apartment |
| Warranty | 5 Years | Excluding human damage |
| Certification | CE, NFRC, AS2047, TITLE 24, AAMA | ISO9001 |
Advantages of VERTICAL sliding windows
Exquisite facade, reasonable opening and ventilation methodsTraditional European VERTICAL sliding windows open left and right, while sliding windows open vertically up and down. Normally, whether it is a sliding window or a sliding window, the opening area will not exceed 1/2, but after changing from sliding left and right to lifting up and down, not only is the opening method more scientific and reasonable, but the human comfort is also greatly improved. Because, in my country's building openings, the height from the ground is generally 900-1000mm. If the height of the sliding window is designed to be 1600-1800mm, the opening height of 1/2 is 800-900mm, which is close to the height of the human body, and the ventilation and comfort are greatly enhanced.
FAQ
Aluminum Glass Windows And Doors
Q1:What are the colors of your aluminum window and door profiles?
Normal Colors:White,Grey,Matt Black,Wood Grain,etc.AII RAL&Customized colors are available.Please show us your needed colors.
Q2:What are the types of your window and door glasses?
1.Type:Tempered,Insulated,Laminated,Low-e,Float,Reflective,Bullet proof,etc
2.Layer:Single /Double /Triplex Glasses for reducing summer heat load and winter heat loss.
3.Color:Clear (Transparent),Frosted,Grey,Blown,Green,Blue,etc
4.Thickness:4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
5.Insulated Glass Spacer:6A,9A,12A,15A,16A
Standard Insulated Glass:5mm+9A/12A+5mm,6mm+9A/12A+6mm with argon gas filled inside.
Standard Laminated Glass:5mm+0.38PVB+5mm,5mm+0.76PVB+5mm
6.Quality Standard:European standard CE,Australian standard AS2208,Chinese standard CCC.
Q3:What are the types of your window and door accessories?
1.Brand:German,American,Australian and Chinese Top Brands,etc
2.Accessories:handles,hinges,locks,rollers,in cage devices,etc.
Q4:What are the package types of your windows and doors?
1.Steps:
(1)Use air blow gun and thinner to clean products surface.
(2)Use Air bubble film/PE film/EPE foam to wrap products against sea water corrosion.
(3)Use craft paper /corrugated paper to protect product four corners.
(4)Load FCL Packing products into container directly.(Note:Use container lashing belt to fasten FCL packing irregular goods.)
(5)Load LCL Packing products into plywood cases /iron pallets with packing belt,then into contain-er.(FCL:full container load;LCL:less than a container load)
2.List:Pallet list for each pallet of a large amount purchase,saving time for you to sort out each window or door.
Q5:What is delivery time of your windows and doors?
Our goods are usually shipped by 20-50 workdays after payment.Different goods quantity means different delivery time.Please send your detailed windows and doors schedule to us,then we will con-firm the exact delivery time for you.
Q6:How can we install your windows and doors at our building side?
We can offer the detailed windows and doors installation drawing for you.We also have our professional installation team in Australia and Philippines who can help you if you need.
Q7:This is my first time to import windows and doors,how should I do?
We have 20 years exporting experience.In order to save both your time and money,we can serve you as follows.
1.We can direct a series of importing affairs for you.
2.We can supply you one-stop purchase service of various building materials if you need.
